3D Model of Booster Compressor Station for Gas Condensate Fields 3D model
thumbnail
thumbnail
thumbnail
thumbnail
thumbnail
DESCRIPTION

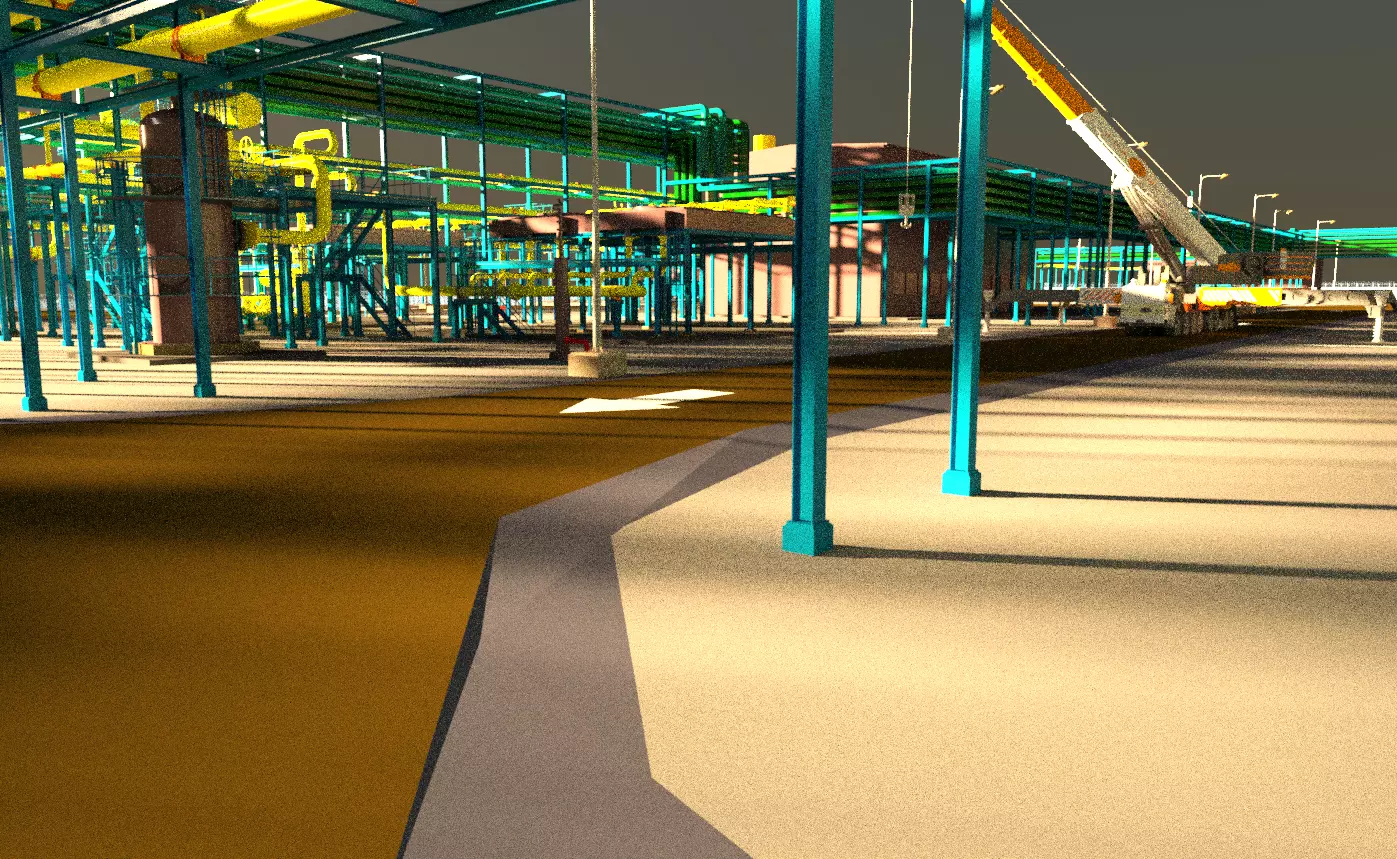

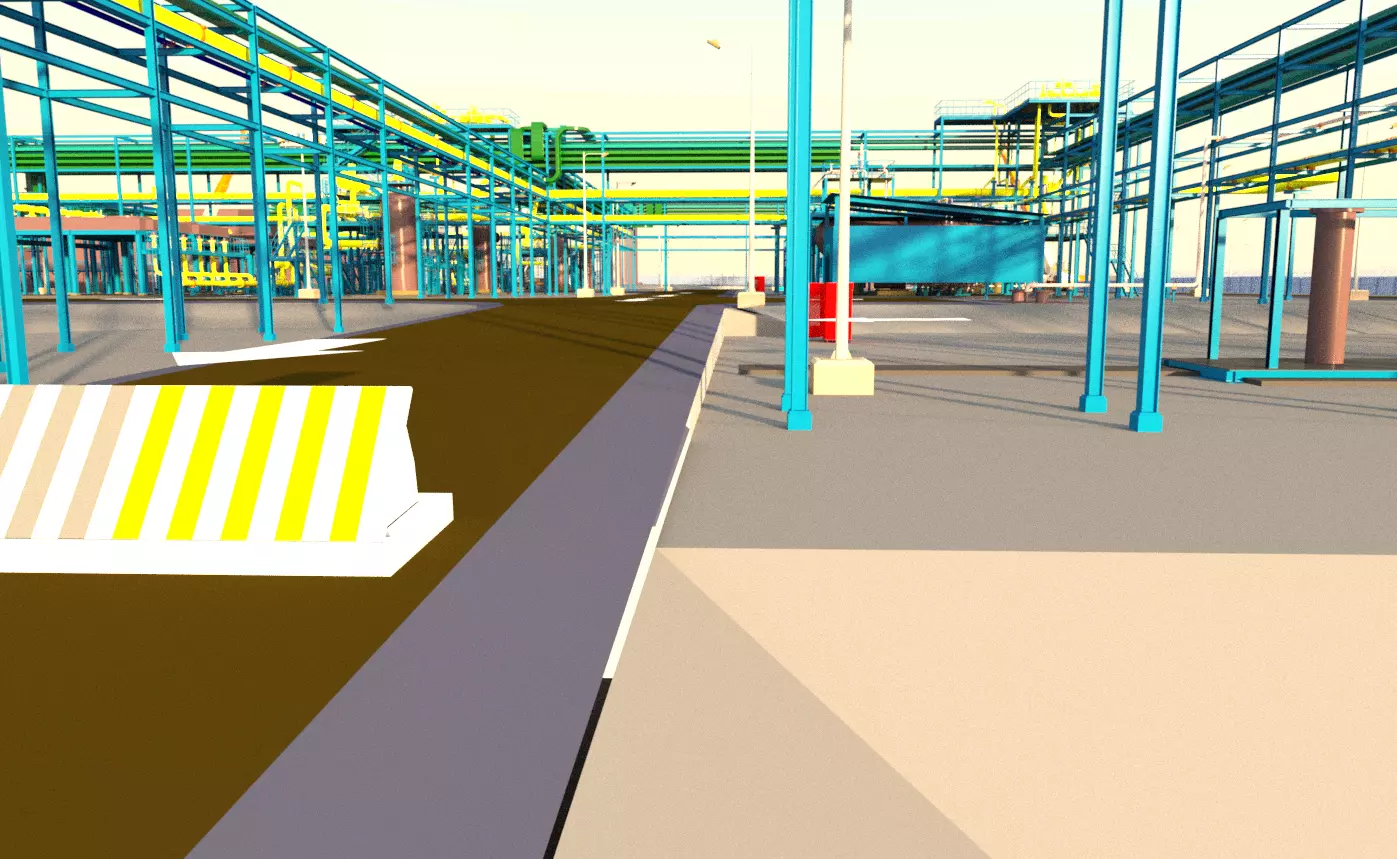

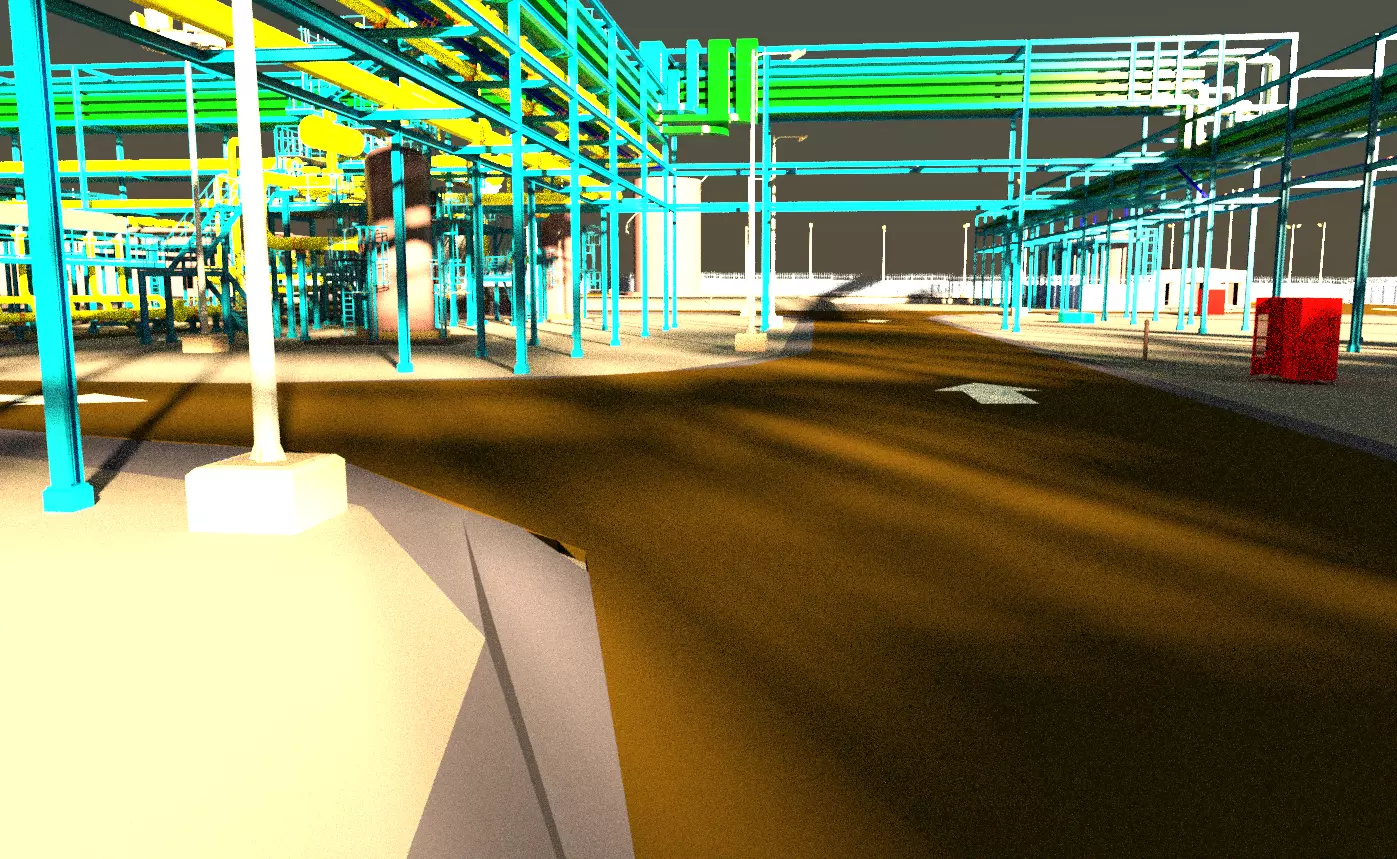

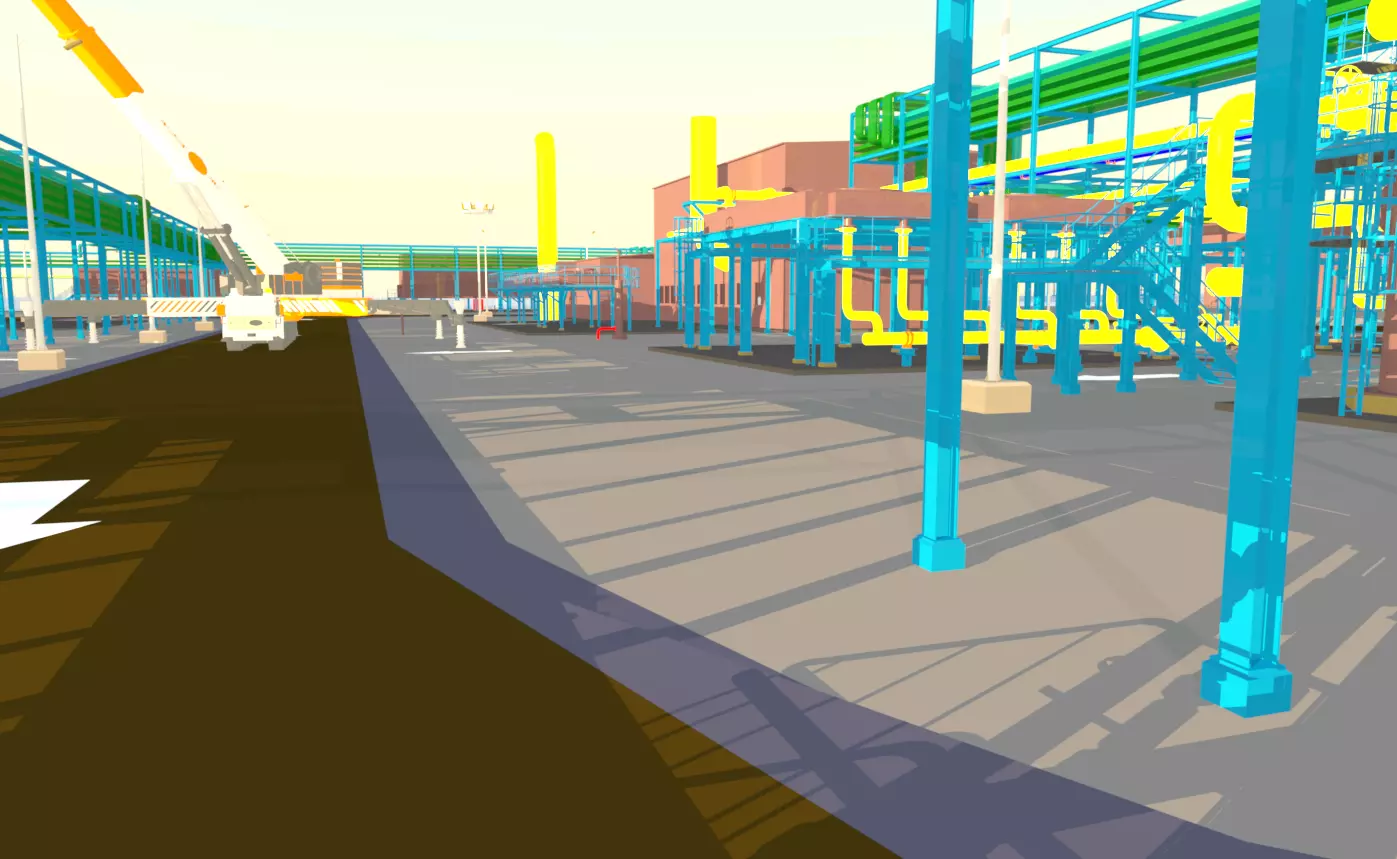

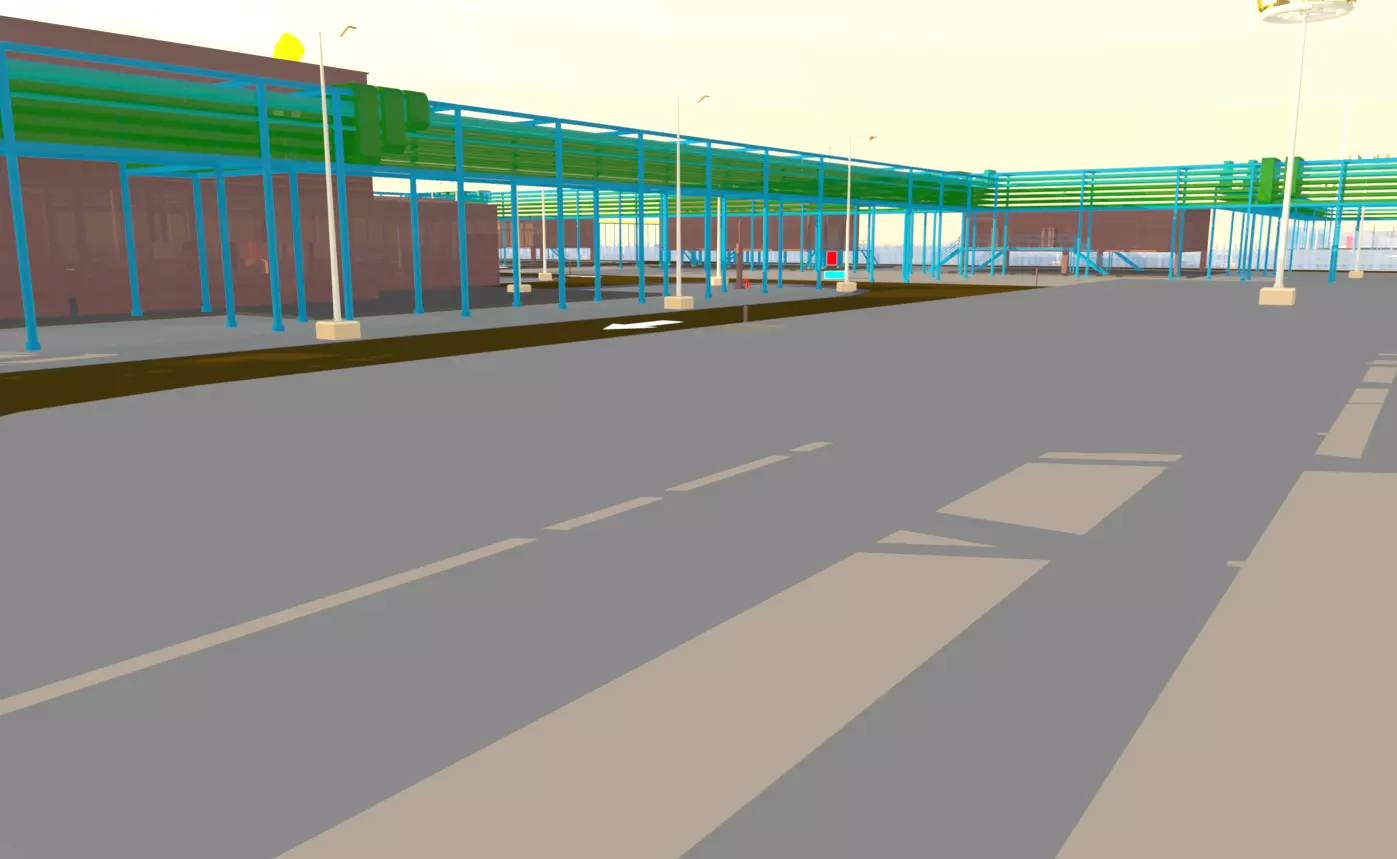

This is a highly detailed 3D model of a Booster Compressor Station and Gas Treatment Plant developed in AVEVA E3D, representing a real-world industrial project.

The model is based on the Adamtash, Gumbulak, and Djarkuduk–Yangi Kizilcha Gas Condensate Fields Development Project (Uzbekistan) and includes:

  • Compressor Station Layout with interconnected piping systems
  • Gas Processing & Treatment Units
  • Flare, Condensate & Separation Systems
  • Piping Stress Considerations (modeled per ASME B31.3)
  • Accurate Pipe Routing, Supports, and Equipment Layout
  • Detailed Plant Arrangement for visualization, engineering studies, training, and simulation

Key Features:

  • Developed in AVEVA E3D
  • ️ Accurate industrial-scale piping & equipment layout
  • ️ Includes compressor, inlet separation, flare, and condensate systems
  • ️ Optimized for engineering visualization, project planning, or academic purposes
  • ️ Suitable for presentations, training, or 3D animations

Note: This model is for visualization and educational/reference use only. It is not intended for direct construction or fabrication purposes.
