Wall Cabinet Set 3 Revit Families Bundle 3D model

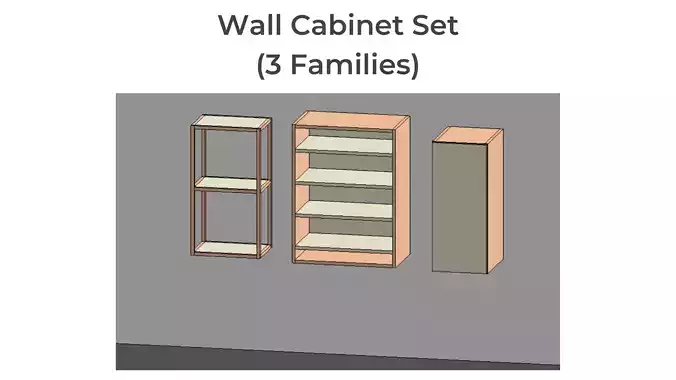

This Revit bundle includes 3 fully parametric kitchen cabinet families, designed for modular use in residential or commercial interiors. Each family offers flexible sizing, shelf and door customisation, and independent material control – giving you everything you need to build out a complete kitchen, office layout, or storage spacing quickly and cleanly.

What’s Included (3 families):

• Wall Frame Storage with 2 Shelves
• Wall Cabinet Frame With Shelves
• Wall Cabinet With Shelves and 2 Door Style

Key Features:

• Adjustable width, height, depth for all families
• Wall mount height control for wall cabinets
• Shelves positions are customisable or can be turned off
• Optional doors in two styles: plain or recessed. Can be turned off
• Independent thickness controls for panels, doors, shelves, and back panels
• Material overrides for each component
• Toggle visibility for symbolic lines and back panels
• Designed for efficiency – lightweight and easy to use

Why This Family?

• Built from scratch using Revit best practices
• Clean, professional naming and organisation
• No cleanup required – just load and use
• Easy to edit – well-organised reference planes and tooltips
• Each family includes a simple user guide for quick setup

Compatibility & Details:

• Formats: .RFA (Revit Family)
• Family File Sizes:
  • Wall Frame Storage with 2 Shelves: 976 KB
  • Wall Cabinet Frame With Shelves: 928 KB
  • Wall Cabinet With Shelves and 2 Door Style: 795 MB
• Adjustable Sizes: All dimensions are modifiable
• Revit Version: Created in Revit 2025 – NOT compatible with older versions
• Intended Use: Residential and commercial kitchen or interior design projects
