7Bit Gray Code Selector

7Bit Gray Code Selector Free 3D model

Description

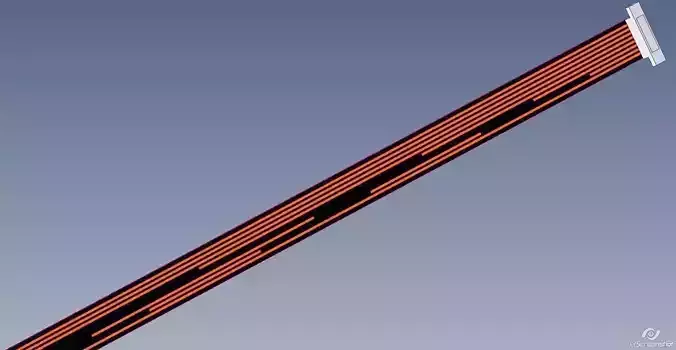

A selector that uses 7Bit Gray Code encoder to sense where the slider is at. With the increments being 250mm (or .25m) per position. The black portion of the encoder is non-conductive potting compound. The third screen shot shows the copper plate that's been machined to form the gray code which is read by the roller slide.
