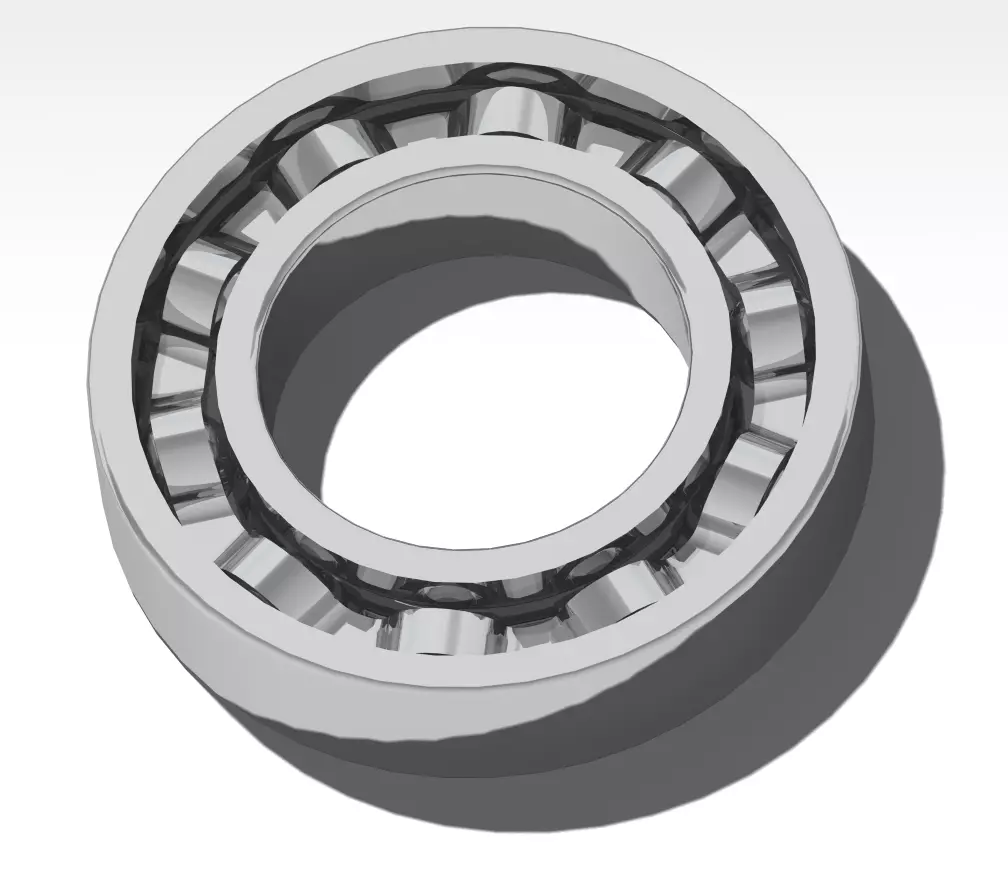

Ball Bearing 6210 Deep Groove 62 Series 50x90x20 mm CAD Model 3D print model

This is a 3D CAD model of a deep groove ball bearing 6210, part of the 62 Series, commonly used in electric motors, gearboxes, pumps, and various industrial applications.

Dimensions:

• Inner diameter (d): 50 mm
• Outer diameter (D): 90 mm
• Width (B): 20 mm
• Radius (r): 1.1 mm
• Ball size: 12.7 mm
• Number of balls: 10

Based on standard specifications for 6210 bearings. The model is made in CATIA and includes STEP and IGES formats for maximum compatibility with other CAD software.

Ideal for:

• Mechanical design
• Engineering simulations
• Product visualization
• Educational purposes

Available formats:

• .CATPart (CATIA V5)
• .STEP
• .IGES

Includes native and neutral CAD formats. Geometry is clean, parametric, and dimensionally accurate.

Note: This model does not include textures or animation. It is intended for CAD use, not for 3D printing or rendering.
