About the Collection

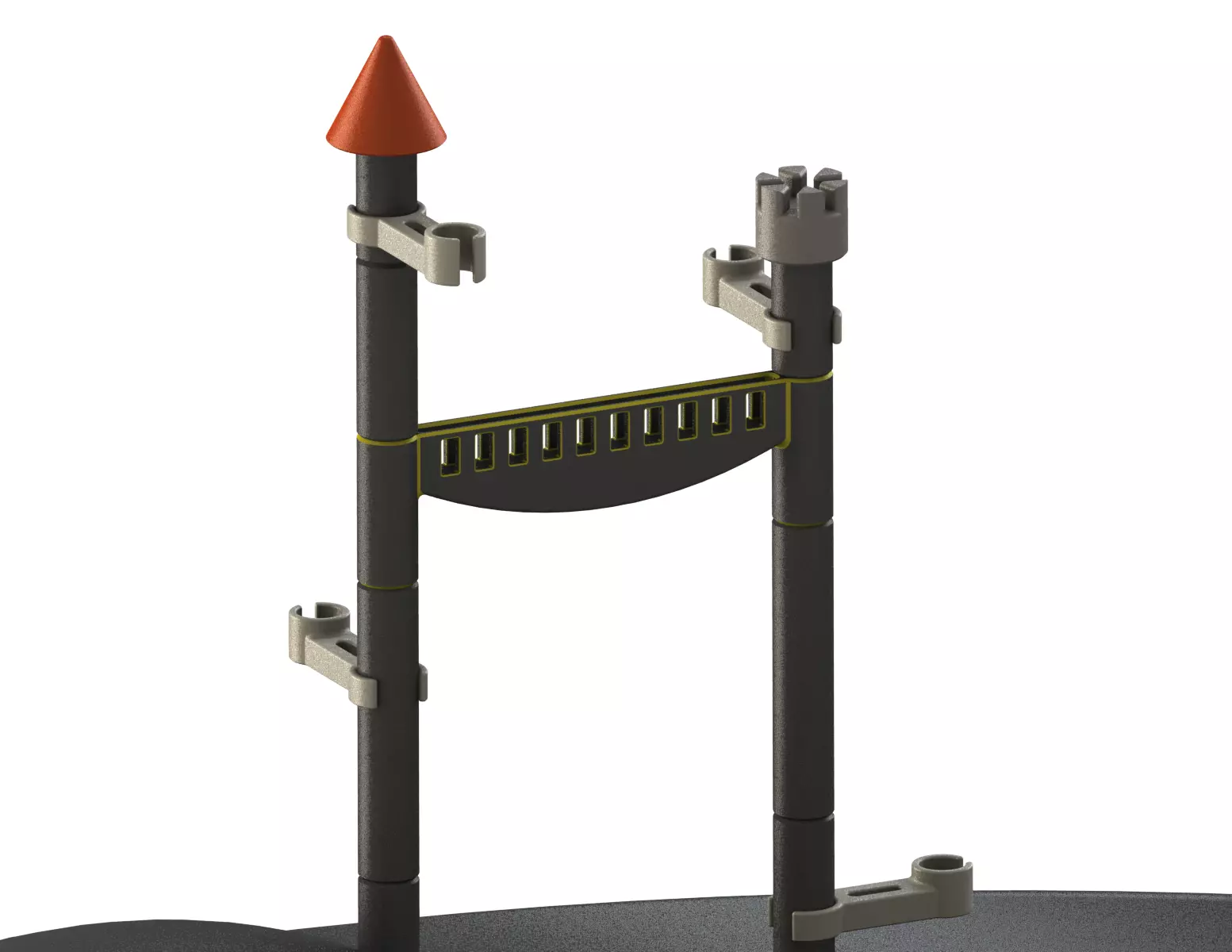

Elevate your gardening experience with this professional-grade modular support system. This comprehensive set includes everything from high-stability ground spikes to adaptive extension arms and decorative finials. Designed for both indoor and outdoor use, this collection combines structural integrity with a clean, industrial aesthetic.
Each component has been professionally engineered in SolidWorks to ensure precise geometry, mechanical stability, and a premium tactile feel. The system is fully scalable, allowing you to build custom supports tailored to the specific height and growth patterns of your plants.
What is Included:
Standard (50 mm): Optimized for indoor pots, small herbs, or firm, compact soil.
Heavy-Duty (100 mm): Designed for tall modular setups, loose garden soil, and high wind loads to prevent leaning.
Modular Heights: Includes a series of vertical modules in lengths of 50, 60, 70, 80, 90, and 100 mm.
Threaded Connection: Features M10x2 threads specifically optimized for 3D printing, ensuring seamless and secure vertical stacking.
Precision Fit: Engineered with a 19.8 mm internal diameter to provide a secure 0.2 mm interference fit on the 20 mm rods.
Advanced Geometry: Features a central oblong cutout to reduce stress concentrations and provide convenient tie-off points for plants.
Technical Refinement: Includes 1 mm bottom chamfers to eliminate elephant's foot and smooth top fillets for an ergonomic finish.
Variable Spans: Includes three horizontal bridges with center-to-center distances of 100 mm, 150 mm, and 190 mm.
Print-Bed Friendly: A maximum edge-to-edge width of 210 mm ensures compatibility with all standard 3D printers (220 x 220 mm).
The Rook Tower: A classic chess-inspired finial for a sophisticated, architectural look.
Classic Cone Cap: A sleek, minimalist cap designed to protect internal threads from rain and debris.
Technical Specifications & Print Settings
Standard Fit: All components are based on a 20 mm modular diameter.
Tolerances: Threaded joints feature a 0.2 mm clearance per side to ensure a perfect fit straight off the printer.
Optimal Print Orientation: All parts are strictly designed to be printed with the threaded studs (spikes) facing upward. The flat bottom surfaces, featuring integrated chamfers, must rest directly on the print bed to ensure clean geometry and compensate for elephant's foot.
Layer Height: 0.16 mm – 0.2 mm.
Infill: 30–40% (Gyroid or Cubic recommended for structural loads).
Shells: Use 3–4 wall perimeters for maximum structural integrity and clip flexibility.
Material: PETG or ASA is highly recommended for UV resistance and durability.
Safety Warning
3D-printed plastics can be sensitive to extreme leverage. When installing into hard or dry soil, always pre-drill a pilot hole before inserting the ground spike to avoid damaging the threaded joints.
