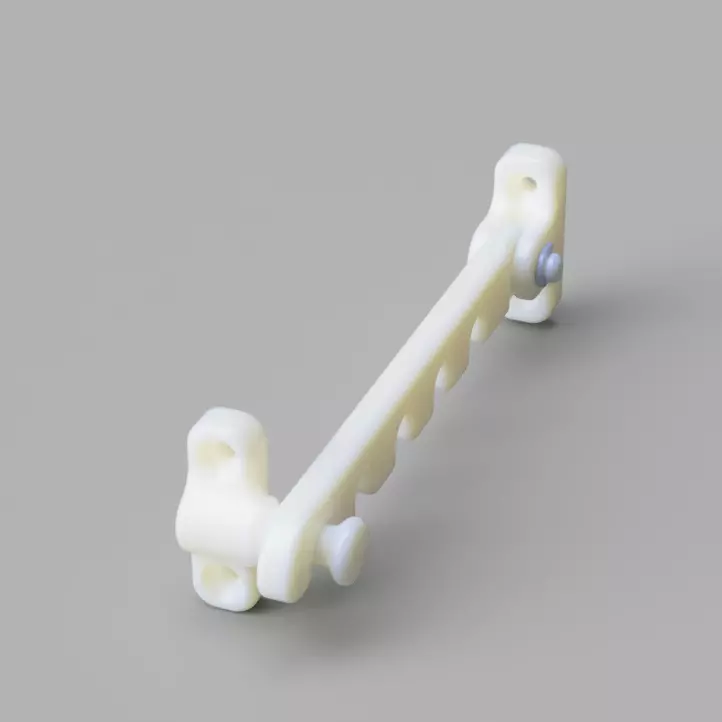

A 3D-printable casement window stay (restrictor) that holds the window in a slightly open position for ventilation while preventing full opening.
The design requires no additional bolts, pins, or fasteners for assembly — all parts snap together. Print the components, assemble by snapping, and mount to the window frame using standard screws.
Two hook variants are included to match different frame configurations.
Lever + Mounting Plate combined length: 137 mm.
Specifications
-
Total Length (Lever + Plate): 137 mm
-
Function: Holds casement window in a fixed partially open position
-
Components: Lever, mounting plate, two hook options
-
Assembly: Snap-fit, no extra hardware needed
-
Mounting: Standard screws (not included)
Material Recommendations
-
PETG: Recommended for durability and weather resistance outdoors.
-
ASA: Preferred for direct sun exposure (high UV stability, low warping).
-
Infill: 40%+ recommended; 4+ perimeters for strength.
Notes & Assembly
-
Snap Assembly: Parts click together without tools or pins.
-
Installation: Mount plate to frame, hook to window; adjust position as needed.
-
Support-free: Designed for FDM printing with minimal or no supports.
-
Hardware: Use appropriate countersunk screws for your frame material.
