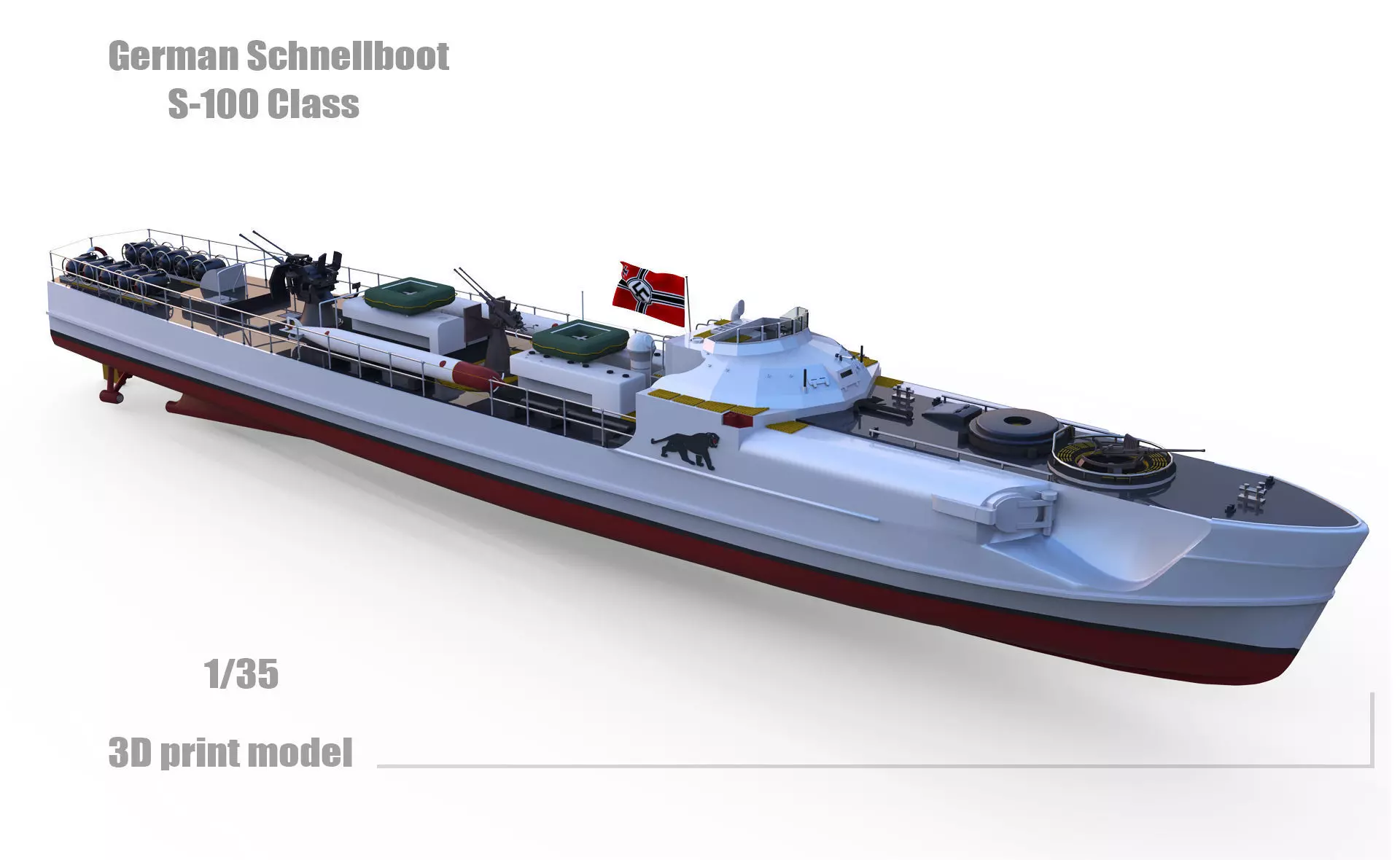

German Schnellboot S-100 Class, radio controlled model, 3D printable model

The model is made in 1/35 scale, which makes it approximately 1000 mm long and 150 mm wide.

Characteristics S-Boot (Schnellboot):

German fast torpedo boat class. Series of torpedo boats built during World War II. Boats built: About 191 in different sub-classes with some differences between them.Displacement: 100 tons.Length: 32,76 m.Beam: 5,06 m.Propulsion: 3.960 hp.Speed: 43.8 knots.Armament: (with some differences between different series)1 x 20mm gun (later 2), 8 x 7.92mm machine guns, 2 x 533mm torpedo tubes, 6 mines.Crew: 30.

The model is intended to celebrate the class of ship rather than to be an accurate representation of one ship. There were in any case so many variations.

German S-100 Class Schnellboot STL Design:

The Hull is divided into 5 sections (20 mm each). The walls thickness is approximately 2 mm. 3D printing requires 25 cm of free space.All STL files are grouped in two folders. Total: 57 files.For information on the parts included in the kit, see the German Schnellboot S-100 Class / List of STL Files_ Component Modules and Parts in txt format. You can also find useful information on assembling this model in the supplementary reference pdf *Assembly Instructions".

For RC operation there is access to the hull through three openings designed to make access to servos, motors and batteries. The shaft bushing diameter is 8 mm. Modelers can install batteries and radio equipment at their own discretion.

Happy creating.
