TriAxis Cable Hose Pipe chain guide

TriAxis Cable Hose Pipe chain guide 3D print model

Description

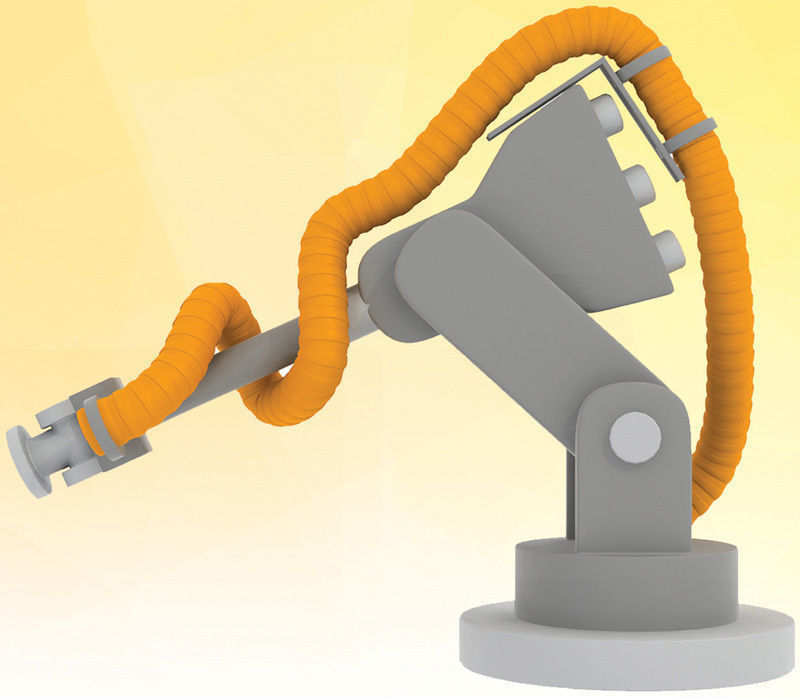

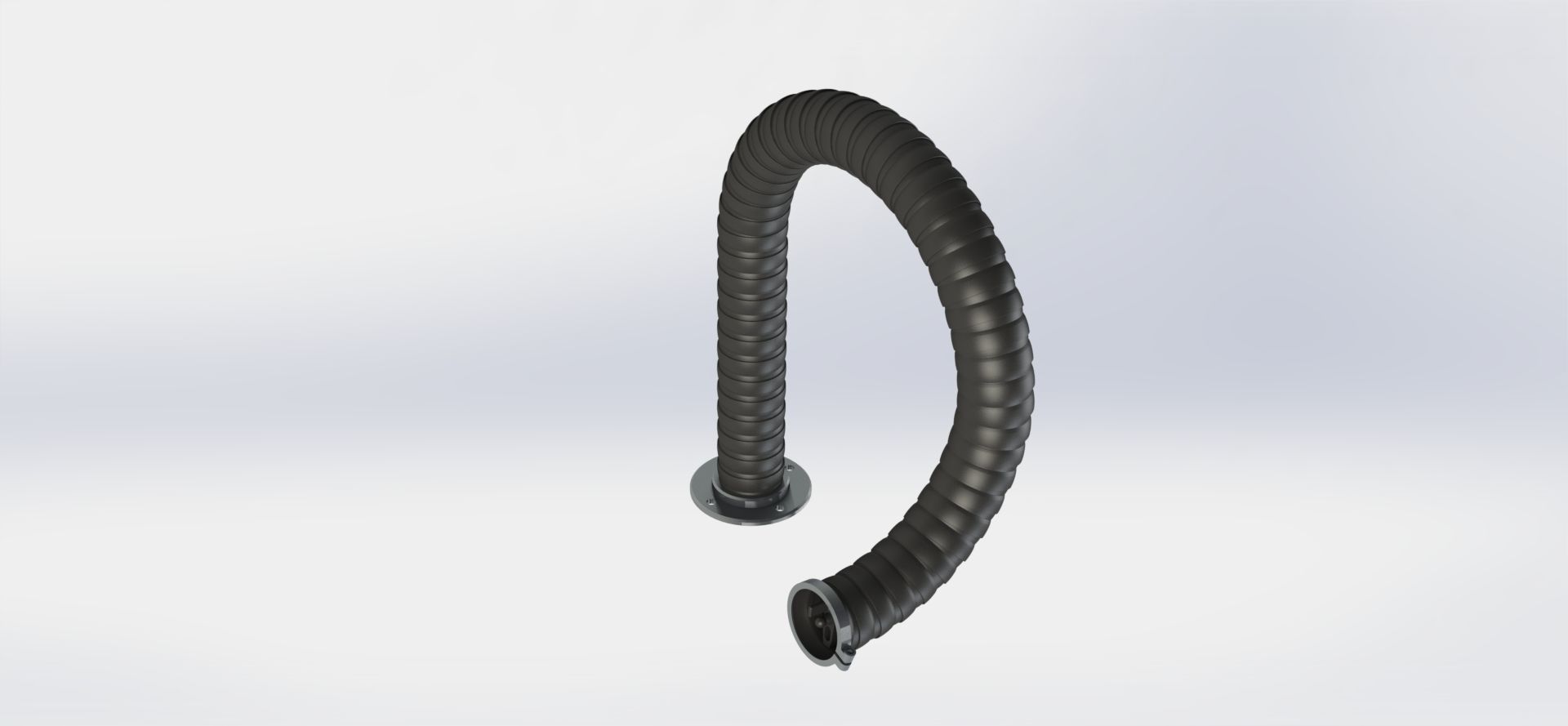

Tri-Axis system for safe and secured cable and hose rooting. Multi-axis movement - High flexibility for complex applications even on the 6th axis. Small bend radius and pitch - for space-saving installation. Easy to lengthen and shorten - one 3D printed component, requiring little effort to assemble. No additional elements necessary for retraction Protect your cables and hoses from the environment. Chain diameter - Ø30mm Four types of assembly:

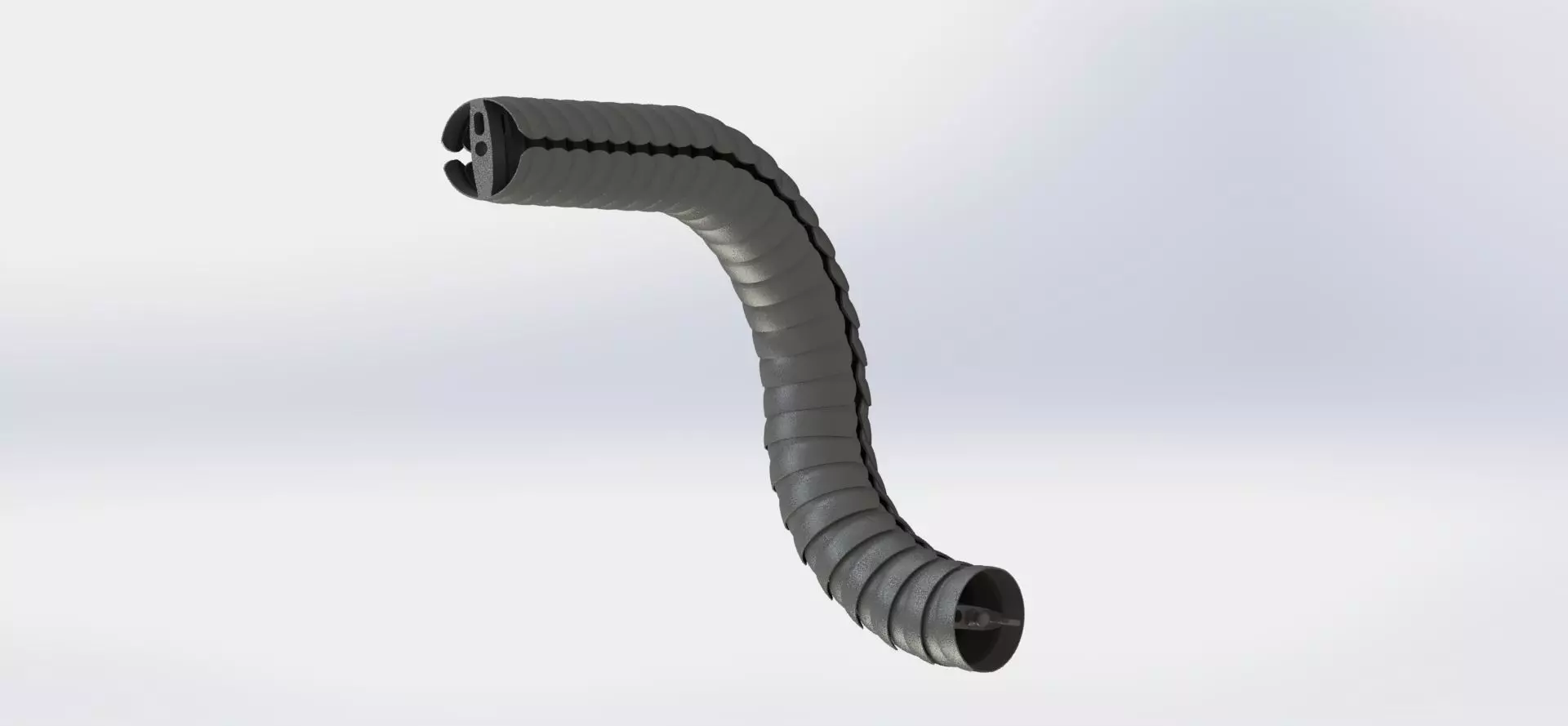

Complete freedom of movement(free chain link) XY rotation locked(chain link with locking pin). Lock the movement in order to avoid cable and hose twisting. Open link for installation on existing lines without dissasembly with rotation movement unlocked Open link for installation on existing lines without dissasembly with rotation movement locked

Item rating
0 0
TriAxis Cable Hose Pipe chain guide
$3.00

Royalty Free License
TriAxis Cable Hose Pipe chain guide
$3.00

Royalty Free License
Response - % in - h

3D Model formats

Format limitations
  • Stereolithography (.stl) (5 files)4 MB

3D Model details

  • Publish date2019-11-17
  • Model ID#2163444
  • Ready for 3D Printing
