Pedal Cleat Tool For KEO Look

Pedal Cleat Tool For KEO Look 3D print model

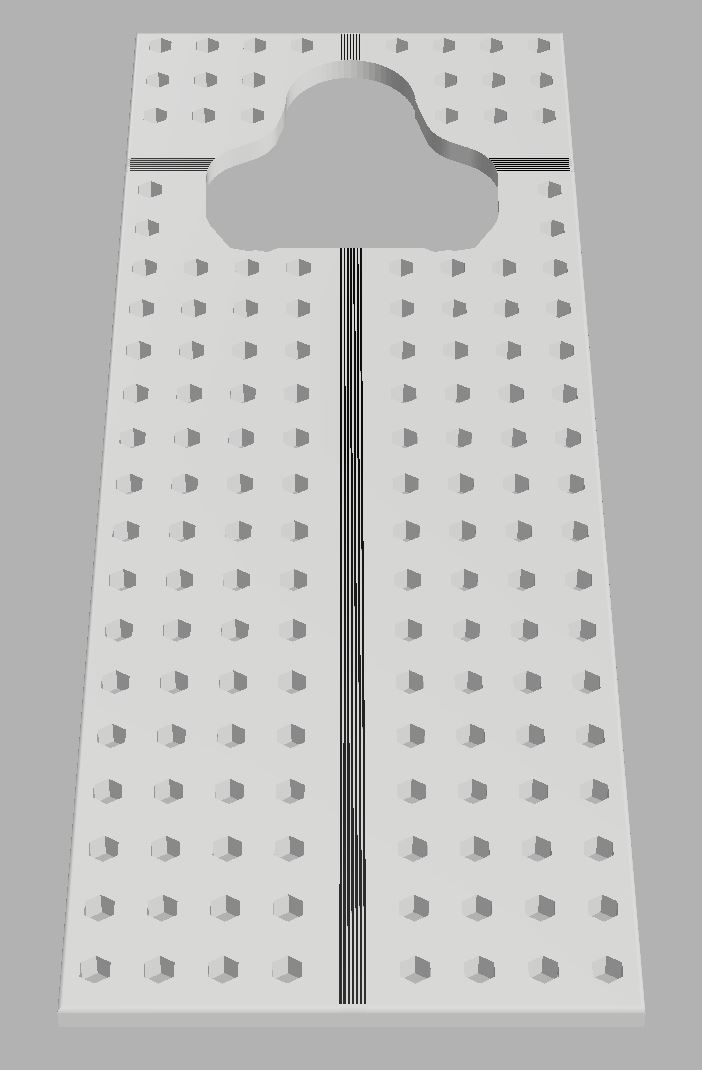

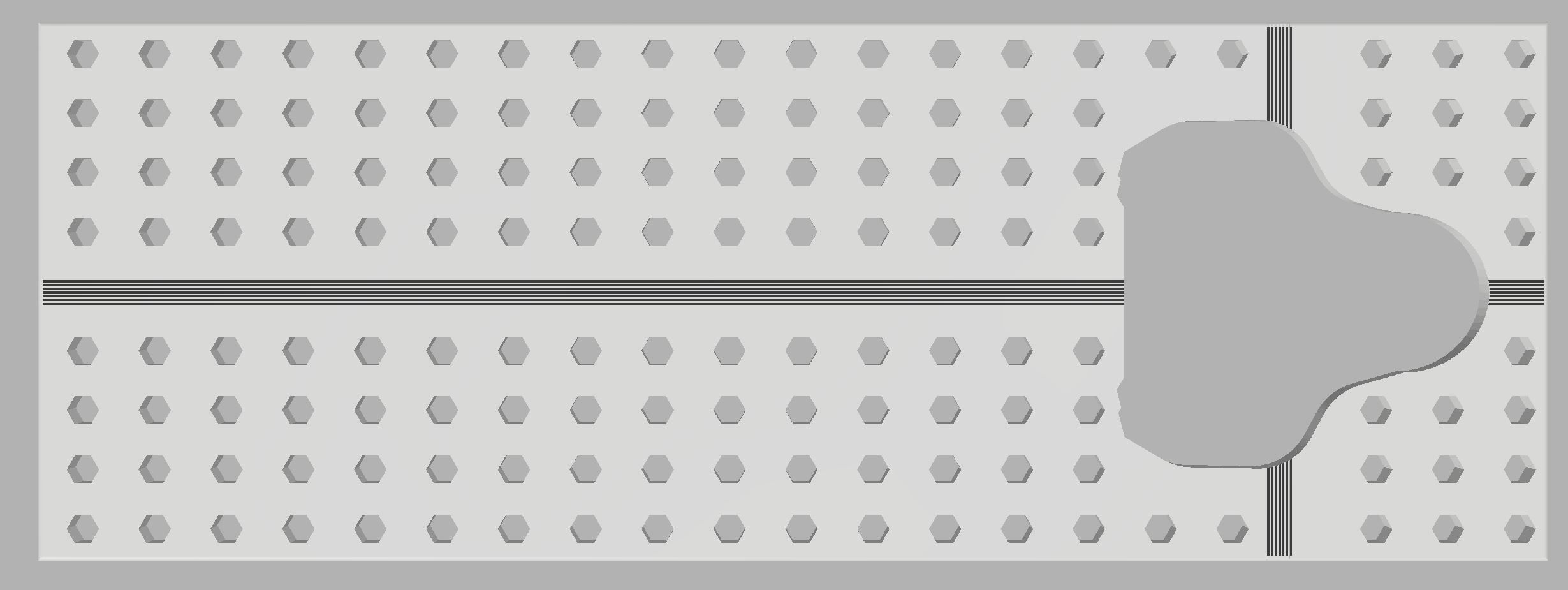

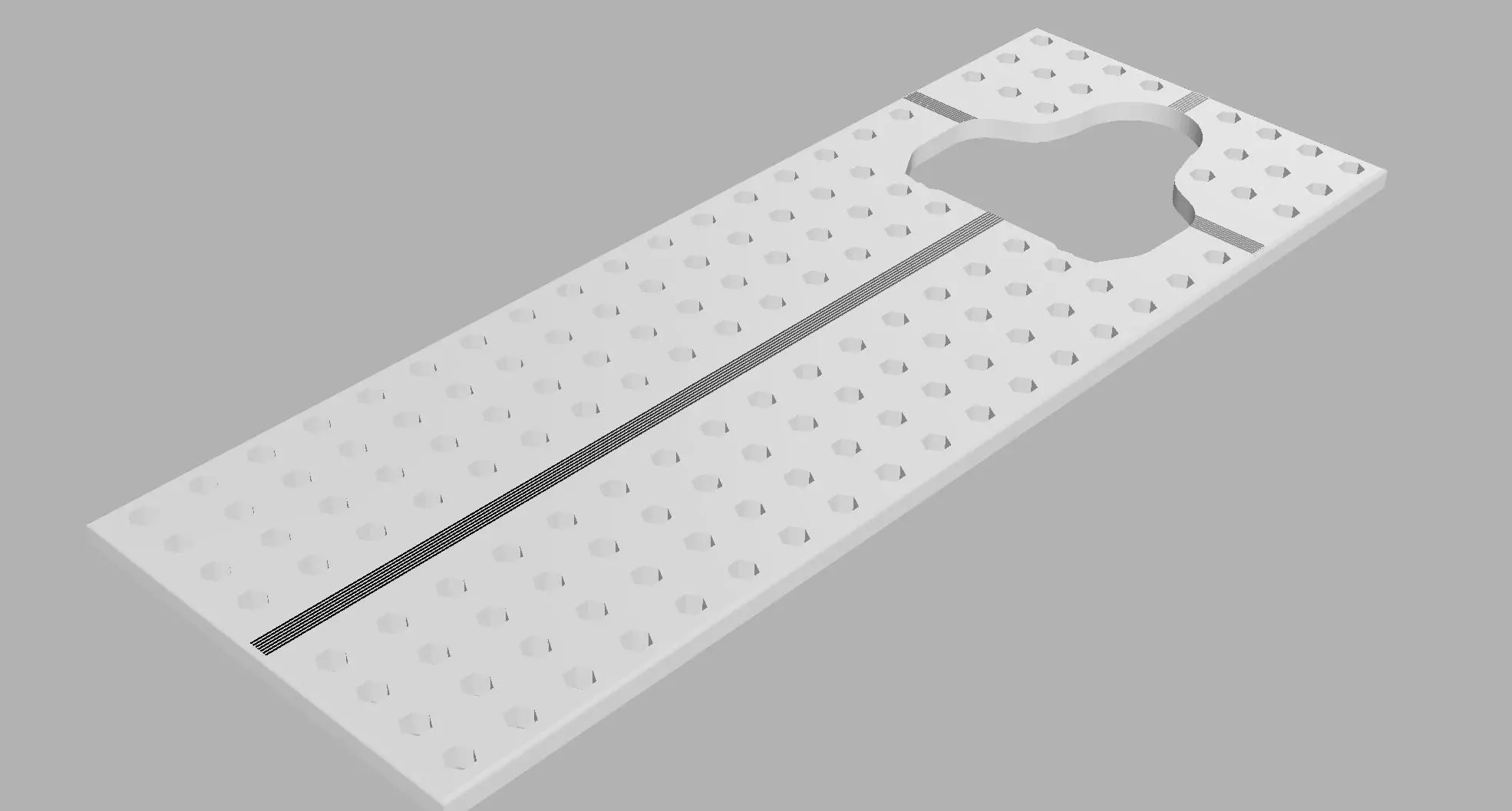

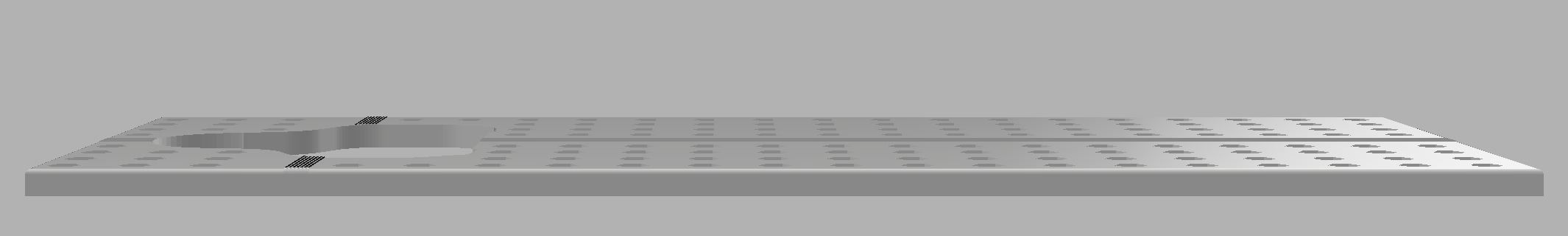

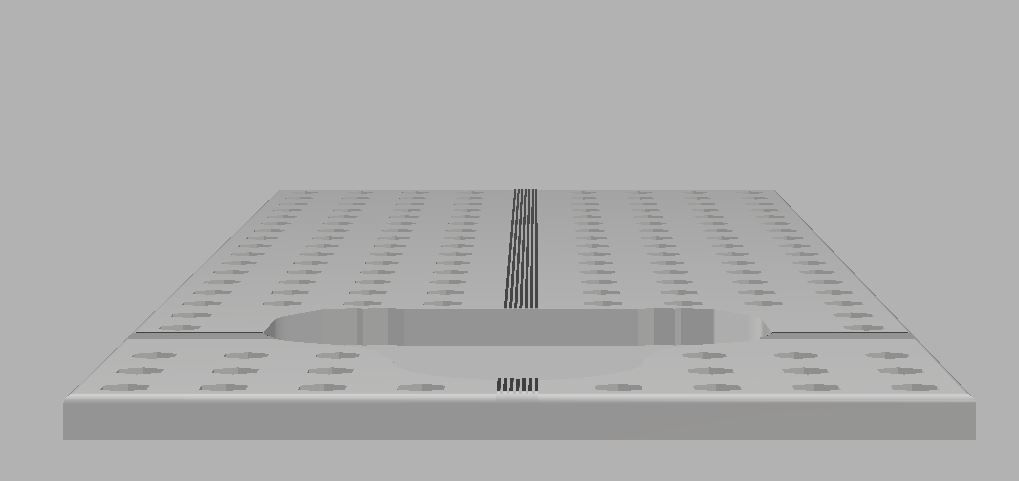

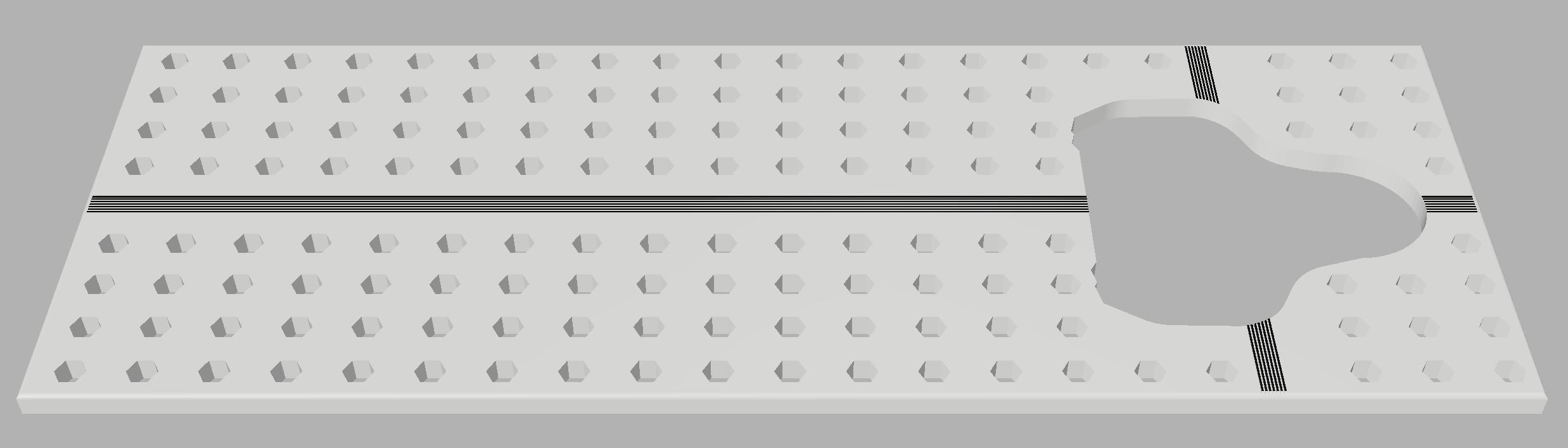

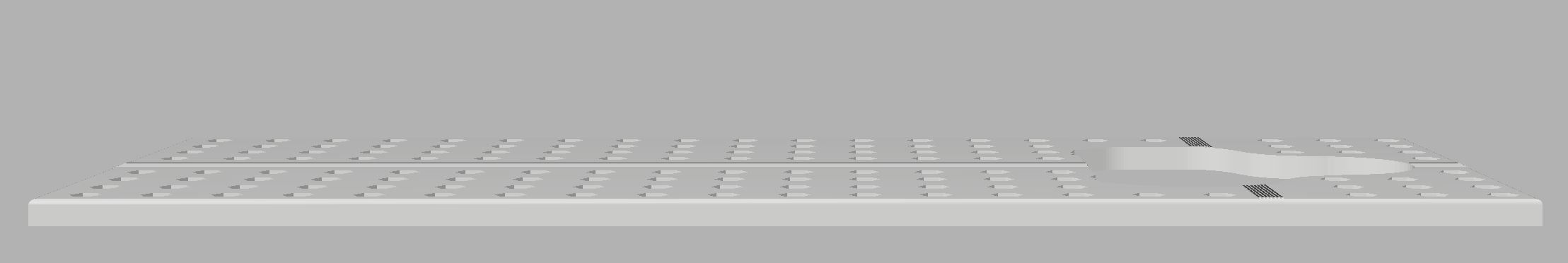

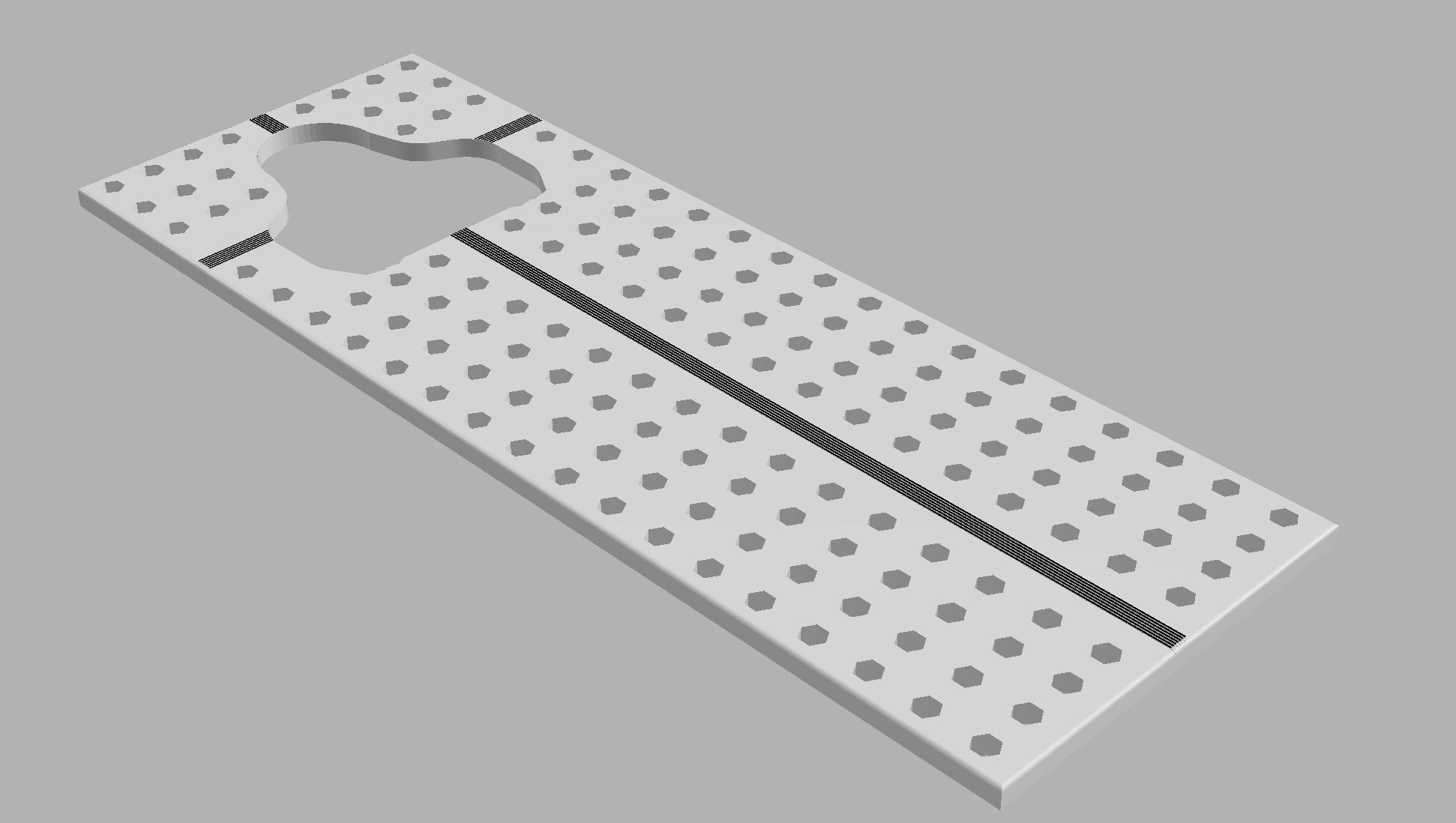

This tool allows the accurate adjustment of the three axis which are important when installing cleats.

The fore/aft position, the stance (Q-Factor) and the foot angle. It is simple, fast and effective.

With this tool you can enjoy your activities without complications.

I recommend to print the last layer with different color. Last layer contain adjustment lines. Having those in different color will help when set up the cleats position

Item rating
1 0
willem-57b64c 2020-10-04 10:10:17 UTC
Hi Adrian, I bought this design yesterday, together with the SPD version (feedback on that design too). The model was too large for my Ender3 build plate, so I took the F3d and cut it in two to print. I used a dovetail connection to easily assembly and disassembly for storage. I had to dremel the bottom side of the Keo cleat gap a bit to make it fit correctly. I added some white painters tape to the surface to mark my Keo cleat position (read the Ergon TP1 instructions about marking your 'toe joint line'.) On the bottomside I did the same thing for the other shoe. Does the job perfectly and much cheaper than the Ergon tool I was looking at.
