Elbow with Flanges 3D print model

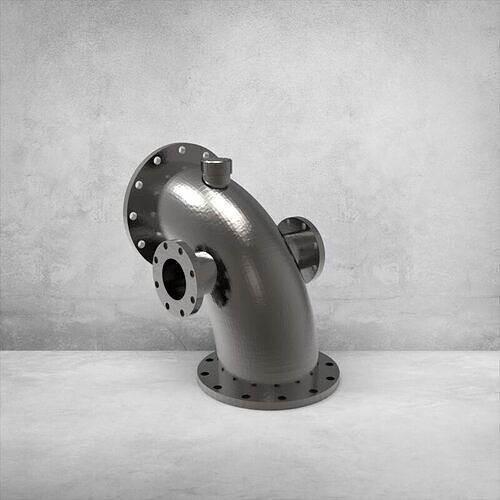

The 3D design of an elbow with flanges showcases a precision-engineered pipe fitting used to redirect flow within piping systems, typically at a 90 or 45-degree angle. This model includes detailed flanged ends, allowing for secure bolted connections to adjoining pipes or components, enhancing its application in high-pressure and industrial environments. The design emphasizes dimensional accuracy, smooth curvature for optimal flow, and reinforced flange geometry to withstand mechanical stress and thermal expansion. Ideal for CAD modeling, fabrication, and simulation purposes, the elbow with flanges is a critical component in plumbing, HVAC, and oil and gas industries.
