Car Connectors DJ70 3D print model
Description
This is a set of models of popular DJ70 series car connectors with 2.8 mm terminals.
These models are designed specifically for their layout in 3D assemblies of the designed devices using these connectors.
But they can also be used for any other tasks.

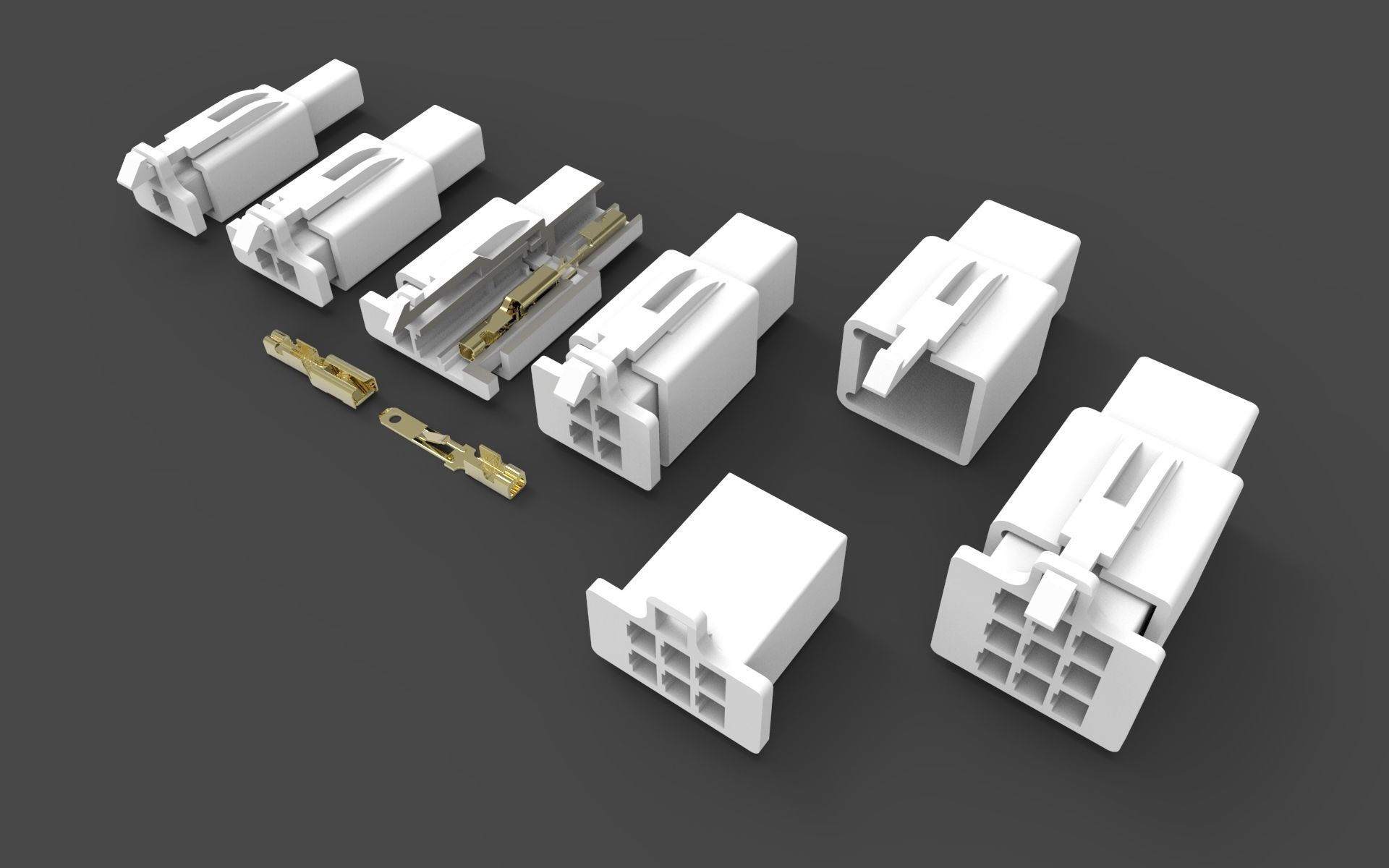

The set includes models of 6 different variants of connectors in this series, depending on the number of terminals in one connector.
The models are made with high accuracy on a scale of 1:1. The overall dimensions of the connectors and terminals are indicated in the drawings.
The file includes all 6 connector options with full terminal sets.
Below is a list of all variants of connectors and terminals with designations:
- Connector 1-pin DJ7011A-2.8-11/21
- Connector 2-pin DJ7021A-2.8-11/21
- Connector 3-pin DJ7031A-2.8-11/21
- Connector 4-pin DJ7041A-2.8-11/21
- Connector 6-pin DJ7061A-2.8-11/21
- Connector 9-pin DJ7091A-2.8-11/21
- Terminal (male) DJ611-2.8
- Terminal (female) DJ622-2.8
