A great toy transport plane for your child. You can open the cargo compartment and load your toy cars, containers, trains... Build your new transport empire!

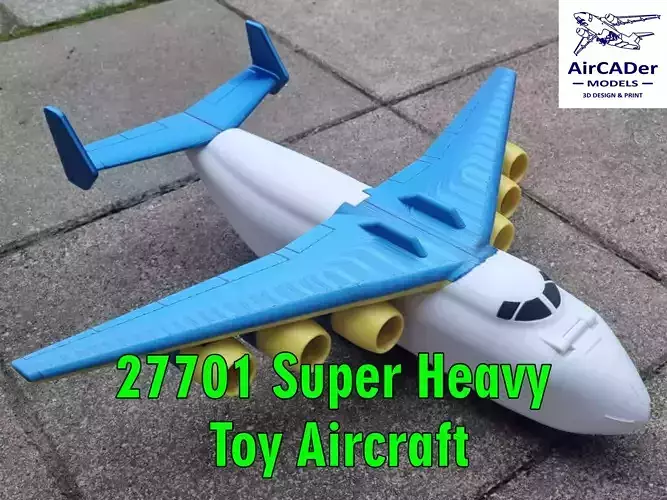

• Model code: 27701 Super Heavy Toy Aircraft
• Landing gear: down
• Fuselage length: 415 mm
• Wingspan: 426 mm
• Parts quantity: 91
• 3D print complexity: 3/5
• Assembly complexity: 2/5

It is possible to assemble model with rotating wheels and open nose. The model requires gluing (3-4 tubes of cyanocryl of 2 grams each). 3D Printing Guidelines and Assembly Instructions are included.

WARNING! The toy has small elements, so it is not recommended for children under 3 years old.

Importantly! The plane weighs about 600 grams - make sure that your child can play with such a heavy toy.

Importantly! You need metal or wooden round sticks with a diameter of 2 mm (nose opening mechanism) and 5 mm (wheels axles). You also need 4 cylindrical magnets 6mm in diameter and 3mm thick (nose opening mechanism).

3D printing settings

The model is optimized for a 0.4 mm nozzle and 0.15-0,2 mm layers. Approximate filament length for one model - 210 meters.

Files format: .stl Providing files in other formats must be discussed separately.

Dimensions of the largest parts (in mm):

• Wings 213.1 x 149.7 x 16.4
• Fuselage Center 80.0 x 78.0 x 189.2

The manual includes information about supports and printing recommendations.
