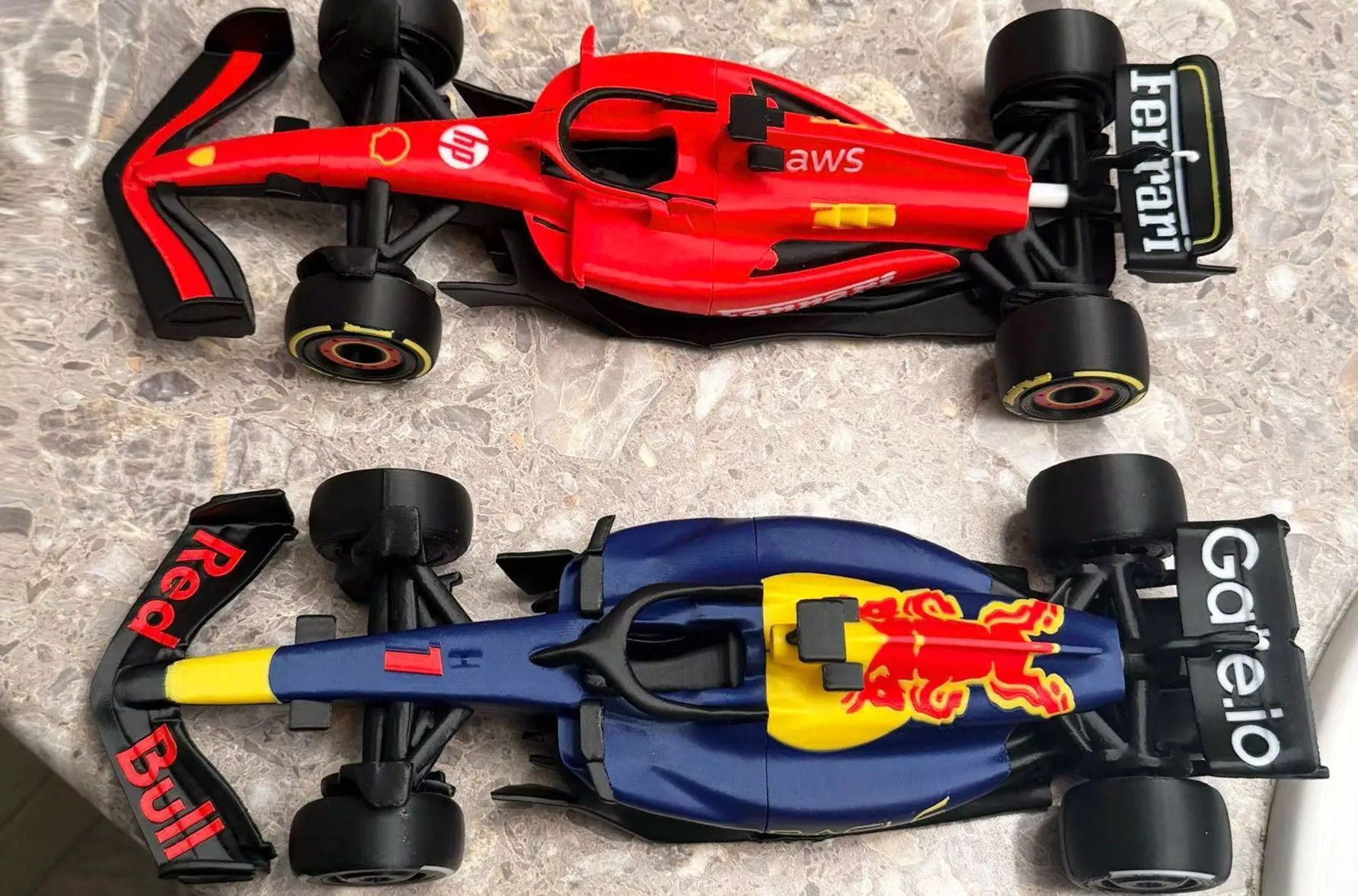

Ferrari SF-24 Formula Car – 1/32 Scale | FannCraft3D Edition

The Ferrari SF-24 represents Ferrari’s 70th Formula 1 challenger, embodying decades of racing heritage fused with modern engineering excellence. Designed to reflect Ferrari’s relentless pursuit of performance, the SF-24 showcases refined aerodynamics, improved power delivery, and endurance-focused upgrades—allowing it to challenge rivals confidently across both straights and high-speed corners.

Equally striking is its visual identity. The elegant white base combined with bold yellow accents creates a standout livery that reflects Ferrari’s ability to merge race-bred technology with iconic design language. This model captures that balance with precision, making it a must-have for motorsport enthusiasts and collectors.

Model Highlights

High-detail interior and exterior design, including front and rear wings, suspension elements, cockpit seat, and steering wheel

Functional articulated wheels, based on modern 18-inch F1 wheel standards

Real-world reference:

Front: 305/720-18

Rear: 405/720-18

1/32 scale reference:

Front: 9.5 / 22.5 – 14.3

Rear: 12.7 / 22.5 – 14.3

Detailed livery adapted for FDM printing constraints, with certain decals represented in stylized or abstract form to maintain print reliability

Dimensions & Scaling Notes

Designed at 1/32 scale

Minor scaling adjustments are acceptable, but excessive scaling may:

Affect assembly tolerances

Cause loose or overly tight connections

Alter wall thickness integrity

Sliced files are optimized for minimum printer build volumes

Users may adjust batch quantities to balance print time and filament usage

Bearing & Fitment Guidance

Body and wheels are designed with bearing-based connections

Fitment may vary depending on:

Printer calibration

Filament brand

Recommended to test using MR105 bearing assembly components (MakerWorld reference) to determine optimal bearing fit before final assembly

Recommended FDM Print Settings (Baseline)

The reference model was printed by FannCraft3D using:

Printer: A1 Mini

Nozzle: 0.4 mm

Layer Height: 0.16 mm

Filament: PLA Basic

Infill Density: 15%

Supports:

Overhang angle: 25°

Top Z distance: 0.12 mm

Top contact layers: 4

Combination of normal and tree supports based on part geometry

Advanced printers, higher-quality filaments, and refined tuning can significantly enhance surface finish and dimensional accuracy. Minor tolerance issues can be corrected using:

XY contour compensation

Light sanding

Adhesive-assisted assembly

Multicolor & Monochrome Printing Options

All colored elements are modular, allowing flexible use of slicer-based multicolor features

Multicolor printing delivers striking results but requires:

Increased print time

Higher filament usage

System-recommended multipliers are used; reduce cautiously to avoid color bleeding

Monochrome printing is fully supported and ideal for custom hand-painting with acrylics

Additional livery variations will be released in future updates

Assembly Notes

Follow the exploded-view diagram for proper assembly sequence

Tire installation may require rotational fitting rather than direct pressure

Rear wing mounts use cylindrical connectors; adhesive may be applied to lock the final angle

Handle delicate parts carefully, especially:

Suspension rods

Steering linkage

Rear wing supports

Any damaged or misprinted parts can be reprinted individually
