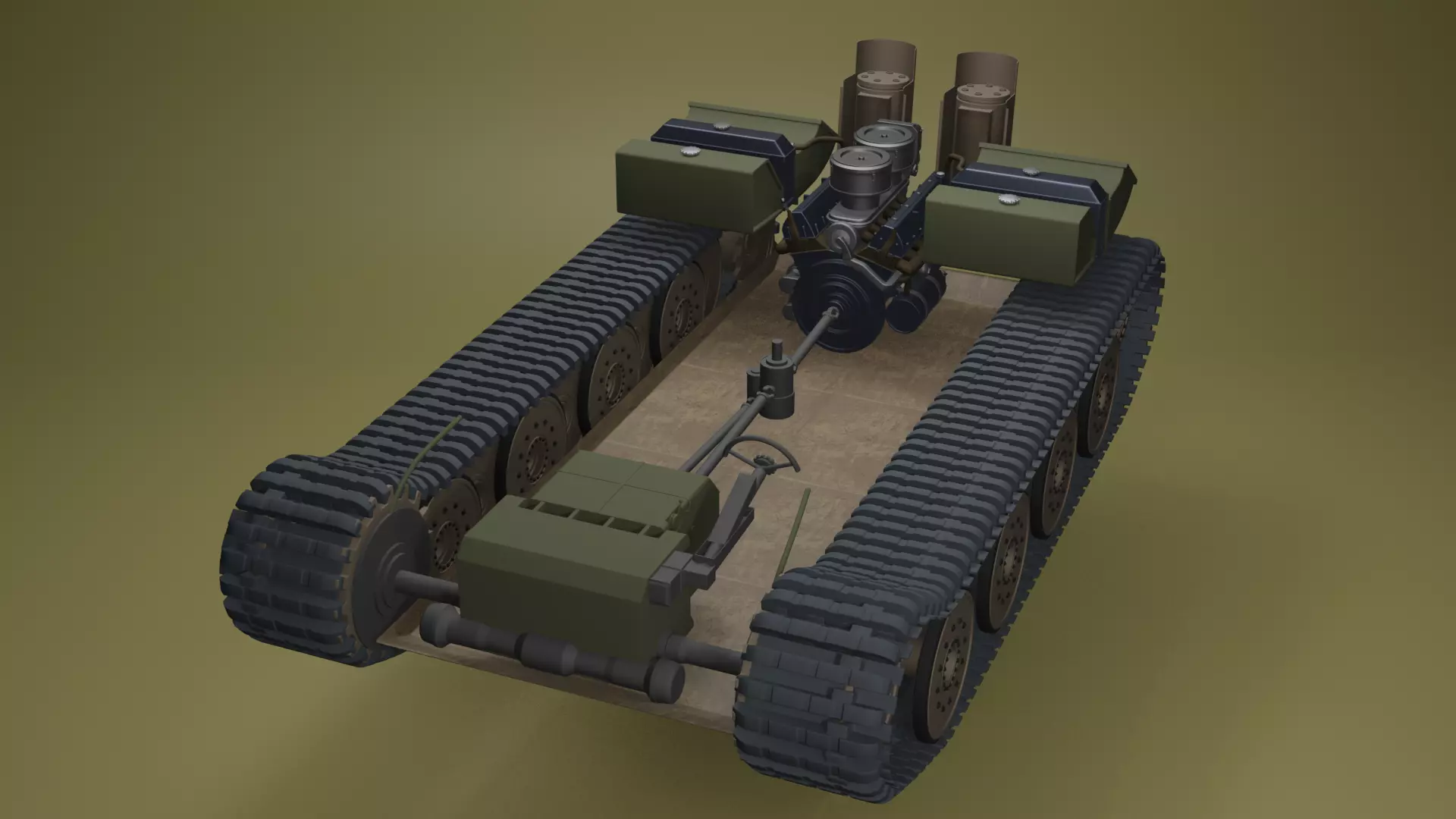

Tiger Mk1 Tank Engine and Drivetrain 3D model

The rear of the tank held an engine compartment flanked by two separate rear compartments each containing a fuel tank and radiator. The original engine used was a 12-cylinder Maybach HL 230. The engine was in V-form, with two cylinder banks set at 60 degrees.

The engine drove the front sprockets through a drivetrain connecting to a transmission in the front portion of the lower hull.
