High-quality 3D assets at affordable prices — trusted by designers, engineers, and creators worldwide. Made with care to be versatile, accessible, and ready for your pipeline.
Included File Formats
This model is provided in 14 widely supported formats, ensuring maximum compatibility:
• - FBX (.fbx) – Standard format for most 3D software and pipelines
• - OBJ + MTL (.obj, .mtl) – Wavefront format, widely used and compatible
• - STL (.stl) – Exported mesh geometry; may be suitable for 3D printing with adjustments
• - STEP (.step, .stp) – CAD format using NURBS surfaces
• - IGES (.iges, .igs) – Common format for CAD/CAM and engineering workflows (NURBS)
• - SAT (.sat) – ACIS solid model format (NURBS)
• - DAE (.dae) – Collada format for 3D applications and animations
• - glTF (.glb) – Modern, lightweight format for web, AR, and real-time engines
• - 3DS (.3ds) – Legacy format with broad software support
• - 3ds Max (.max) – Provided for 3ds Max users
• - Blender (.blend) – Provided for Blender users
• - SketchUp (.skp) – Compatible with all SketchUp versions
• - AutoCAD (.dwg) – Suitable for technical and architectural workflows
• - Rhino (.3dm) – Provided for Rhino users
Model Info
• - All files are checked and tested for integrity and correct content
• - Geometry uses real-world scale; model resolution varies depending on the product (high or low poly)
• • - Scene setup and mesh structure may vary depending on model complexity
• - Rendered using Luxion KeyShot
• - Affordable price with professional detailing
Buy with confidence. Quality and compatibility guaranteed.
If you have any questions about the file formats, feel free to send us a message — we're happy to assist you!
Sincerely,
SURF3D
Trusted source for professional and affordable 3D models.
More Information About 3D Model :

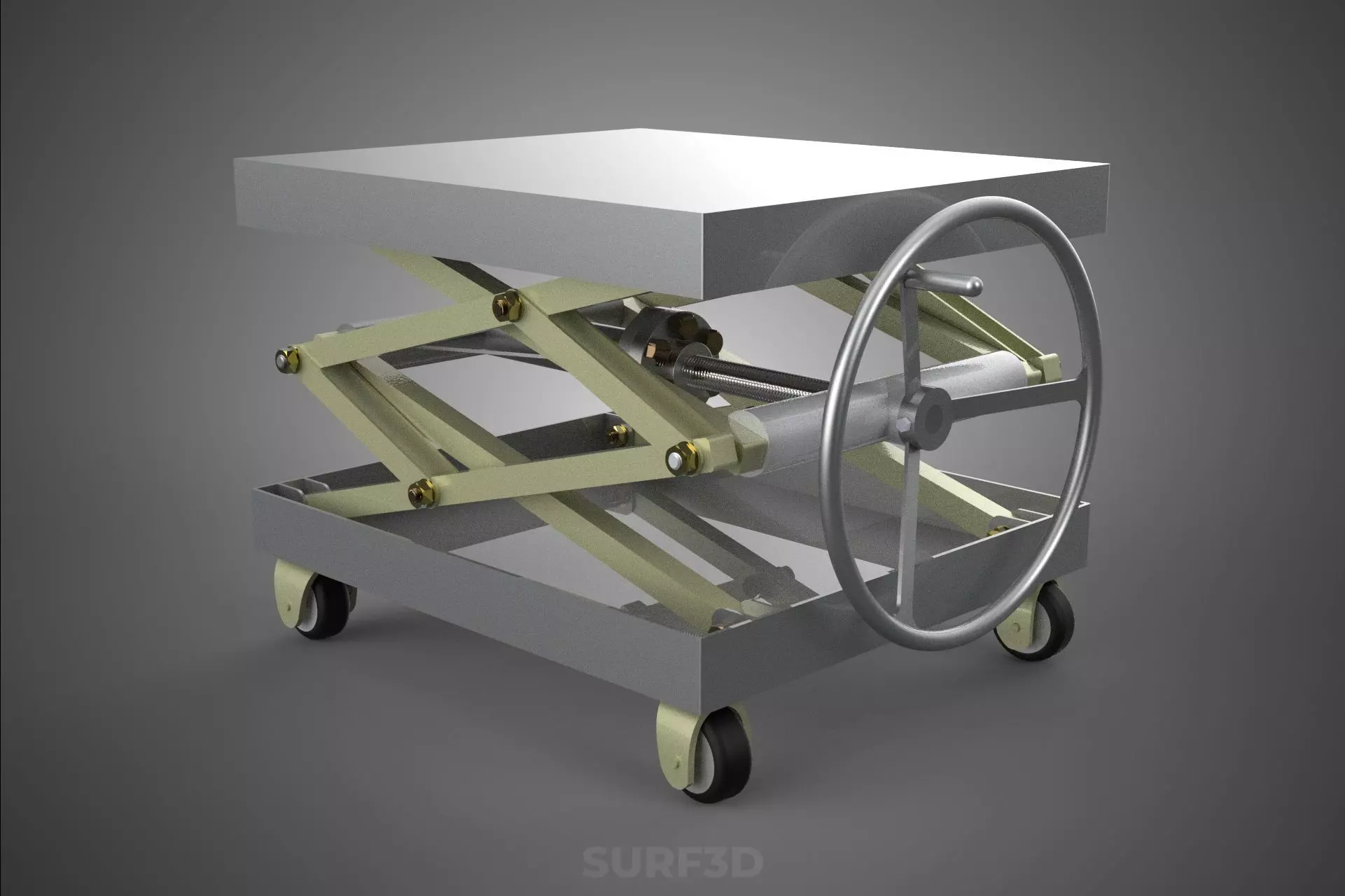

Vintage Industrial Jack Scissor Lift Table Steel Cart Turn Wheel
The object described by the appellation Vintage Industrial Jack Scissor Lift Table Steel Cart Turn Wheel is a specific type of mobile lifting apparatus. It represents a utilitarian piece of equipment designed for material handling and ergonomic positioning within industrial or workshop environments, characterized by its age (Vintage), robust construction for heavy-duty use (Industrial), its primary lifting mechanism (Jack Scissor Lift Table), its composition (Steel), its mobility (Cart), and the manual method of operation (Turn Wheel).
Description and Function:
At its core, this apparatus serves as a manually operated mechanical lift table mounted on a mobile cart base. Its primary function is to raise or lower heavy objects, materials, or workpieces to a convenient height for various tasks, such as assembly, repair, transfer, or storage, while also allowing for their transportation across relatively flat surfaces within a facility. The combination of lifting and mobility enhances efficiency and reduces physical strain on workers.
Components and Mechanism:
1. Table/Platform: A flat, sturdy surface, typically constructed from thick gauge steel, forming the top of the apparatus. This is where the load is placed.
2. Scissor Lift Mechanism: A system of interconnected supports arranged in an 'X' or lattice pattern. As the mechanism is actuated, these supports pivot and extend vertically, causing the table platform to rise. Conversely, retracting the supports lowers the table. This design provides stable vertical movement.
3. Jack Mechanism: The component responsible for actuating the scissor mechanism. In this specific case, the Jack is a mechanical screw-type mechanism. It typically involves a long screw threaded through a nut or a series of linkages connected to the base and the lower section of the scissor mechanism.
4. Turn Wheel: A prominent wheel attached to the jack mechanism. Manual rotation of this wheel by an operator causes the screw to turn, which in turn extends or retracts the jack linkage, thereby operating the scissor lift. This method provides mechanical advantage, allowing a person to lift significant weight.
5. Steel Construction: The primary material used throughout the structure is steel. This includes the table platform, the scissor linkages, the base frame, and often components of the jack mechanism. Steel provides the necessary strength and durability for industrial applications and supporting substantial payloads.
6. Cart Base and Wheels: A robust base structure, usually steel, supports the entire lifting assembly. It is equipped with wheels or casters to facilitate movement. Typical configurations include fixed wheels at one end for directional stability and swivel casters at the other for steering, enabling the unit to be rolled like a cart.
Operational Characteristics:
Operation is entirely manual, relying on human power applied to the turn wheel. Key operational parameters include:
* Load Capacity: The maximum weight the table is designed to safely lift.
* Lift Height: The range of vertical movement, from the minimum lowered height to the maximum elevated height of the table platform.
* Table Dimensions: The size of the platform surface.
* Mobility: The ease with which the unit can be rolled, influenced by wheel type, size, and the weight being transported.
Vintage and Industrial Context:
The term Vintage Industrial denotes equipment originating from an earlier period of manufacturing history, often characterized by over-engineered, durable construction built for longevity in demanding environments. These pieces reflect a design philosophy prioritizing function, robustness, and repairability over aesthetics or lightweight construction. The vintage aspect may imply a design aesthetic featuring raw steel finishes, visible welds, substantial components, and a utilitarian appearance. Such items were commonplace in factories, workshops, warehouses, and assembly lines during the early to mid-20th century. Today, vintage industrial pieces are sometimes sought after for their aesthetic appeal, historical significance, or repurposed for functional or decorative use in various settings.
In summary, a Vintage Industrial Jack Scissor Lift Table Steel Cart Turn Wheel is a heavy-duty, mobile steel platform featuring a manually operated mechanical scissor lift, activated by turning a wheel, representing a functional artifact of past industrial practices.
KEYWORDS: Vintage, Industrial, Jack, Scissor Lift, Lift Table, Steel, Cart, Turn Wheel, Manual Lift, Mechanical Jack, Screw Lift, Material Handling, Lifting Equipment, Workshop Equipment, Factory Equipment, Mobile Lift, Heavy Duty, Steel Cart, Platform Lift, Old Equipment, Antique Industrial, Utilitarian Design, Mobile Table, Material Transport, Positioning Table, Ergonomics, Warehouse Equipment, Mechanical Advantage, Steel Fabrication, Scissor Mechanism.
