High-quality 3D assets at affordable prices — trusted by designers, engineers, and creators worldwide. Made with care to be versatile, accessible, and ready for your pipeline.

Included File Formats
This model is provided in 14 widely supported formats, ensuring maximum compatibility:
• - FBX (.fbx) – Standard format for most 3D software and pipelines
• - OBJ + MTL (.obj, .mtl) – Wavefront format, widely used and compatible
• - STL (.stl) – Exported mesh geometry; may be suitable for 3D printing with adjustments
• - STEP (.step, .stp) – CAD format using NURBS surfaces
• - IGES (.iges, .igs) – Common format for CAD/CAM and engineering workflows (NURBS)
• - SAT (.sat) – ACIS solid model format (NURBS)
• - DAE (.dae) – Collada format for 3D applications and animations
• - glTF (.glb) – Modern, lightweight format for web, AR, and real-time engines
• - 3DS (.3ds) – Legacy format with broad software support
• - 3ds Max (.max) – Provided for 3ds Max users
• - Blender (.blend) – Provided for Blender users
• - SketchUp (.skp) – Compatible with all SketchUp versions
• - AutoCAD (.dwg) – Suitable for technical and architectural workflows
• - Rhino (.3dm) – Provided for Rhino users

Model Info
• - All files are checked and tested for integrity and correct content
• - Geometry uses real-world scale; model resolution varies depending on the product (high or low poly)
• • - Scene setup and mesh structure may vary depending on model complexity
• - Rendered using Luxion KeyShot
• - Affordable price with professional detailing

Buy with confidence. Quality and compatibility guaranteed.
If you have any questions about the file formats, feel free to send us a message — we're happy to assist you!

Sincerely,
SURF3D
Trusted source for professional and affordable 3D models.

More Information About 3D Model :

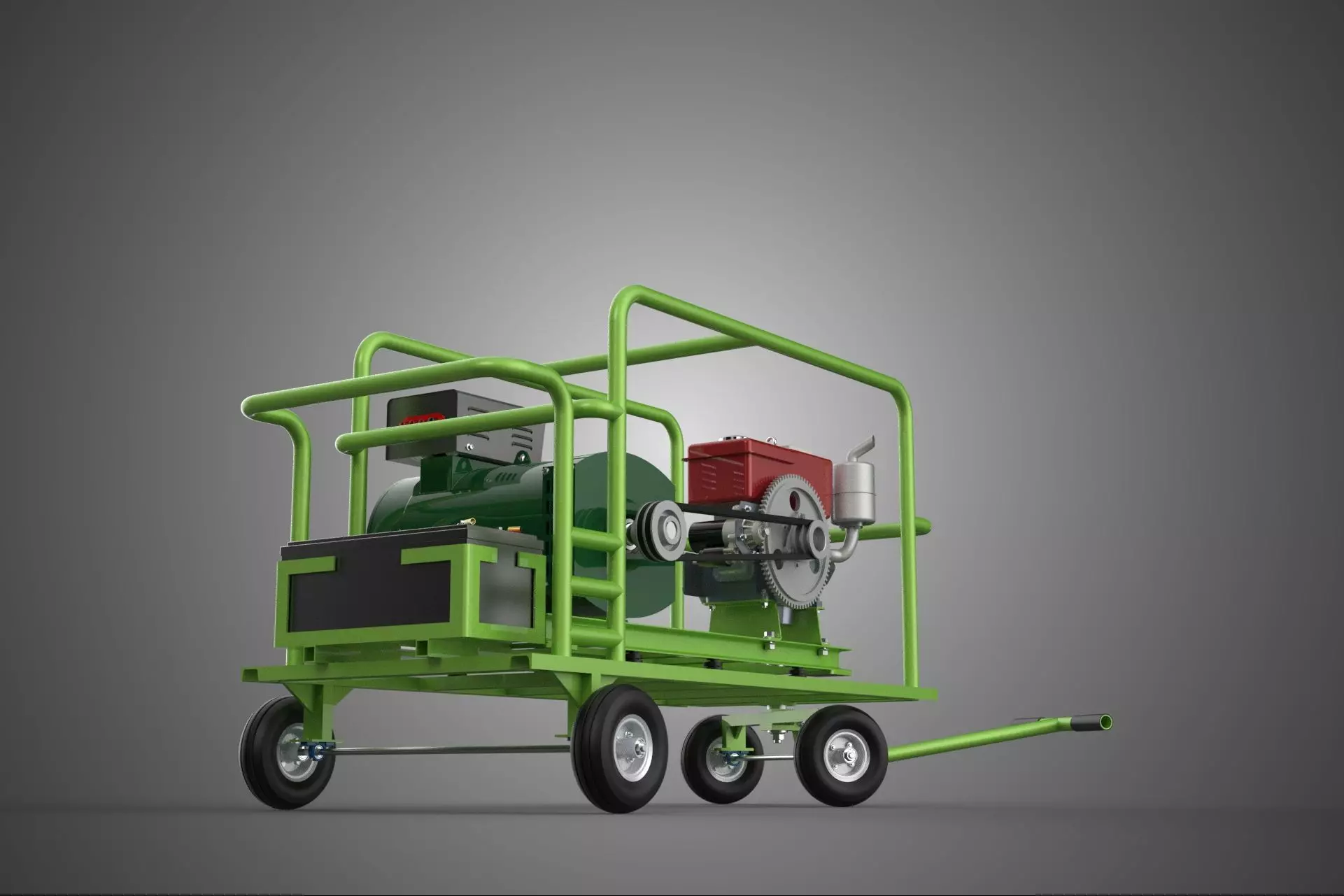

A portable welder welding power system, driven by a diesel engine generator set (genset), is an integrated electromechanical apparatus designed to provide both the necessary electrical current for arc welding processes and auxiliary AC power for general use, independent of a utility grid connection. These units are characterized by their rugged construction, fuel efficiency, and mobility, making them essential equipment for construction, field maintenance, pipeline installation, and emergency repair operations.

The terminology PORTABLE WELDER WELDING POWER DIESEL ENGINE GENERATOR GENSET KVA describes a single machine combining several core functions:

1. Diesel Engine (Prime Mover): A compression-ignition engine serves as the power source, rotating the alternator. Diesel engines are favored in these applications due to their high torque delivery, superior fuel economy compared to gasoline alternatives, longevity, and inherent safety advantages regarding fuel storage.

2. Generator Set (Genset): The collective term for the engine and the coupled electrical generator (alternator).

3. Welding Power Source: The genset is specifically engineered to produce the high-amperage, low-voltage output (typically ranging from 50 to 600 amperes at 20-40 volts) required for various arc welding techniques, including Shielded Metal Arc Welding (SMAW), Flux-Cored Arc Welding (FCAW), and often Gas Tungsten Arc Welding (GTAW) and Air Carbon Arc Gouging (CAC-A).

4. KVA Rating: Kilovolt-Ampere (KVA) is the standard unit for rating the apparent power output of the auxiliary AC generator functionality. This output (e.g., 120V or 240V AC) is used to power ancillary equipment such as grinders, lighting, and power tools, simultaneously with, or independent of, the welding operation. The KVA rating must be differentiated from the welding current (Amperes), which defines the machine's primary function.

   ### Technical Design and Operation

   Portable welder gensets utilize specialized alternators or power conversion systems to manage dual electrical outputs. Two primary configurations exist:


5. Conventional Multi-Winding System: The alternator rotor contains separate windings—one dedicated to producing high-current welding DC or AC, and another dedicated to the constant voltage, utility-grade AC output (KVA).

6. Inverter Technology: Modern, high-efficiency portable welders often incorporate high-frequency inverter technology. The diesel engine drives an alternator that produces high-frequency AC, which is rectified, filtered, and then processed through the inverter to provide both stable welding current and clean, tightly regulated auxiliary AC power. Inverter-based units are significantly lighter and provide superior arc characteristics.

   A critical specification is the Duty Cycle, defined as the percentage of time (within a standard 10-minute period) the welder can operate at its maximum rated current without overheating. Field-grade portable diesel units are typically designed for robust duty cycles (e.g., 60% to 100%) to meet demanding industrial timelines.

   ### Portability and Applications

   These machines are designated portable as they are engineered for ease of transport. They are frequently mounted on heavy-duty wheeled trailers, skid bases for lifting via crane or forklift, or integrated into utility vehicles.

   Primary Applications:


7. Pipeline Construction: Essential for remote welding of large diameter pipe segments.

8. Heavy Construction and Infrastructure: On-site fabrication and repair of structural steel and reinforcement components where grid power is unavailable.

9. Mining and Quarrying: Repairing heavy machinery and excavation equipment in isolated locations.

10. Emergency Response and Disaster Relief: Providing immediate power and welding capabilities for structural stabilization and critical repairs.

    ### Advantages

    The integration of diesel power offers distinct operational advantages over electric or gasoline alternatives: reliability under harsh conditions, extended run times afforded by high energy density of diesel fuel, reduced fire risk compared to volatile fuels, and the torque stability required to maintain a consistent arc despite load fluctuations inherent to the welding process.

    KEYWORDS: Diesel Generator, Portable Welder, Genset, Arc Welding, SMAW, FCAW, Pipeline, Construction, Field Repair, Auxiliary Power, KVA, Amperage, Duty Cycle, Engine-Driven Welder, Mobile Welding, Power Source, Structural Steel, Fabrication, Remote Operation, Inverter Technology, AC/DC Output, Industrial, Power Reliability, Generator Head, Skid-Mounted, Heavy Duty, Fuel Efficiency, Generator Set, Field Maintenance.
