DESCRIPTION

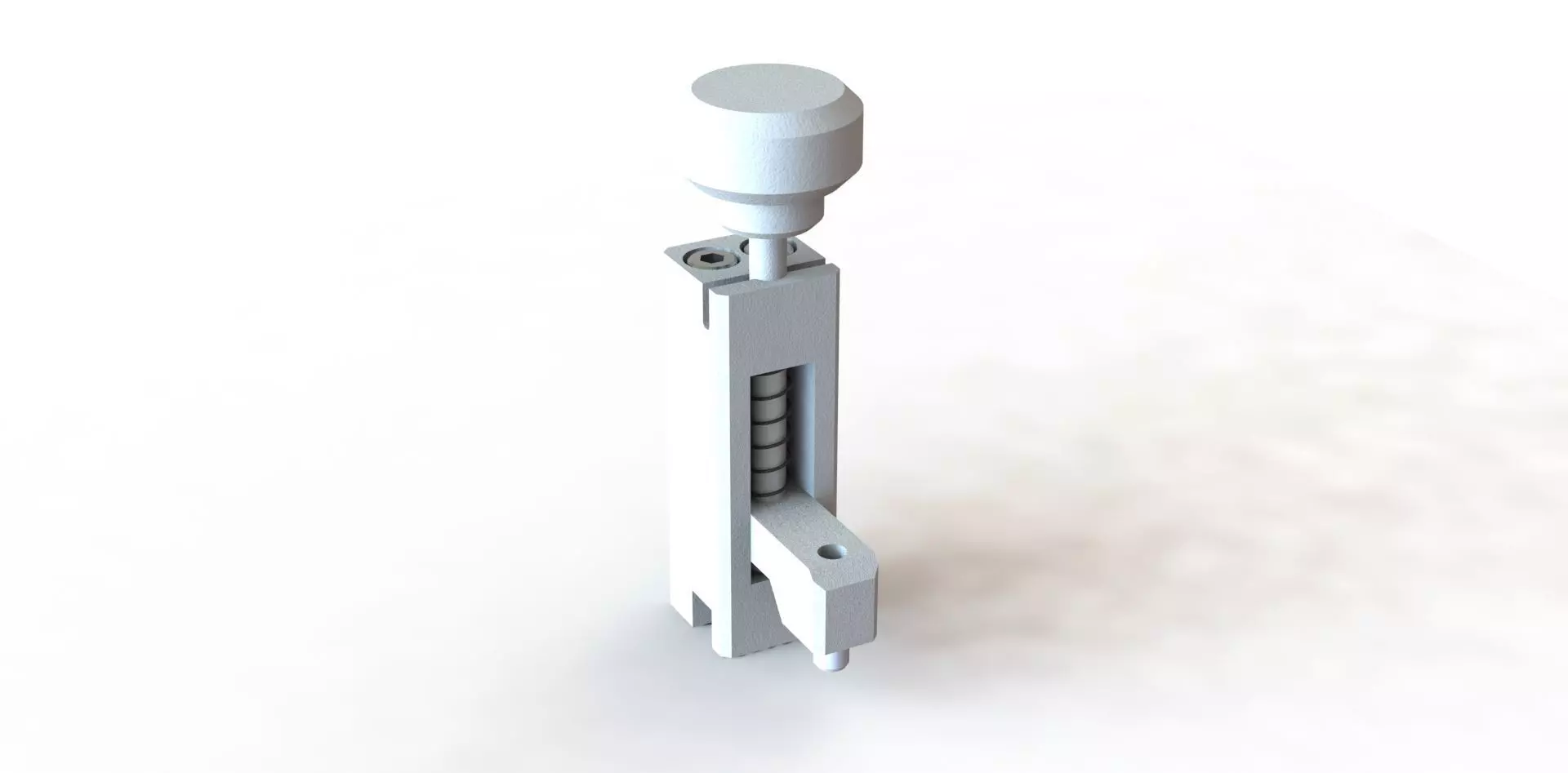

Locator Screw Indexer, used in process to fix a part ou assembly into a device or machine to teste or transformation, inteligent and flexible solutions for the most varied needs. Model made in smal size to store in computer memory. Made in SolidWorks, extensions to use in any 3D softwares (.IGES, x_t, .STEP, .PRT and .STL) you can print your 3D model too (.STL), and has the 3D PDF to presentation.

Indexador por Parafuso Localizador, usado em processos para fixar uma peça ou montagem em um dispositivo ou máquina para teste ou transformação, soluções inteligentes e flexíveis para as mais variadas necessidades. Modelo feito em tamanho pequeno para ser armazenado na memória do computador. Feito em SoliWorks, extensões para usar em qualquer software 3D (.IGES, x_t, .STEP, .PRT and .STL) você pode imprimir seu modelo 3D também (.STL), e tem o PDF 3D para apresentação.

REVIEWS & COMMENTS

See what other buyers think about this model - real feedback on quality,
accuracy, and usability.
There are no reviews or comments yet. Please be the first one to write it.

Indexador por Parafuso Localizador Locator Screw Indexer 3D model

Royalty Free License
Like this model to show appreciation to the designer.
See how many times this model was viewed.
Share this model to support the designer and boost their visibility.
Native file format
SLDPRT8 files
Size: 1.41 MB
Exchange formats
STL
Stereolithography | 9 files<br />File Size: 1.61 MB
X_T
Parasolid<br />File Size: 208 KB
PDF
PDF<br />File Size: 163 KB
IGE
IGES<br />File Size: 1.03 MB
