High-quality 3D assets at affordable prices — trusted by designers, engineers, and creators worldwide. Made with care to be versatile, accessible, and ready for your pipeline.
Included File Formats
This model is provided in 14 widely supported formats, ensuring maximum compatibility:
• - FBX (.fbx) – Standard format for most 3D software and pipelines
• - OBJ + MTL (.obj, .mtl) – Wavefront format, widely used and compatible
• - STL (.stl) – Exported mesh geometry; may be suitable for 3D printing with adjustments
• - STEP (.step, .stp) – CAD format using NURBS surfaces
• - IGES (.iges, .igs) – Common format for CAD/CAM and engineering workflows (NURBS)
• - SAT (.sat) – ACIS solid model format (NURBS)
• - DAE (.dae) – Collada format for 3D applications and animations
• - glTF (.glb) – Modern, lightweight format for web, AR, and real-time engines
• - 3DS (.3ds) – Legacy format with broad software support
• - 3ds Max (.max) – Provided for 3ds Max users
• - Blender (.blend) – Provided for Blender users
• - SketchUp (.skp) – Compatible with all SketchUp versions
• - AutoCAD (.dwg) – Suitable for technical and architectural workflows
• - Rhino (.3dm) – Provided for Rhino users
Model Info
• - All files are checked and tested for integrity and correct content
• - Geometry uses real-world scale; model resolution varies depending on the product (high or low poly)
• • - Scene setup and mesh structure may vary depending on model complexity
• - Rendered using Luxion KeyShot
• - Affordable price with professional detailing
Buy with confidence. Quality and compatibility guaranteed.
If you have any questions about the file formats, feel free to send us a message — we're happy to assist you!
Sincerely,
SURF3D
Trusted source for professional and affordable 3D models.
More Information About 3D Model :

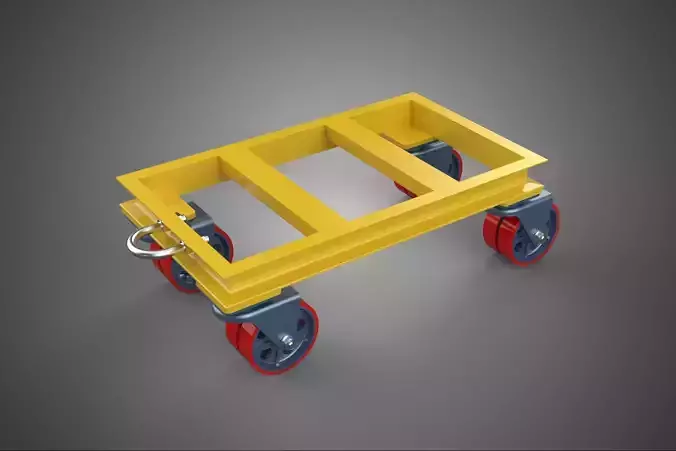

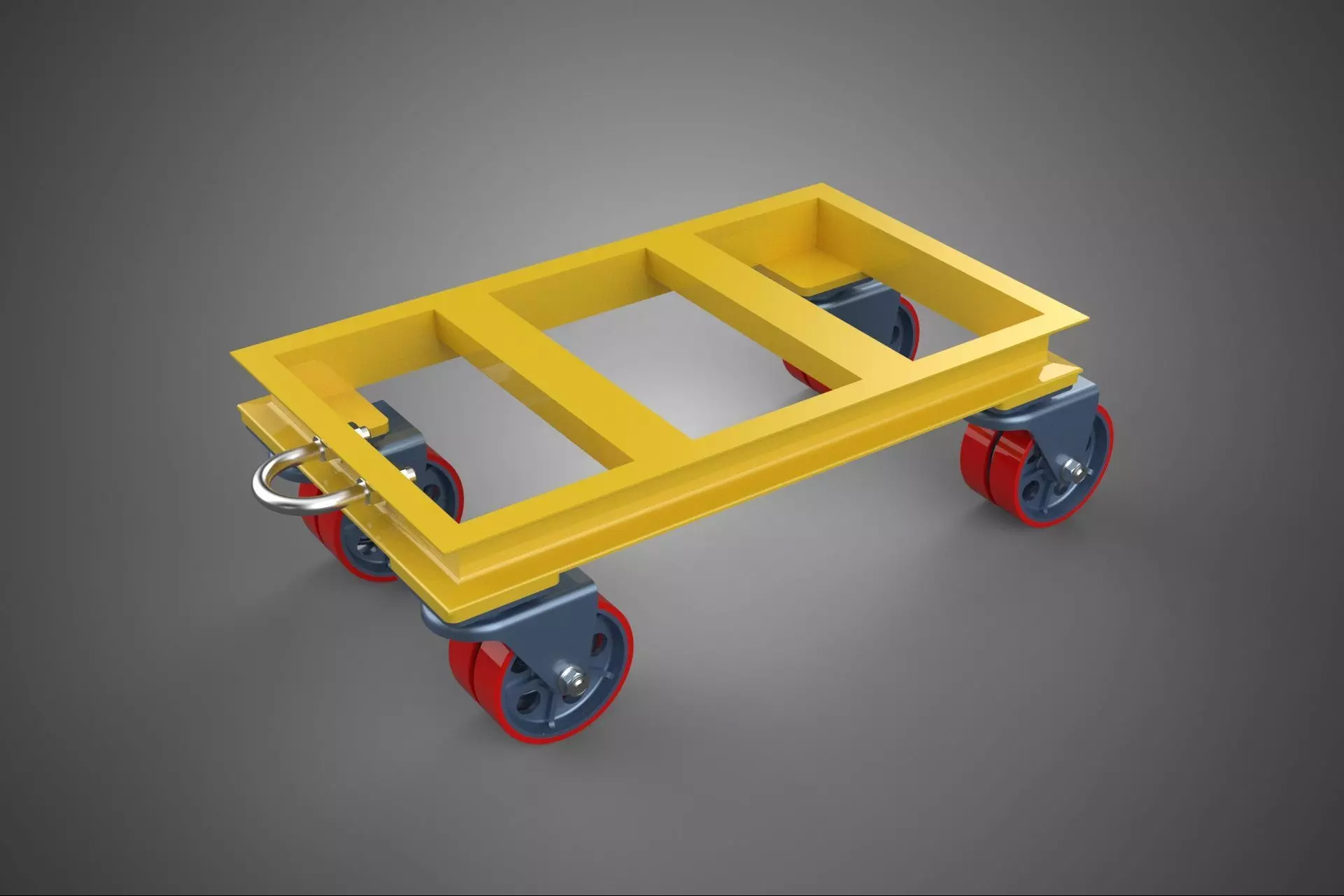

A heavy-duty tow hook dolly cart, often systematically termed a handling trolley pallet platform, is a specialized, non-powered piece of industrial material handling equipment engineered for the controlled transportation of substantial, unitized loads within manufacturing, warehousing, and complex logistics environments. This apparatus is designed specifically to interface with powered motive equipment, such as tow tractors, industrial tuggers, or Automated Guided Vehicles (AGVs), typically functioning as a component within a multi-cart tugger train system.
Nomenclature and Classification
The comprehensive title reflects the multifunctional nature of the equipment. It is classified under powered industrial trucks (PIT) accessories, falling within the category of wheeled conveyance systems for internal logistics. The term Heavy Duty denotes construction specifications designed to handle significantly higher static and dynamic load capacities—often exceeding 2,000 lbs (907 kg) per unit—compared to standard warehouse dollies or manual push carts. The combination of Tow Hook (the primary interface) and Pallet Platform (the load surface) distinguishes it from simple manual handling equipment.
Design and Construction
The structural integrity of these units is paramount. Frames are invariably constructed from high-gauge structural steel (e.g., reinforced tubular or channel steel), fabricated using industrial welding standards to ensure durability against frequent impacts and high tensile stress induced by towing operations. Key design elements include:
- Platform Deck: The load-bearing surface is typically dimensioned to accommodate standard industrial pallet footprints (such as 48x 40 GMA or European EPAL standards). The deck material may be solid steel plate, phenolic resin, or reinforced hardwood, selected based on resistance to abrasion and chemical exposure.
- Tow Interface: The tow hook mechanism is a critical feature, consisting of a robust coupling system. This may involve a manual or automatic pintle hook, bolt-on drawbar, or a specialized latch compatible with quick-connect/disconnect tugger systems. A steering mechanism, often incorporating Ackerman geometry or multi-directional casters, ensures precise tracking of the cart when pulled in a train configuration, minimizing drift and ensuring safety in narrow aisles.
- Running Gear: High-capacity casters and wheels are essential. These are typically industrial-grade, rigid or swivel-mounted, utilizing materials such as polyurethane, high-density nylon, or pneumatic rubber, chosen for load distribution, floor preservation, and shock absorption during movement. Wheel configuration must ensure stable load distribution under both static storage and dynamic towing conditions.
### Operational Function and Application
The primary operational function of the tow hook dolly platform is to facilitate optimized material flow in high-throughput facilities, aligning with Just-in-Time (JIT) or Just-in-Sequence (JIS) manufacturing methodologies. By linking multiple carts into a cohesive train, material handlers can efficiently deliver varied components (line-side supply) to assembly stations in a predefined sequence.
This system inherently reduces the need for multiple forklift trips, thereby enhancing facility safety, reducing operational noise, and minimizing reliance on fossil-fuel-powered equipment in production areas. Heavy-duty platforms are commonly employed in:
- Automotive Manufacturing: Delivering engines, chassis components, and sub-assemblies.
- Aerospace Industry: Transporting large tooling or heavy components between fabrication bays.
- Metal Fabrication: Moving raw material stock or finished goods between processing stages.
The versatility of the platform allows it to handle specialized containers, racks, or fixtures directly, bypassing the need for traditional pallets when necessary, thereby providing a flexible, high-capacity solution for internal logistics automation.
KEYWORDS: Material handling, industrial trolley, heavy duty dolly, tow tractor coupling, tugger train system, logistics platform, pallet conveyance, manufacturing equipment, structural steel, pintle hitch, AGV compatible, JIT delivery, line-side supply, warehouse management, unit load transport, non-powered cart, handling platform, robust design, caster wheels, conveyance system, internal logistics, factory automation, dynamic load capacity, industrial mobility, push-pull mechanism, automated material flow, equipment durability, high-capacity transport, assembly line logistics, sequencing.
