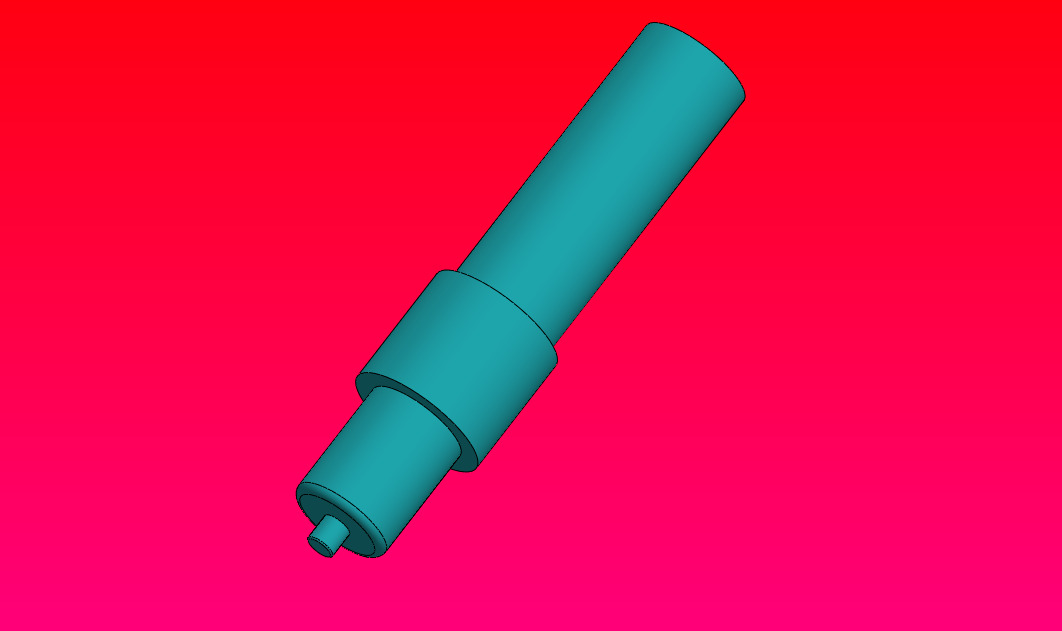

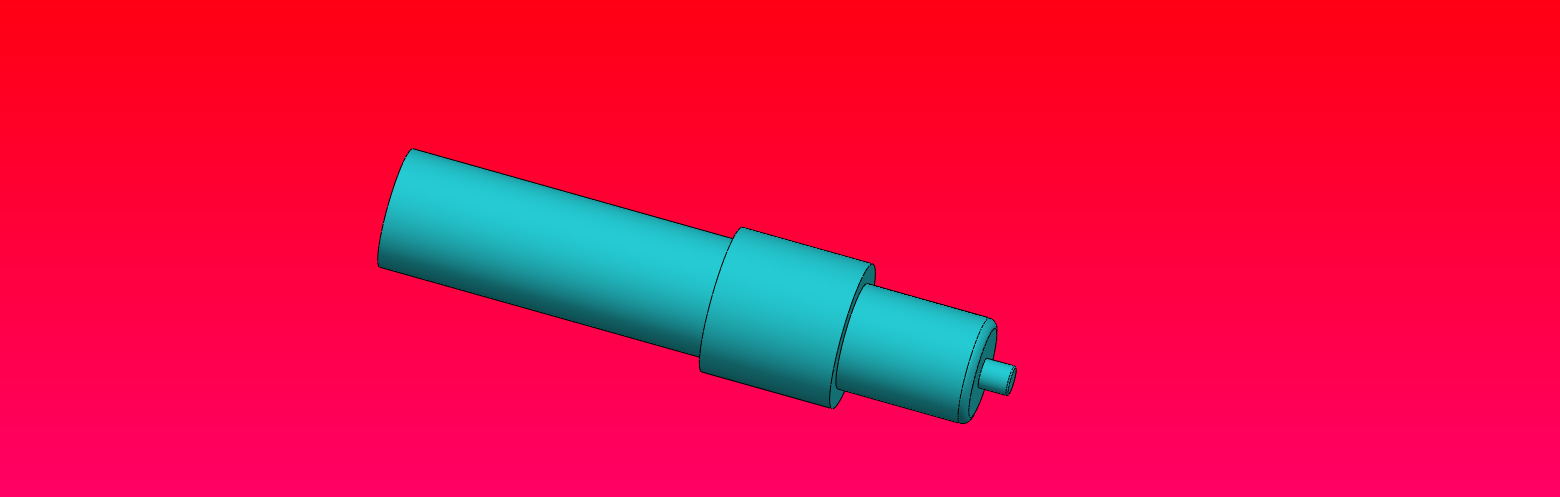

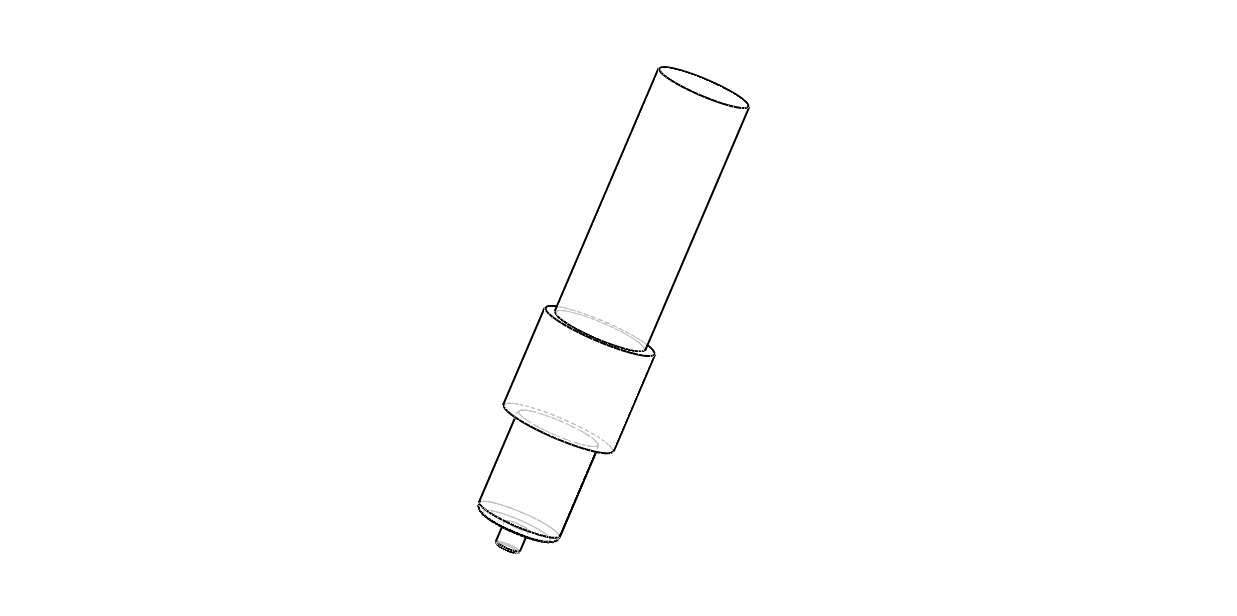

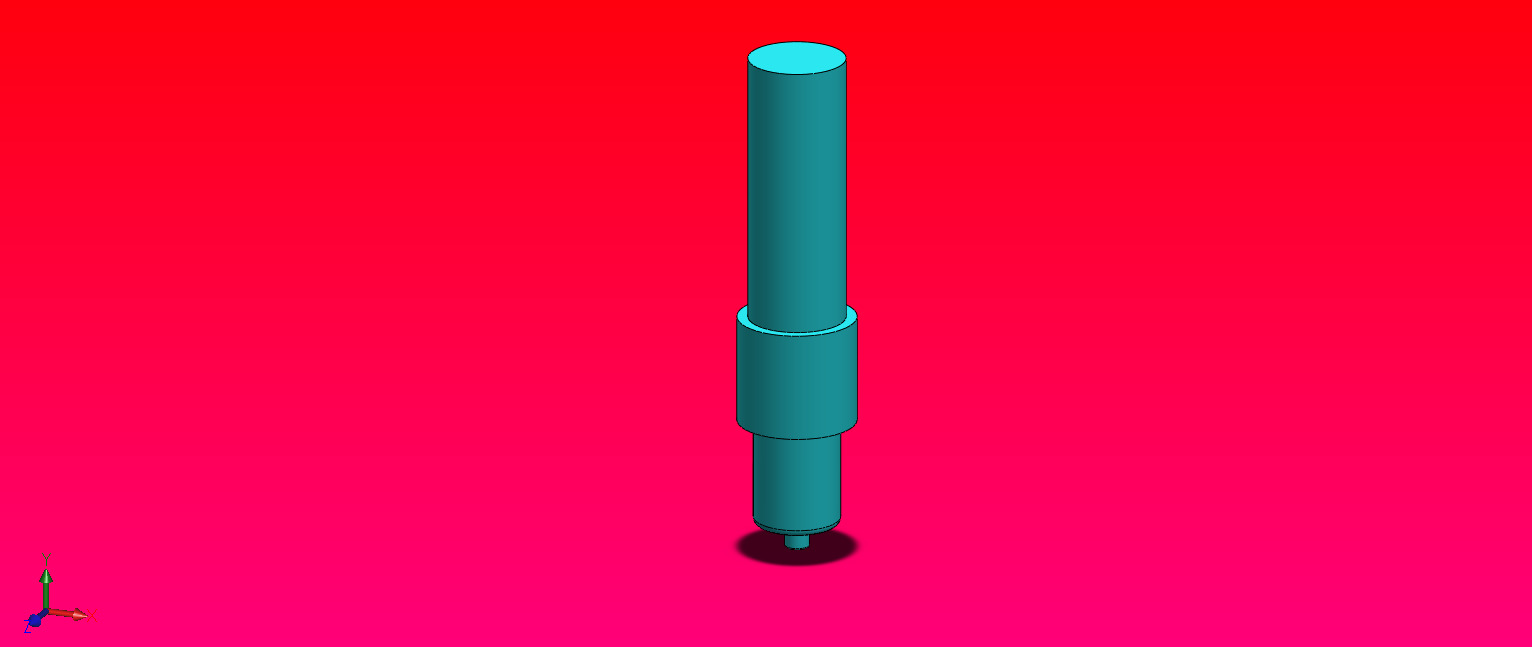

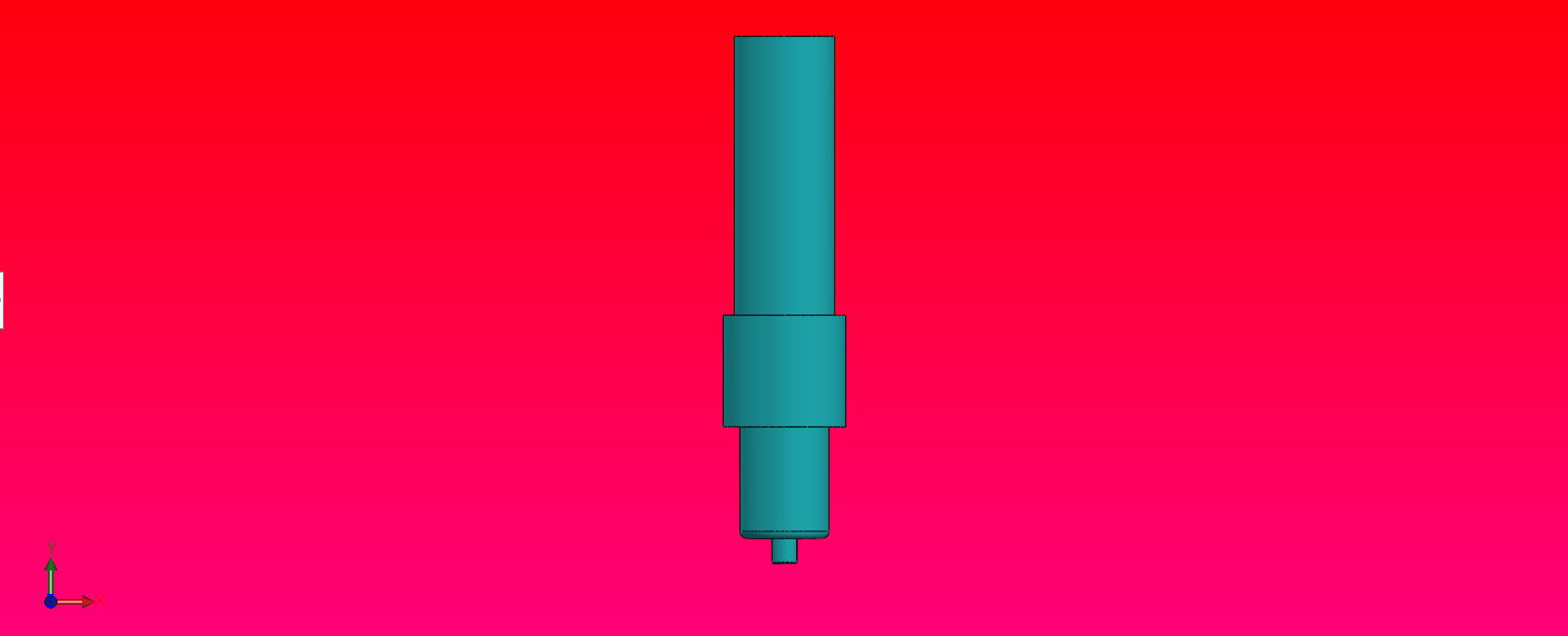

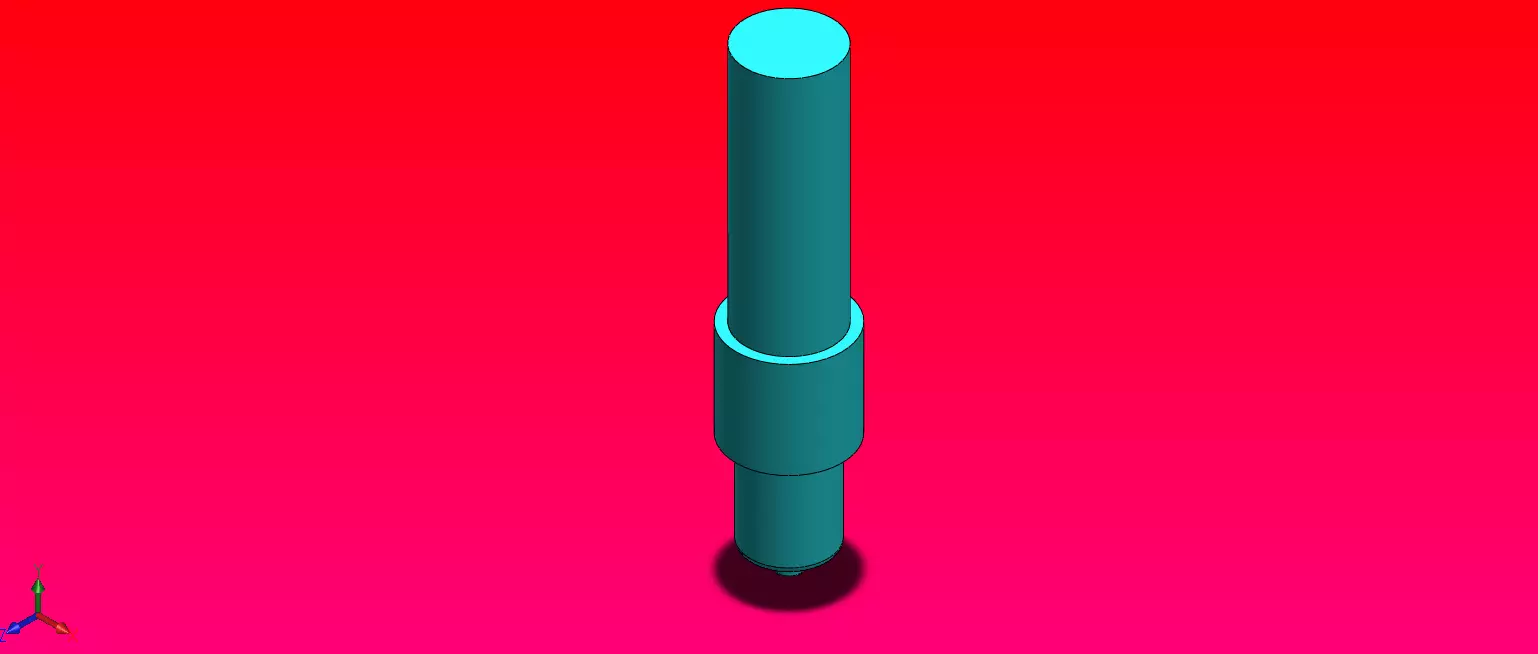

Friction stir welding Tool 3D model
thumbnail
thumbnail
thumbnail
thumbnail
thumbnail
thumbnail
DESCRIPTION

This custom-designed Friction Stir Welding (FSW) tool, created using SolidWorks, represents an innovative solution for joining materials with minimal thermal distortion. The FSW tool is designed to be used in the friction stir welding process, a solid-state welding technique that relies on heat generated by friction to soften materials, allowing them to be joined without melting.

  • pin length - 4.5
  • pin diameter-4.5
  • shoulder length -20
  • shoulder diameter - 20
  • fillet radius - 0.5 & 1.5

all dimensions are in mm.The formats available are .prt, .stl, .amf, .3mf etc.,
