High-quality 3D assets at affordable prices — trusted by designers, engineers, and creators worldwide. Made with care to be versatile, accessible, and ready for your pipeline.

Included File Formats
This model is provided in 14 widely supported formats, ensuring maximum compatibility:
• - FBX (.fbx) – Standard format for most 3D software and pipelines
• - OBJ + MTL (.obj, .mtl) – Wavefront format, widely used and compatible
• - STL (.stl) – Exported mesh geometry; may be suitable for 3D printing with adjustments
• - STEP (.step, .stp) – CAD format using NURBS surfaces
• - IGES (.iges, .igs) – Common format for CAD/CAM and engineering workflows (NURBS)
• - SAT (.sat) – ACIS solid model format (NURBS)
• - DAE (.dae) – Collada format for 3D applications and animations
• - glTF (.glb) – Modern, lightweight format for web, AR, and real-time engines
• - 3DS (.3ds) – Legacy format with broad software support
• - 3ds Max (.max) – Provided for 3ds Max users
• - Blender (.blend) – Provided for Blender users
• - SketchUp (.skp) – Compatible with all SketchUp versions
• - AutoCAD (.dwg) – Suitable for technical and architectural workflows
• - Rhino (.3dm) – Provided for Rhino users

Model Info
• - All files are checked and tested for integrity and correct content
• - Geometry uses real-world scale; model resolution varies depending on the product (high or low poly)
• • - Scene setup and mesh structure may vary depending on model complexity
• - Rendered using Luxion KeyShot
• - Affordable price with professional detailing

Buy with confidence. Quality and compatibility guaranteed.
If you have any questions about the file formats, feel free to send us a message — we're happy to assist you!

Sincerely,
SURF3D
Trusted source for professional and affordable 3D models.

More Information About 3D Model :

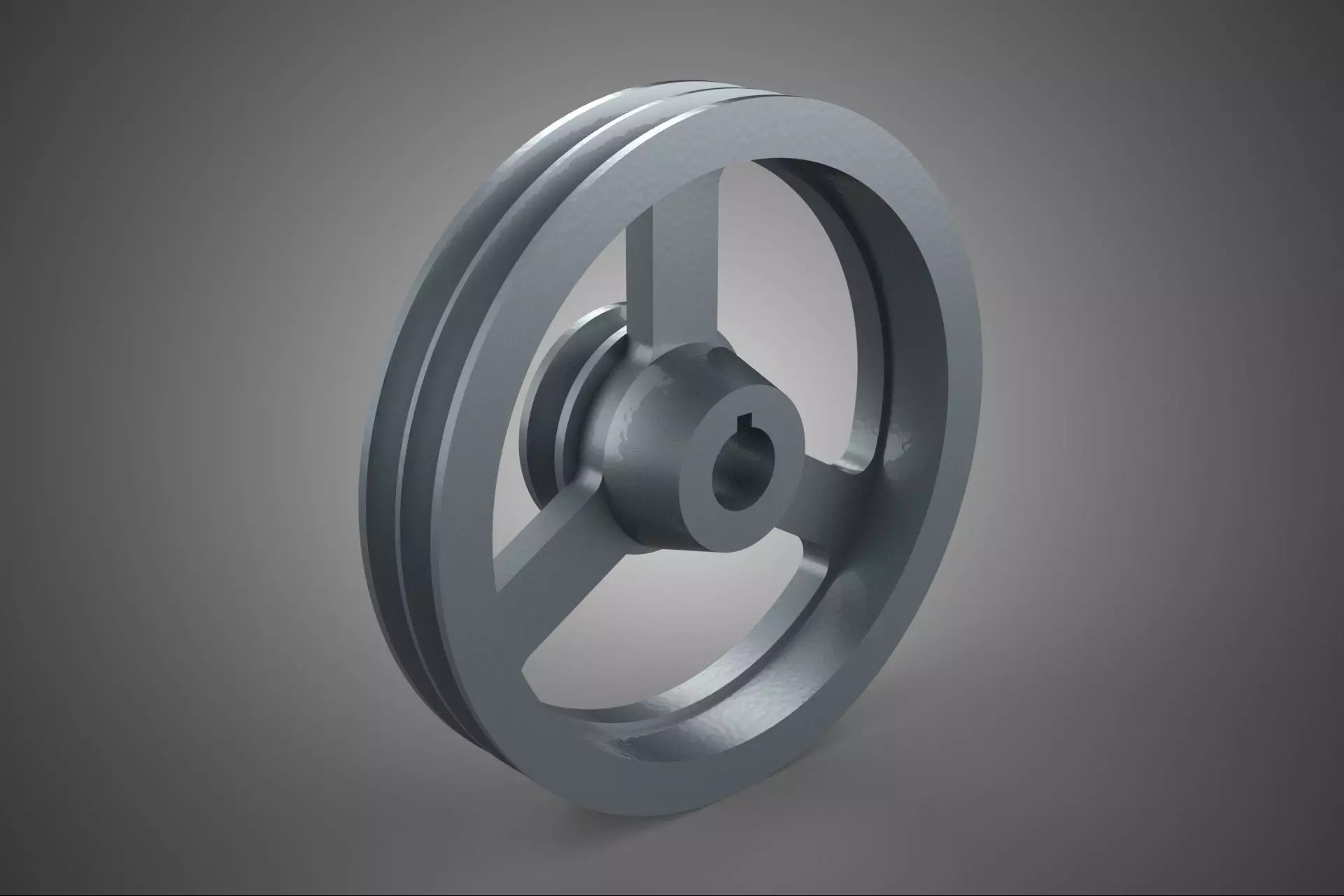

The component described as a 2 Step Stepped Pulley Groove Sheave V Belt Key Way Seat Keyway is a specialized mechanical element central to belt-driven power transmission systems where fixed, selectable speed changes are required. This component functions as a multi-diameter wheel (sheave) designed to transmit torque efficiently via a V-profile belt, securely mounted to a rotating shaft using a positive locking mechanism (the keyway).

The nomenclature defines the sheave's structure and operational constraints:

1. Stepped Pulley (2 Step): This refers to the geometry of the running surface. The pulley features two distinct, concentric diameters, each corresponding to a separate groove. This design facilitates the selection of two fixed speed (velocity) ratios between the driving and driven shafts. By manually shifting the V-belt from the smaller groove to the larger groove (or vice versa), the rotational speed of the driven shaft is proportionally altered, making it ideal for applications like machine tools (e.g., drill presses, lathes) where speed adjustment is crucial for different materials or operations.

2. Groove Sheave (V Belt): The term sheave specifically denotes a pulley with a grooved circumference. The grooves are precisely angled (typically 30° to 40°) to match the standardized cross-section of a V-belt. This configuration exploits the mechanical advantage of the wedge principle: as the belt seats deeper into the groove under tension and load, the contact pressure (and thus friction) between the belt flanks and the groove walls increases significantly, preventing slippage and maximizing power transfer efficiency compared to flat belt systems.

   ### Mechanical Integrity and Mounting

   The integrity of the assembly relies on robust attachment to the shaft, achieved via the specialized hub features:


3. Key Way Seat / Keyway: The central bore of the pulley's hub is machined with a precisely sized rectangular channel known as a keyway (or key seat). This slot is engineered to accept a corresponding machine key. The keyway system is essential for positive mechanical coupling, ensuring that the torsional load is transmitted reliably from the shaft to the pulley without dependence on friction alone (as would be the case with a simple press fit or set screw).

4. Mounting Mechanism: When assembled, the machine key occupies the combined space of the keyway in the pulley hub and a corresponding slot (keyseat) machined into the shaft. This configuration resists shear forces induced by the torque load, maintains synchronization between the component and the shaft, and facilitates maintenance (removal and replacement). The keyway dimensions are standardized based on the shaft diameter to ensure interchangeability and proper mechanical rating.

   ### Construction and Applications

   Stepped V-belt sheaves are typically manufactured from durable materials such as grey cast iron (due to its excellent vibration damping properties and machinability), steel (for high stress environments), or specialized aluminum alloys (for lightweight, high-speed applications). The component surfaces are often finished to strict tolerances to ensure smooth belt operation and maximize belt life.

   These 2-step pulleys are foundational elements in light to moderate power transmission, particularly within small industrial machinery, workshop equipment, domestic appliances, and HVAC systems requiring predefined, switchable operational speeds.

   KEYWORDS: Stepped Pulley, V-Belt, Sheave, Keyway, Key Seat, Power Transmission, Velocity Ratio, Speed Change, Grooved Pulley, Torsional Load, Mechanical Coupling, Machine Key, Shaft, Drive System, Two-Step, Wedge Principle, Synchronous Motion, Rotational Dynamics, Mechanical Engineering, Cast Iron, Belt Drive, Torque Transfer, Variable Speed, Fixed Ratio, Hub, Bore, Machining, Industrial Machinery, Drive Component, Belt Tension.
