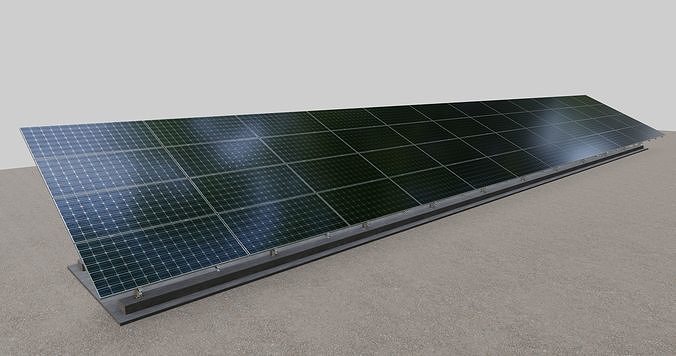

Solar Panel Steel Construction Type 16 3D model

Solar Panel Steel Construction Type 16

4x12 Horizontal Panel Layout

Ground Connection Type; With Double Angle Anchor Connection

Foundation Dimensions : 3000mm x 26800mm x 500mm

Panel Dimensions : 2279 x 1134 x 35 mm

Panel Power : 550Wp

1 solar panel steel construction produces 26,4 kWp power in 1 hour

The system consists of 11 axles and the distance between each axle is 2600 mm.

Distance between two columns 2300 mm.

Horizantal angle of panel 25°

The closest distance of the panels to the floor 1000 mm.

Profile Section;

Column : C Profile C100x50x20-3mmBeam : C Profile CE120x50x20_25°-3mmPurlin : C Profile C70x40x15x-2mmDiagonal : U Profile U50x30-2mmAnchor Angle Profile : L150x60-6mm

Prepared With BLENDER Version 2.93.5

Polygons : 480842

Vertices : 569478

Objects : 788
