DESCRIPTION

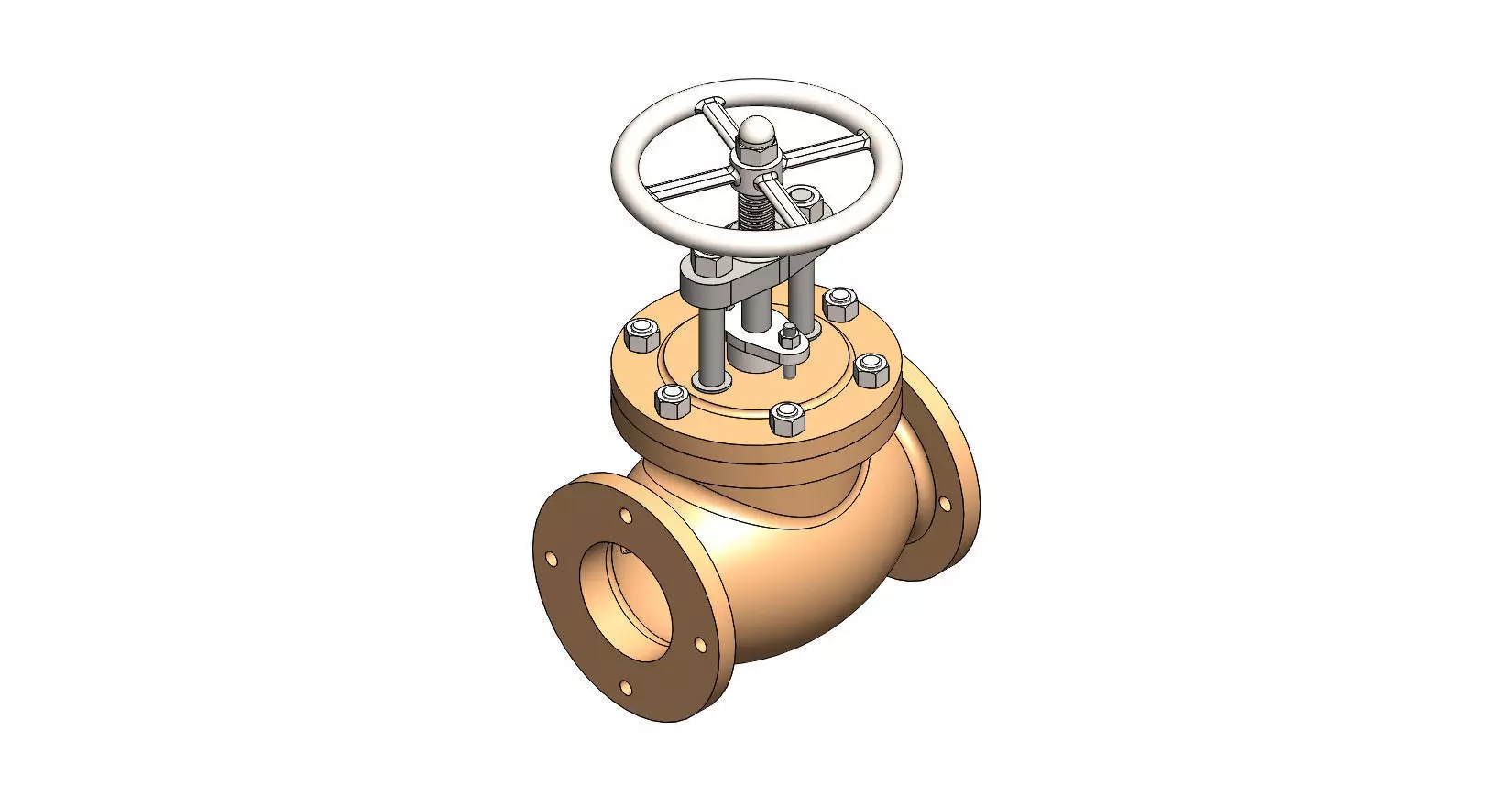

This is a detailed 3D model of an industrial globe valve designed for fluid flow control applications. The model features a handwheel-operated stem mechanism, flanged pipe connections, and a robust valve body suitable for industrial piping systems.Created in SolidWorks with accurate geometry, this model is ideal for mechanical design projects, plant layout visualization, CAD practice, and educational purposes.

Key Features

  • Realistic industrial globe valve design
  • Handwheel and stem mechanism modeled in detail
  • Flanged inlet and outlet connections
  • Fully assembled and properly aligned components
  • Clean topology suitable for rendering and technical use
  • Designed using SolidWorks with parametric features

File Details

  • Native format: SolidWorks (.SLDASM / .SLDPRT)
  • Neutral formats: STEP (.STEP), IGES (.IGS) (recommended for compatibility)
  • Units: Millimeters
  • Assembly with individual parts included
