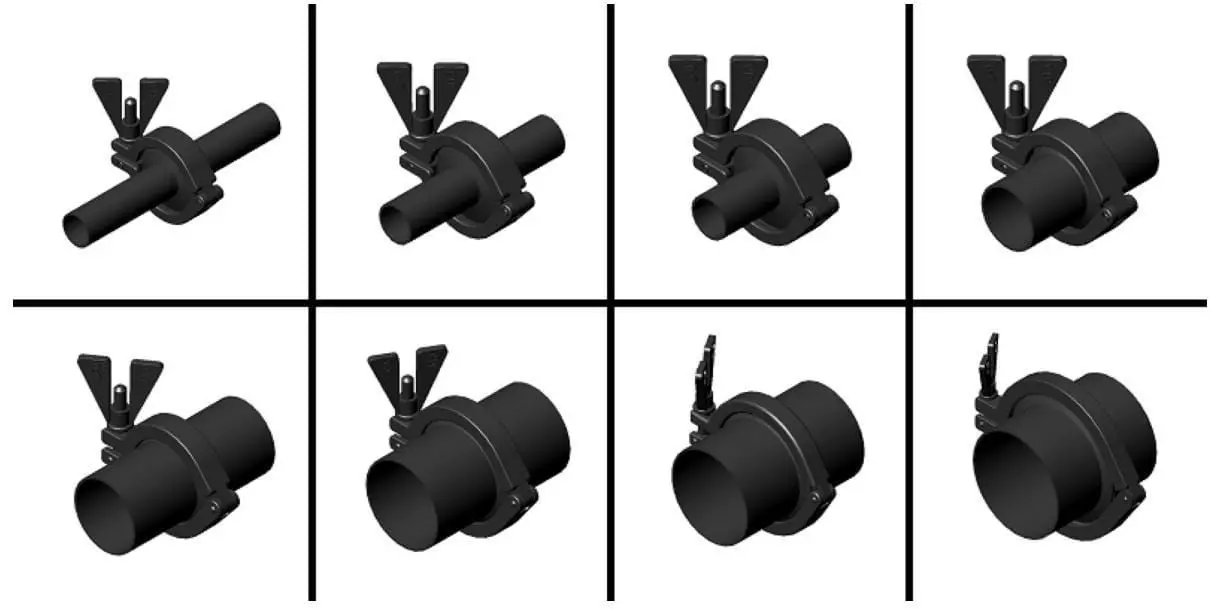

This package includes a complete 3D CAD library of sanitary union clamp TC fittings, covering 8 standard sizes from 1-2 inch (Ø12.7 mm) up to 4 inch (Ø101.6 mm).

Each union set is composed of:

2 × Nipple TC

1 × Gasket (sealing)

1 × Clamp TC

All models were created from scratch with engineering precision and are ready for integration into industrial piping projects in the food, beverage, pharmaceutical, and chemical industries.

Content included (8 sizes):

Sanitary Union Clamp TC 1-2 inch (Ø12.7 mm)

Sanitary Union Clamp TC 3-4 inch (Ø19.05 mm)

Sanitary Union Clamp TC 1 inch (Ø25.4 mm)

Sanitary Union Clamp TC 1-1-2 inch (Ø38.1 mm)

Sanitary Union Clamp TC 2 inch (Ø50.8 mm)

Sanitary Union Clamp TC 2-1-2 inch (Ø63.5 mm)

Sanitary Union Clamp TC 3 inch (Ø76.2 mm)

Sanitary Union Clamp TC 4 inch (Ø101.6 mm)

File formats delivered:

.DWG (AutoCAD / Plant 3D)

.STEP (neutral CAD format for Inventor, SolidWorks, Fusion 360, FreeCAD, etc.)

Main benefits:

Save dozens of engineering hours with a ready-to-use CAD library.

Complete union clamp sets with all components included.

Clean geometry optimized for industrial piping projects.

Organized by size and delivered in two widely compatible formats.

Compatible with major CAD platforms.
