3D CAD model of a Sanitary Union Clamp TC 1-1-2 inch (Ø38.1 mm), designed from scratch for engineering and industrial use.This union set includes:
2 × Nipple TC
1 × Gasket (sealing)
1 × Clamp TC
The model is accurate and ready for integration into piping projects in the food, beverage, pharmaceutical, and chemical industries.
Included formats:
.DWG (AutoCAD / Plant 3D)
.STEP (neutral CAD format for Inventor, SolidWorks, Fusion 360, FreeCAD, etc.)
Main benefits:
Save engineering hours with a ready-to-use CAD model.
Complete union set with all components included.
Clean geometry optimized for industrial piping projects.
Compatible with major CAD platforms.

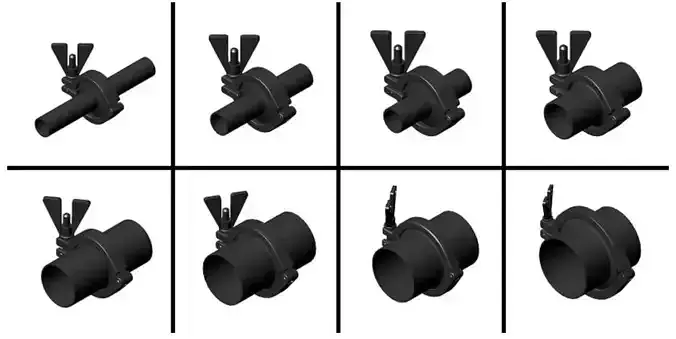

If you need the complete set with all TC union clamp diameters, check my profile for the full package.
