This package includes a complete 3D CAD library of sanitary elbows TC 90°, covering 8 standard sizes from 1-2 inch (Ø12.7 mm) up to 4 inch (Ø101.6 mm).

All models were created from scratch with engineering precision and are ready for integration into industrial piping projects in the food, beverage, pharmaceutical, and chemical industries.

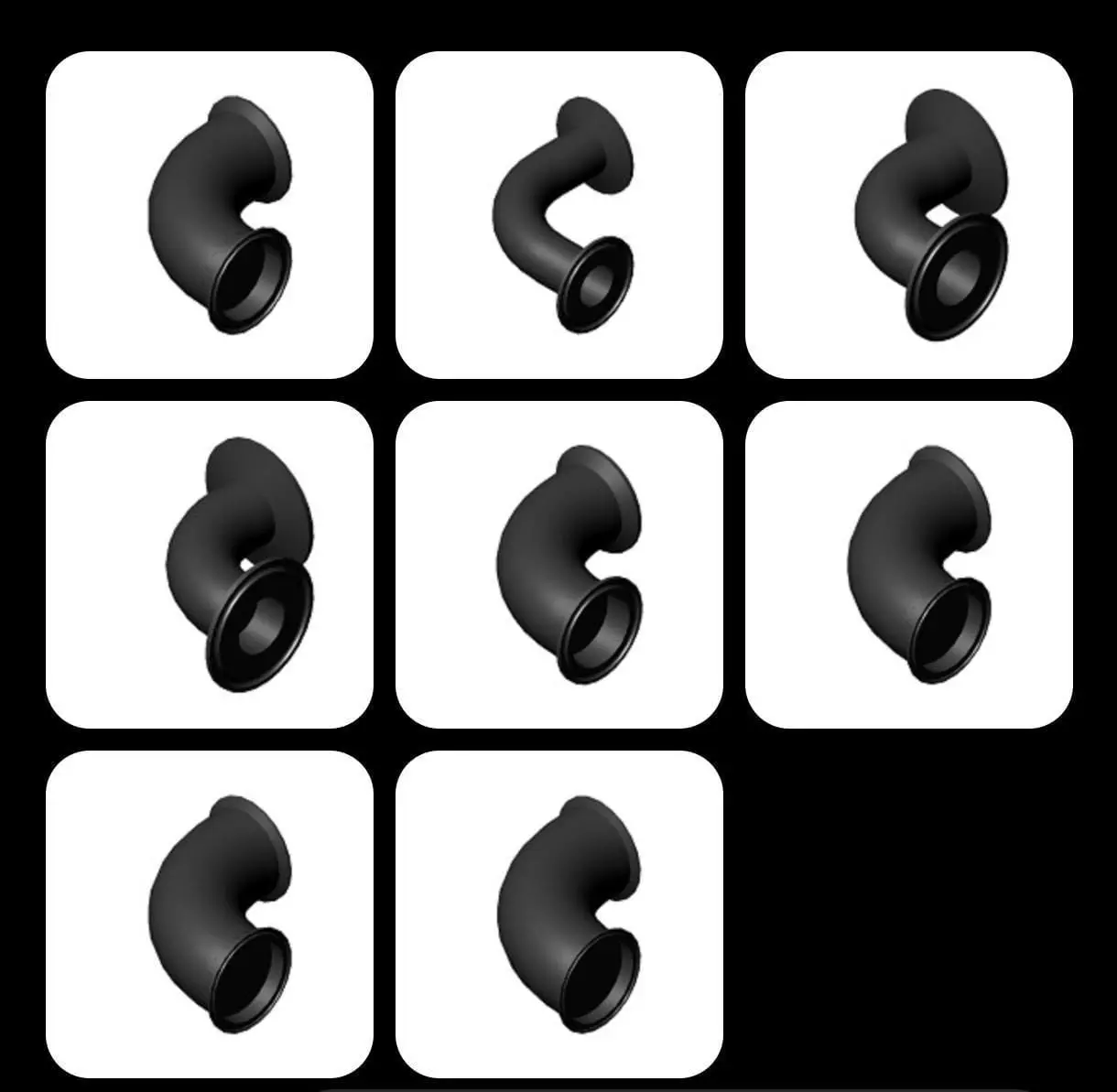

Content included (8 models):

90° Elbow TC 1-2 inch (Ø12.7 mm)

90° Elbow TC 3-4 inch (Ø19.05 mm)

90° Elbow TC 1 inch (Ø25.4 mm)

90° Elbow TC 1-1-2 inch (Ø38.1 mm)

90° Elbow TC 2 inch (Ø50.8 mm)

90° Elbow TC 2-1-2 inch (Ø63.5 mm)

90° Elbow TC 3 inch (Ø76.2 mm)

90° Elbow TC 4 inch (Ø101.6 mm)

File formats delivered:

.DWG (AutoCAD / Plant 3D)

.STEP (neutral CAD format for Inventor, SolidWorks, Fusion 360, FreeCAD, etc.)

Main benefits:

Save dozens of engineering hours with a ready-to-use CAD library.

Clean geometry optimized for industrial piping projects.

Organized by size and angle 90°.

Compatible with major CAD platforms.
