Sanitary Elbow 45 TC Complete Set 1-2 in to 4 in 3D model

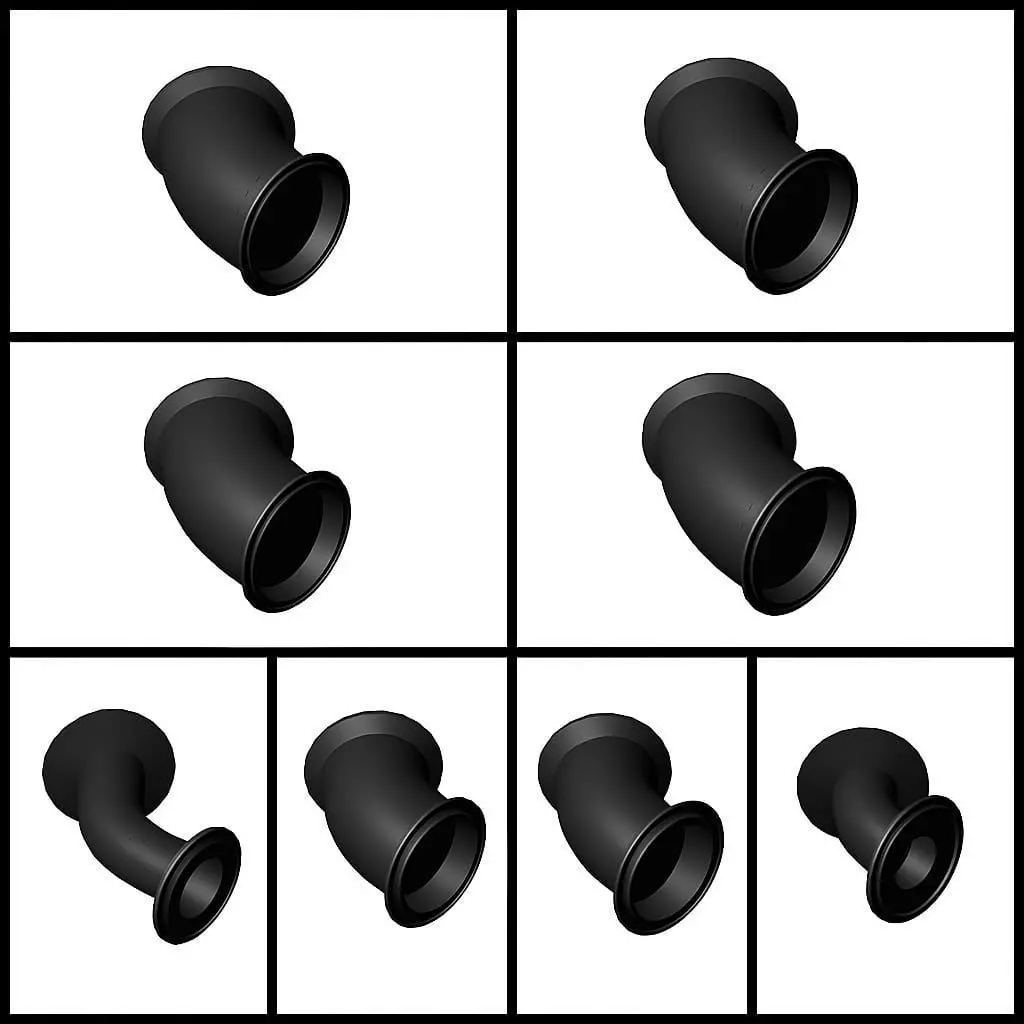

This package includes a complete 3D CAD library of sanitary 45° elbows TC, covering 8 standard sizes from 1-2 inch (Ø12.7 mm) up to 4 inch (Ø101.6 mm).

All models were created from scratch with engineering precision and are ready for integration into industrial piping projects in the food, beverage, pharmaceutical, and chemical industries.

Content included (8 sizes):

Sanitary Elbow 45° TC 1-2 inch (Ø12.7 mm)

Sanitary Elbow 45° TC 3-4 inch (Ø19.05 mm)

Sanitary Elbow 45° TC 1 inch (Ø25.4 mm)

Sanitary Elbow 45° TC 1-1-2 inch (Ø38.1 mm)

Sanitary Elbow 45° TC 2 inch (Ø50.8 mm)

Sanitary Elbow 45° TC 2-1-2 inch (Ø63.5 mm)

Sanitary Elbow 45° TC 3 inch (Ø76.2 mm)

Sanitary Elbow 45° TC 4 inch (Ø101.6 mm)

File formats delivered:

.DWG (AutoCAD / Plant 3D)

.STEP (neutral CAD format for Inventor, SolidWorks, Fusion 360, FreeCAD, etc.)

Main benefits:

Save dozens of engineering hours with a ready-to-use CAD library.

Clean geometry optimized for industrial piping projects.

Organized by size and delivered in two widely compatible formats.

Compatible with major CAD platforms.
