Positioning mechanism of heavy-duty platform 3D model
thumbnail
thumbnail
thumbnail
thumbnail
thumbnail
thumbnail
thumbnail
DESCRIPTION

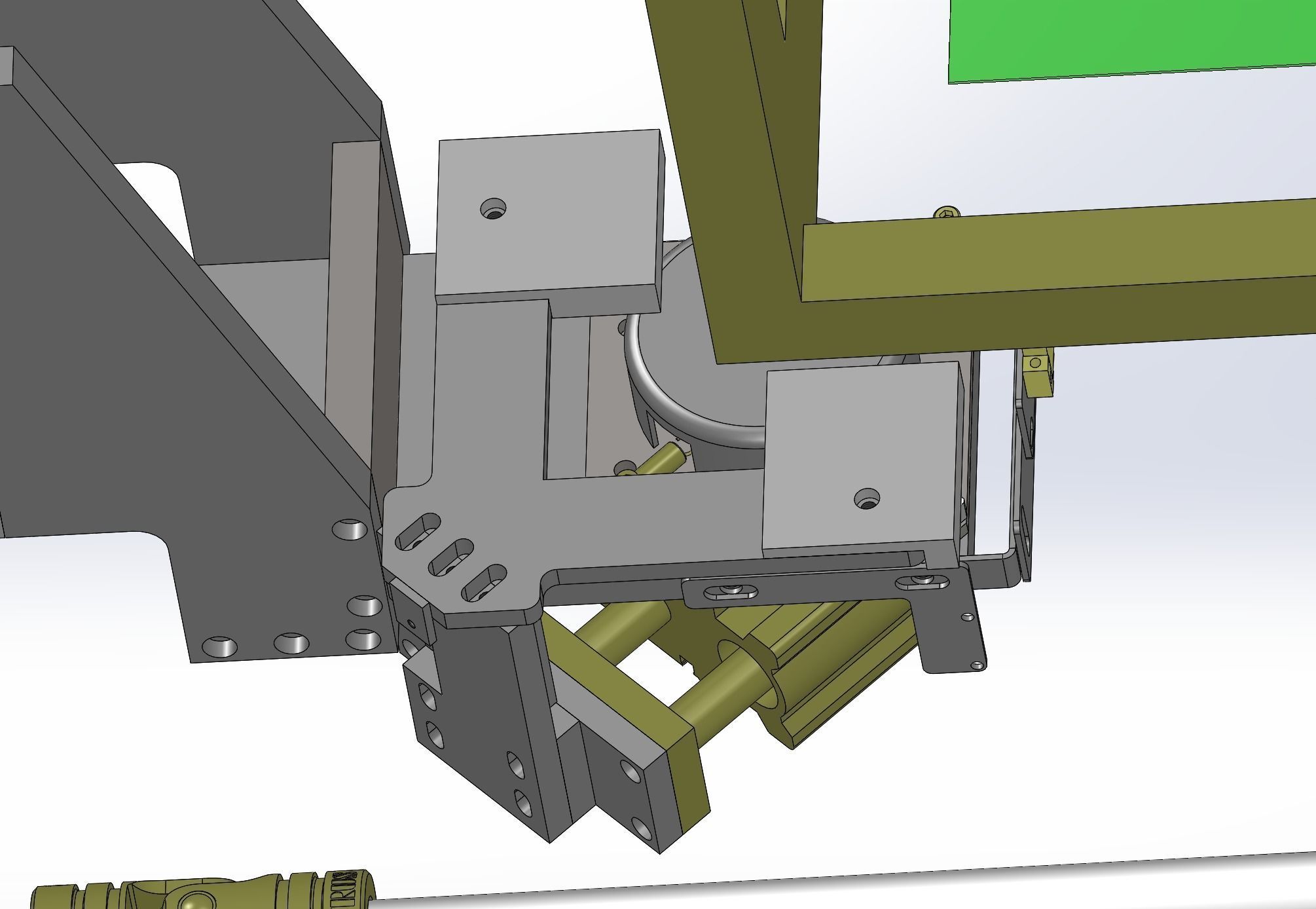

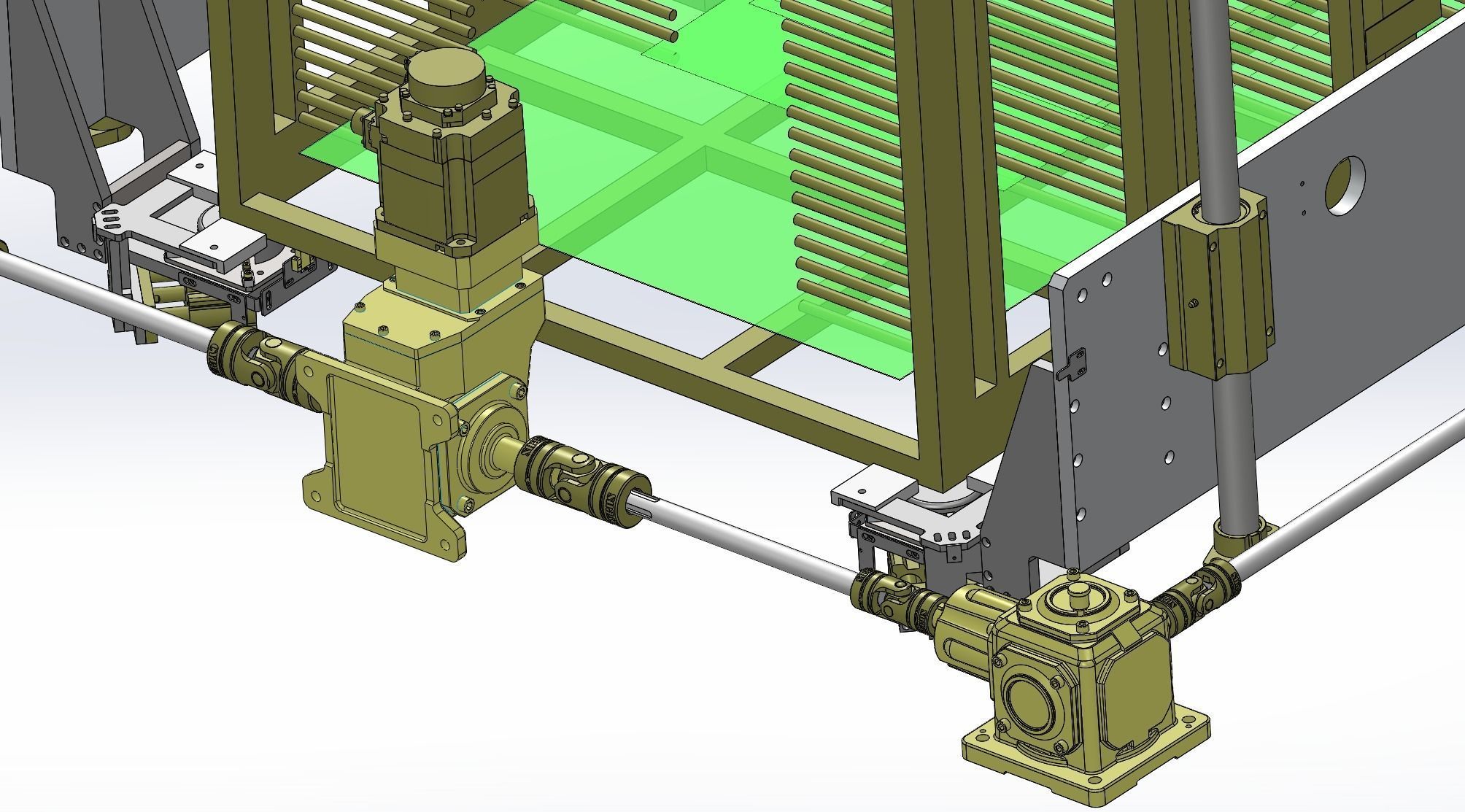

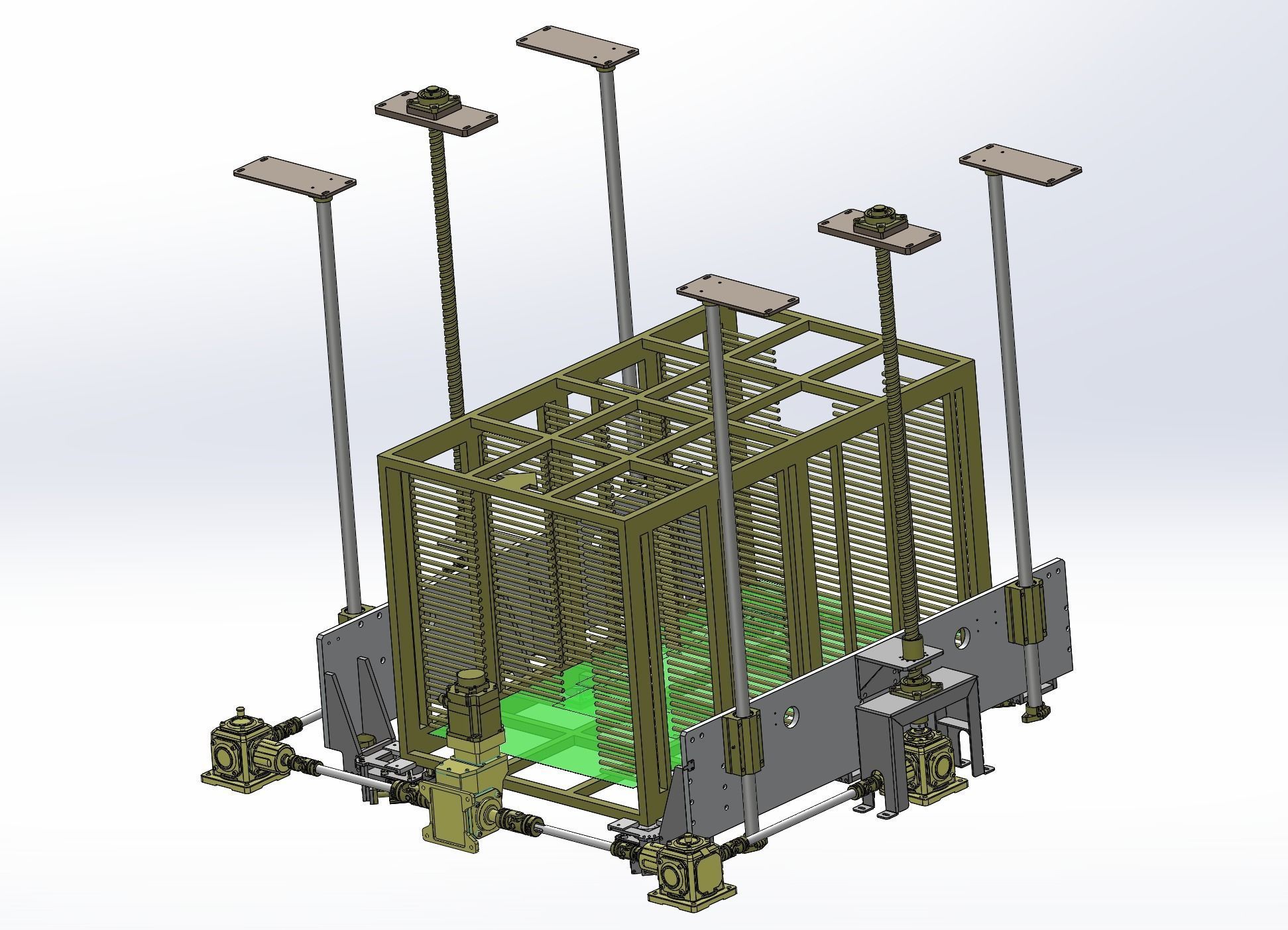

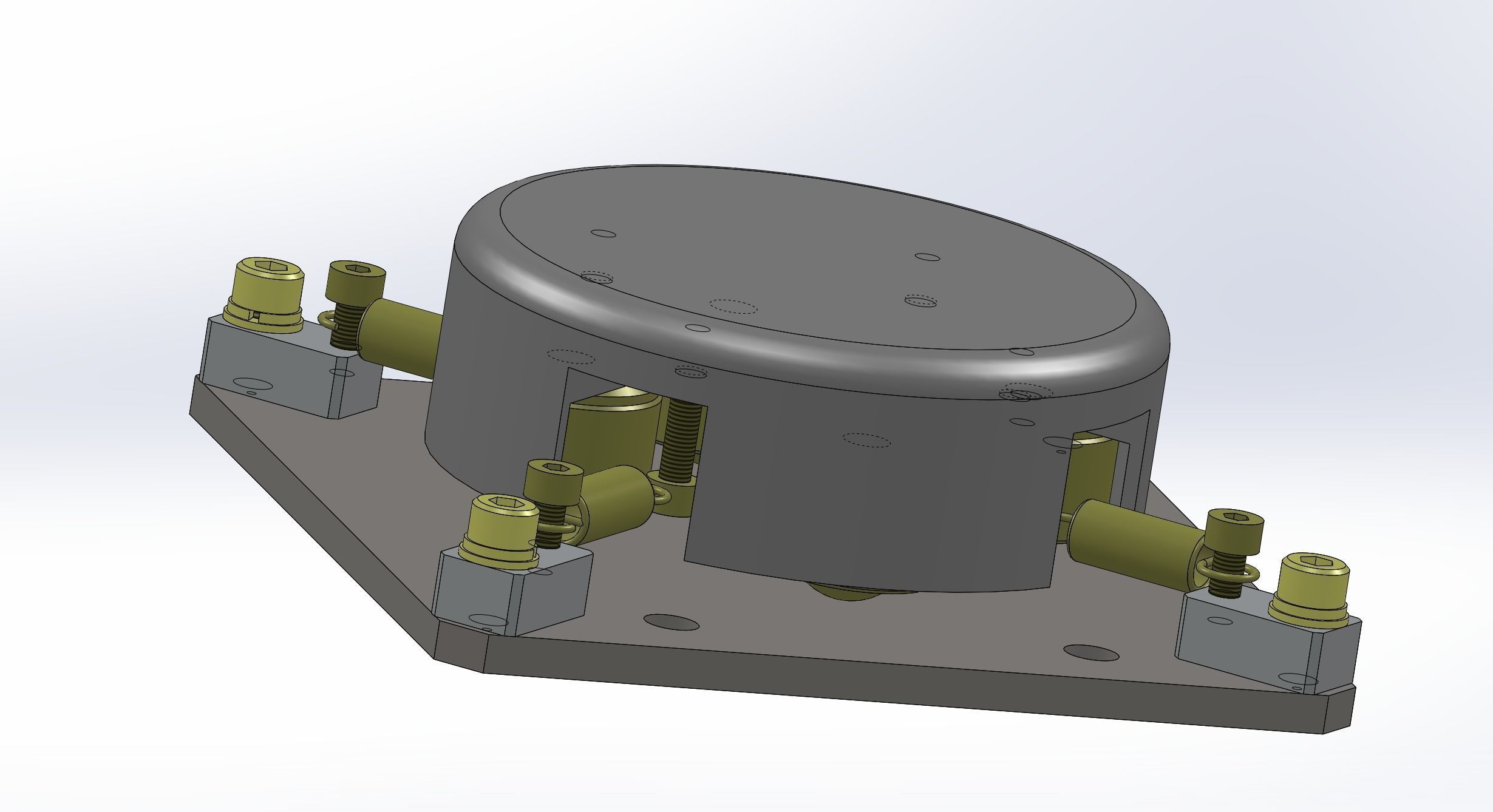

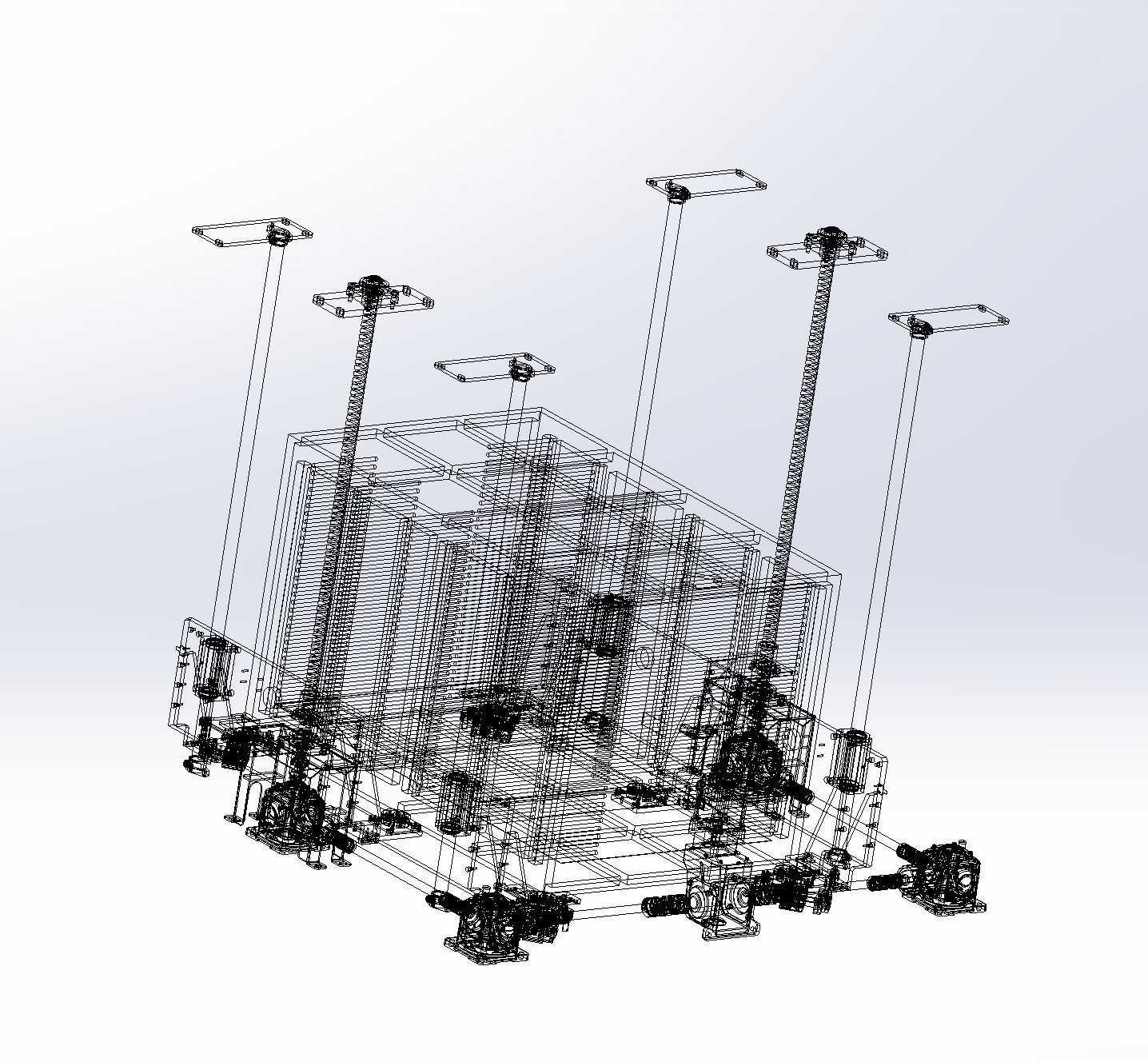

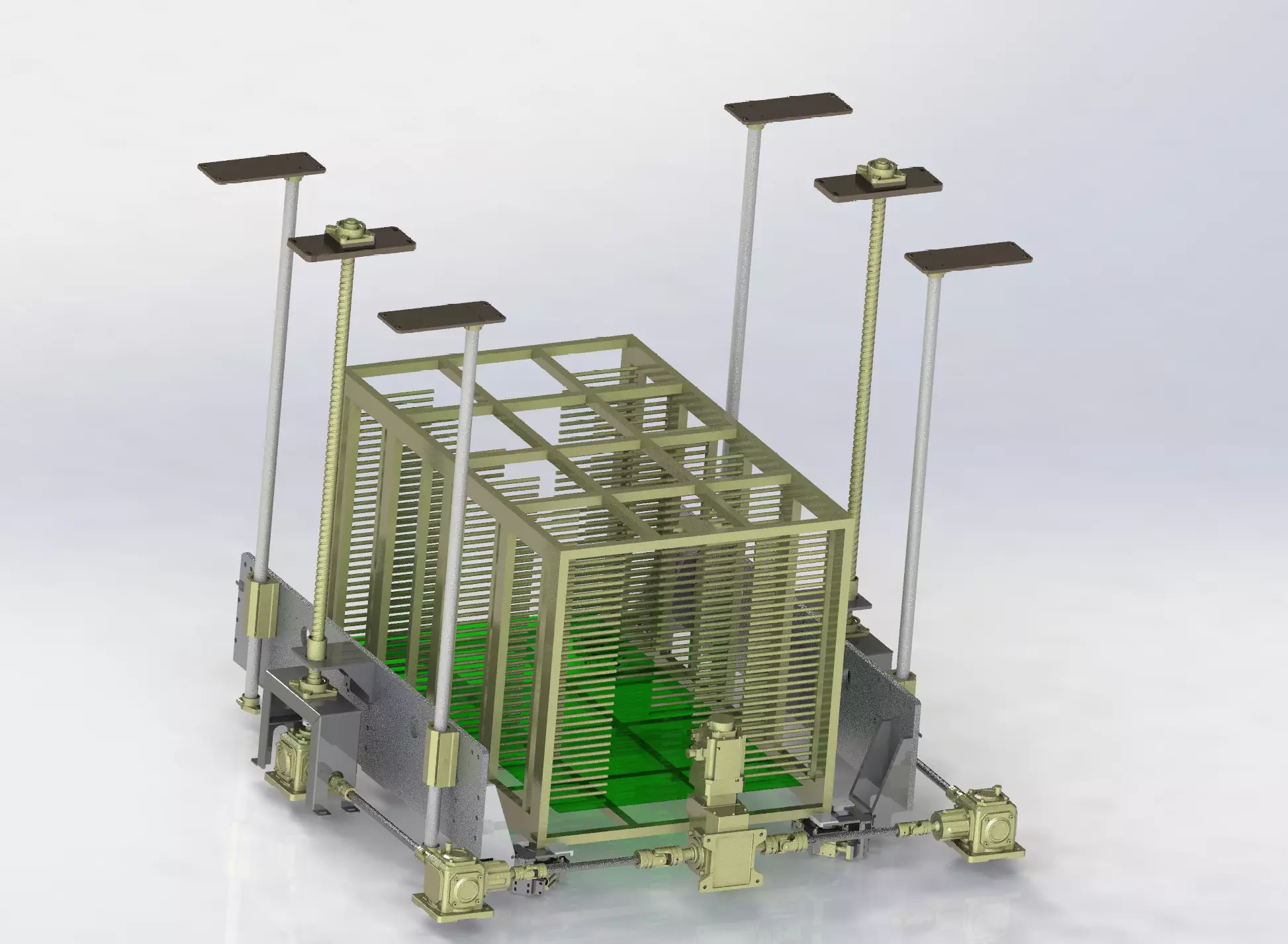

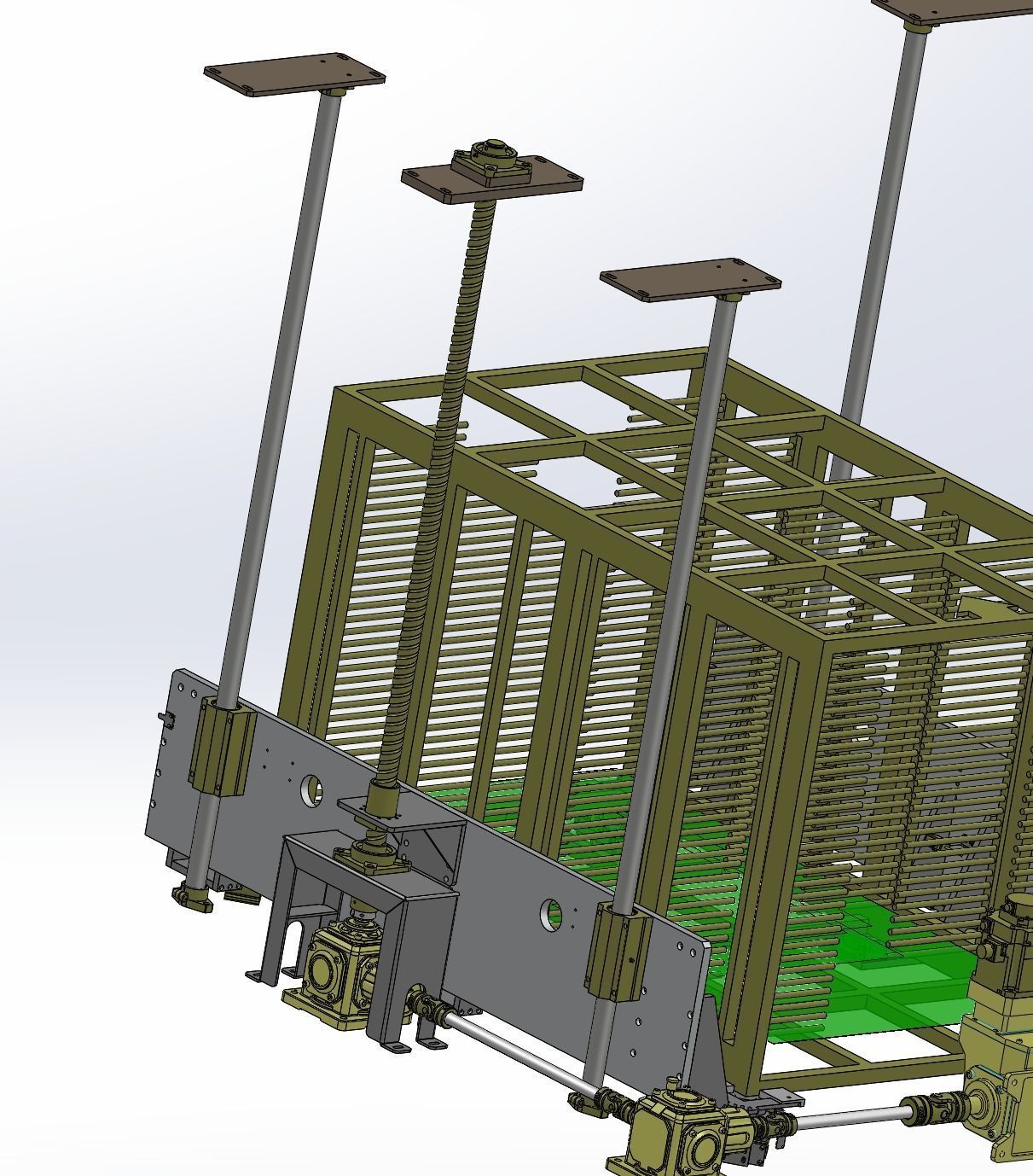

Positioning mechanism of heavy-duty platformThe mechanism is characterized by the heavy load mechanism how to position through the cylinder to push the ball mechanism, four corner positioning, can be quickly positionedProcess: cylinder activity -- ball mechanism activity ---- drive heavy load XY axis movement -- positioning completed

Files format contains-solidworks 2017-step-iges

  • and other formats

If you like,you can buy for you to get this models or if you have any questions also you can email to me.Designed with SolidWorks 2017, render with Keyshot

Related Tagsindustryindustrialequipmentmanufactureproductionassemblyfactoryautomaticmechanicenginetoolpartdeviceballtypeloadleadscrewindustrial partindustrial factory
