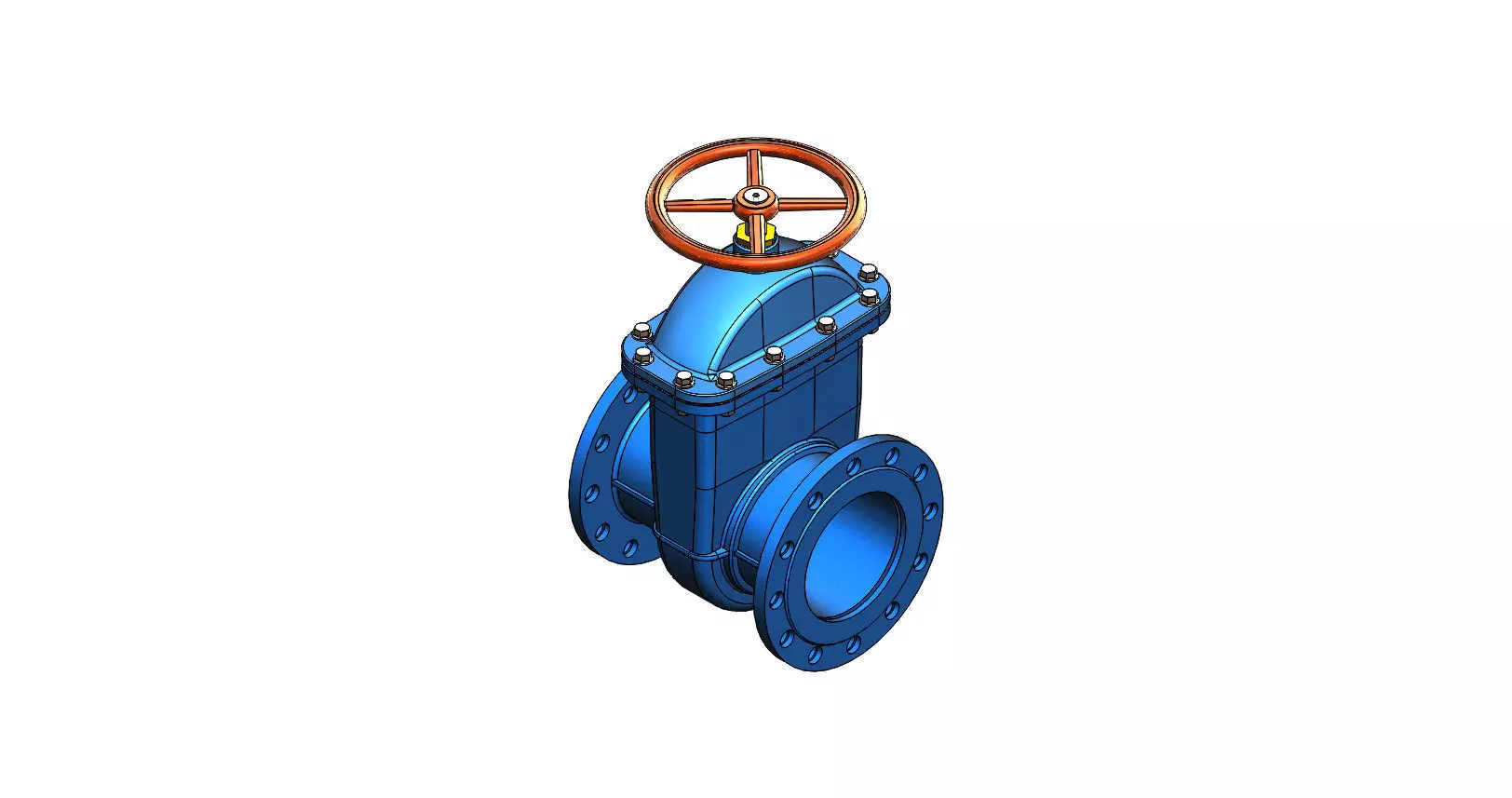

This is a detailed gate valve 3D model designed using SolidWorks. The model represents a typical industrial flanged gate valve commonly used in piping systems for flow isolation. It features a handwheel-operated rising stem, bolted bonnet, and flanged inlet and outlet connections.The model is suitable for mechanical design projects, industrial plant layouts, piping system visualization, HVAC and fluid system simulations, and educational purposes. Clean geometry and proper part separation make it easy to modify, assemble, or render.
Key Features
- Realistic industrial gate valve design
- Flanged inlet and outlet connections
- Handwheel-operated stem mechanism
- Bolted bonnet and body details
- Accurate proportions and clean topology
File Details
- Created in SolidWorks
- Native SolidWorks part/assembly included
- Export-friendly for STEP / IGES / STL formats
- Ready for rendering, simulation, or manufacturing reference
