Slot mechanism
Slot mechanism 3D model
  • Slot mechanism 3D model_0
  • Slot mechanism 3D model_1
1 / 2
Useto navigate. Pressescto quit

Slot mechanism 3D model

Description

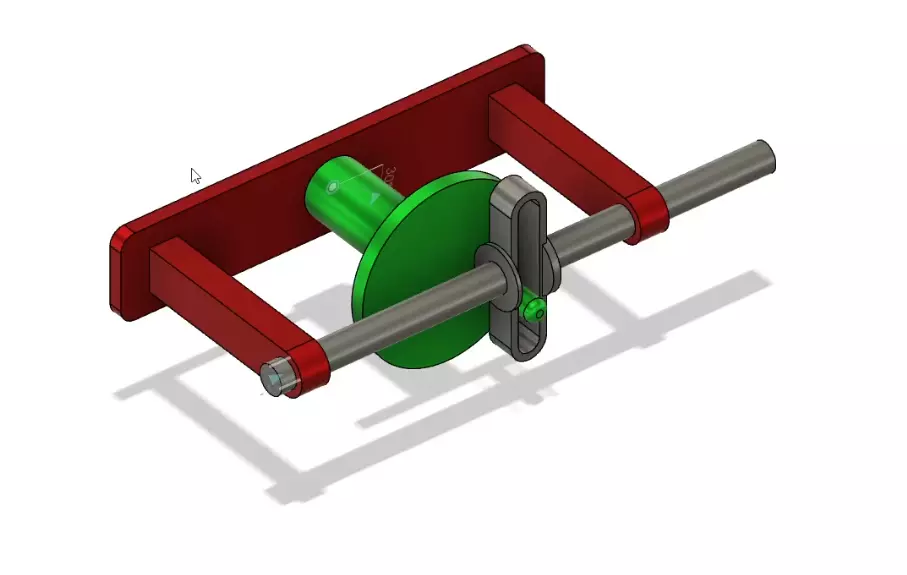

The Scotch yoke (also known as slotted link mechanism) is a reciprocating motion mechanism, converting the linear motion of a slider into rotational motion, or vice versa. The piston or other reciprocating part is directly coupled to a sliding yoke with a slot that engages a pin on the rotating part.
