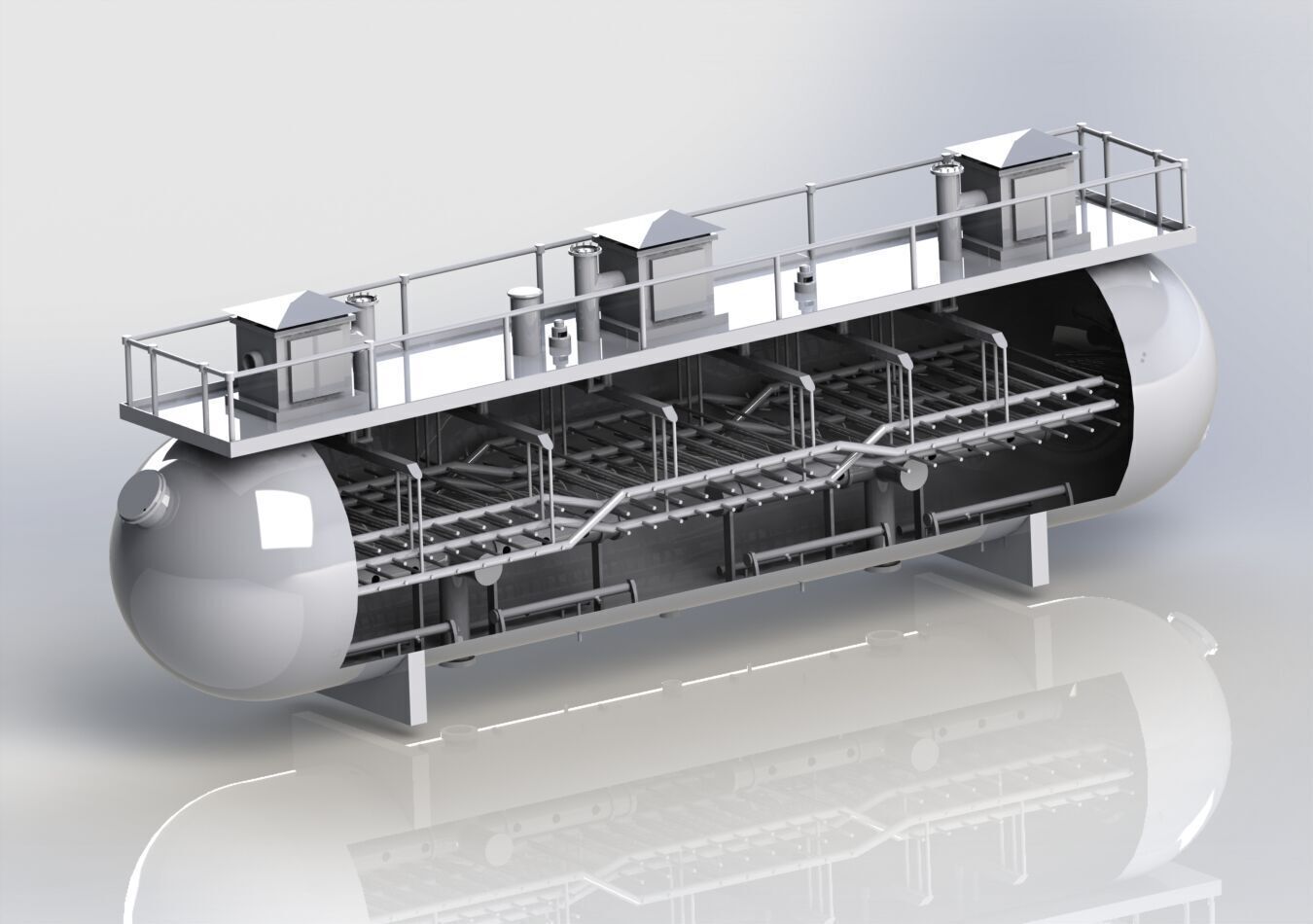

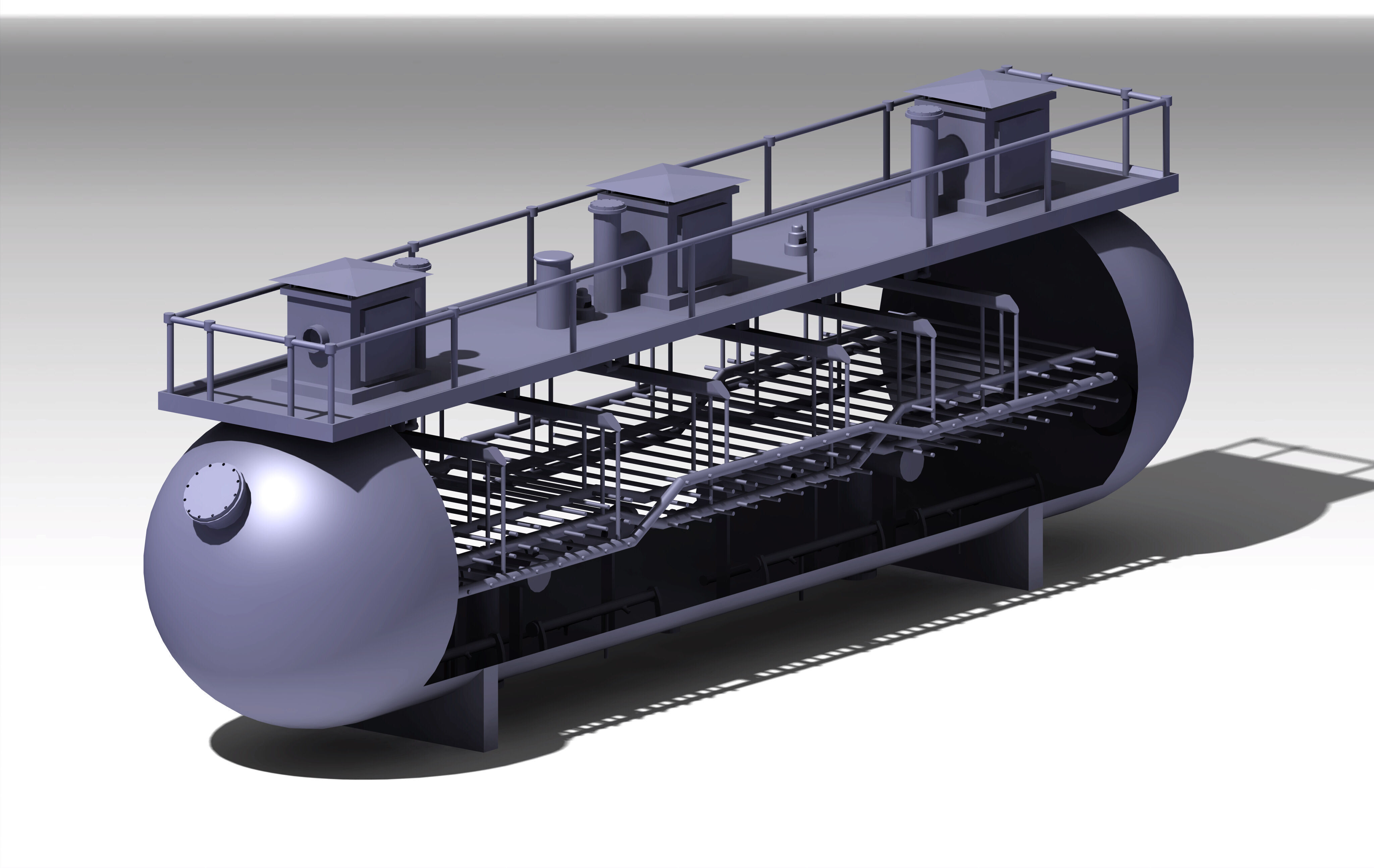

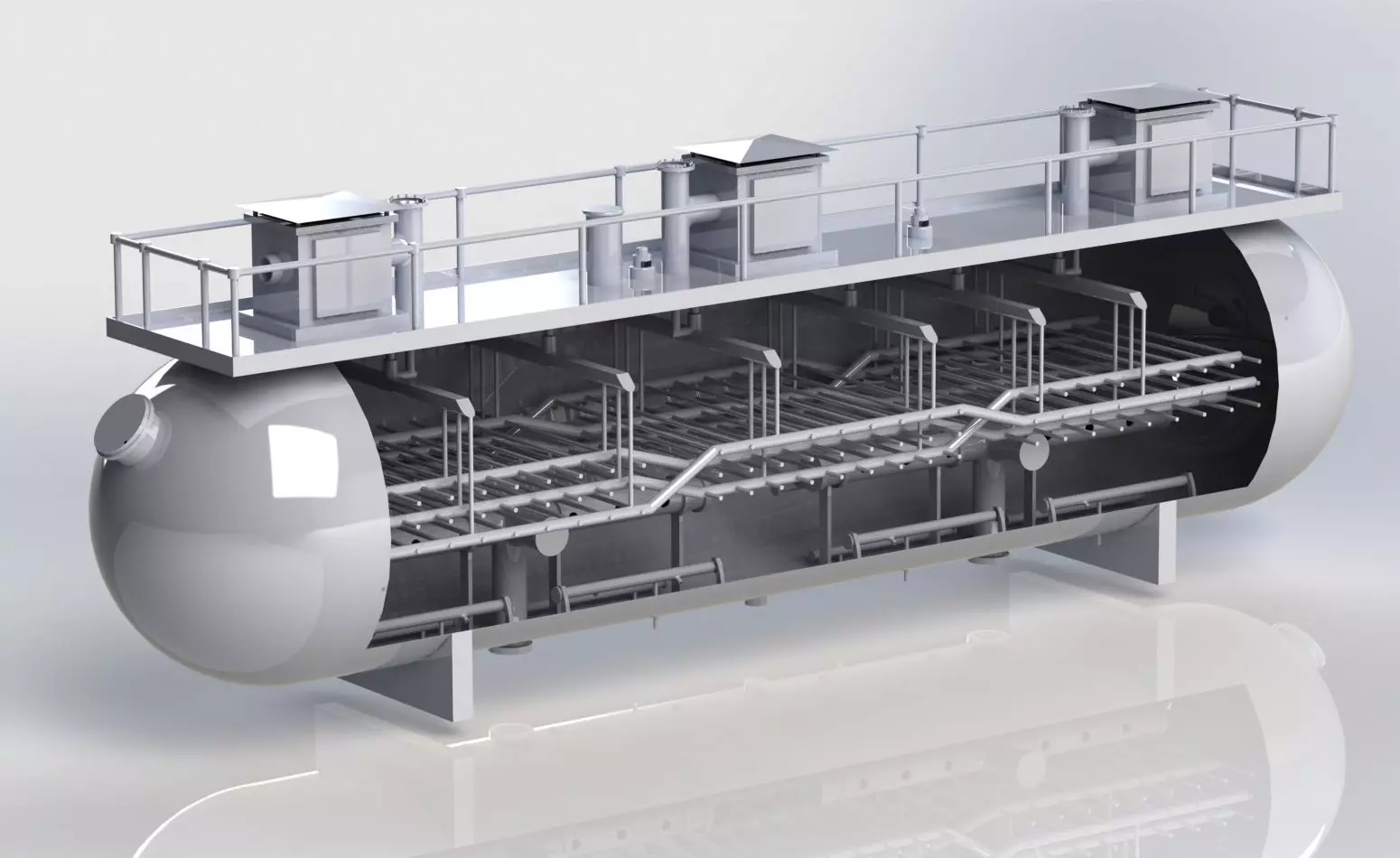

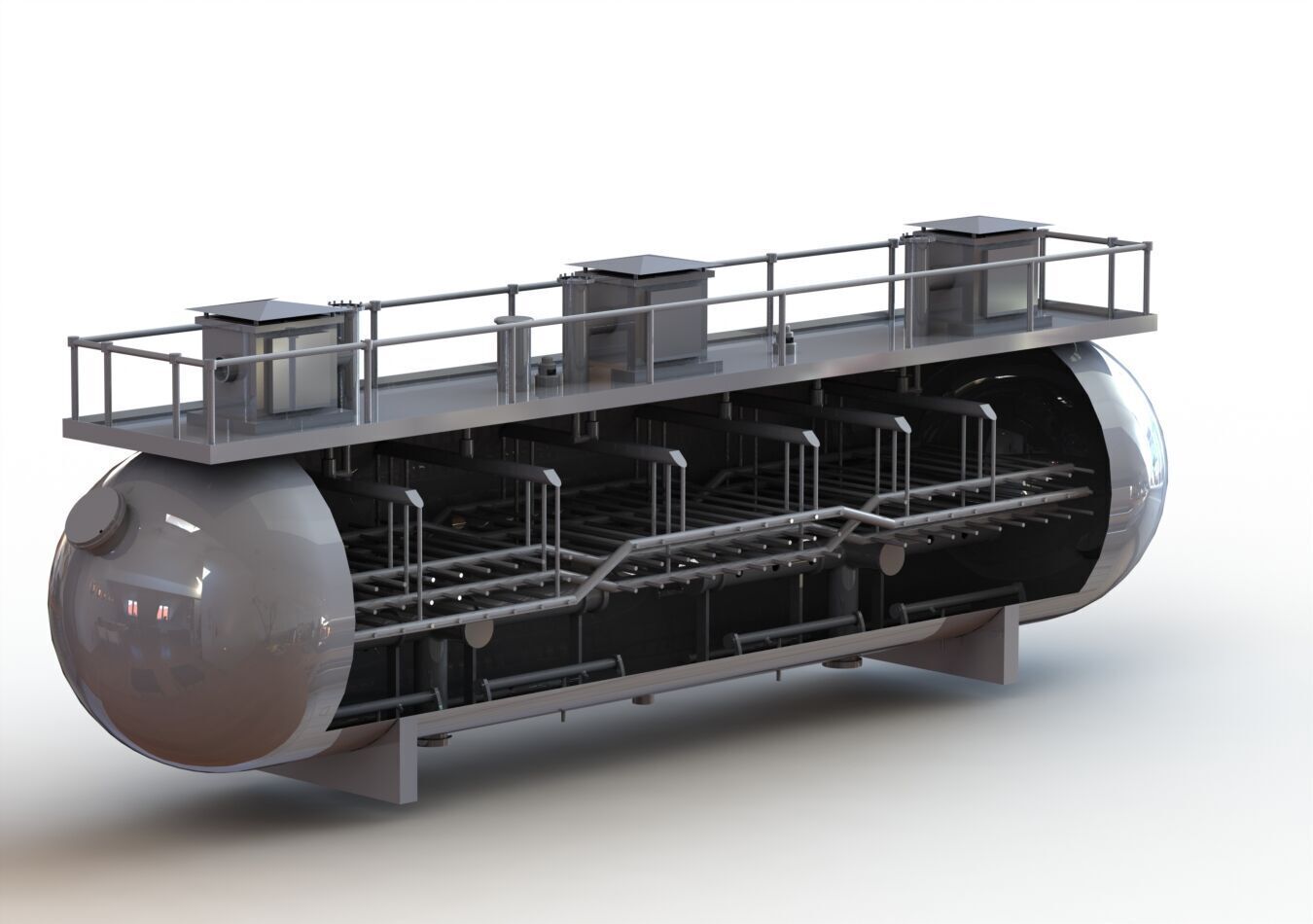

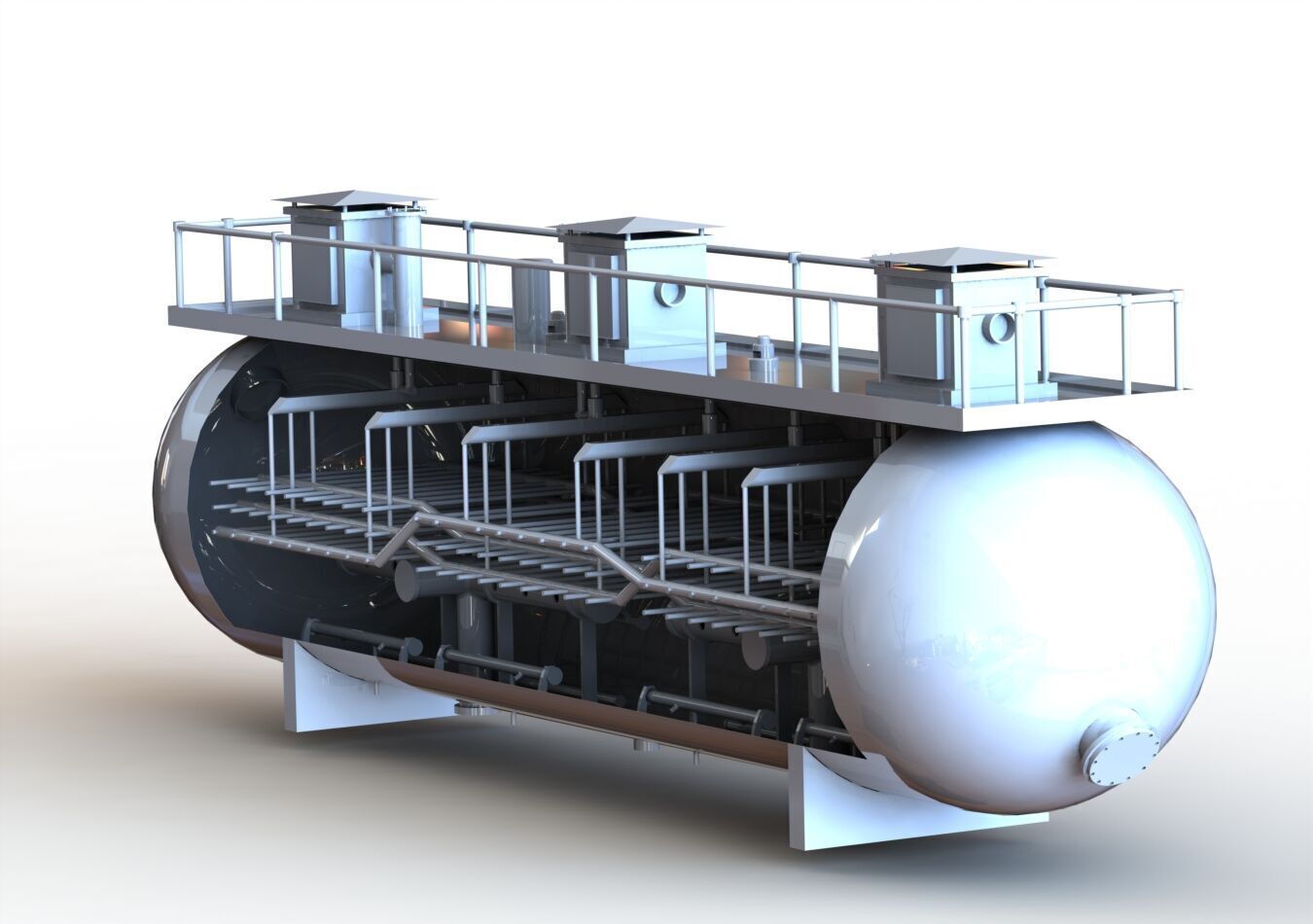

Oil And Gas Storage Tank API Based Design 3D model

Oil & Gas Storage Tank with Custom API Advancement.

TECH* SPEC***

Estimated Boundary Envelope :- 646*145.84 mmGross Weight :- 753.88 kg (if assume alloy material)*Density = 0.001 grams per cubic millimeter (Without Material)

*Mass = 1478536 grams (Full Tank)

*Total weld mass = NA

*Volume = 1.42e+005 cubic millimeters

*Surface area = 6.86e+005 square millimeters

*Center of mass: ( millimeters )

X = -15.1Y = 1.57Z = -38.5

*Principal axes of inertia and principal moments of inertia: ( grams * square millimeters )Taken at the center of mass.

Ix = ( 1, 0, 0.02) Px = 3.96e+005Iy = ( 0.02, -0.01, -1) Py = 4.64e+006Iz = ( 0, 1, -0.01) Pz = 4.79e+006

*Moments of inertia: ( grams * square millimeters )Taken at the center of mass and aligned with the output coordinate system.

Lxx = 3.98e+005 Lxy = 3.26e+003 Lxz = 8.48e+004Lyx = 3.26e+003 Lyy = 4.79e+006 Lyz = 1.58e+003Lzx = 8.48e+004 Lzy = 1.58e+003 Lzz = 4.64e+006

*Moments of inertia: ( grams * square millimeters )Taken at the output coordinate system.

Ixx = 6.08e+005 Ixy = -91 Ixz = 1.67e+005Iyx = -91 Iyy = 5.03e+006 Iyz = -6.99e+003Izx = 1.67e+005 Izy = -6.99e+003 Izz = 4.67e+006
