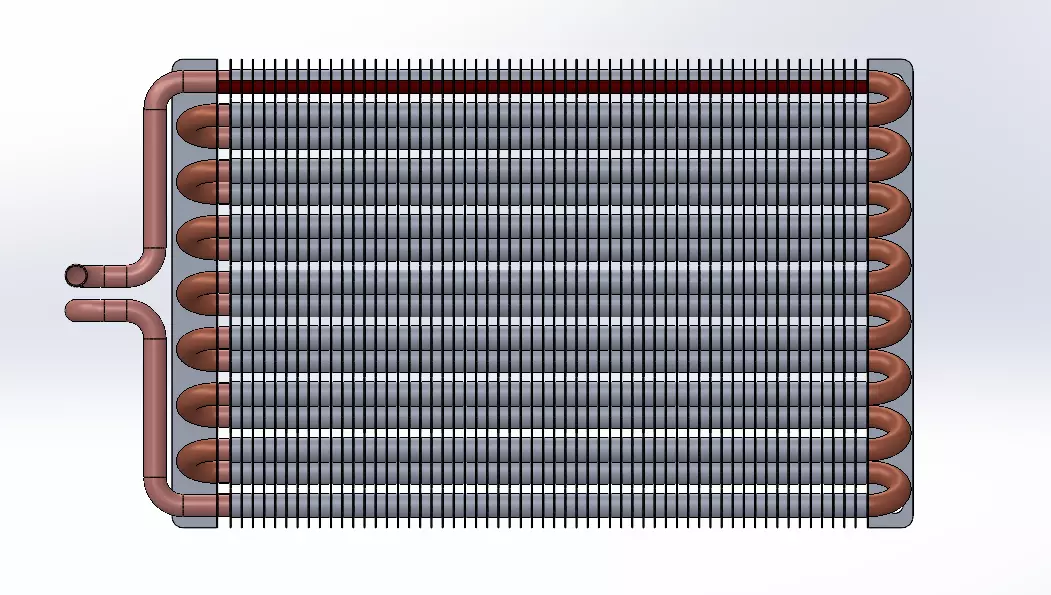

Industrial Finned-Tube Heat Exchanger - High-Fidelity SolidWorks AssemblyTechnical Overview: This is a professional-grade mechanical design of a cross-flow, finned-tube heat exchanger, engineered for high-efficiency thermal management. This assembly is ideal for automotive cooling systems, HVAC units, or industrial process heat recovery simulations.

Design & Engineering FeaturesThermal Optimization:

1. The design utilizes a high-density fin array to maximize the convective surface area-to-volume ratio.
2. Staggered Tube Arrangement: Engineered to enhance fluid turbulence and break thermal boundary layers, increasing overall heat transfer coefficients (h).
3. Accurate Geometry: Modeled to real-world scale with precise dimensions suitable for CFD (Computational Fluid Dynamics) or structural FEA analysis.
4. Native Parametric Files: Fully editable SolidWorks assembly and parts included, allowing for easy modifications of fin spacing or tube counts.

File Formats Included:

Native SolidWorks Assembly (.SLDASM)

Native SolidWorks Parts (.SLDPRT)

Standard STEP/IGES (for cross-platform compatibility)

Intended Use Cases:

1. Thermal and Fluid Flow simulations

2. Industrial machine design and assembly integration

3Engineering educational projects and portfolio reference
