High Precision Wave Lock Washer Mechanical Retaining Ring 3D model
Description

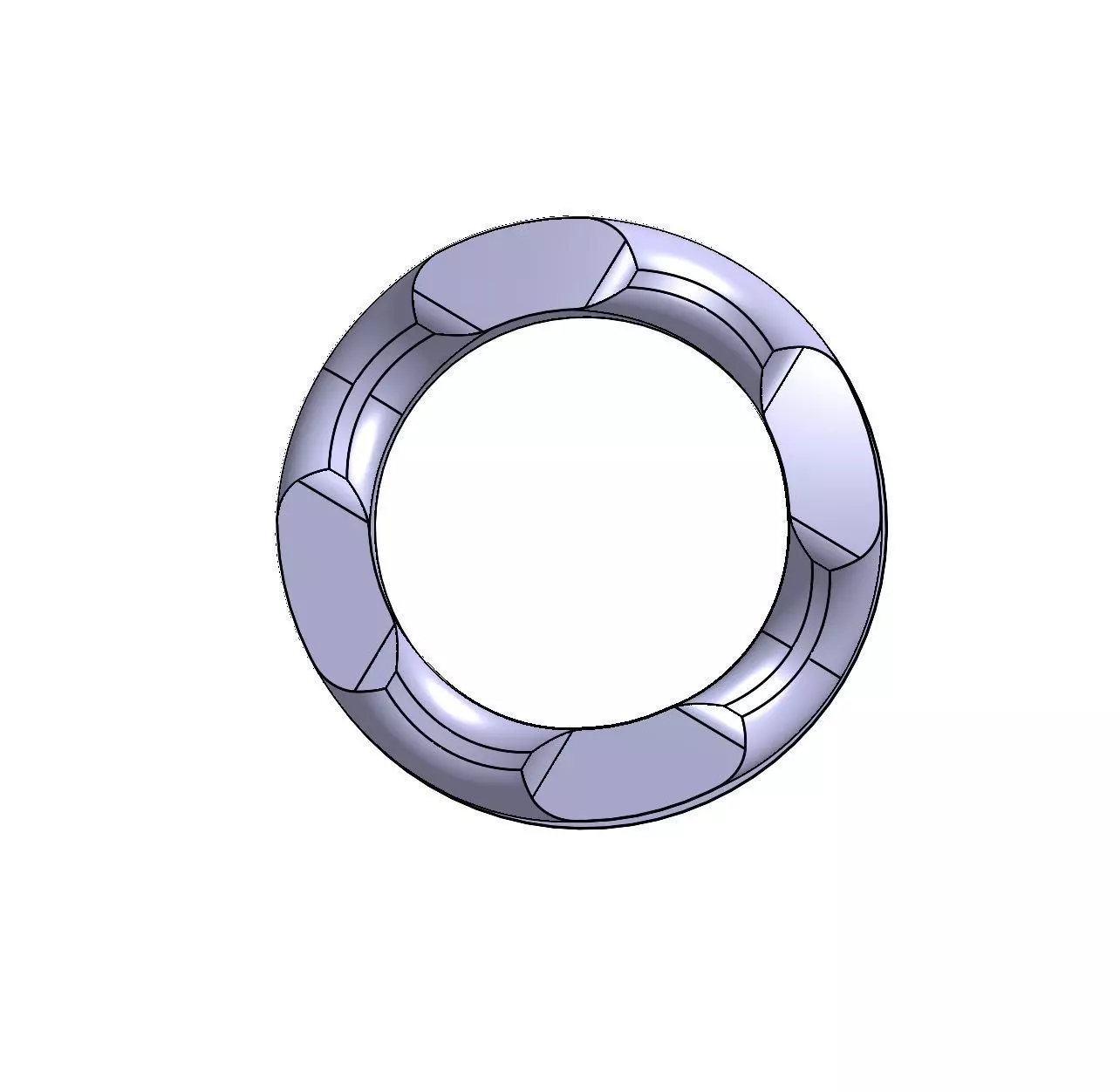

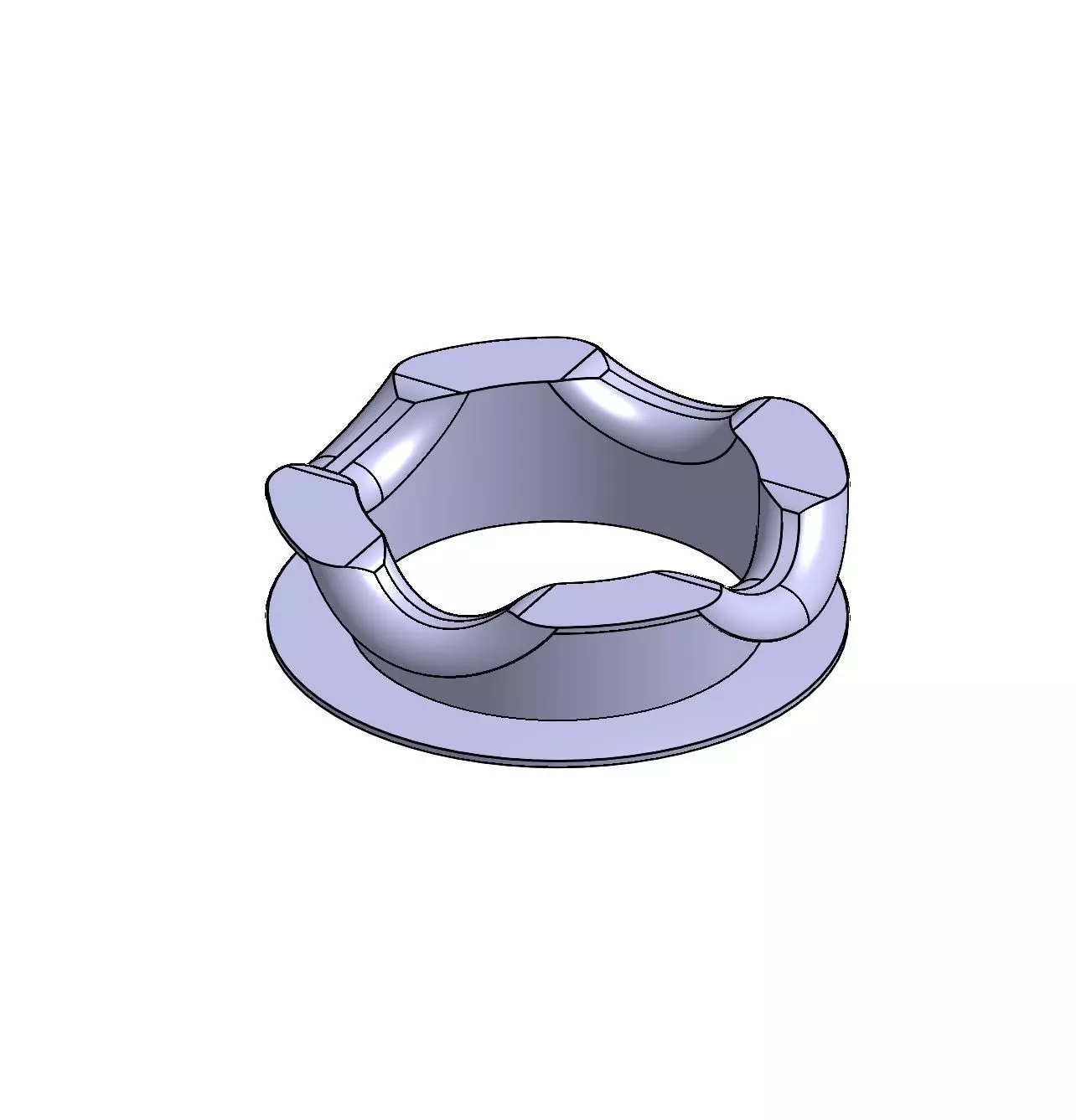

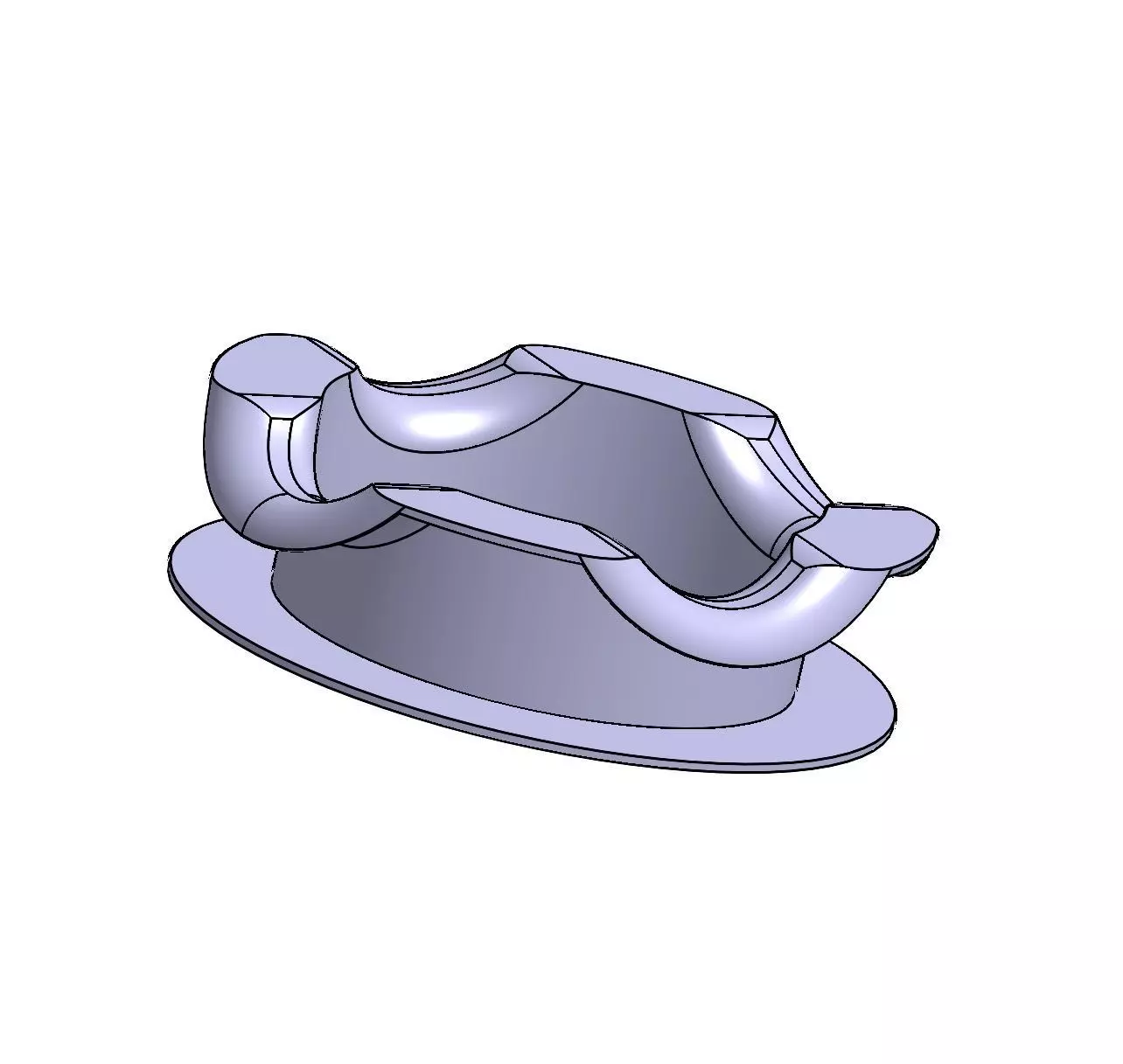

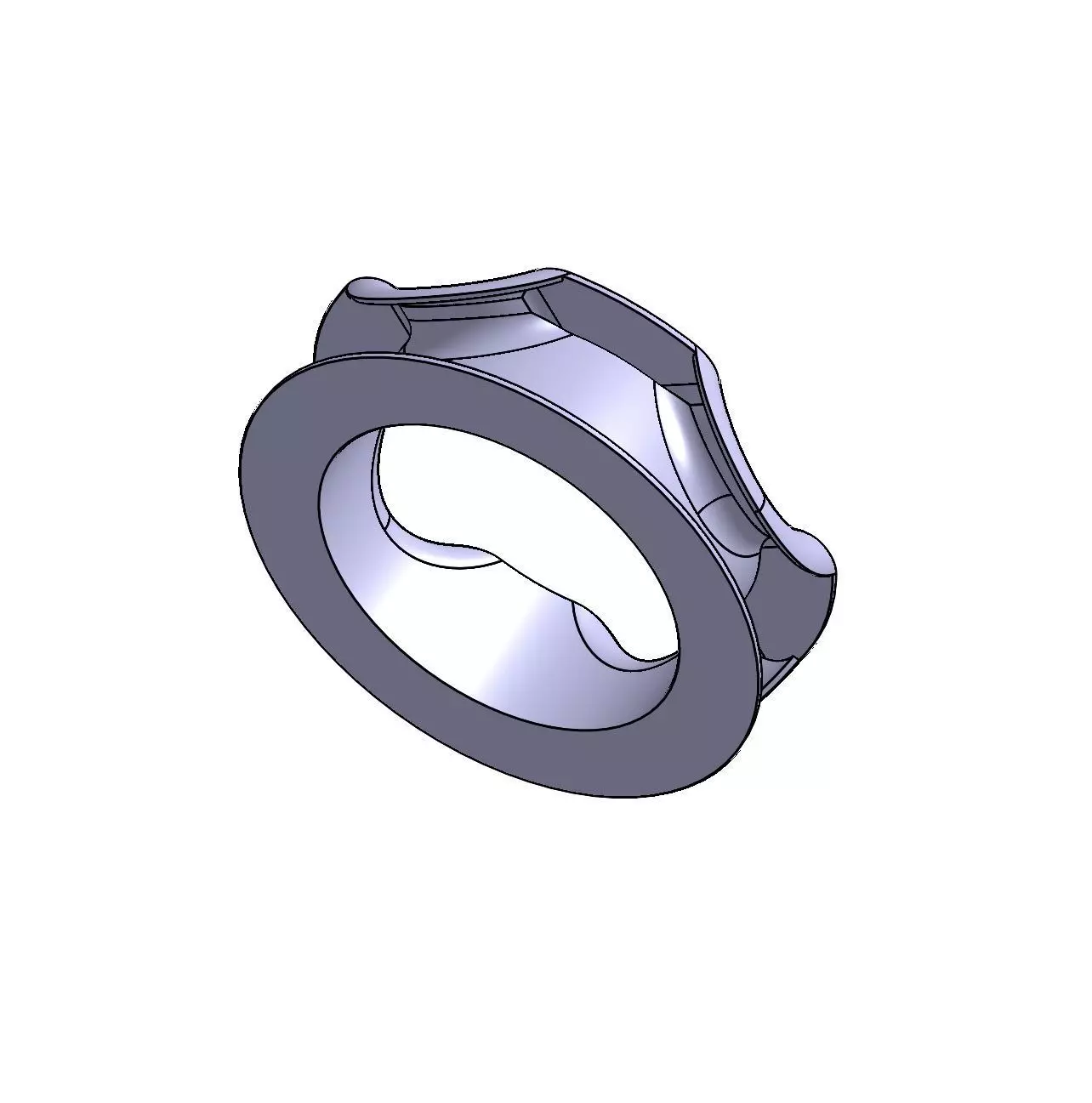

This is a high-quality 3D model of a wave-shaped mechanical locking washer (retaining ring) designed for industrial and mechanical assemblies.The part features a smooth, wavy profile optimized for vibration resistance, load distribution, and secure fastening.It can be used in engineering simulations, product visualization, mechanical assemblies, and 3D printing prototypes.
Model Details: • Clean topology and accurate geometry • Compatible with major CAD software (SolidWorks, CATIA, Fusion 360, etc.) • Perfect for mechanical design and realistic rendering projects • Formats available: .STL .CATPART
High Precision Wave Lock Washer Mechanical Retaining Ring
Royalty Free License
High Precision Wave Lock Washer Mechanical Retaining Ring
Royalty Free License
3D Modeling
3D Print Modeling
3D Model formats
Format limitations
- CATIA V5-6R2019 (.CATProduct, .CATMaterial, .CATAnalysis)309 KB
- Stereolithography 2019 (.stl)664 KB
3D Model details
- Ready for 3D Printing
- Animated
- Rigged
- VR / AR / Low-poly
- PBR
- Geometry -
- Polygons 0
- Vertices 0
- Textures
- Materials
- UV Mapping
- Unwrapped UVs Unknown
- Plugins used
- Publish date2025-11-11
- Model ID#6599411
