Spleißschutzpresse - Fiber Optic Splice Protection Press (3D Printable Model)

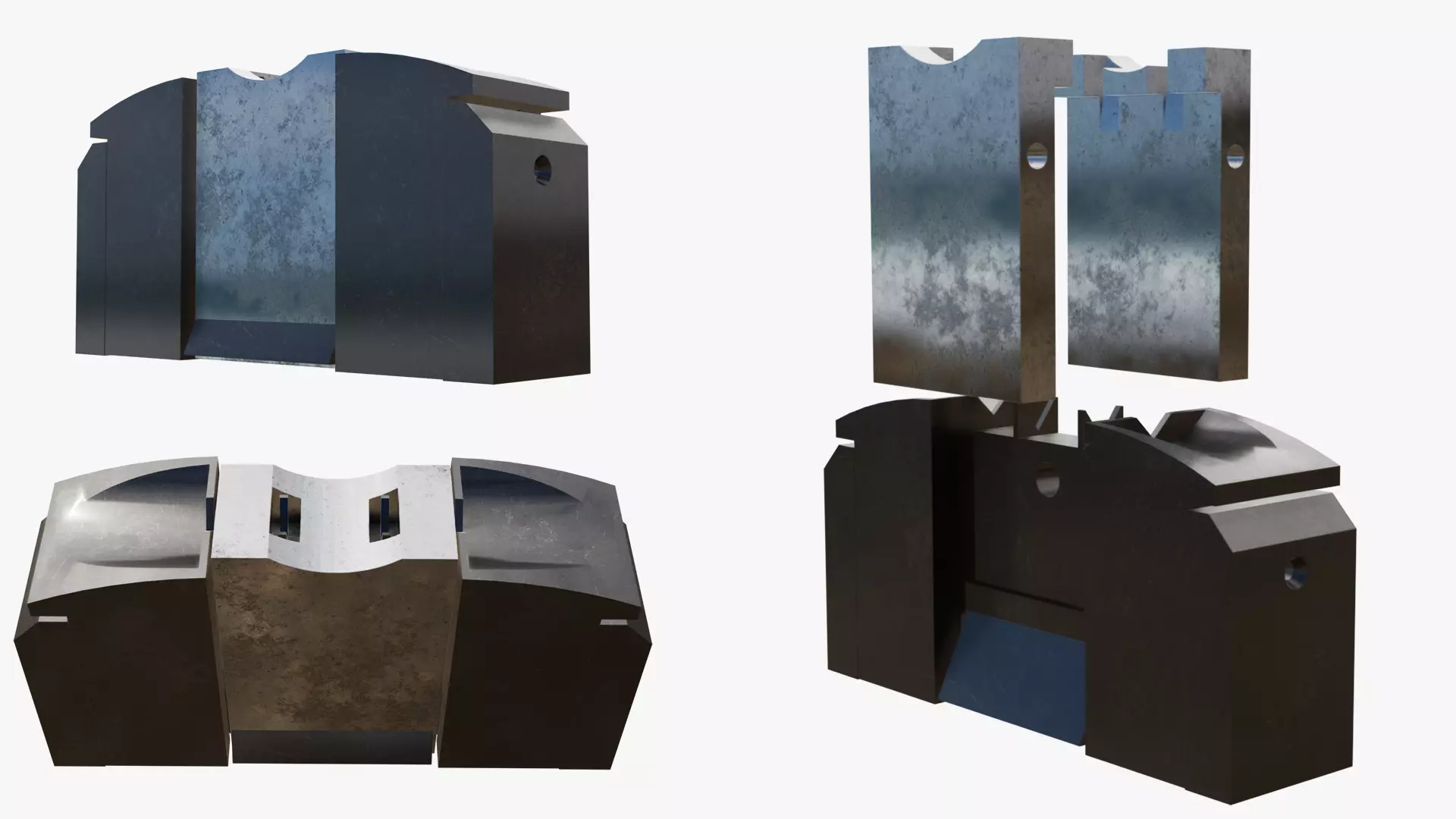

This 3D model represents a fiber optic splice protection press (Spleißschutzpresse), designed for securing and protecting fiber optic splices in telecommunications and data transmission systems. The press ensures reliable handling of splice protection sleeves, making it an essential tool for technicians working with optical fibers.

The model includes:

• Main Press Unit – compact design with dimensions of 84 × 74 × 22 mm.
• Raw Splice (Rohspleiß) – fiber optic splice element, 20 mm in length.
• Splice Protection Sleeve (Spleißschutz) – protective element, 30 mm in length.
• Protected Splice Assembly – final secured splice after protection is applied.

Key Features

• Accurate technical proportions for realistic representation.
• Suitable for educational, training, and visualization purposes.
• Can be used in 3D printing projects, technical documentation, or instructional tutorials.
• Clean geometry optimized for rendering, printing, or integration into larger assemblies.

#press #fiberoptic #splice #machinery
