Cartesian 3D Printer CoreXYZStructure 3D model

DESCRIPTION

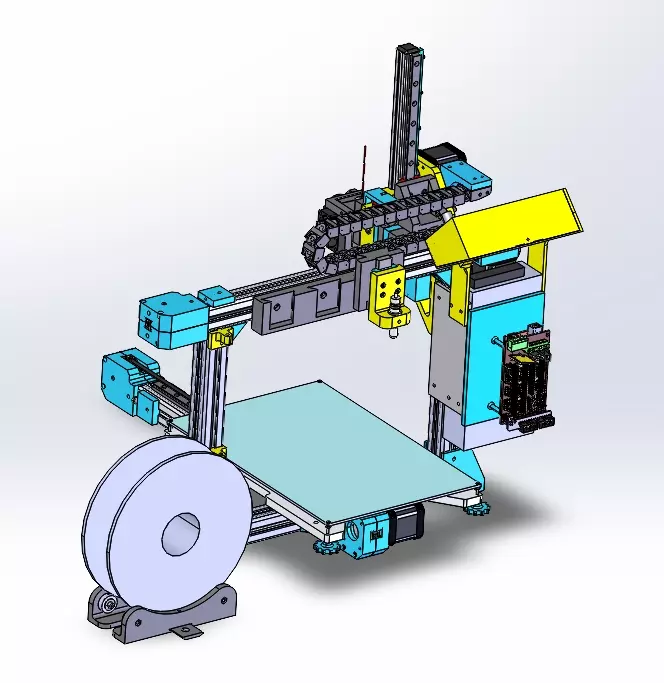

General OverviewThis is a desktop Cartesian structure 3D printer, designed based on the classic Cartesian coordinate motion system, with a three-axis (X/Y/Z) independent drive layout. It integrates a high-precision linear guide, stepper motor drive, and filament feeding system, featuring a compact structure, stable operation, and high printing accuracy. It is suitable for desktop-level 3D printing of small and medium-sized parts, supporting Fused Deposition Modeling (FDM) technology, and is ideal for personal creation, prototype development, and educational teaching scenarios.
Core Structure and Functions2.1 Motion SystemThree-Axis Cartesian Layout: The X, Y, and Z axes are driven independently. The X-axis controls the left-right movement of the print head, the Y-axis controls the front-back movement of the print bed, and the Z-axis controls the up-down lifting of the print head, realizing precise positioning in three-dimensional space to ensure printing dimensional accuracy.Linear Guide and Transmission: Equipped with high-precision linear guide rails and screw/ synchronous belt transmission mechanisms, matched with stepper motors, to achieve smooth, low-noise movement, effectively reducing printing jitter and improving surface quality of printed parts.Cable Chain Protection: The X-axis is equipped with a closed cable chain to protect the wires and tubes of the print head, preventing wire abrasion and interference during movement, ensuring long-term stable operation.2.2 Printing and Feeding SystemExtruder and Nozzle Assembly: The print head integrates a high-temperature extruder and nozzle, which can melt and extrude thermoplastic filaments (such as PLA, ABS) to complete layer-by-layer deposition and molding.Filament Supply System: The external filament spool holder is matched with the filament feeding mechanism, which can stably supply filaments, ensuring continuous and uniform extrusion during printing, avoiding filament breakage and clogging.Print Bed Platform: The flat and heated print bed provides a stable forming base, which can improve the adhesion of the first layer of the printed part, effectively preventing warping and deformation, and ensuring the success rate of printing.2.3 Control and Operation SystemControl Panel: The X-axis is equipped with an integrated control panel, including a display screen and operation knobs, which can directly set printing parameters, start/stop printing, and adjust the printer status, realizing offline operation and convenient use.Modular Design: The overall structure adopts a modular design, with clear division of each axis and component, which is convenient for disassembly, maintenance, and functional upgrade, such as replacing the extruder, upgrading the print bed, etc.
Core Technical FeaturesHigh Printing Accuracy: The Cartesian coordinate motion system has a simple and reliable structure, with high positioning accuracy, which can meet the printing requirements of high-precision small parts.Stable and Reliable Operation: The linear guide and stepper motor drive system ensure smooth movement, low failure rate, and long service life.Easy Operation and Maintenance: Equipped with an integrated control panel and modular structure, which is convenient for daily operation, maintenance, and functional expansion.Wide Material Compatibility: Supports a variety of FDM printing materials such as PLA, ABS, PETG, meeting different application needs.Desktop-Friendly Design: Compact structure, small footprint, suitable for desktop placement in home, office, and laboratory.
