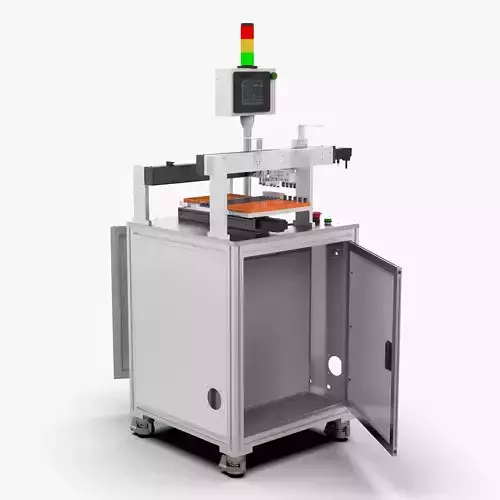

Automatic Tray Second Generation Transfer Machine 3D model

Automatic Tray Second Generation Transfer Machine

Introduction

Offline transfer Tray second-generation equipment, this equipment adopts offline stand-alone operation mode, grabs the material and places it on the turntable, the original disk is manually loaded to the equipment, and the equipment is added to the Z axis through the servo motor and the screw guide module after startup. After the cylinder is absorbed, it is placed in another Tray. After the placement is completed, it is taken out manually. The equipment has been put into production, and the structure is simple and stable.

File Formats

• SolidWorks 2018 | Keyshot 10
• STEP (Standard for the Exchange of Product Data)
• IGES (Initial Graphics Exchange Specification)
• STL (Standard Tessellation Language )
• OBJ (Object Files)

Geometry

• Polygons: 1,034,442
• Vertice: 3,103,326
