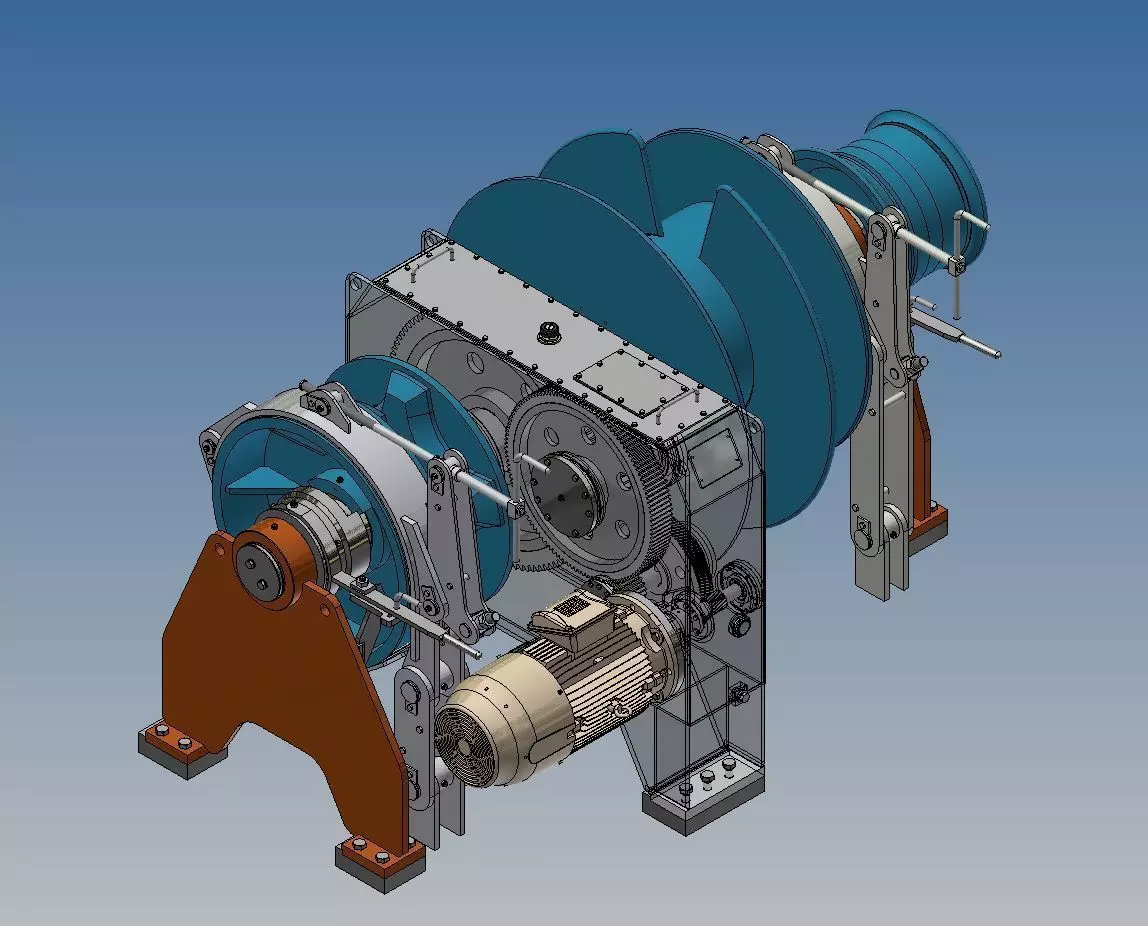

Anchor mooring winch 111 E 48 K3 3D model
thumbnail
thumbnail
thumbnail
thumbnail
thumbnail
DESCRIPTION

Anchor mooring winch for chain diameter of 48 mm K3 quality, one split drum for steel cable, one warping end for synthetic rope.The winch is driven by an electric motor and cilindrical Our reduction gear in a totally enclosed construction with spur gears. One chain lifter for chain size 48 mm K3 quality , manually clutched to main shaft with jaw clutch, provided with steel braking ways for manualoperated band brake. Clutch handle can be locked mechanically in engaged/disengaged position. One warping head key-fitted to main shaft.

Related Tagswinchequipmentmachineshippartindustrialmachineryconstructionindustrial machine

REVIEWS & COMMENTS

See what other buyers think about this model - real feedback on quality,
accuracy, and usability.
There are no reviews or comments yet. Please be the first one to write it.
BEST PRICE GUARANTEED
Found this model cheaper on another marketplace? Let our support team know - we’ll match it.

Anchor mooring winch 111 E 48 K3 3D model

Royalty Free License
Created by
d
domeniutony2
(0 reviews)
Hire
Like this model to show appreciation to the designer.
See how many times this model was viewed.
Share this model to support the designer and boost their visibility.
File format
STP
STEP<br />File Size: 19.1 MB
Provided by designer
Information and details shared directly by the model's designer.
3D printing
Indicates whether the designer marked this model as suitable for 3D printing.
Model is not 3D printable
The designer indicates this model is intended for digital use only (rendering, animation, or AR/VR) and not for 3D printing.
Unwrapped UVs
Unknown
Publish date
2022-11-02
Model ID
#4087384
