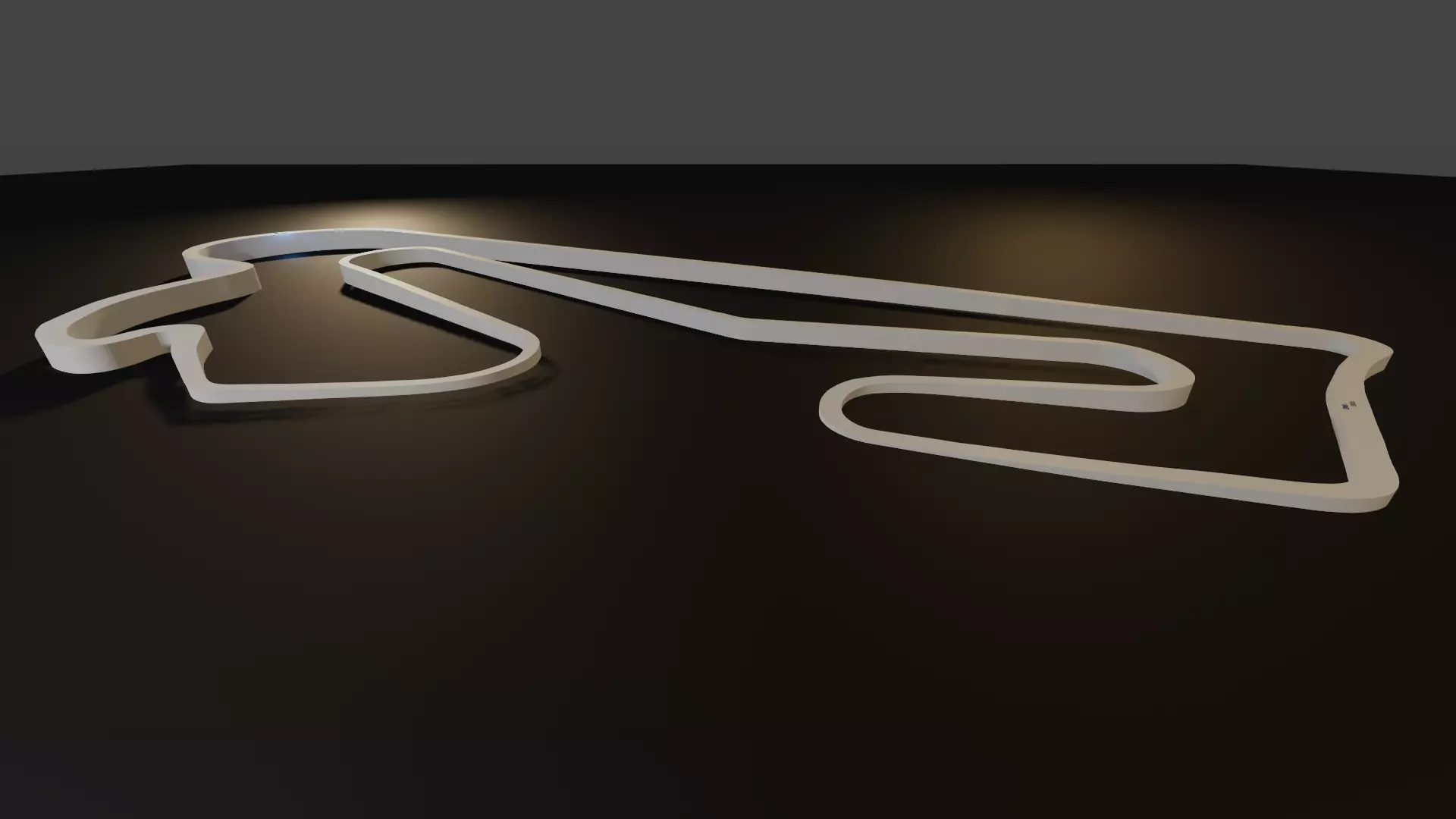

Estoril Racing Circuit Conceptual 3D model

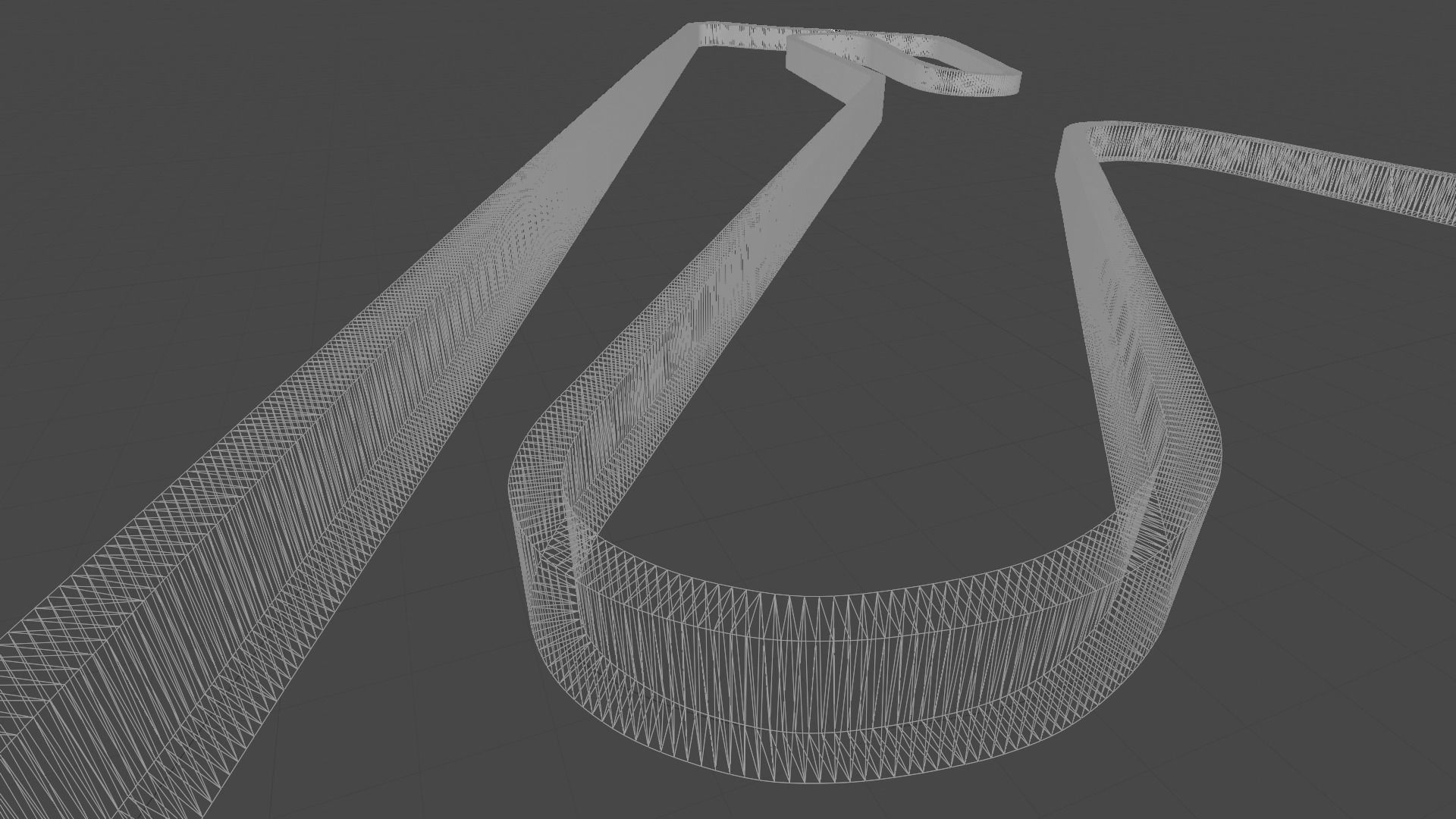

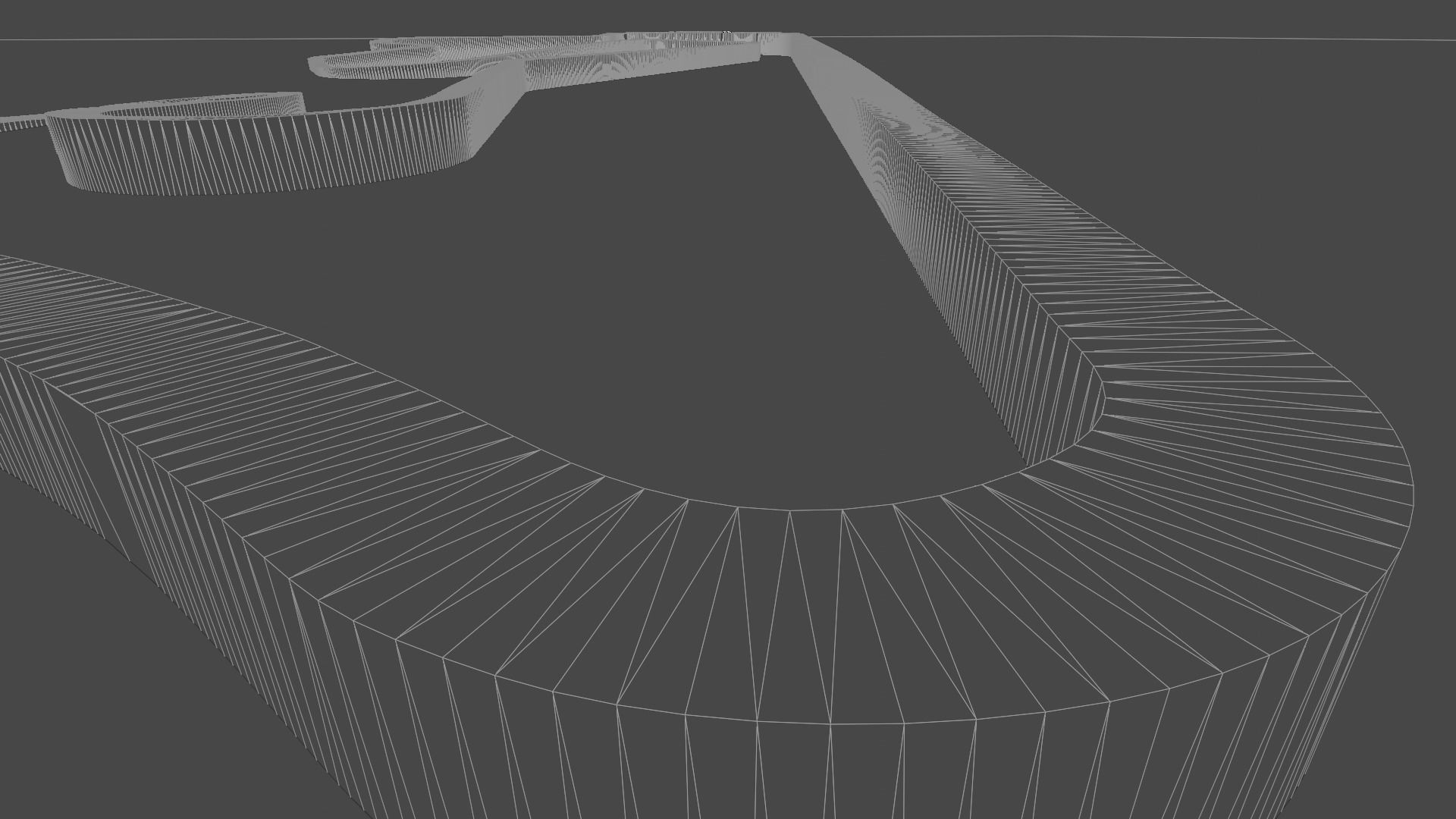

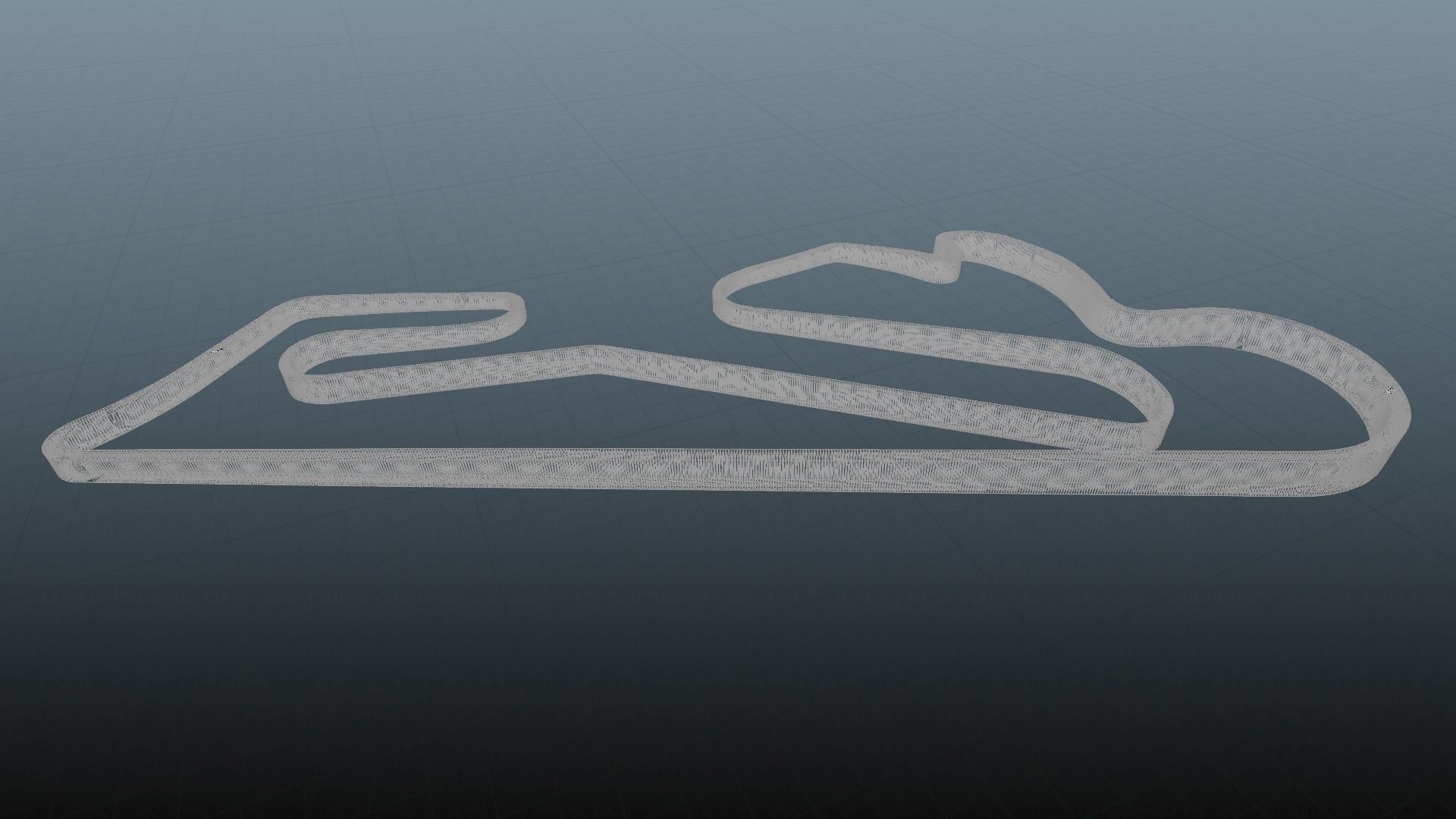

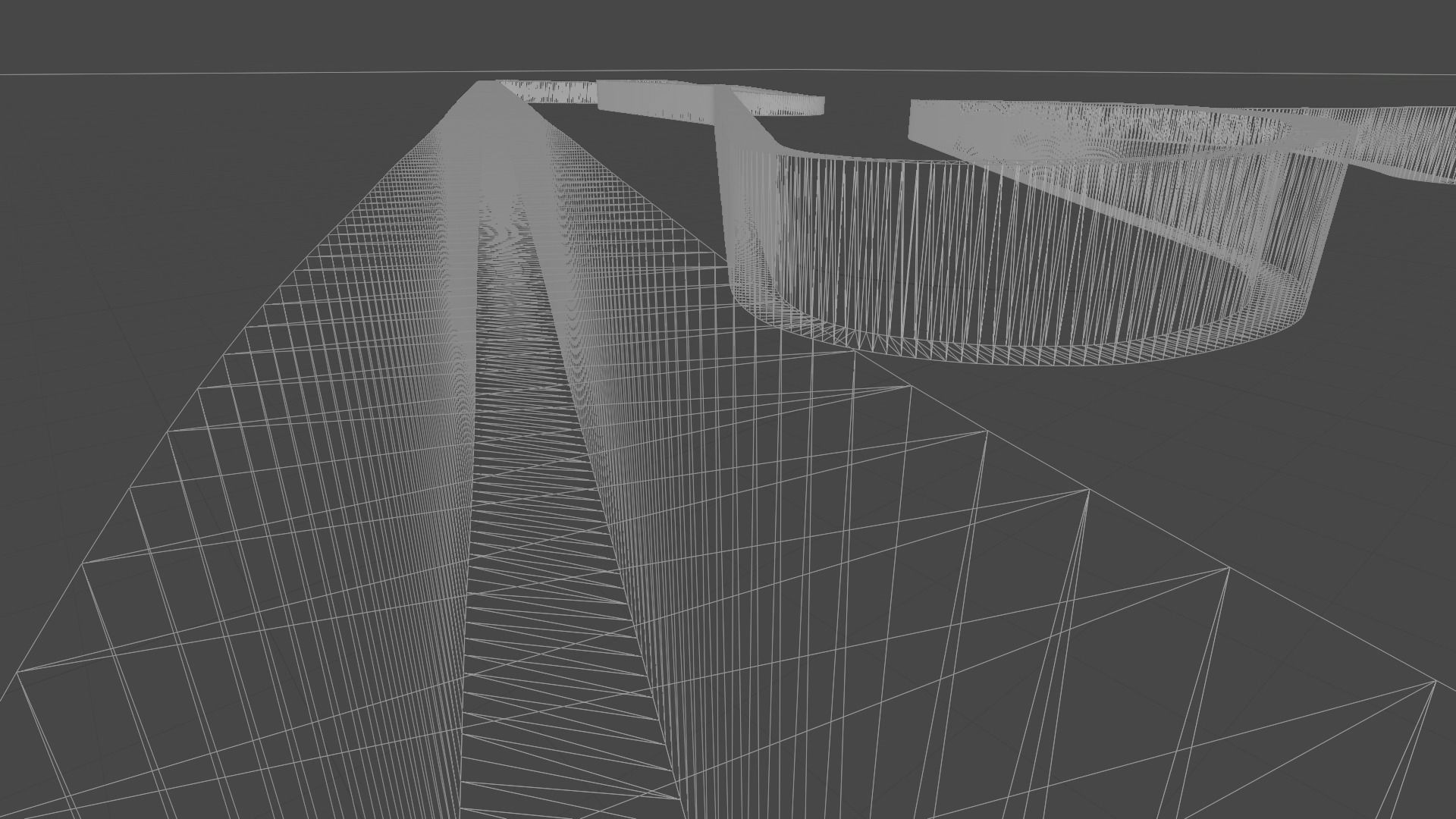

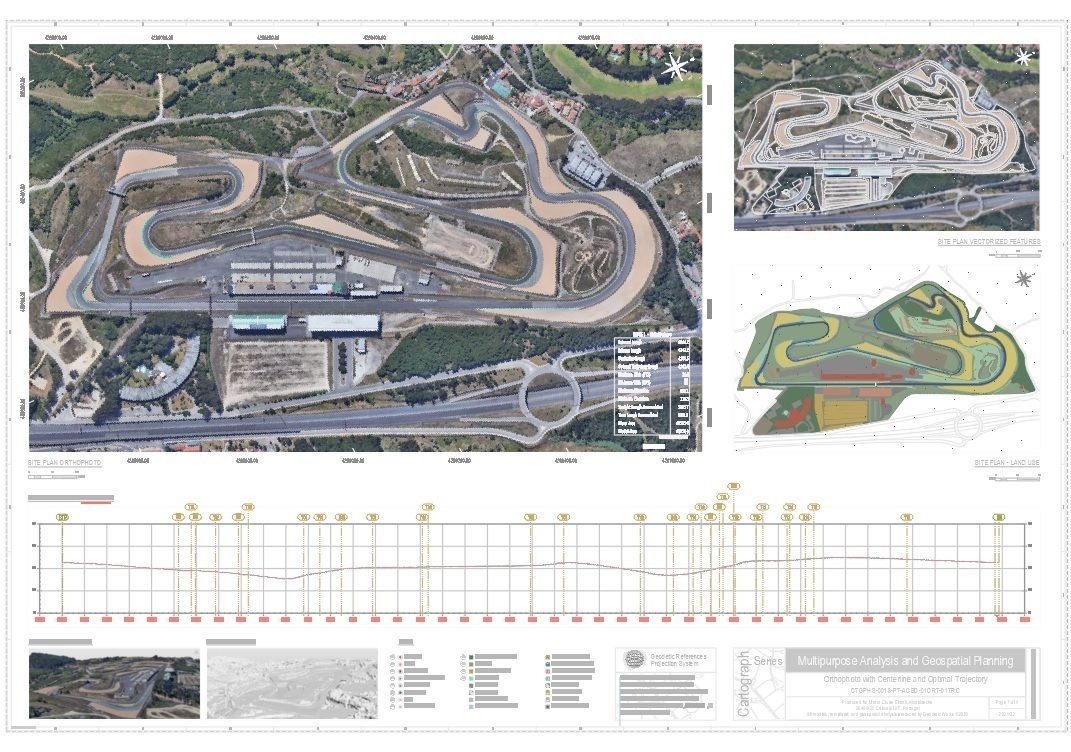

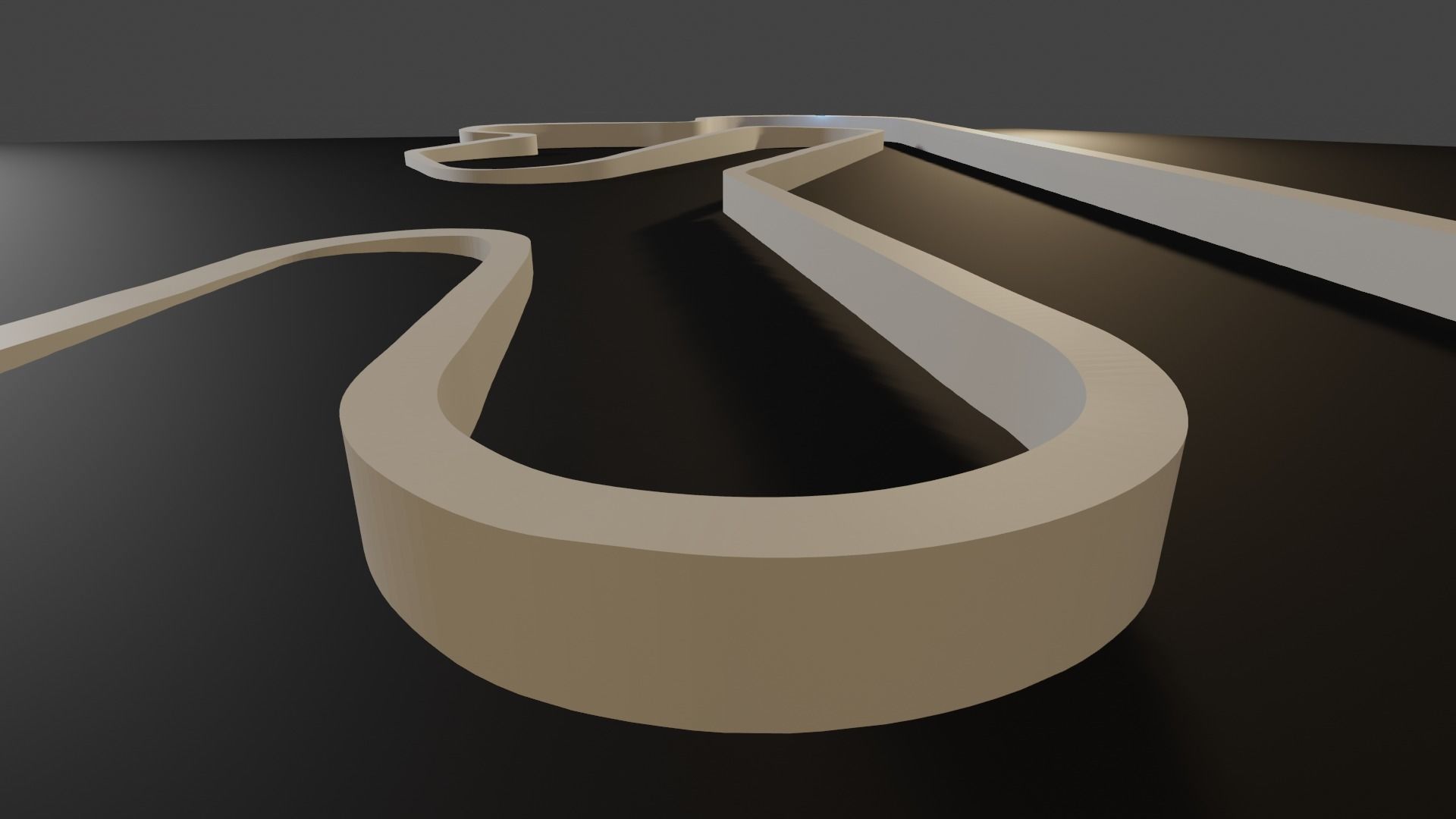

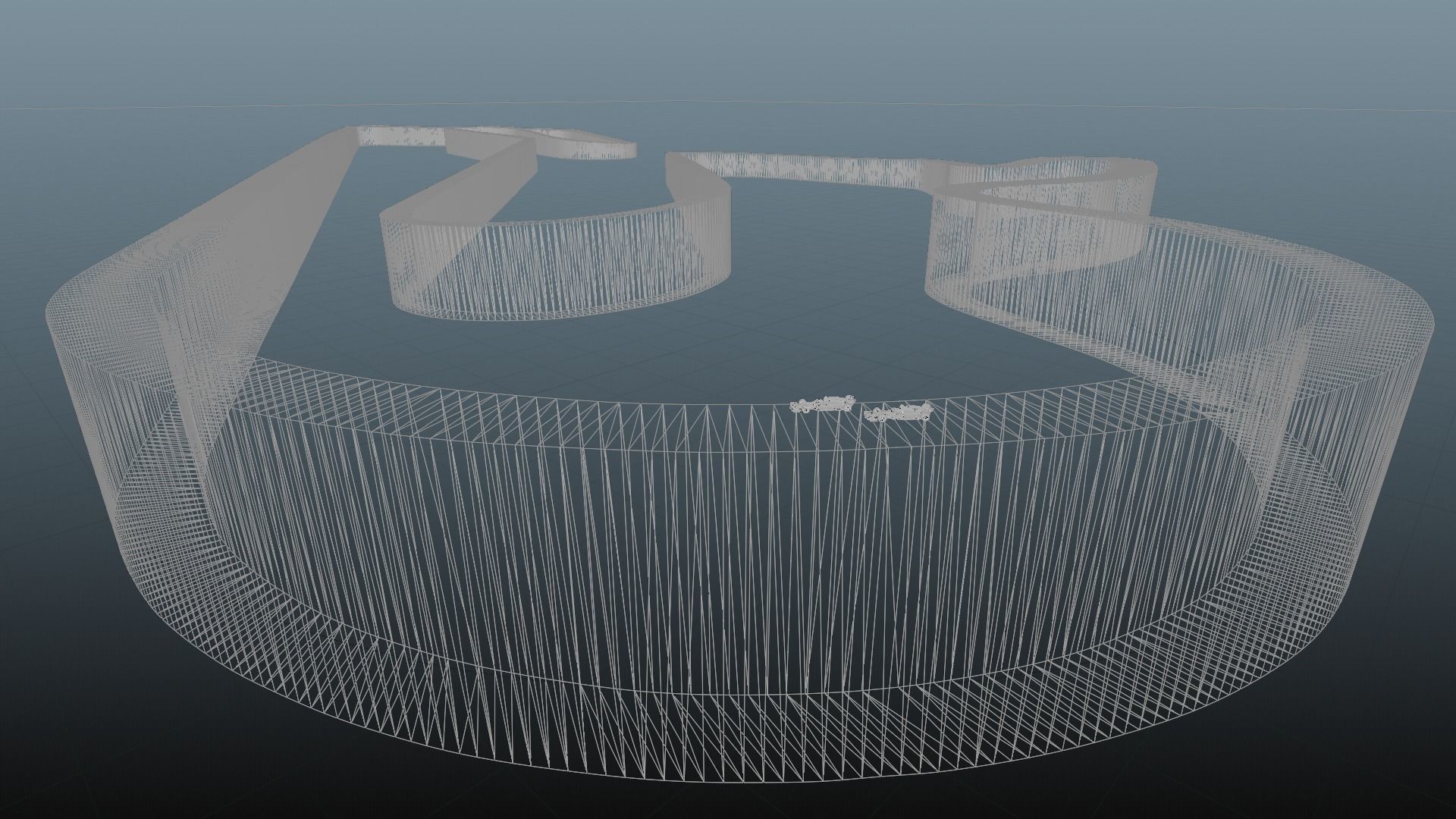

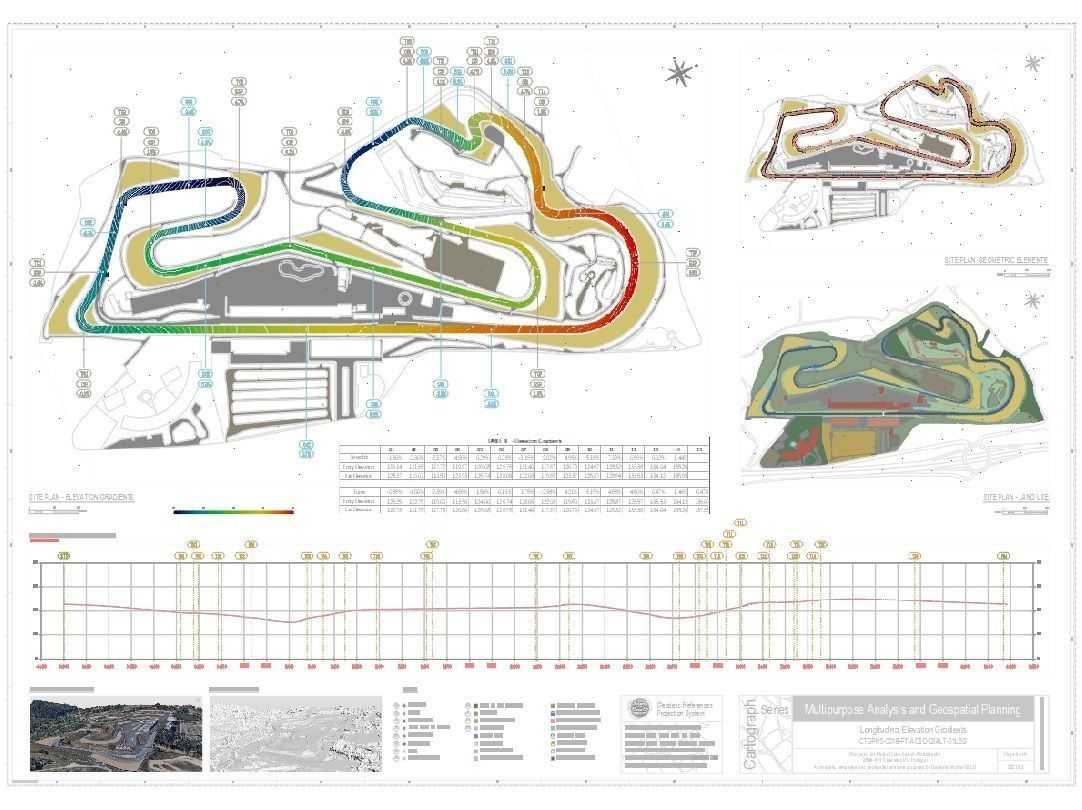

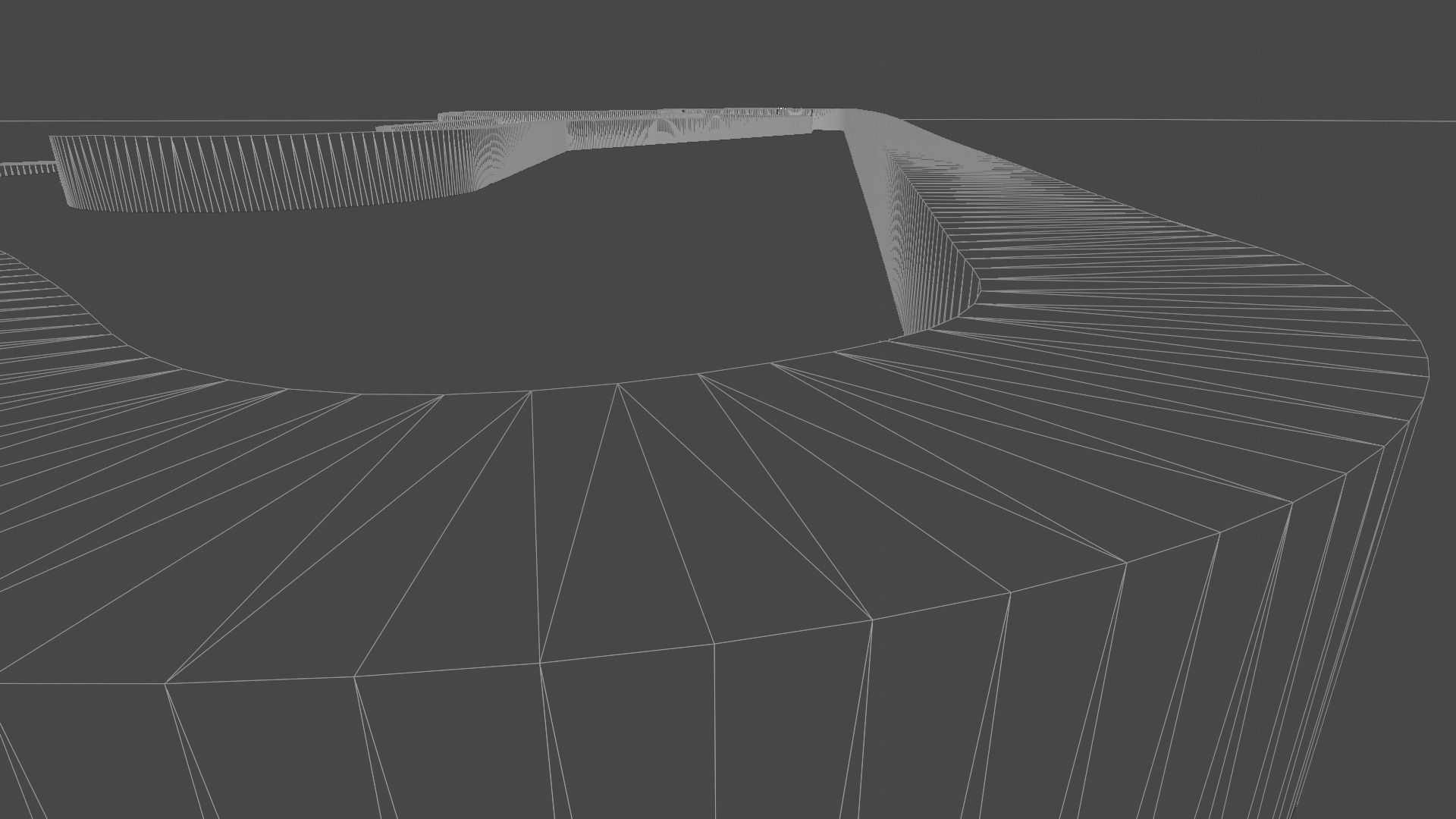

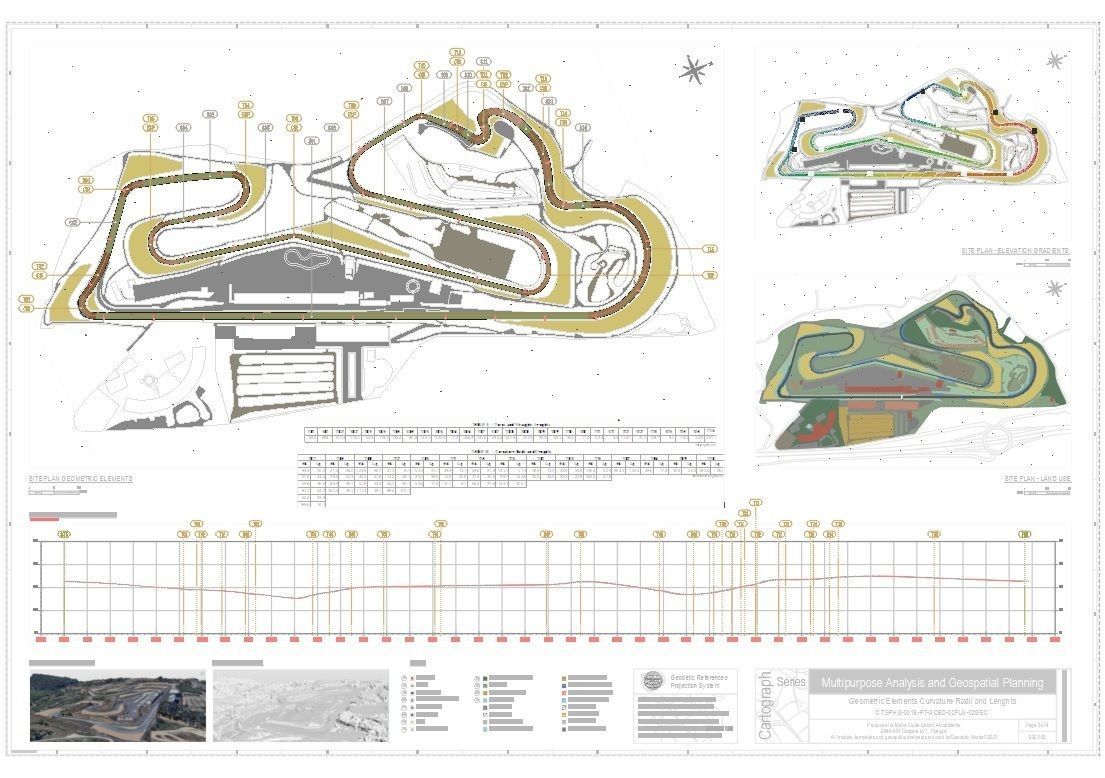

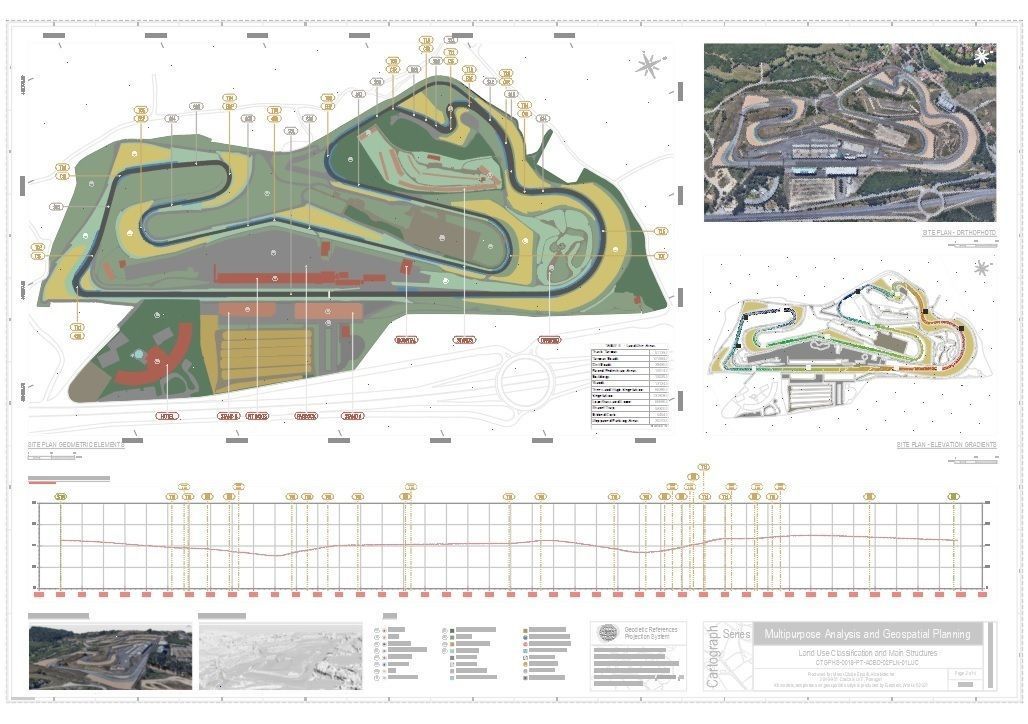

Triangulated solid model extracted from my other previous model Estoril Racing Circuit. Generated from a major raw TIN surface, the focus was oriented to the track area (curb areas not included). Resulting mesh had been cleaned from small artifacts and resampled. It results in a fully scaled model regarding to distances, areas, slopes, gradient slopes, corner radii changes and superelevation. Metric system Approximate length along centerline 4185 meters Approximate length along optimal trajectory 4167 meters Average width 14.5 meters Approximate tarmac area 49ha /12ac Some of the thumbnails inclued analytical elements that I had produced from this model (not included). (f1 models, renderings and light settings not included).
