Two Motion Plane Kinematic Pair With a T-Slot Guide 3D model

Description

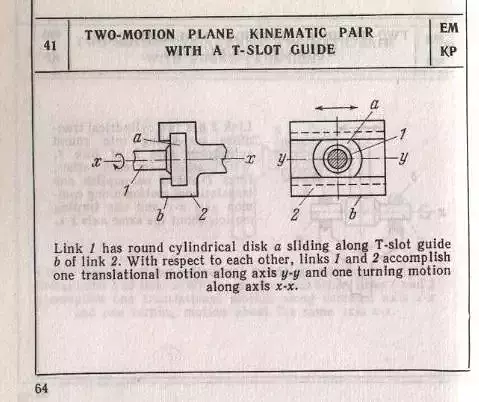

Link 1 has round cylindrical disk a sliding along. T-slot guide b of link 2. With respect to each other, links 1 and 2 accomplish one translational motion along axis y-y and one turning motion along axis x-x.
