15RU Systems Rack 3D model

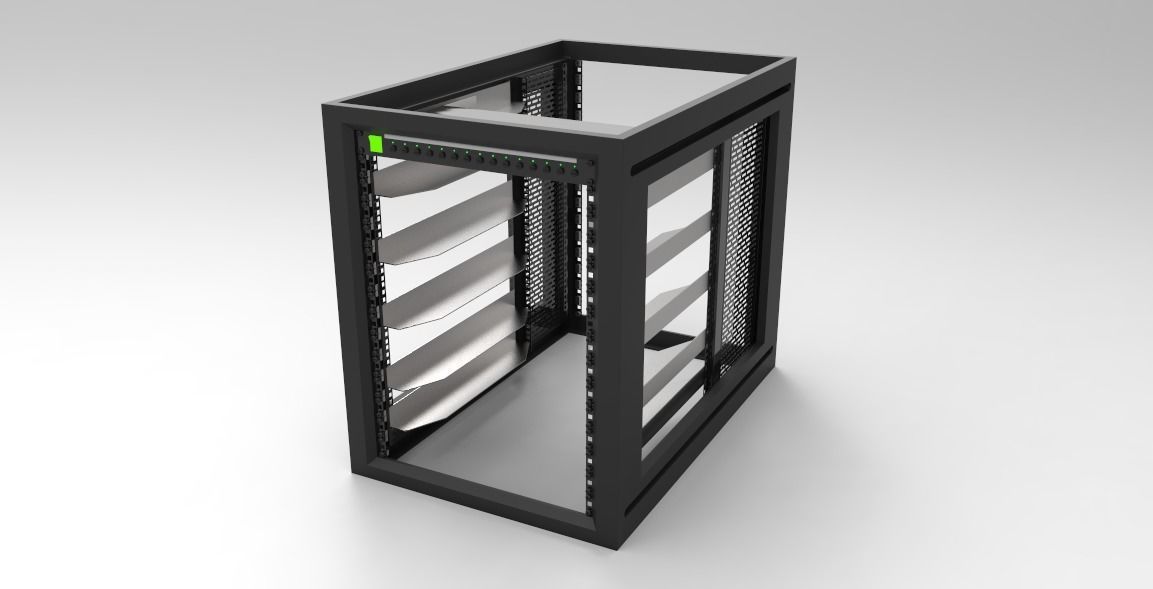

15RU Systems 19 Inch Rack (Generic block version)
This block model is a basic generic representation of a 19 inch rack. It is an assembly of various parts that make up an industry standard AV, Broadcast, Computer systems rack, including :-
Rack Shelves Front, Internal, and Rear Rack Strips (15RU) Cage Nuts and Bolts (Front and Rear)
All measurements are based on block standard sizing for systems integration design. Rack Dimensions:- (To Scale) Height = 755.65mm x Width = 600mm x Depth = 1000mm Ideal for 2d multi axis layouts and technical specification.
