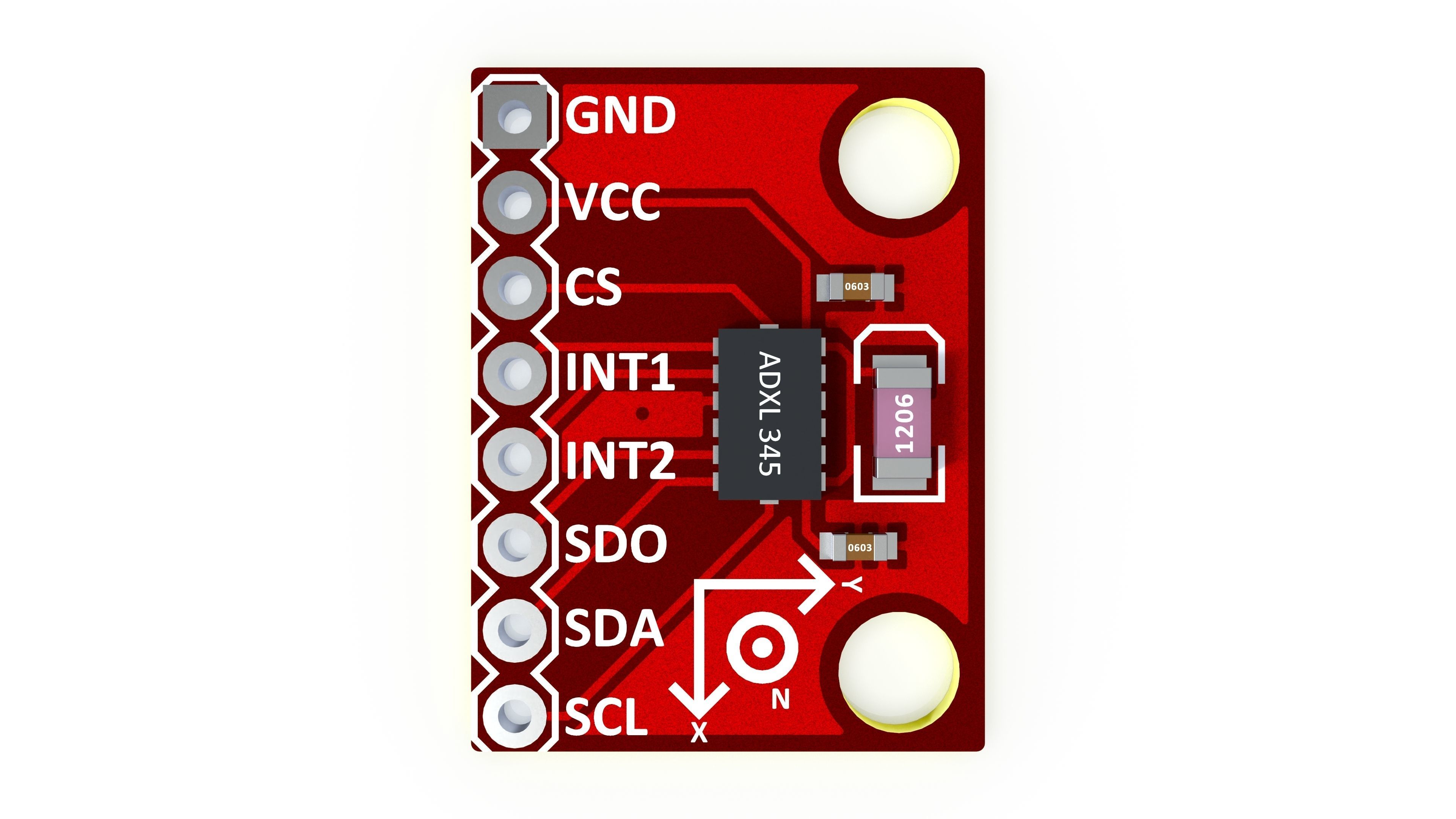

Sparkfun ADXL 345 - Reverse engineering 3D model
Classification of the PCB - Printed circuit board (PCB) Sparkfun ADXL 345, this is reverse engineering, created in the professional engineering software SolidWorks.
All components have look like on the original board, and also have the original layout.
⚡How is done:
Quantity components on the board - 5 pieces
⚡Available in the formats:
Parasolid x_t (opened at any version of SolidWorks).
You can be saving each separate component as part SLDPRT.
Model converted from SolidWorks SLDASM (made by our company).
All created in the professional engineering software SolidWorks 2020.
⚡Attention! This is not a polygonal model.
