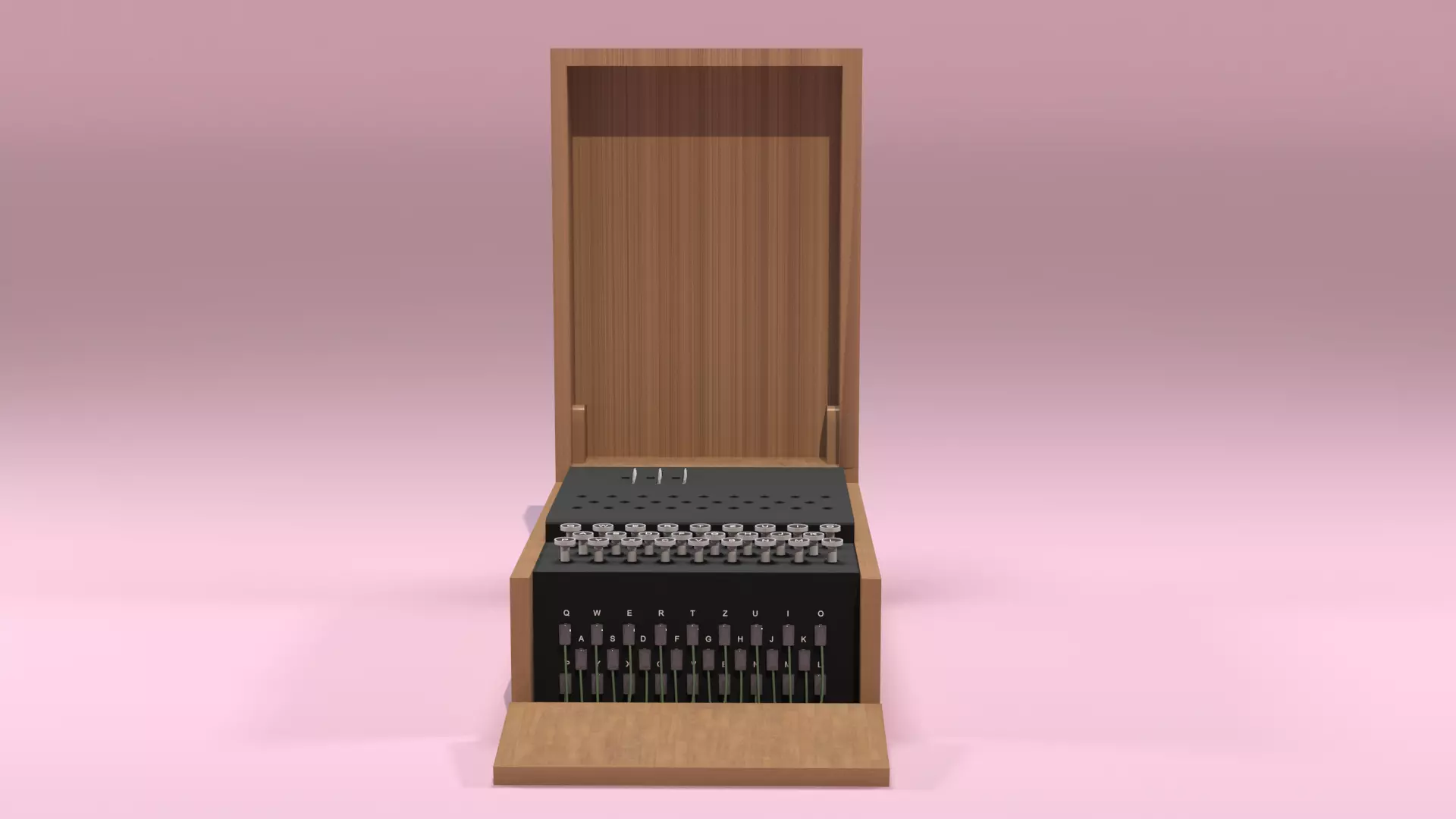

Enigma Machine 3D Model – Fully Functional Electrical Design

This 3D model represents a detailed reconstruction of the Enigma machine, focusing on its internal electrical system and working mechanism rather than just the external appearance.

The model is built to simulate how the real Enigma machine operates. It includes a full representation of the electrical circuits inside the machine, showing the signal flow from the keyboard through the rotors and wiring system, then back to the output lamps.

Each component is modeled to reflect its actual role in the encryption process:

Keyboard input systemRotor mechanism with internal wiring pathsReflector systemPlugboard connections (Steckerbrett)Complete electrical circuit logic

The wiring is designed to demonstrate how electrical signals are redirected and transformed at each stage, reproducing the core principle of the Enigma encryption method.

This model is suitable for:

Educational purposesDemonstrations of encryption mechanismsTechnical visualization of electromechanical systems

The focus of this model is accuracy in structure and electrical logic, making it useful for understanding how the Enigma machine functions internally, not just visually.
