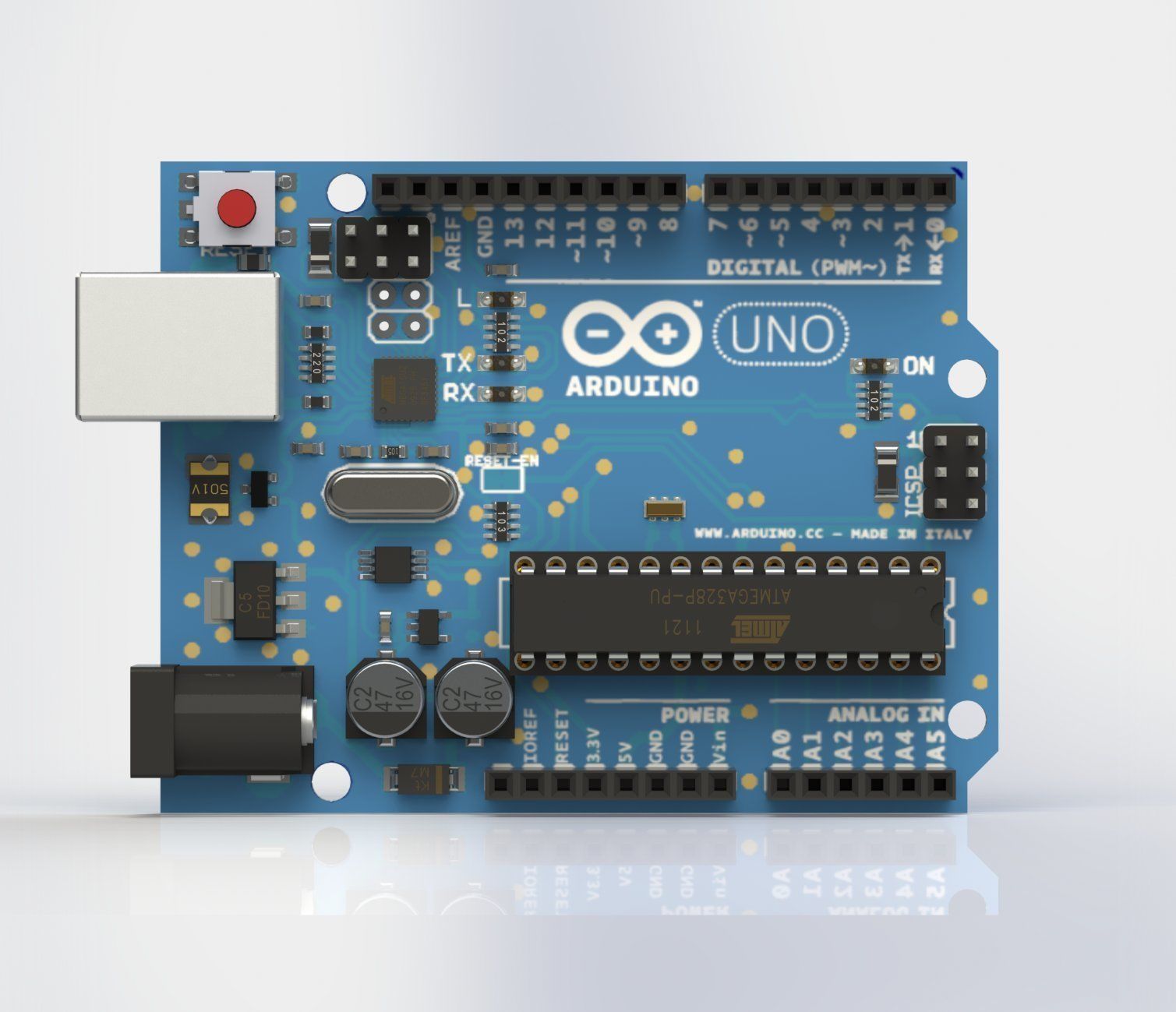

Arduino Uno R3 3D model

An Arduino Uno, Rev 3 in solidworks

Dimensions taken directly from product data sheets and the EAGLE files for the Uno Reference design, so the model ought to be accurate.

Otherwise and as always with my models, it's probably useful to suppress the extraneous detail if it's not needed.

Steve Polus pointed out that I missed a component on the original and as it's nice to be right I added it. The decals for the board are also separately downloadable as BMP files, hope this is useful for those not in Solidworks land

    This product has no reviews yet
    Arduino Uno R3
    $10.00
    All prices are exclusive of VAT
    Save with CGTrader Credits
    Send your price offer to the author if you want to buy it at lower price.
    Royalty Free License
    Products under Royalty Free License can be used without liability to pay any license fees for<br/> multiple lifelong uses, or sales volume of final product after being paid for once. The product<br/> may not be sold, given, or assigned to another person or entity in the form it is downloaded from the site.<br/> <a href='/pages/terms-and-conditions#general-terms-of-licensing' rel='nofollow' target='_blank'>Read more</a>
    Response 40% in 48.0h
    3D model formats
    • IGES (.ige, .igs, .iges)39.4 MB
    • SolidWorks (.sldprt, .sldasm, .slddrw) (2 files)-
    3D model details
    • Publish date2020-04-25
    • Model ID#2387563
    • Animated
    • Rigged
    • VR / AR / Low-poly
    • PBR
    • Geometry -
    • Polygons 0
    • Vertices -
    • Textures
    • Materials
    • UV Mapping
    • Unwrapped UVs Unknown
    • Plugins used
