Arduino Nano - Reverse engineering 3D model

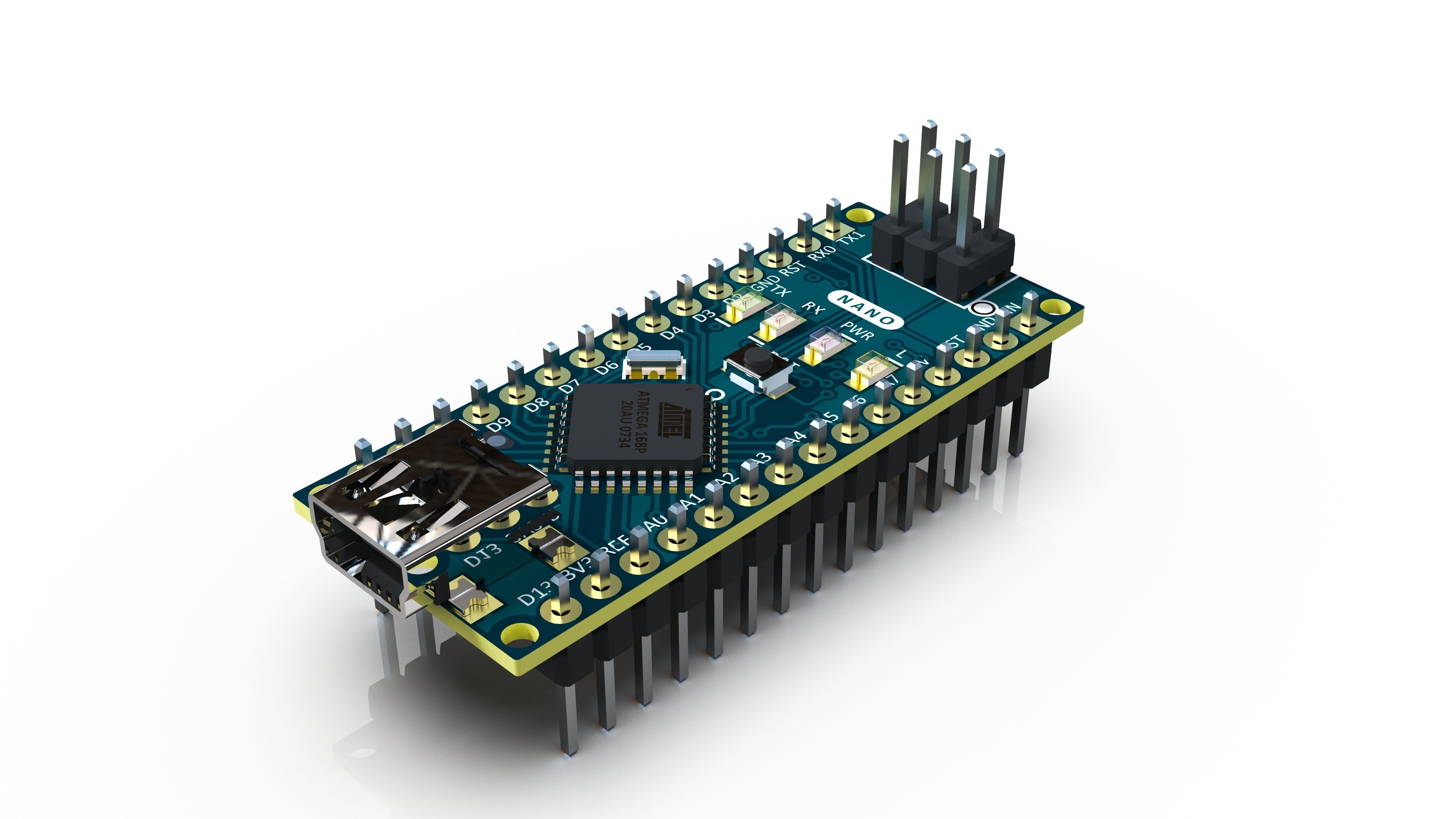

Classification of the PCB - Printed circuit board (PCB) Arduino Nano, this is reverse engineering, created in the professional engineering software SolidWorks.

All components have look like on the original board, and also have the original layout.

How is done:

Reverse engineering


Quantity components on the board - 70 pieces

Available in the formats:

Parasolid x_t (opened at any version of SolidWorks).

You can be saving each separate component as part SLDPRT.

Model converted from SolidWorks SLDASM (made by our company).

All created in the professional engineering software SolidWorks 2020.

⚡File Updated 01/11/2020: Model converted in SolidWorks 2020.

Attention! This is not a polygonal model.
