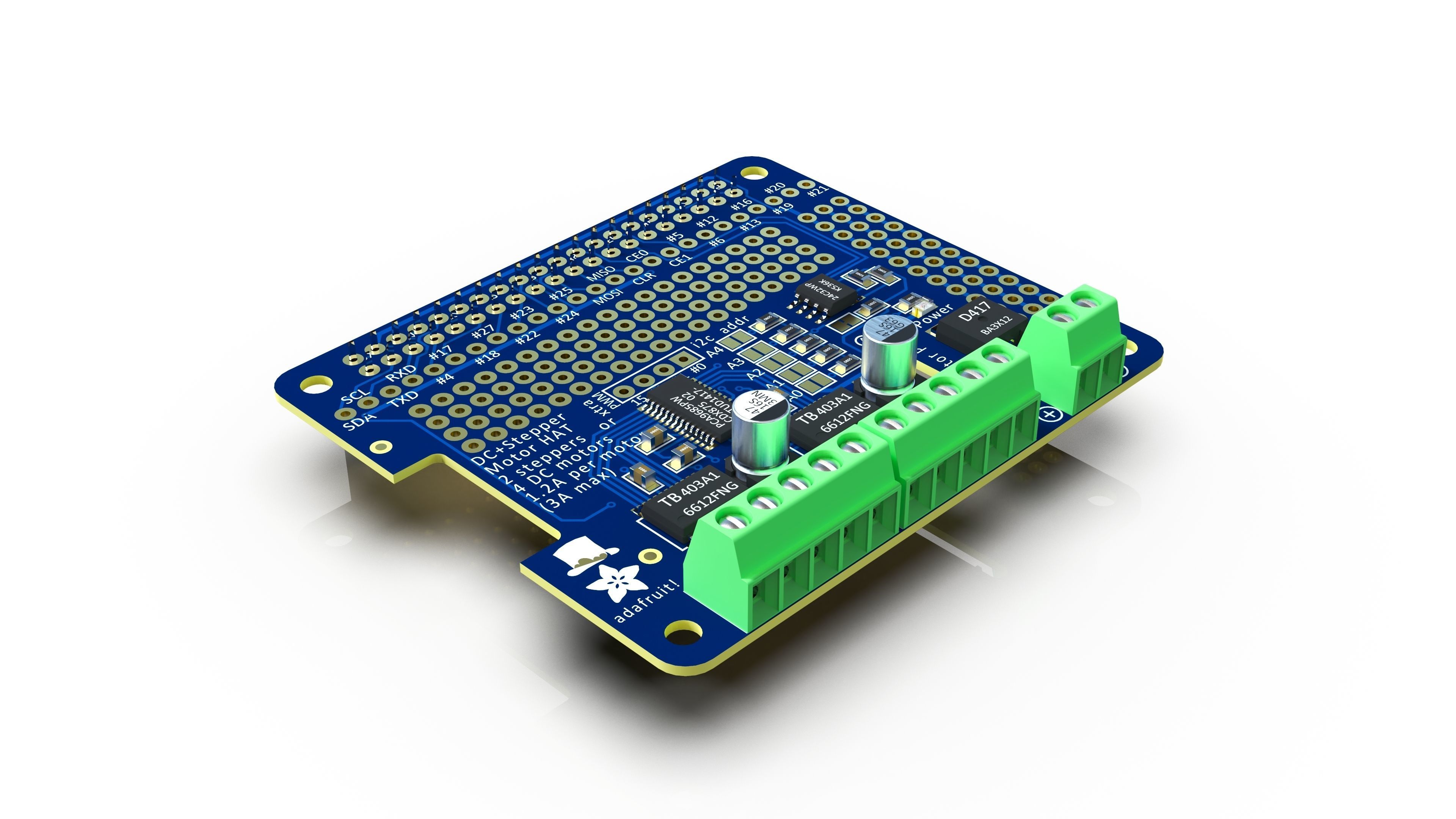

Adafruit DC Stepper motor HAT 3D model

Reverse engineering of PCB board Adafruit DC & Stepper motor HAT

Full compliance with the components of the original board.

Model converted from assembly. All done in SolidWorks 2018

⚡File Updated 01/11/2020: Model converted in SolidWorks 2020.

The model is available in the format: Parasolid .X_T
