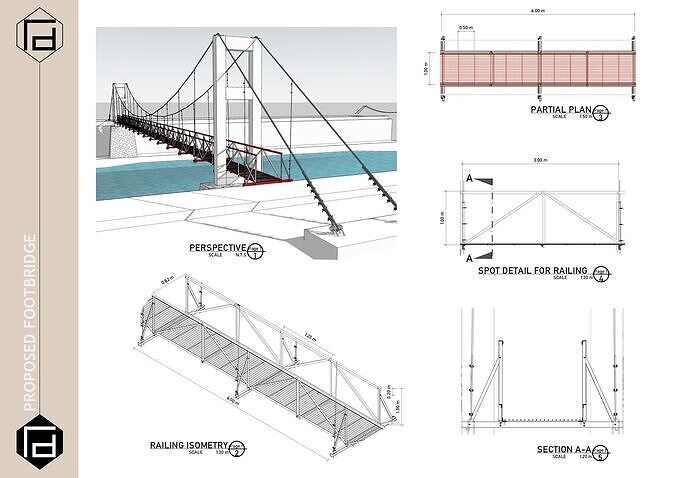

PROPOSED 42 m LONG FOOTBRIDGE 3D model

The proposed footbridge is comprised of 3 main elements:

1. The shaft made of Reinf. concrete framing covered with riprap at the base.
2. The prefab path made of rebar steel framed with angle bars and bolted connections anchored to cable wires.
3. The Deadman made of reinf. concrete acting as counter weight of the stretched structure.

This is a government program aimed to support the farmers from traversing rivers with strong currents in this municipality.
