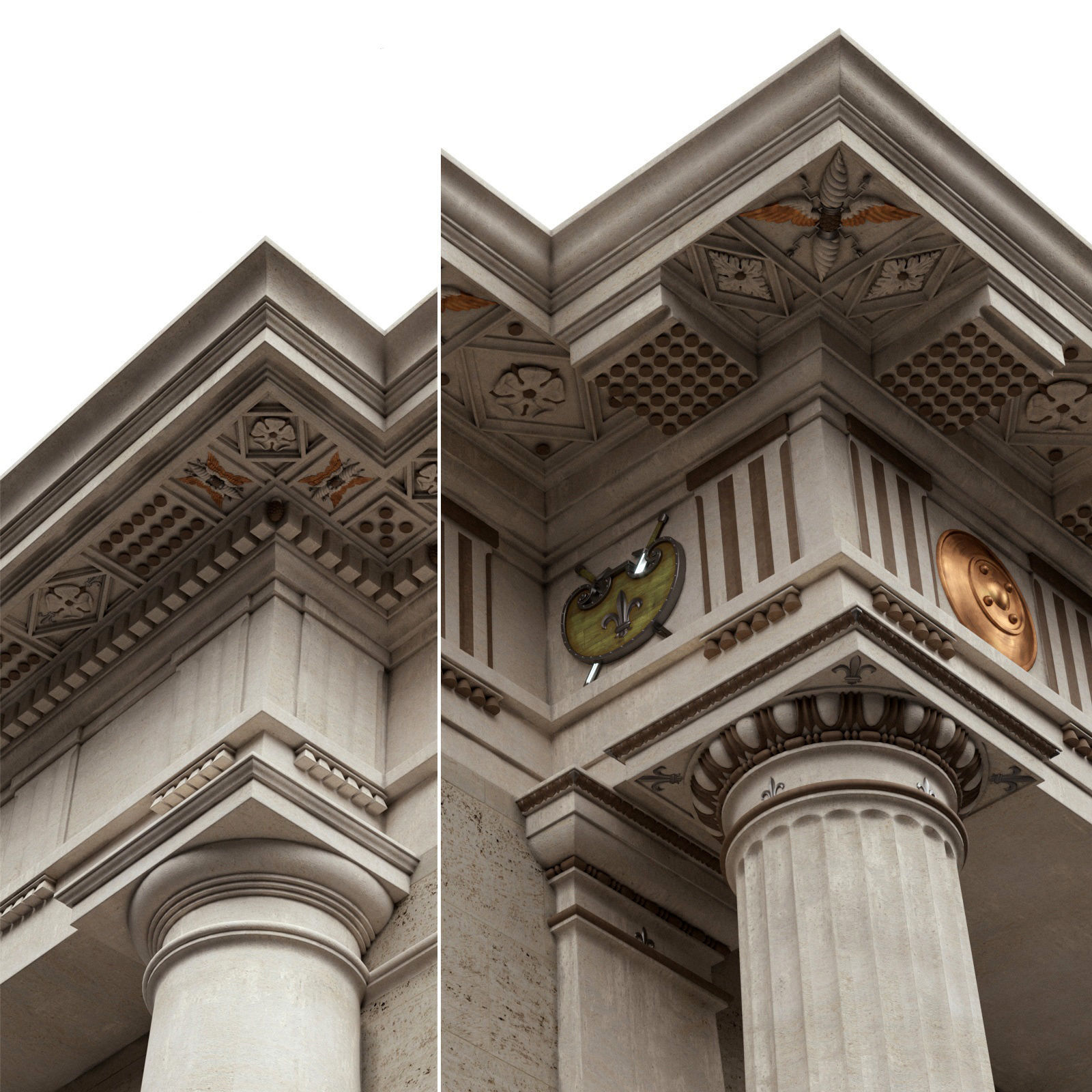

Doric Order Vignola 3D model
The order is built according to the rules given by the Italian Renaissance architect Giacomo Barozzi da Vignola. Used literature: I.B. Mikhalovsky Architectural forms of antiquity 1949; O. Garneri Orders of Civil Architecture 1937 For construction accuracy, the value of the Module is set to 1080 mm, so the model is quite large, with overall dimensions of 46,425 x 1,7010 x 27,360 mm.
The model includes a Doric order of two types: jagged and modular. Notched - arch without a pedestal, three-quarter columns. Modular - arch with a pedestal, detached columns with pilasters. You can vary these parameters and model different types of architectural porticoes. In a separate order, the modifier stack is not minimized for the possibility of further building an entablature.
