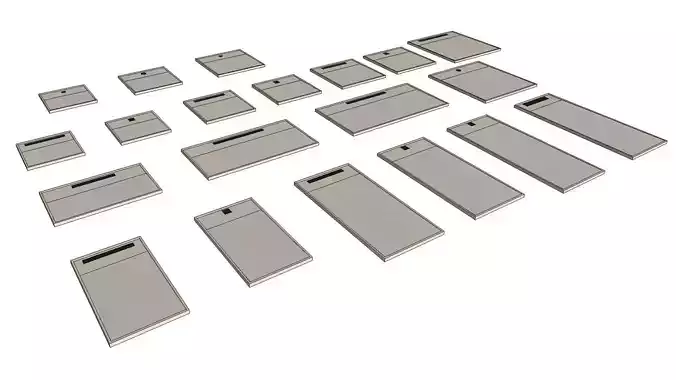

Fully Parametric rectangular shape Shower tray revit family model. Any rectangular shape and size can be selected with options of linear, square and circular drains. Shower tray can be adjusted to match any design requirement with drai either on the long or short side.

Shower tray has a sloped surface for water drainage with a variable drain shape. By adjusting the length and width of the tray the drain can be located either on the long or the short side of the tray. Model can be flipped on both axis for more design options.

User can also change the tray height and the top rim width.

By changing the drain horizontal and vertical position, it can be placed either in the center or any of the corners of the tray.

ATTRIBUTES:

• Revit Model : 2022
• Family Type : Generic Model
• File Extension : .rfa

PARAMETERS:

• Tray Width & Length
• Tray Height
• Tray Rim Width
• Drain vertical and horizotanl position
• Drain Type Selection between Rectangular ( Linear or Square ) or Circular
• Drain Length & Width or drain diameter for circular drains
• Elevation from reference level
• All materials are parametric

FAMILY TYPES:

Square 900x900mm, Square DrainSquare 800x800mm, Square DrainSquare 700x700mm, Square DrainSquare 1200x1200mm, Square DrainSquare 900x900mm, Linear DrainSquare 1200x1200mm, Linear DrainSquare 800x800mm, Linear DrainSquare 700x700mm, Linear DrainRectangular 1600x800mm, Linear DrainRectangular 1600x800mm, Square DrainRectangular 800x1600mm, Linear DrainRectangular 1800x800mm, Square DrainRectangular 1200x700mm, Linear DrainRectangular 1200x700mm, Square DrainRectangular 900x1800mm, Linear DrainRectangular 700x1200mm, Linear DrainSquare 900x900mm, Circular DrainSquare 800x800mm, Circular DrainSquare 700x700mm, Circular DrainSquare 1200x1200mm, Circular DrainRectangular 1800x800mm, Linear Drain

User can create as many family type variations needed with no restrictions.
