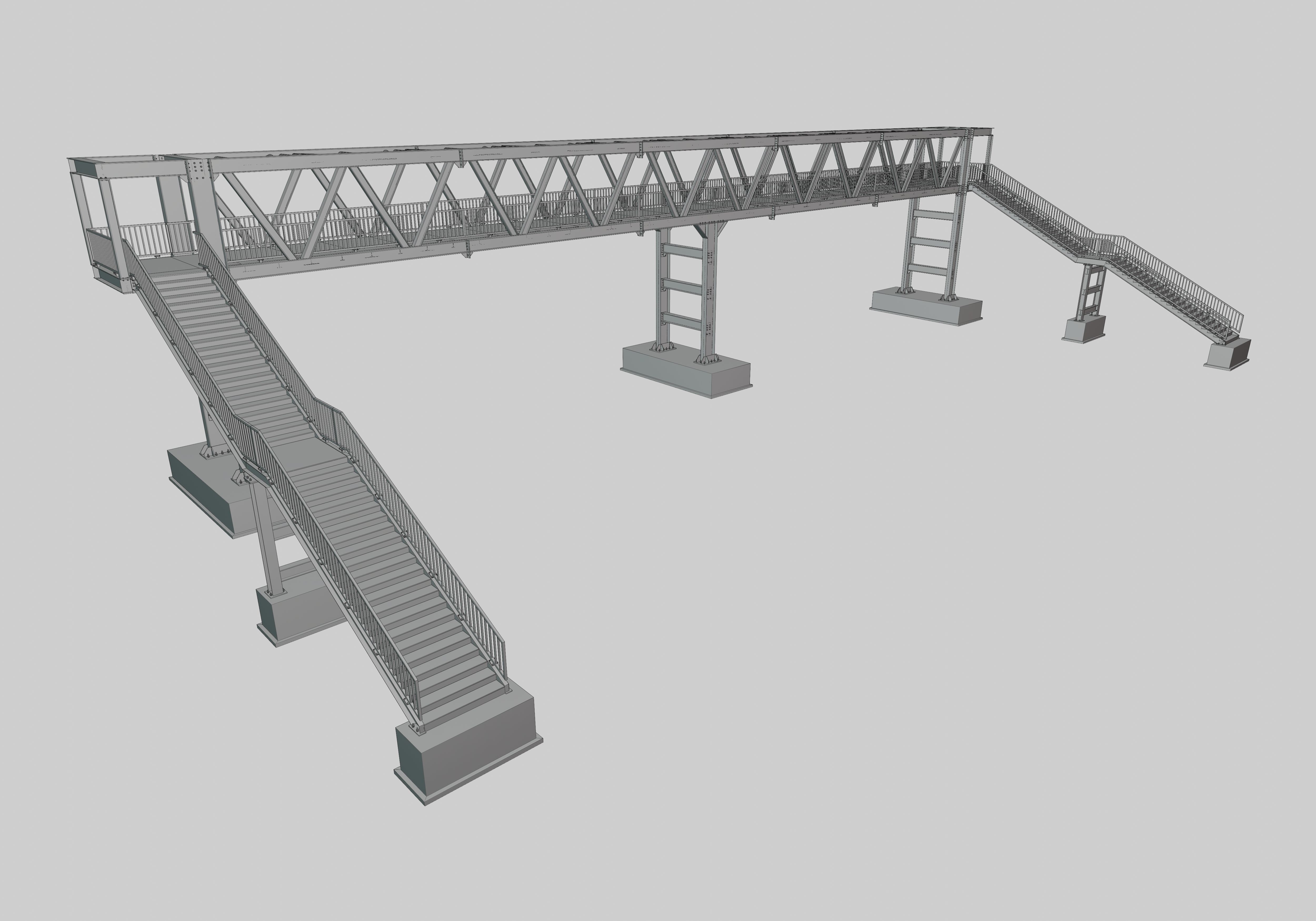

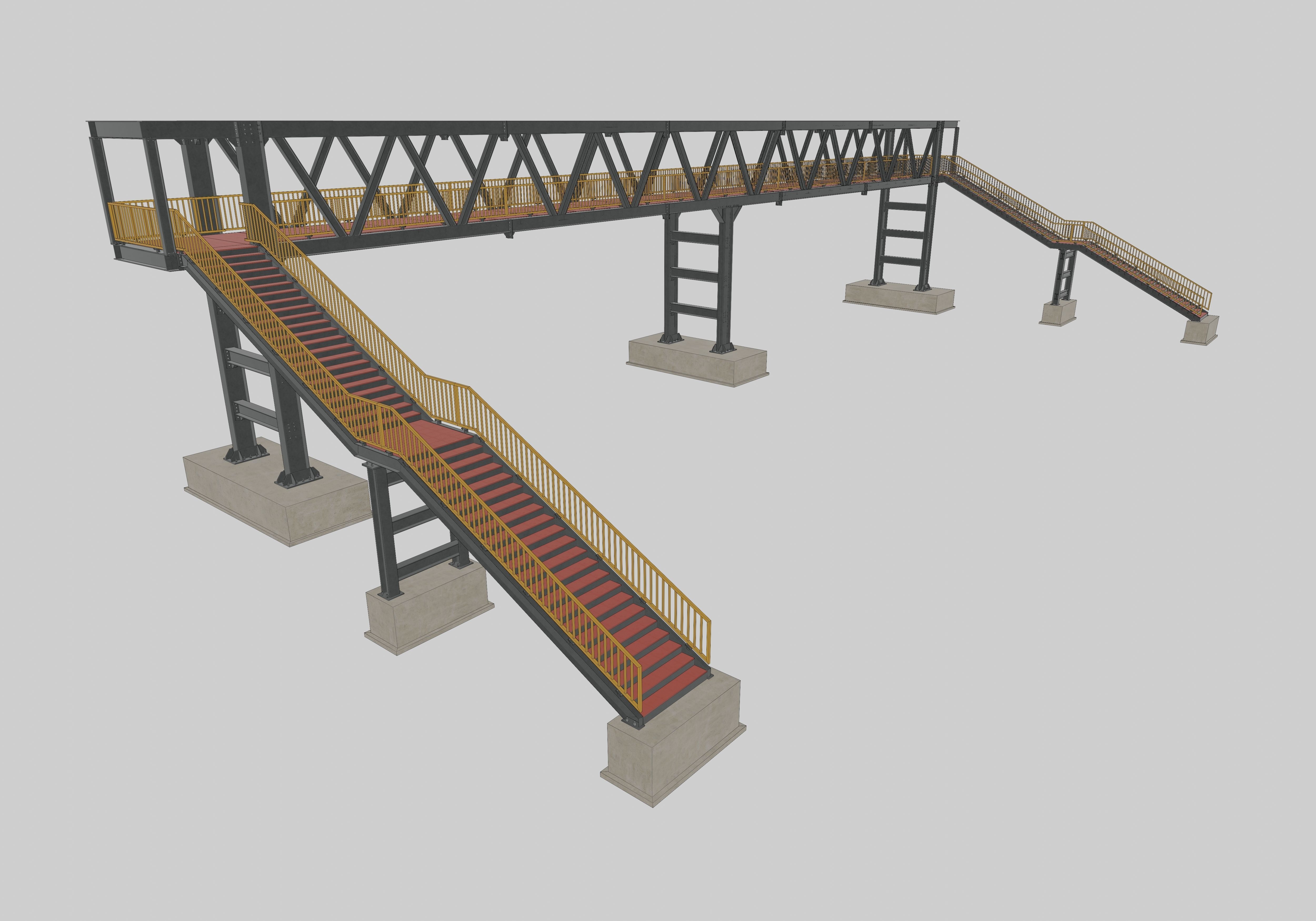

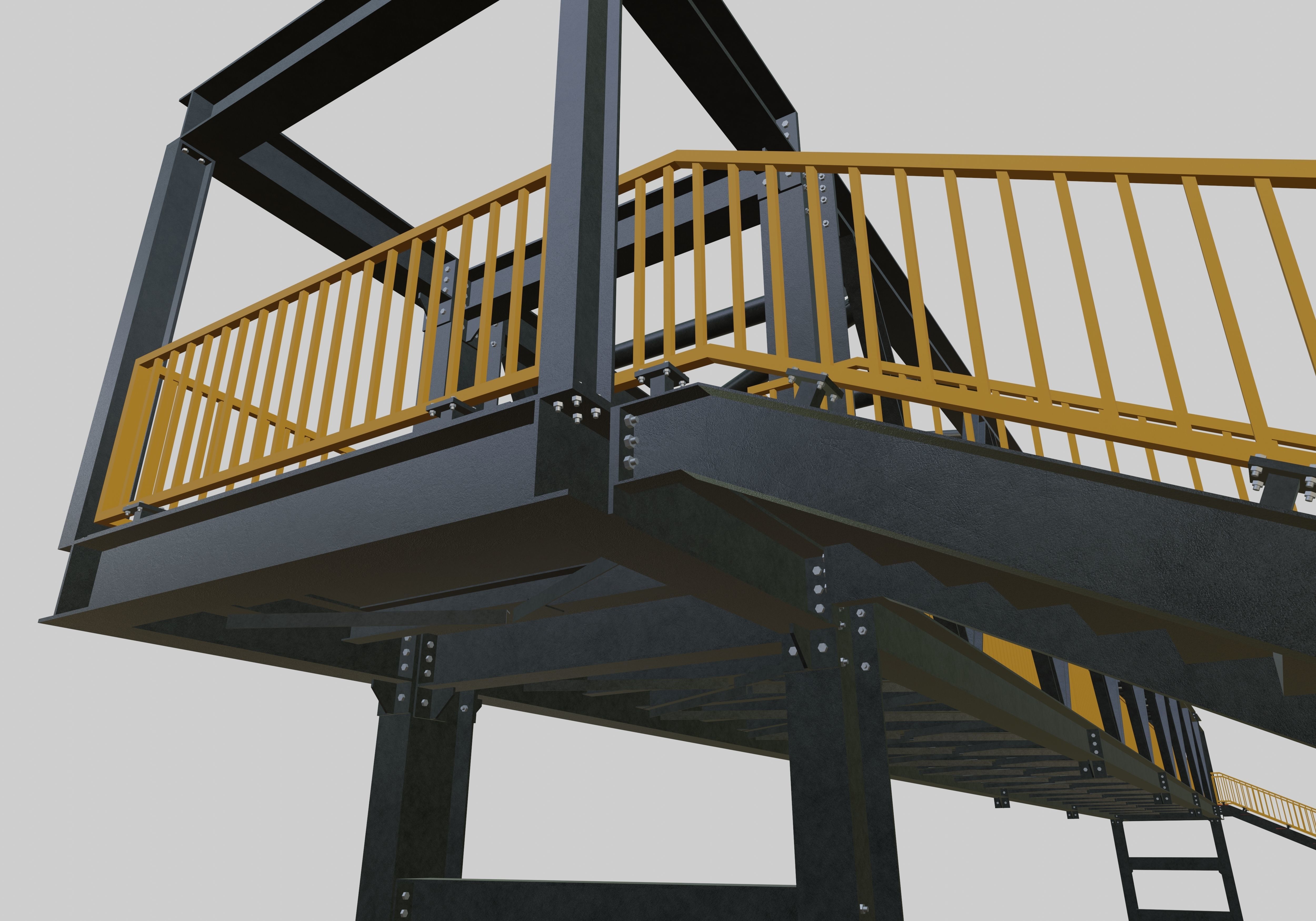

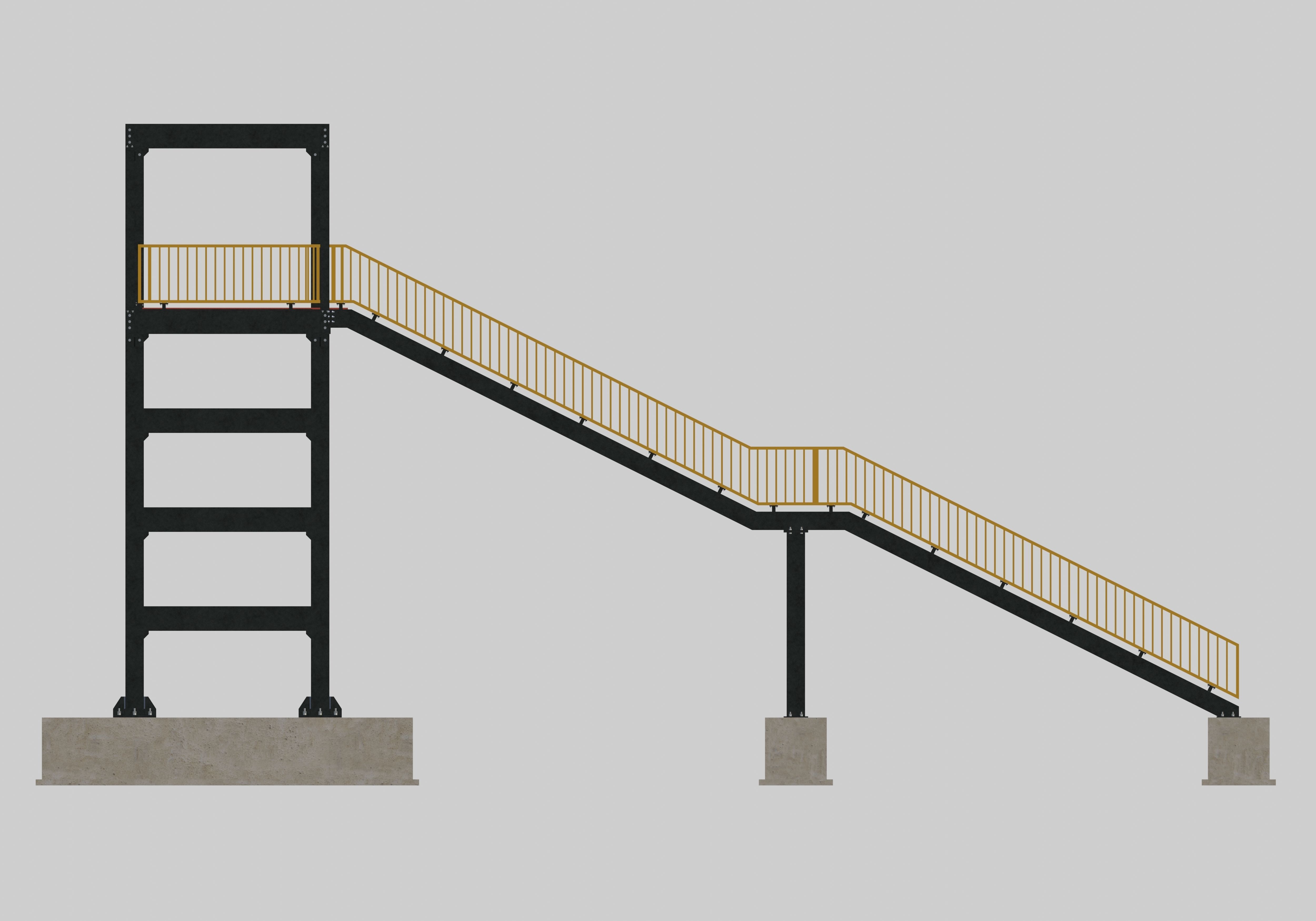

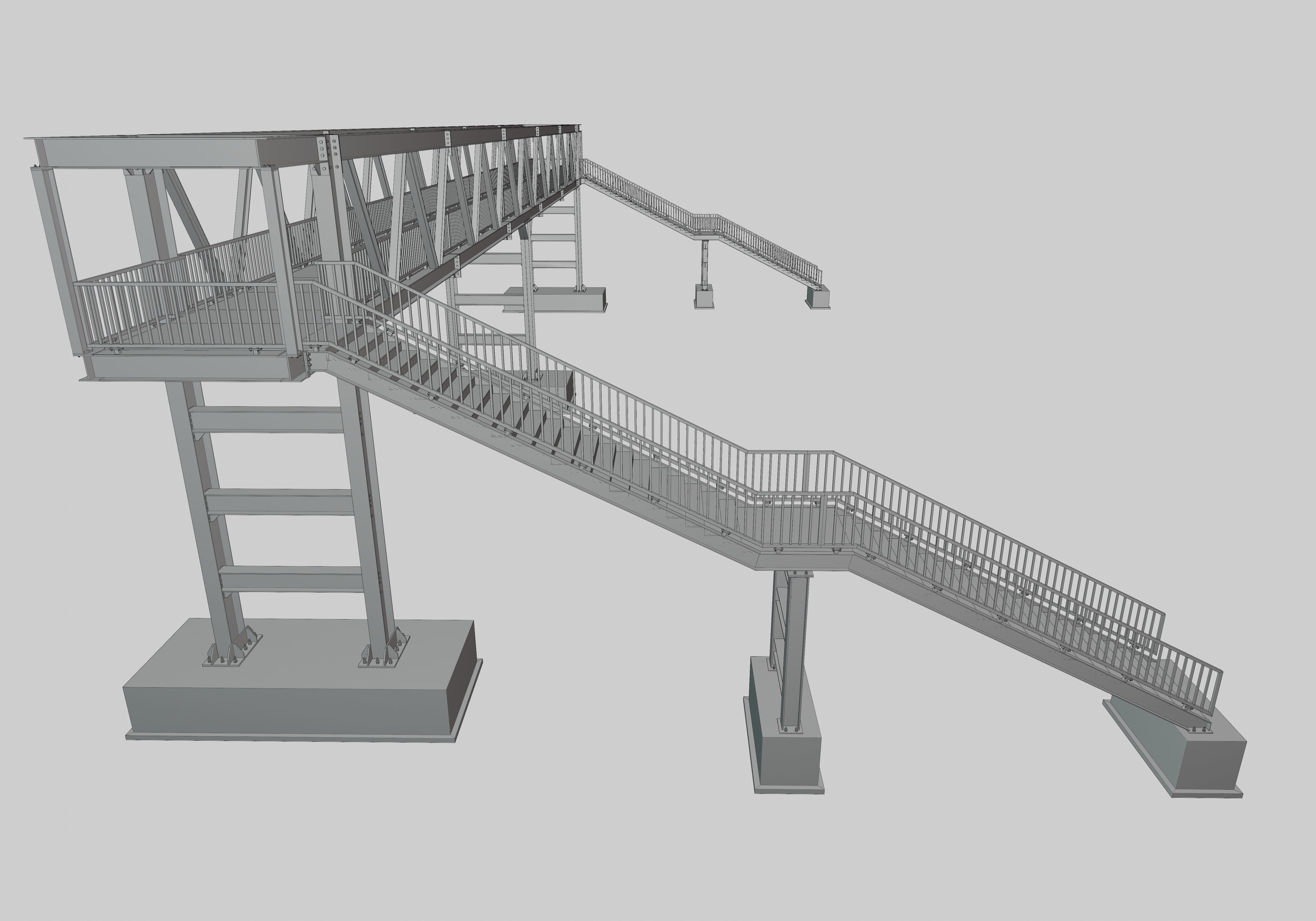

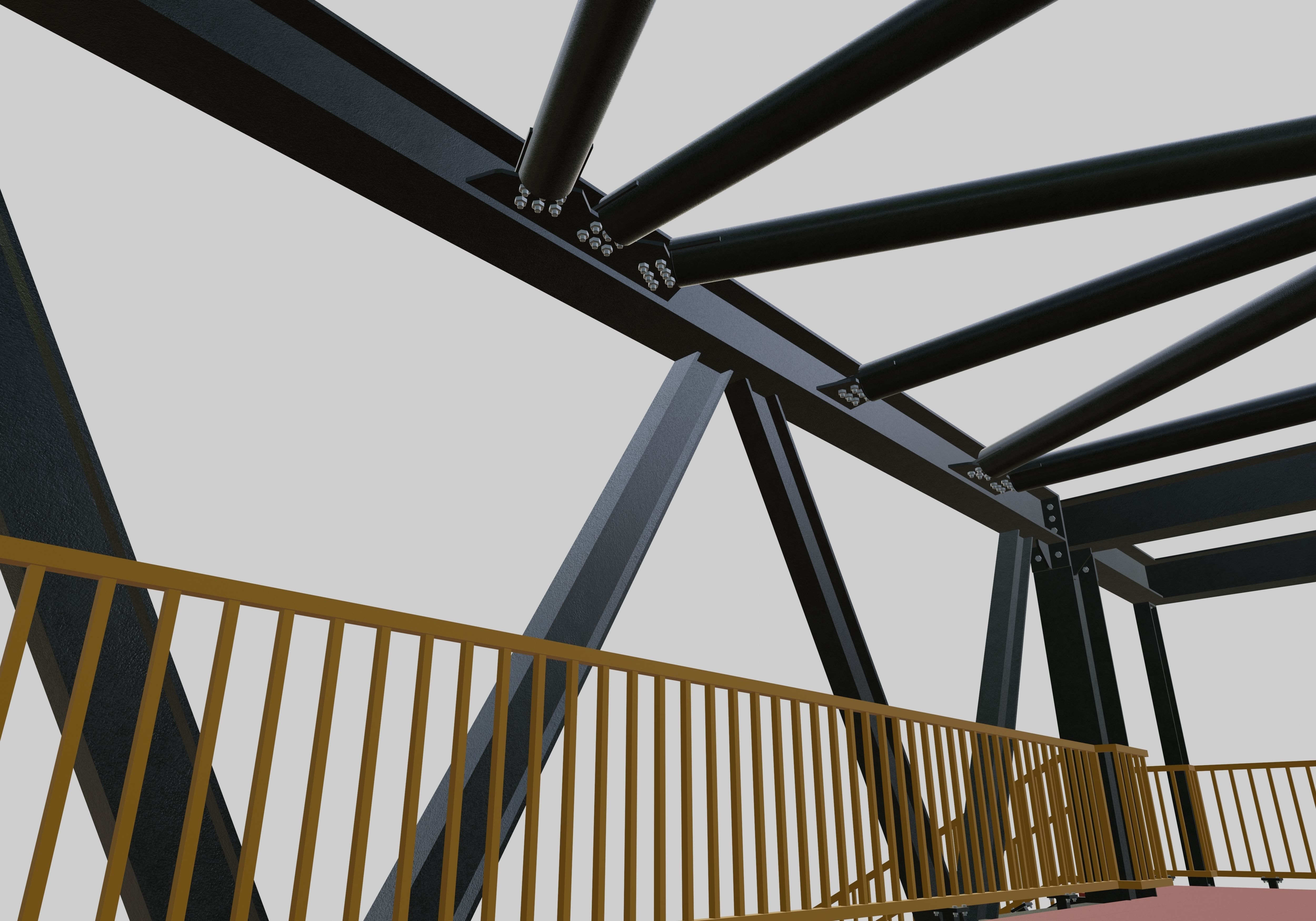

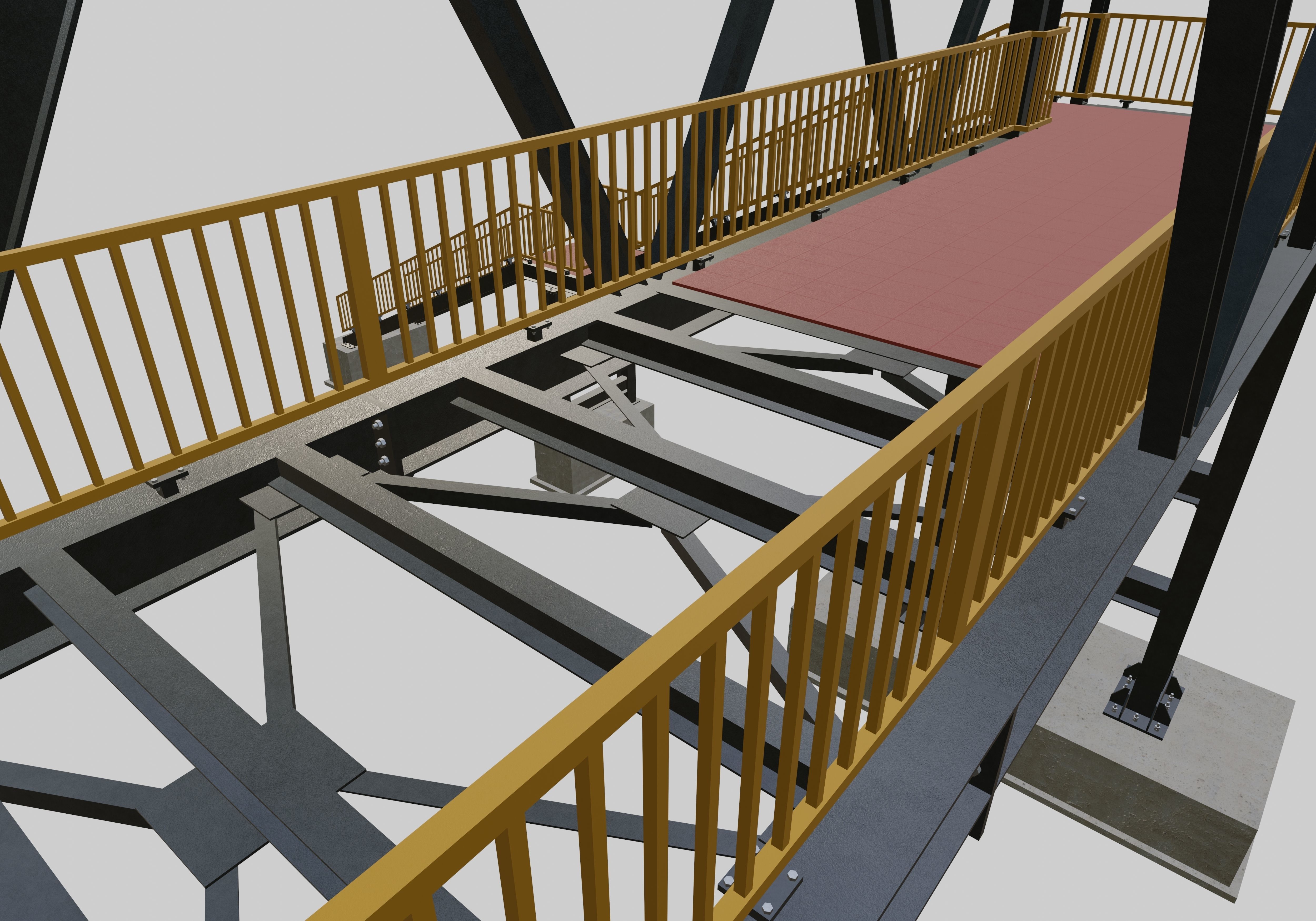

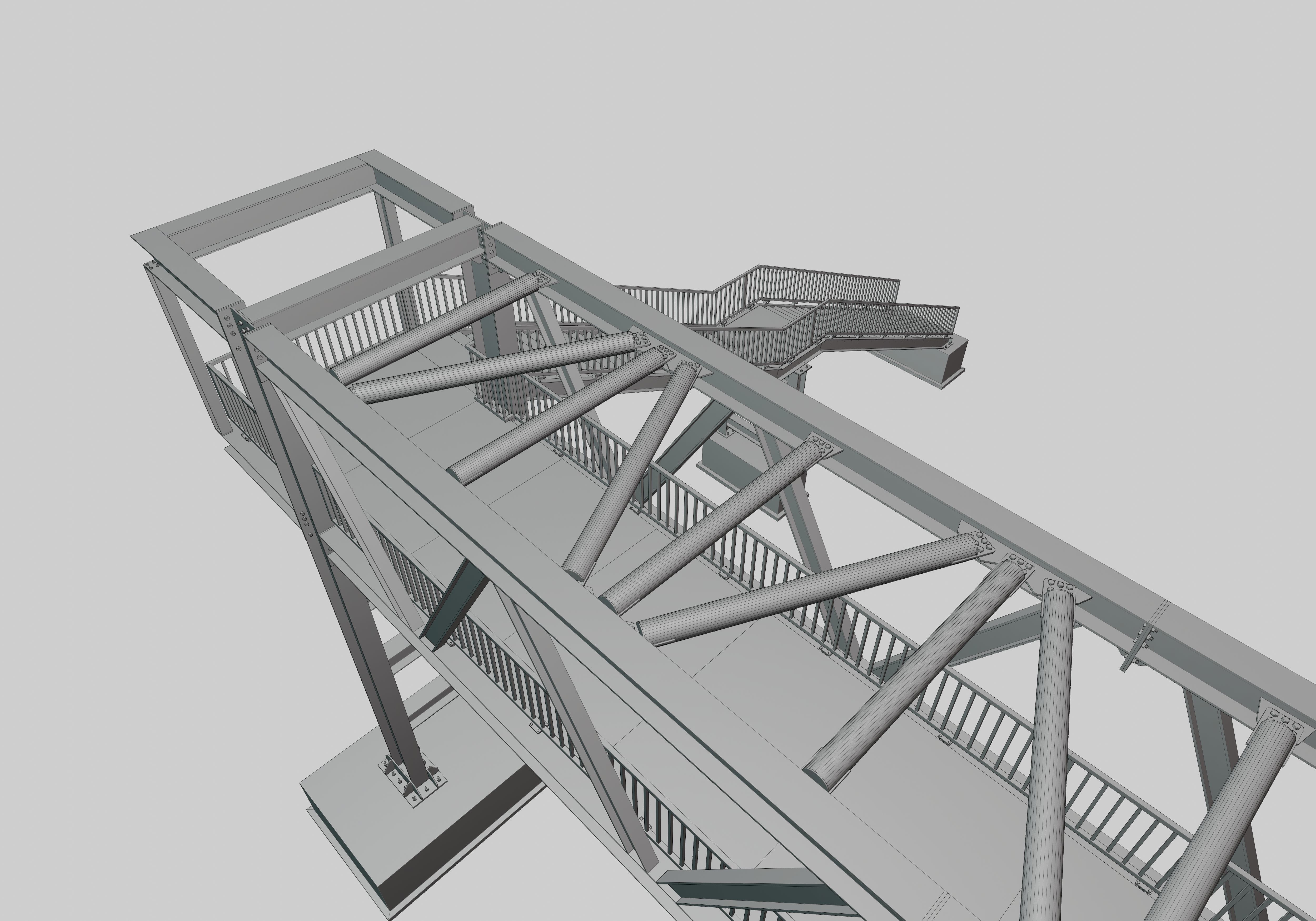

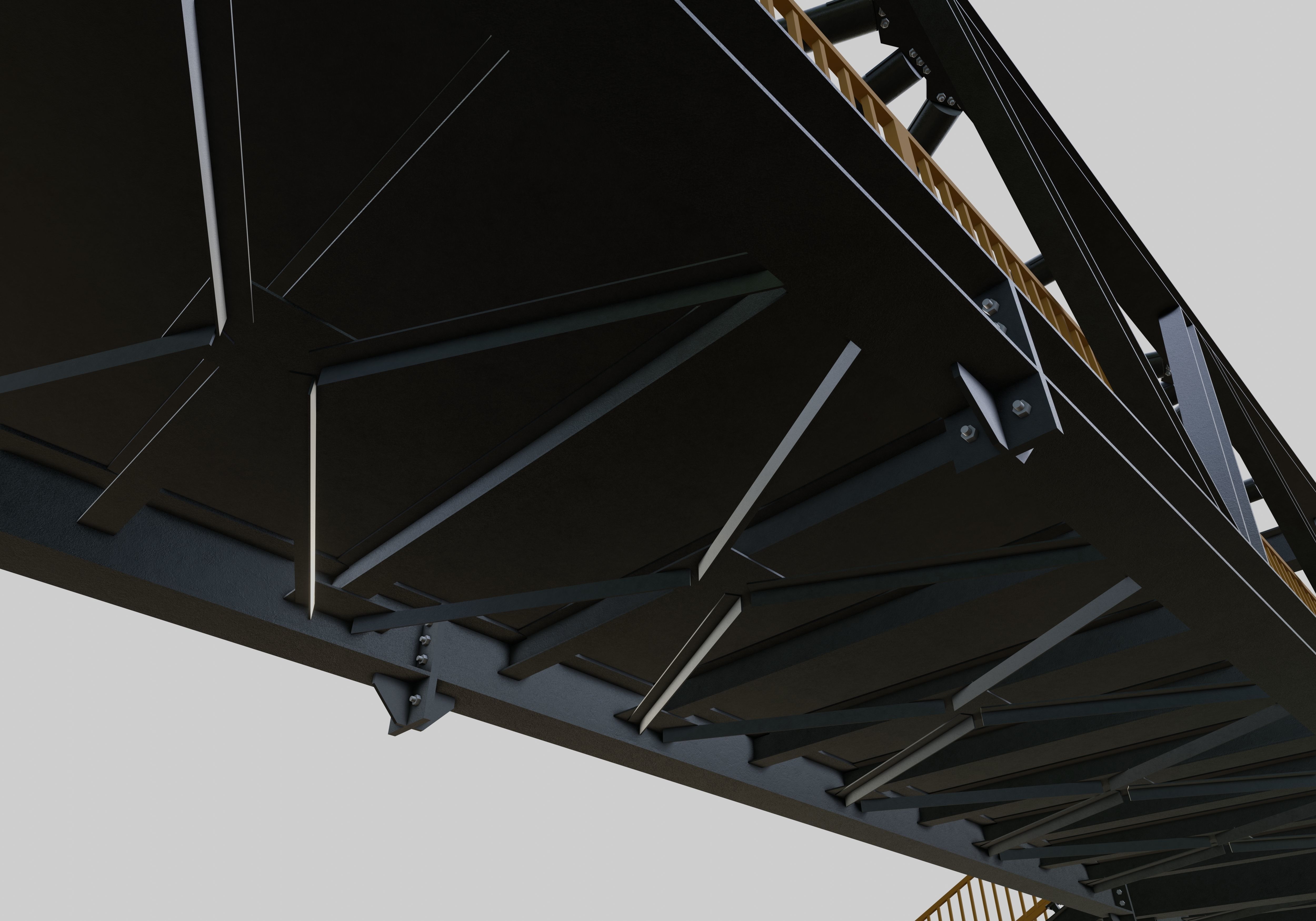

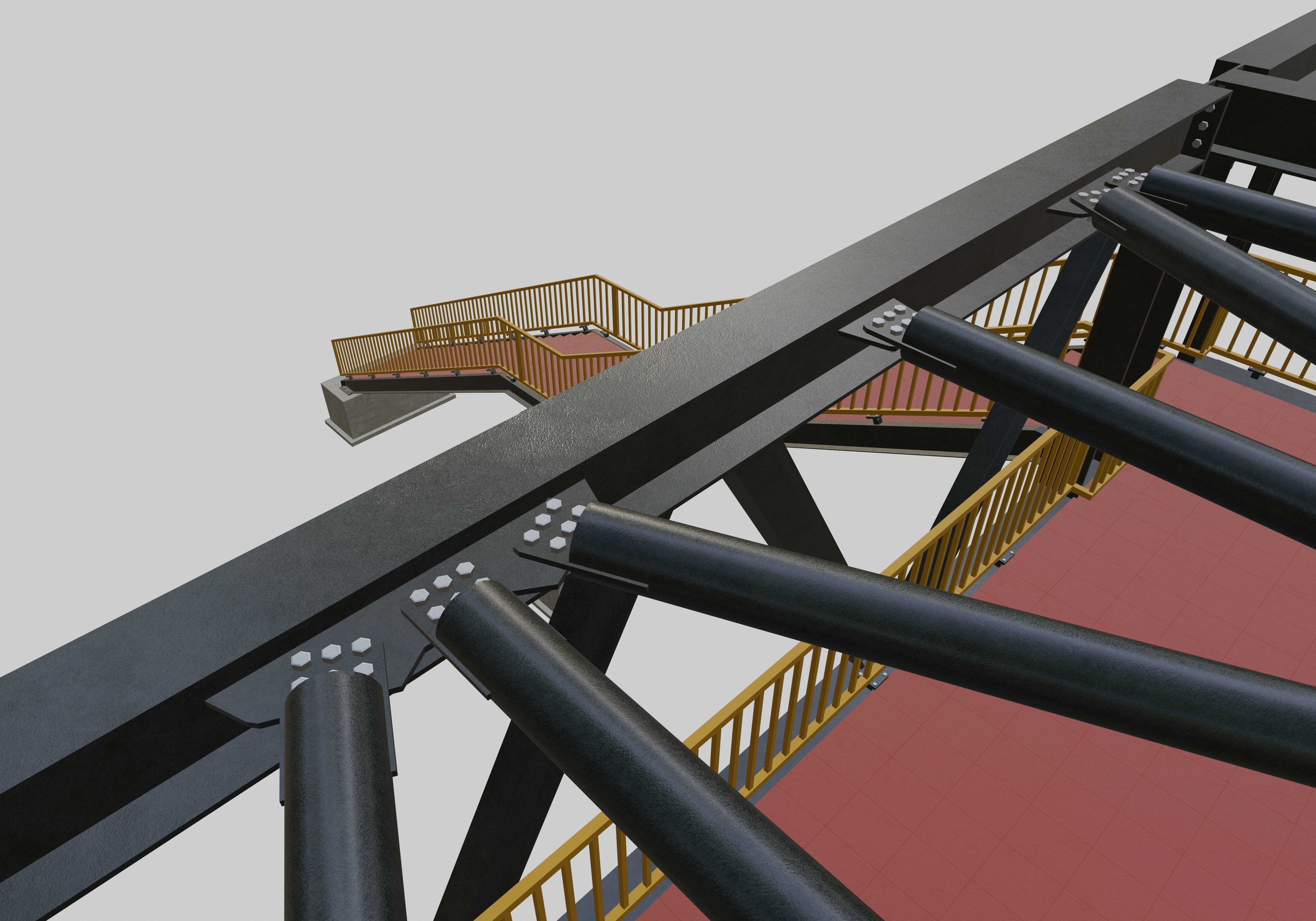

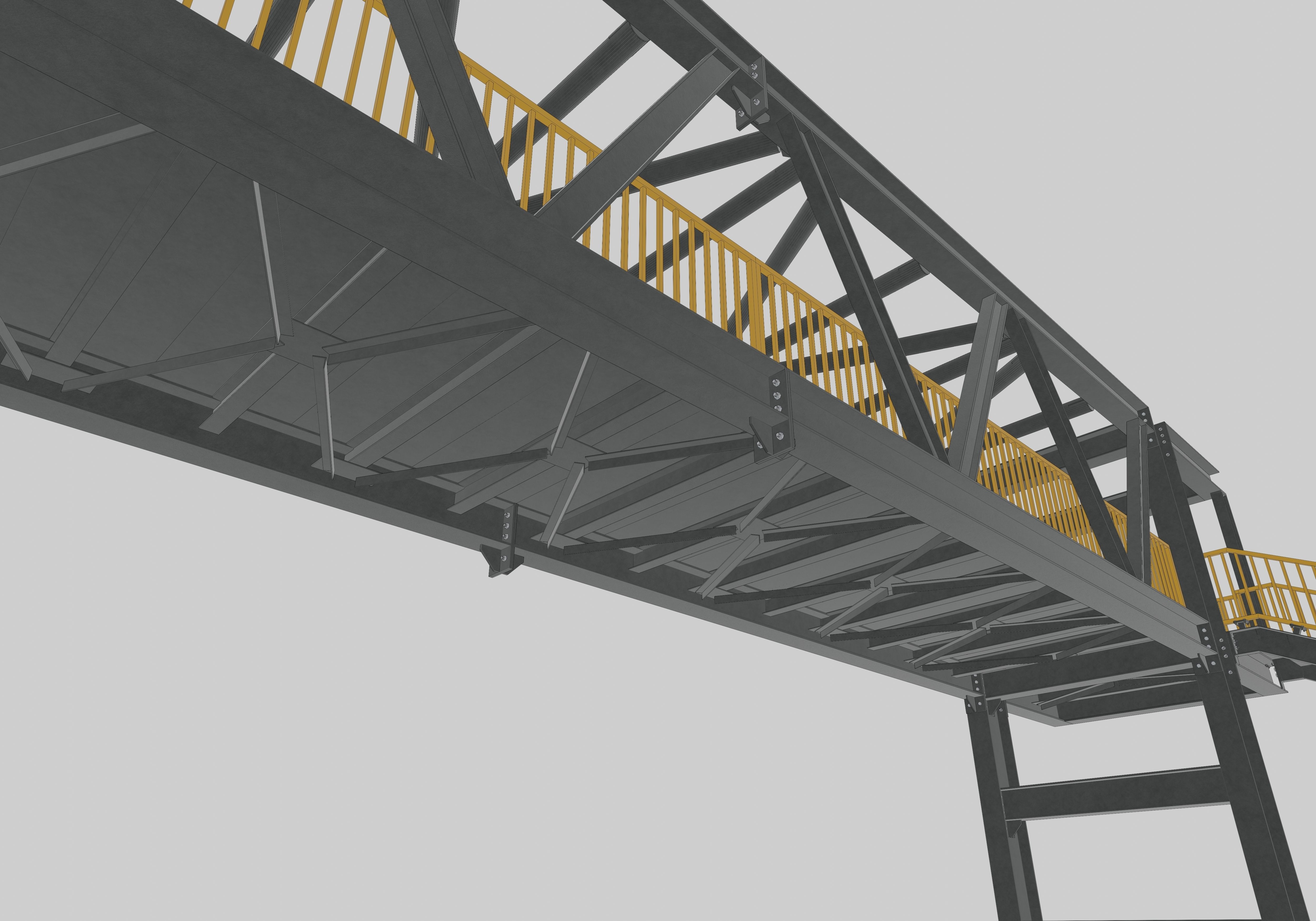

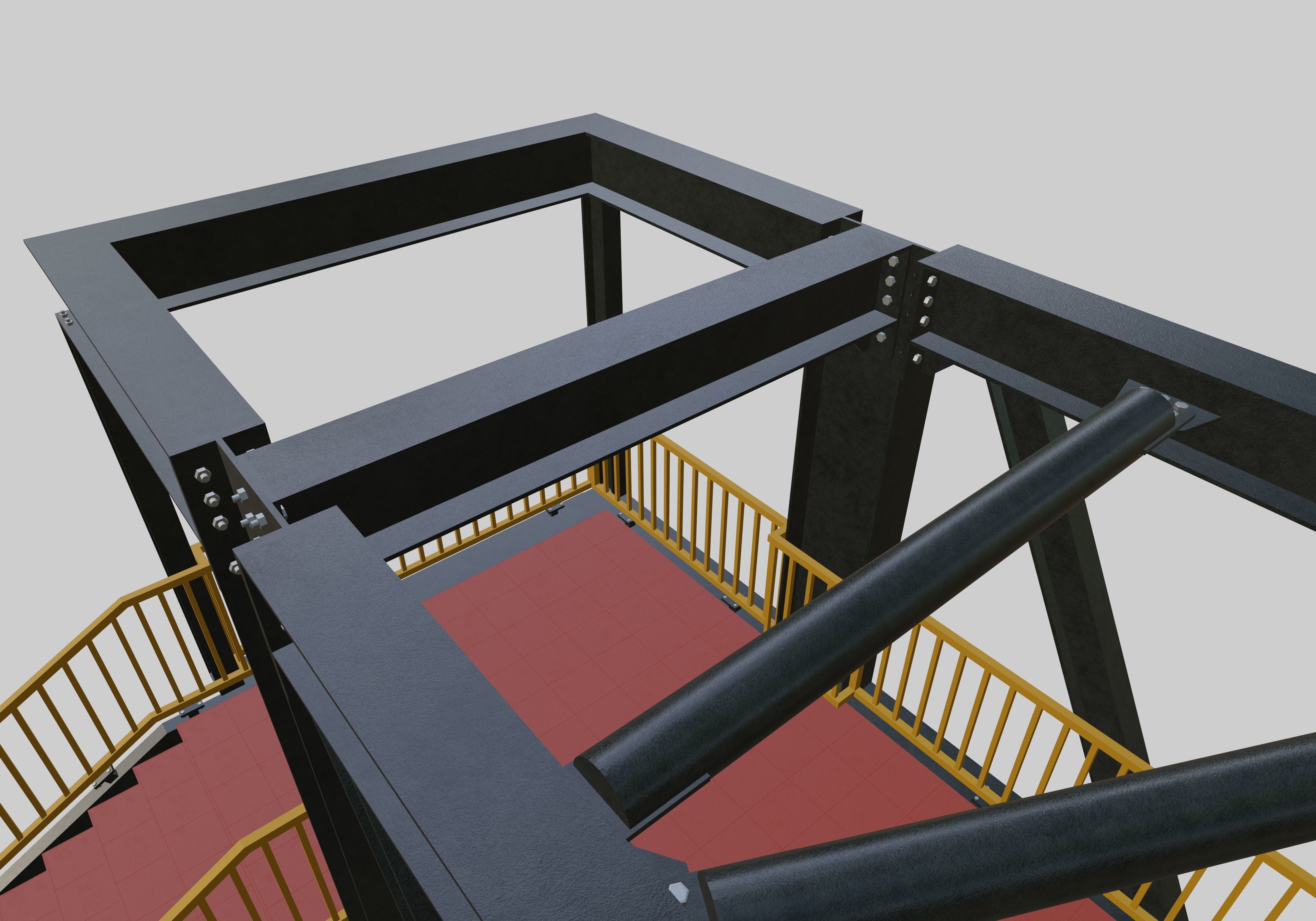

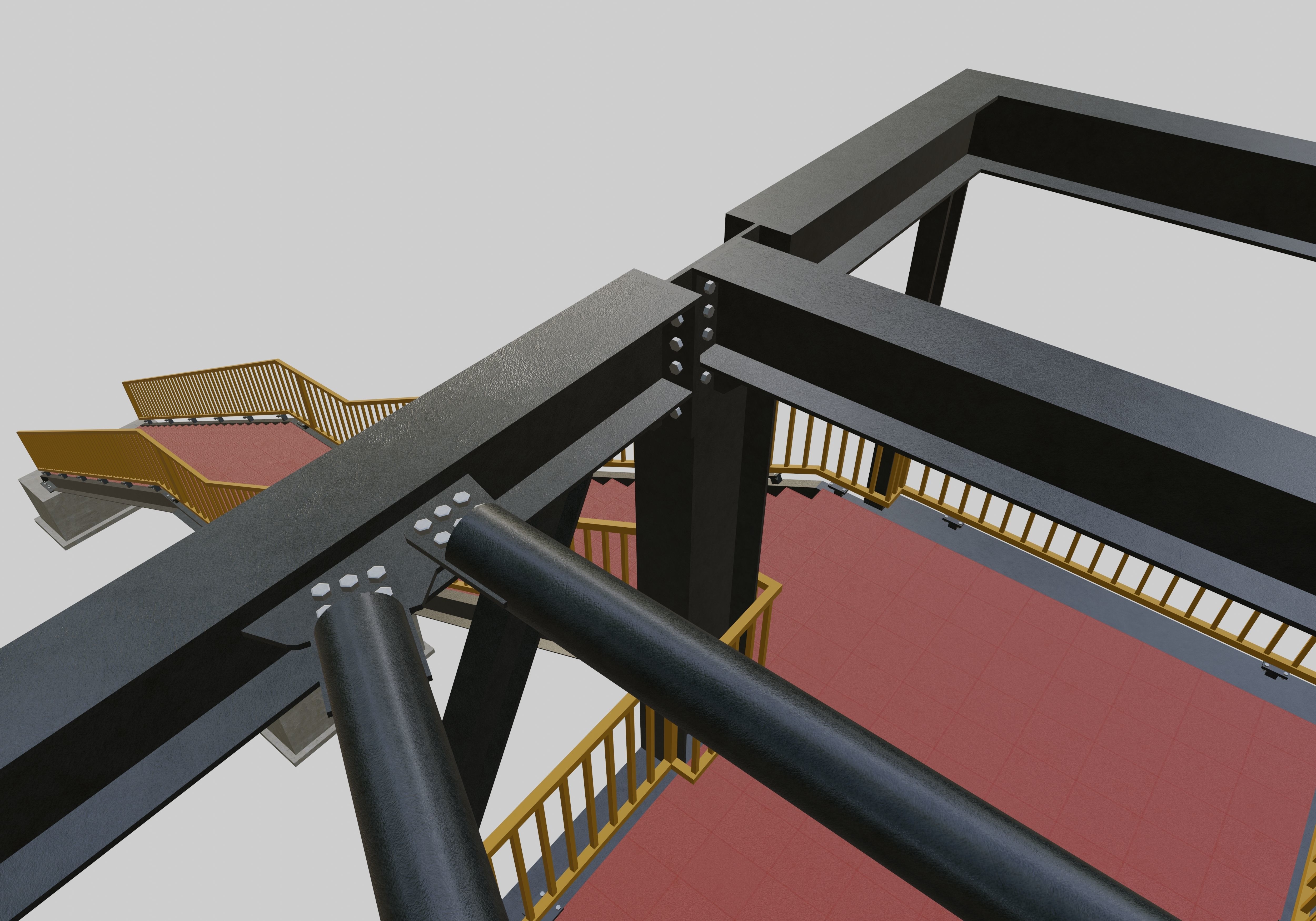

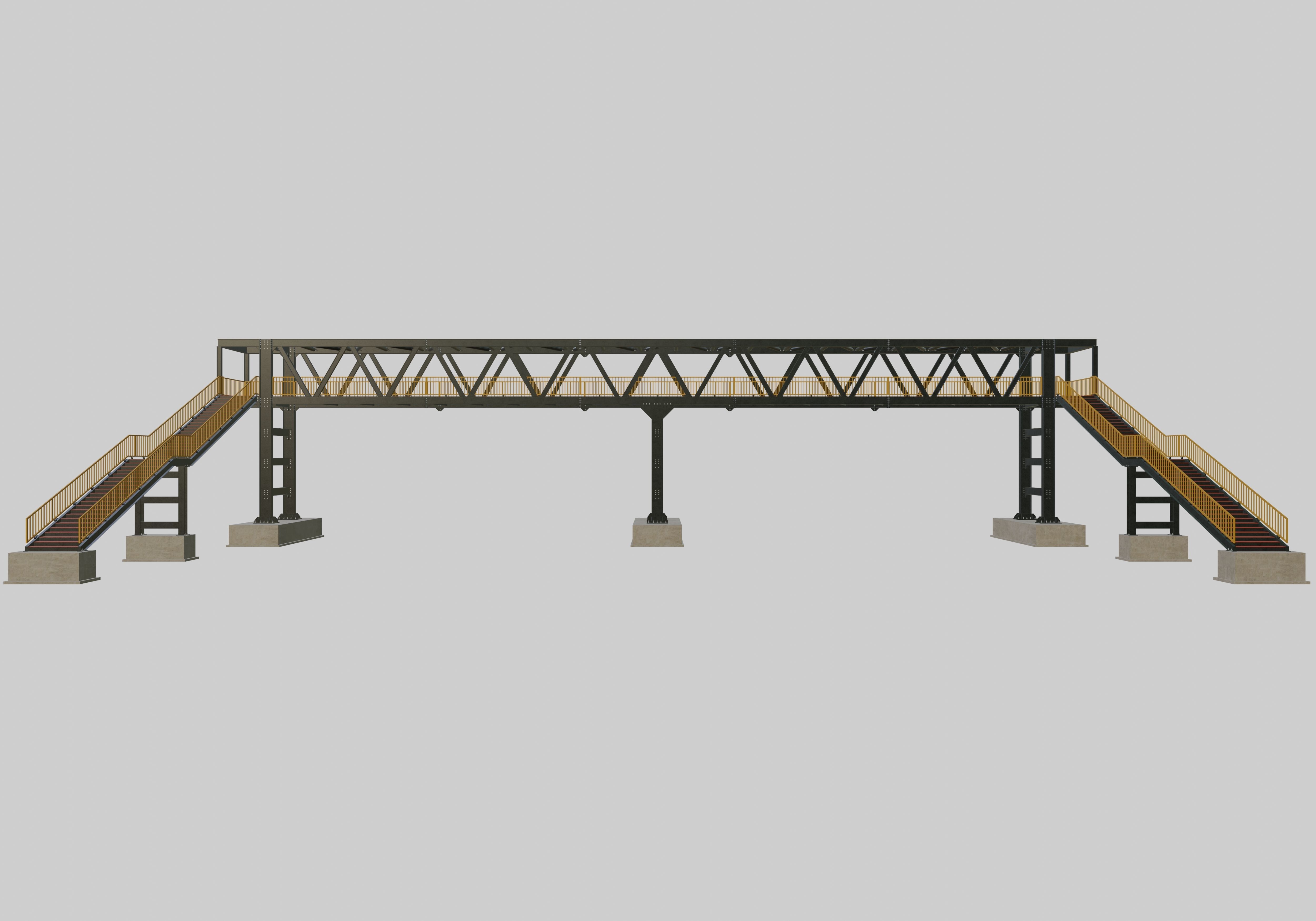

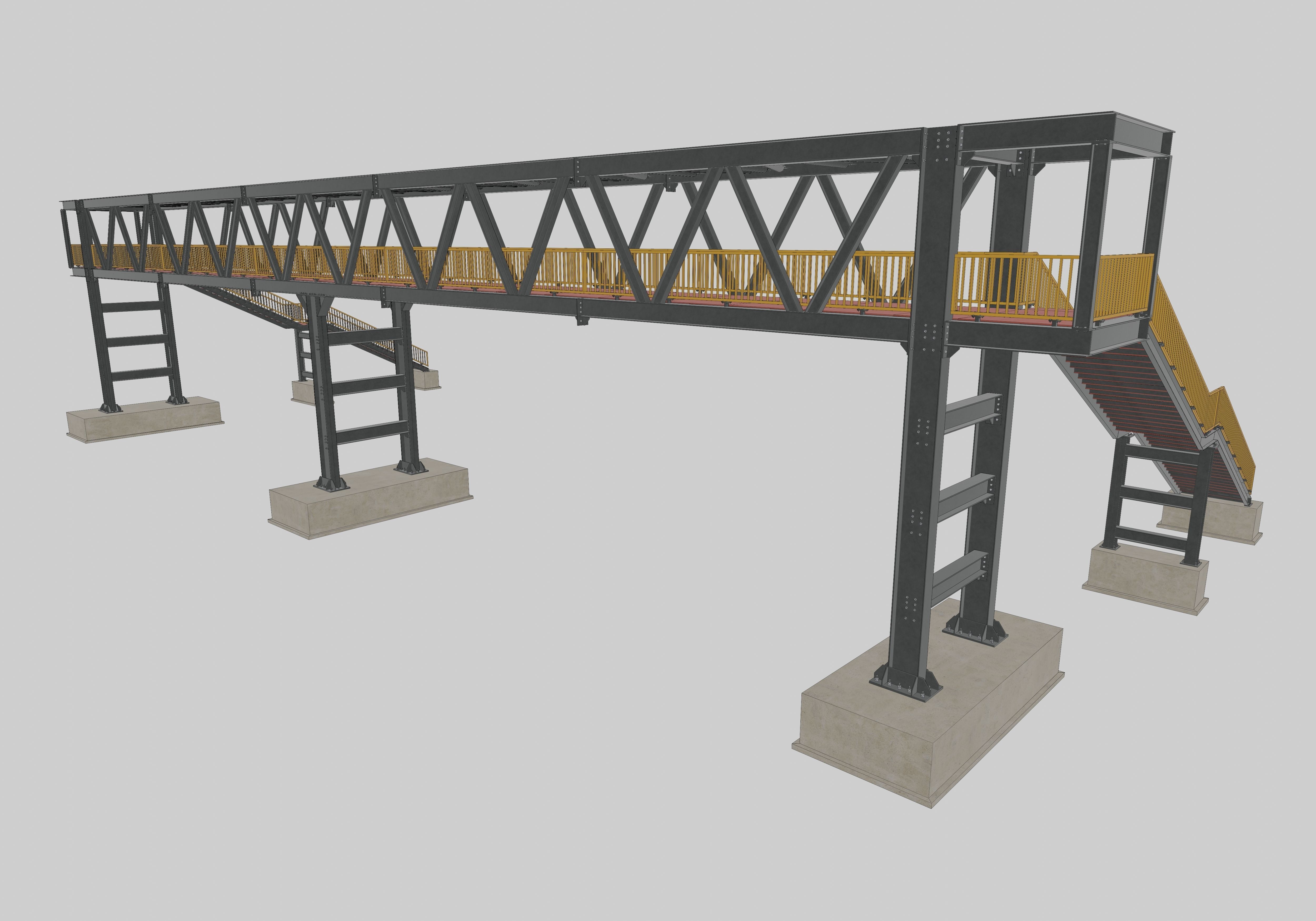

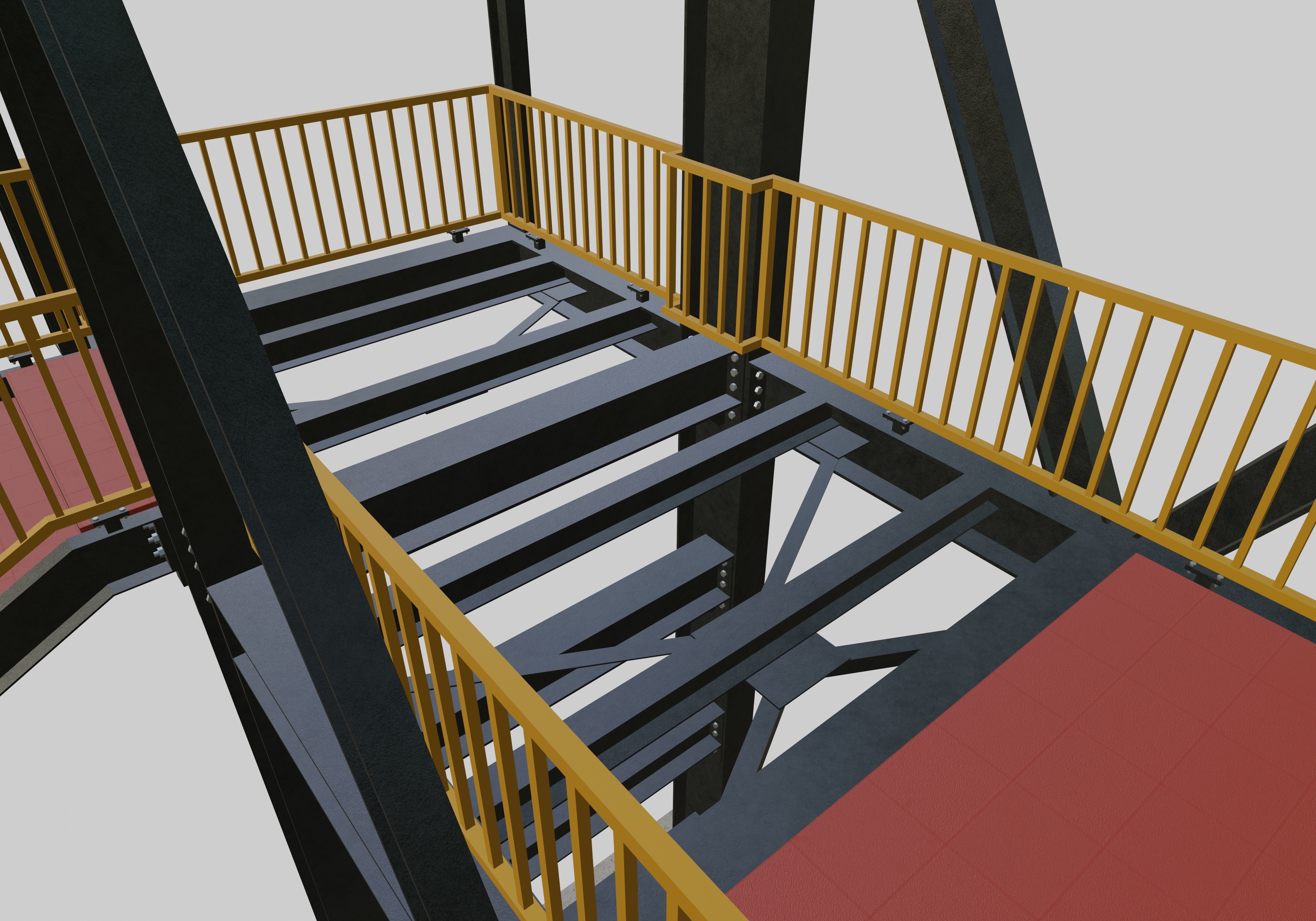

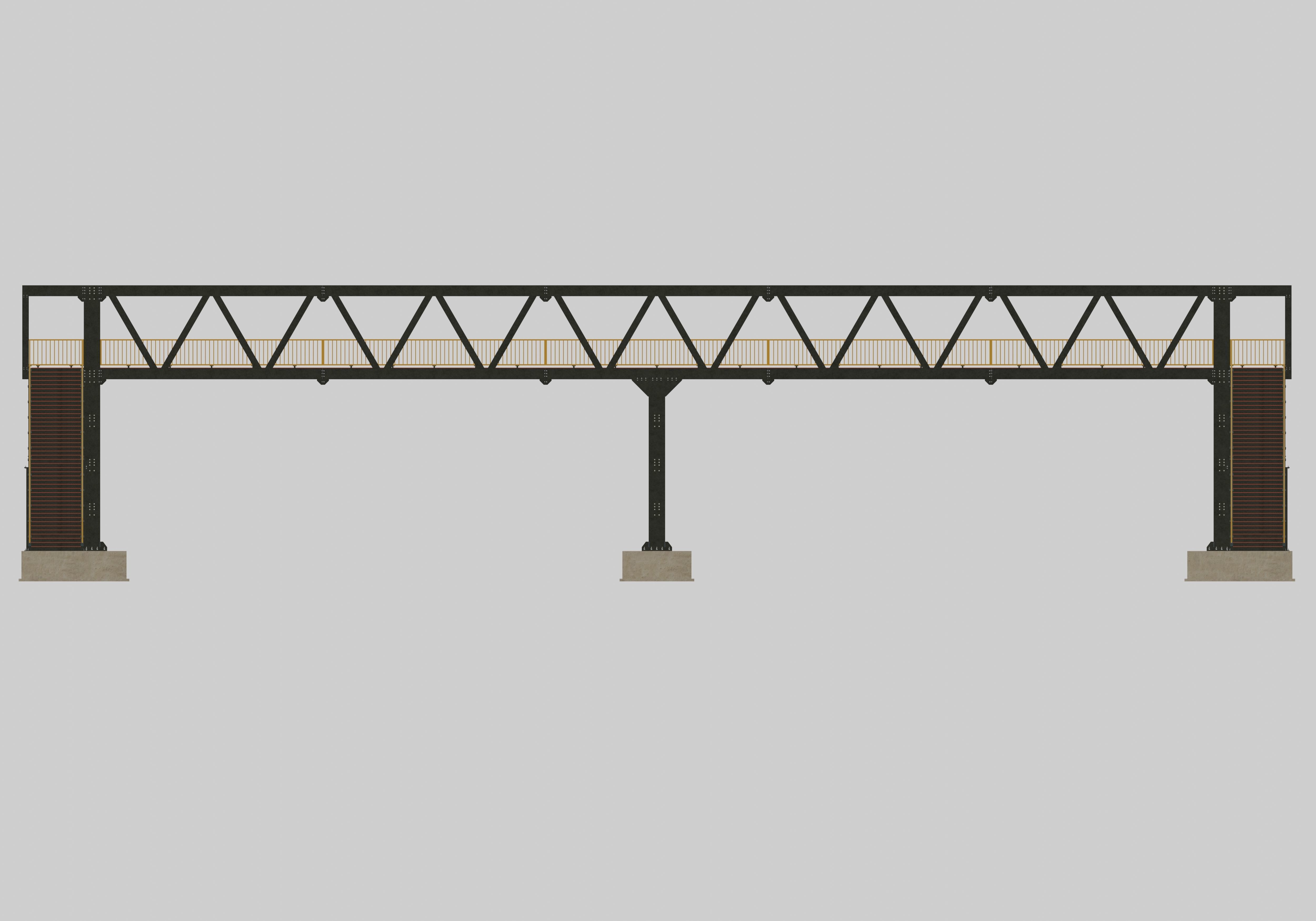

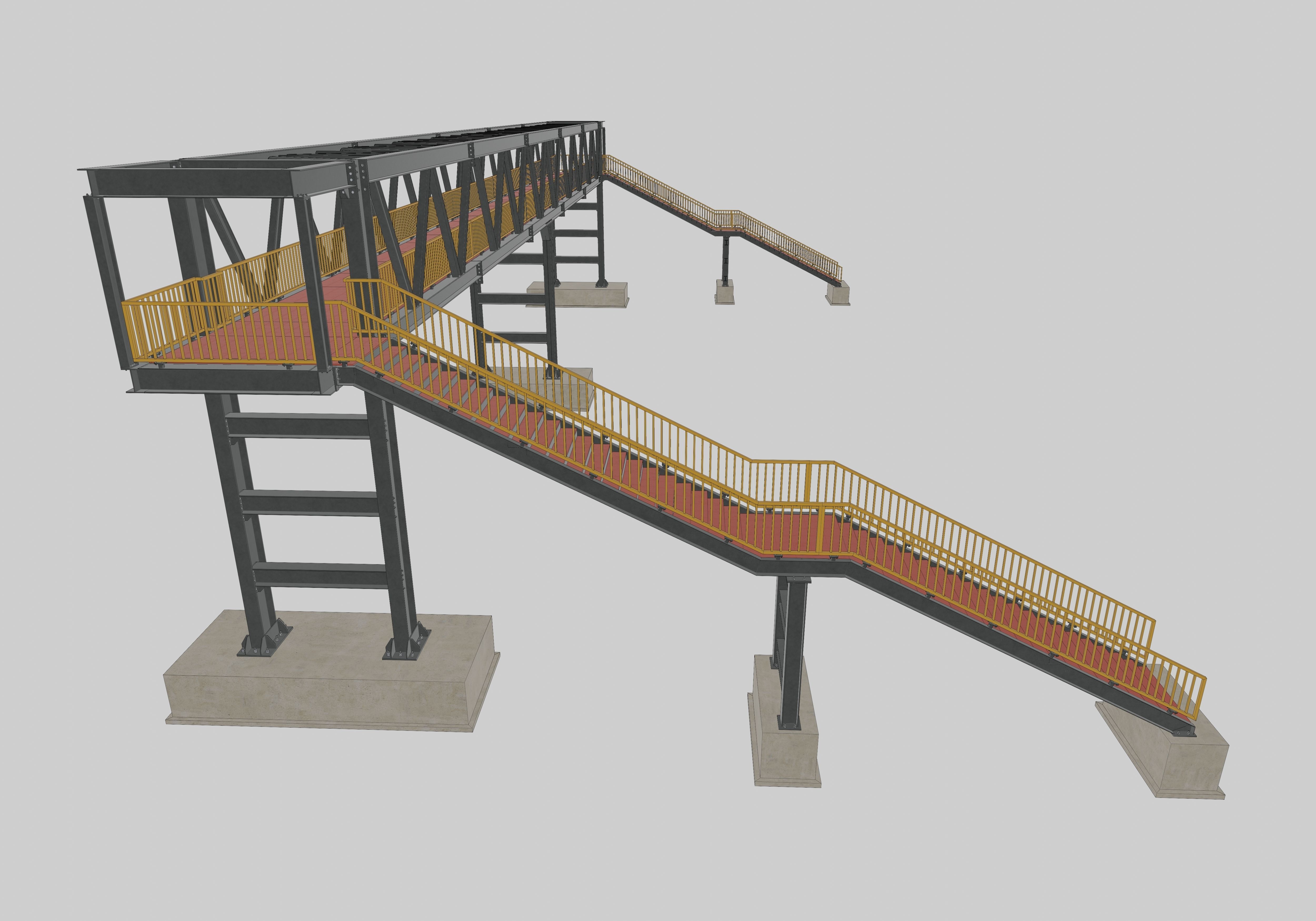

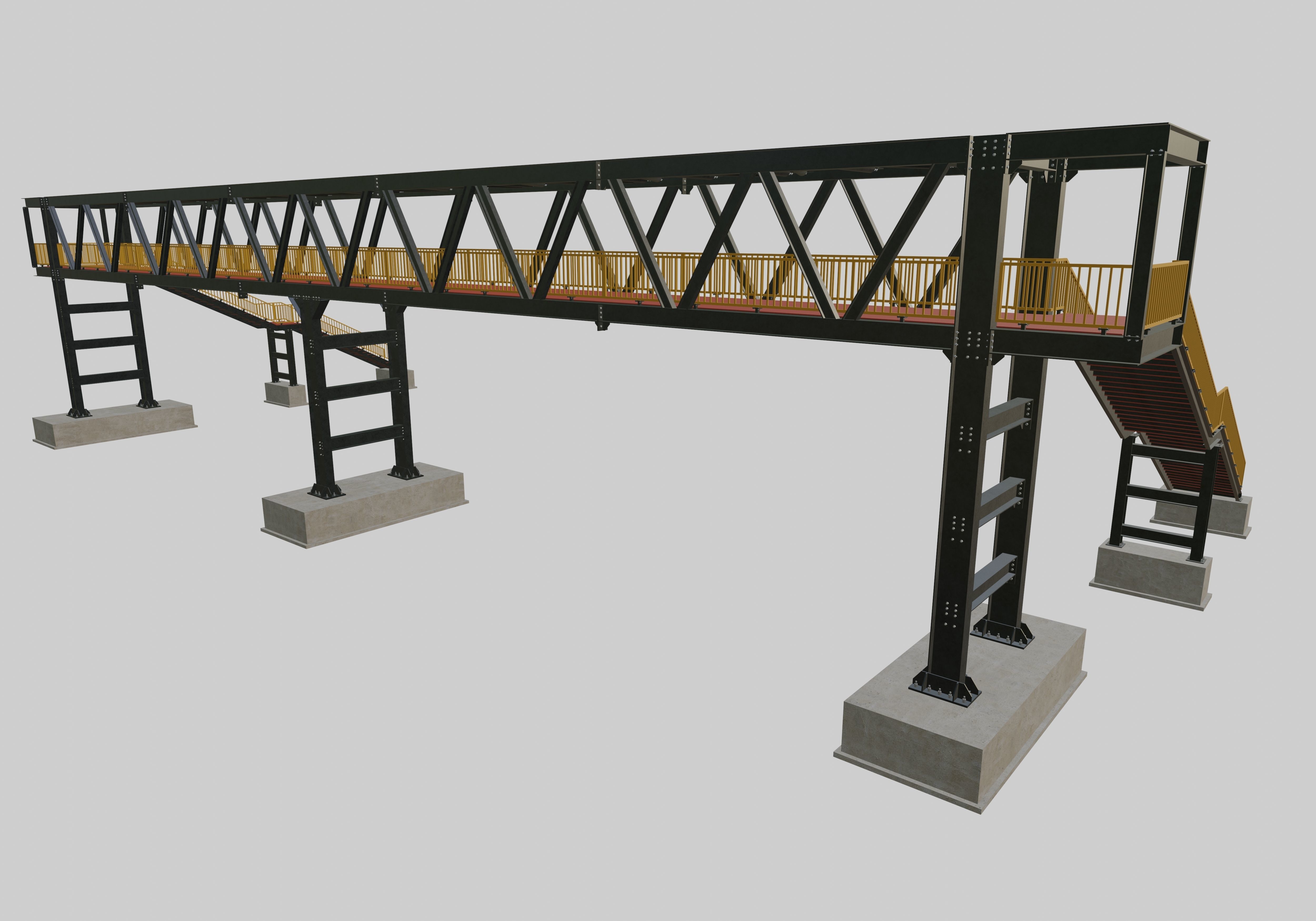

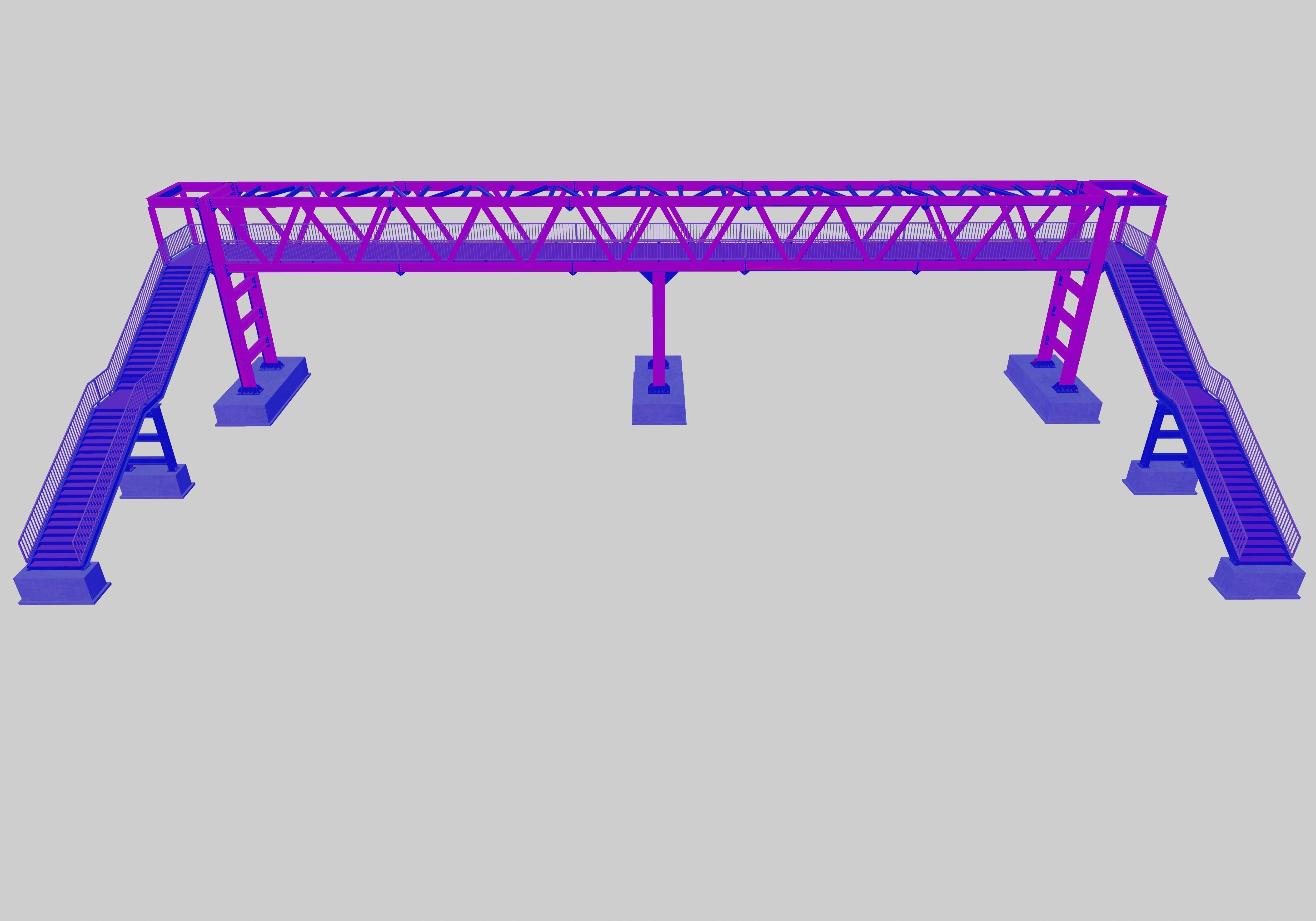

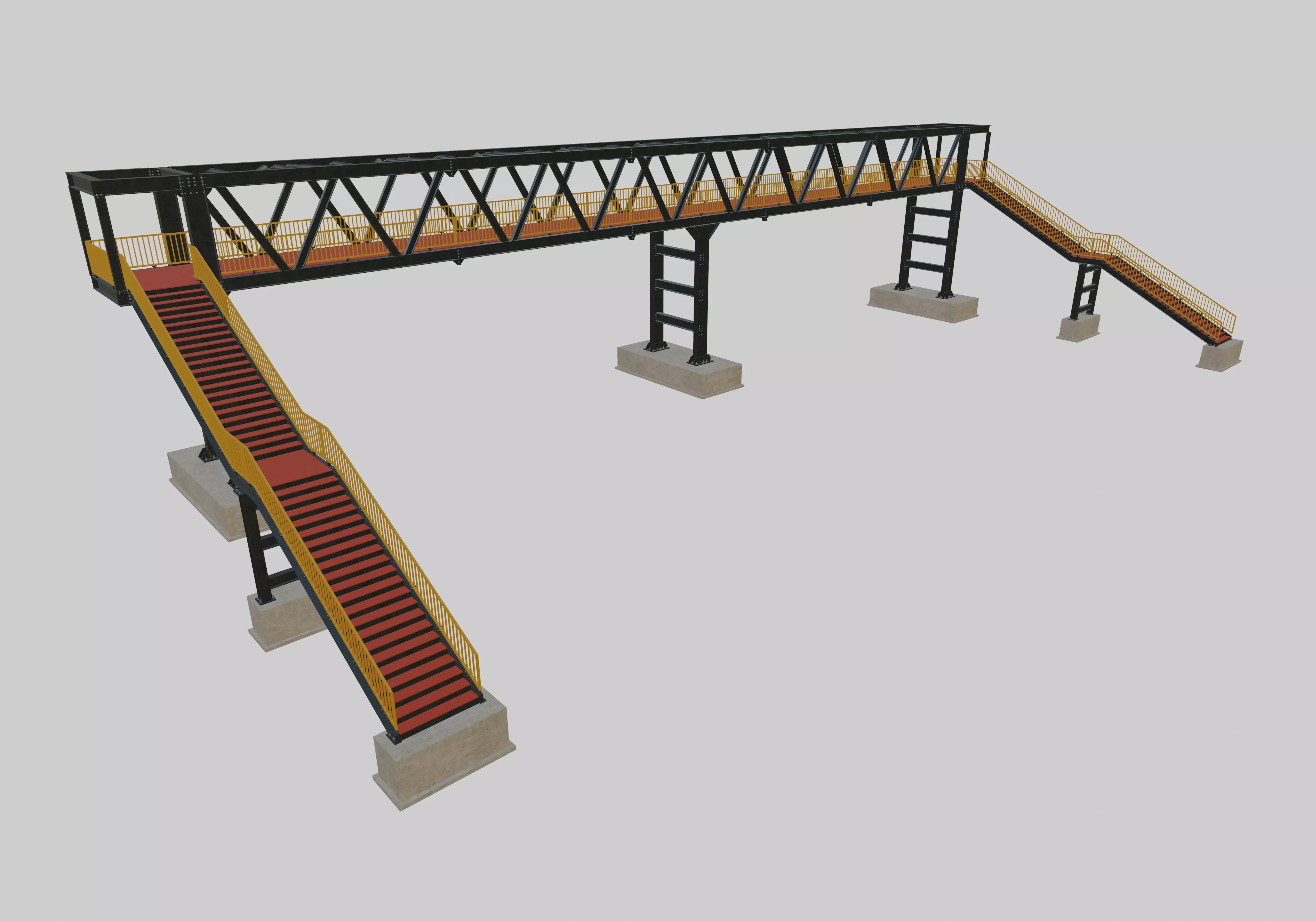

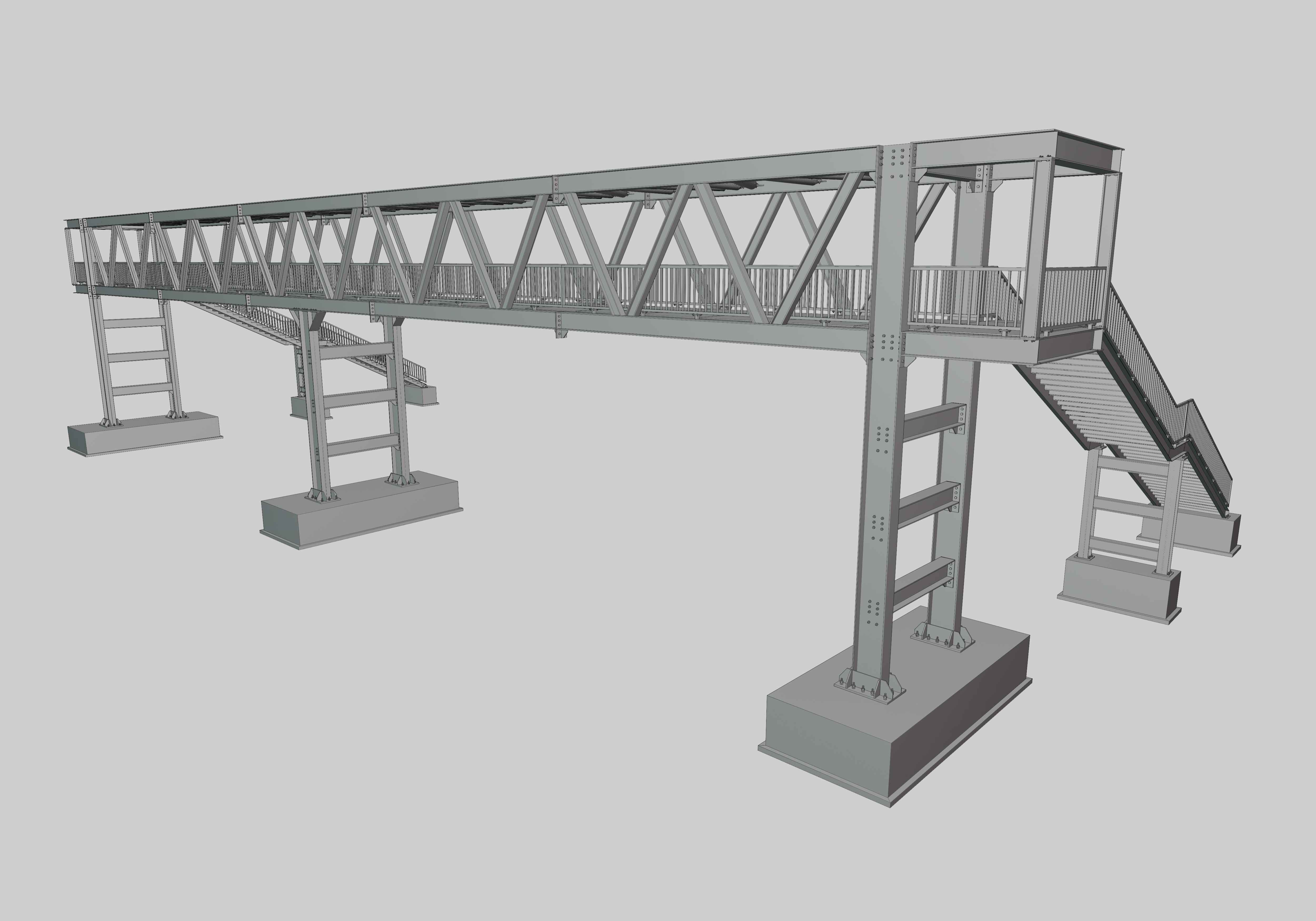

Steel Pedestrian Bridge - Three Columns - Truss Type-10 3D model
Description

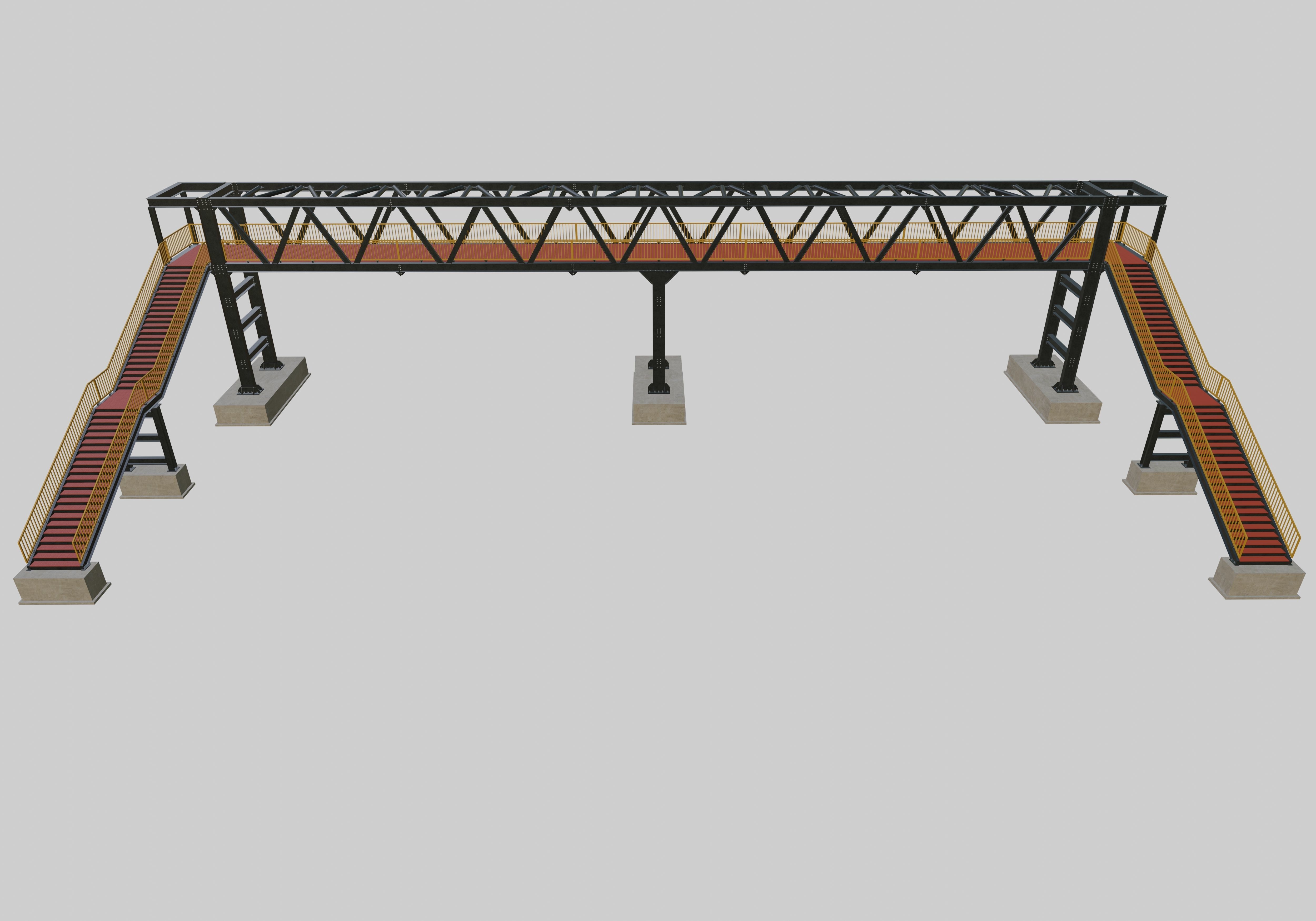

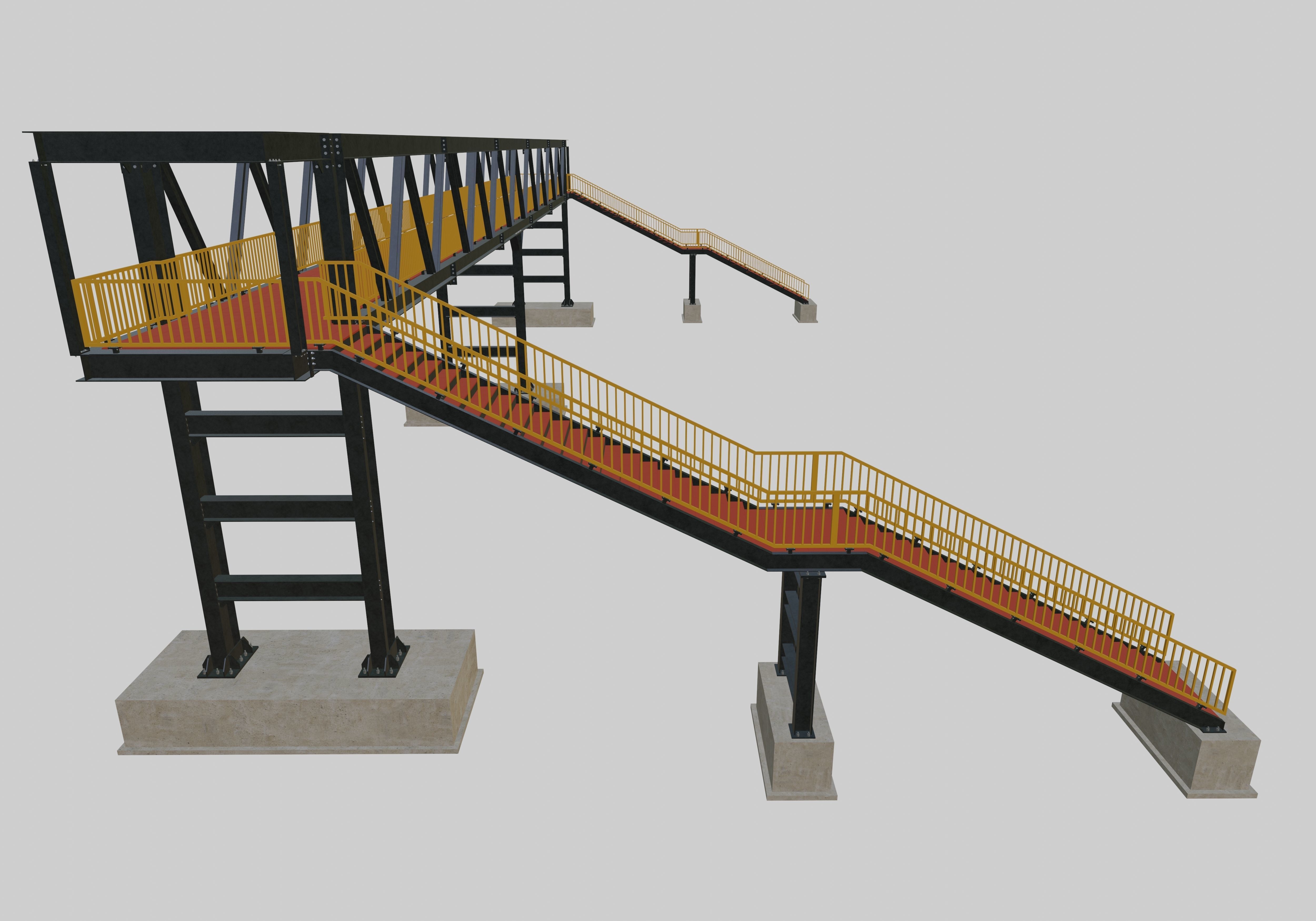

Steel Pedestrian Bridge

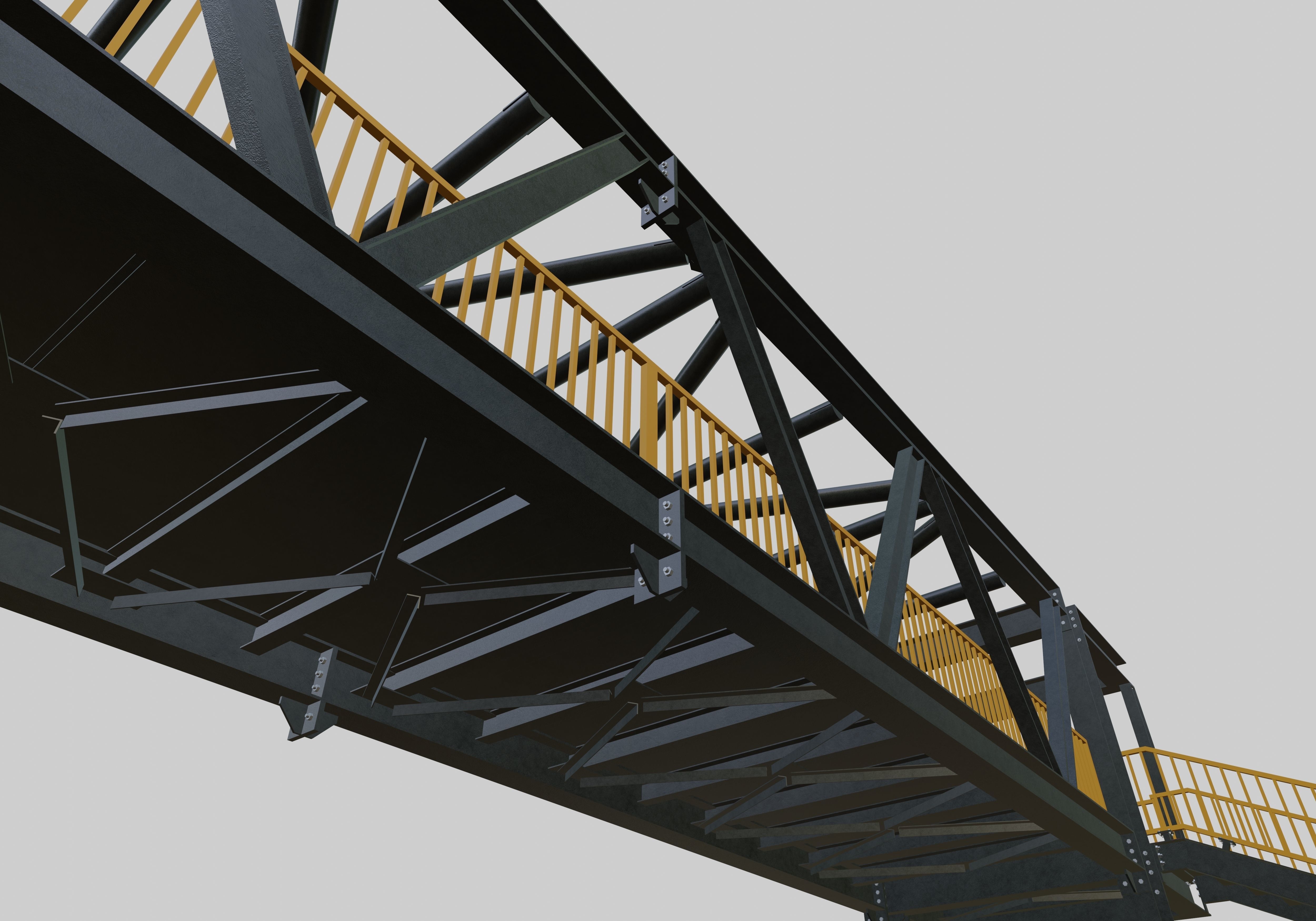

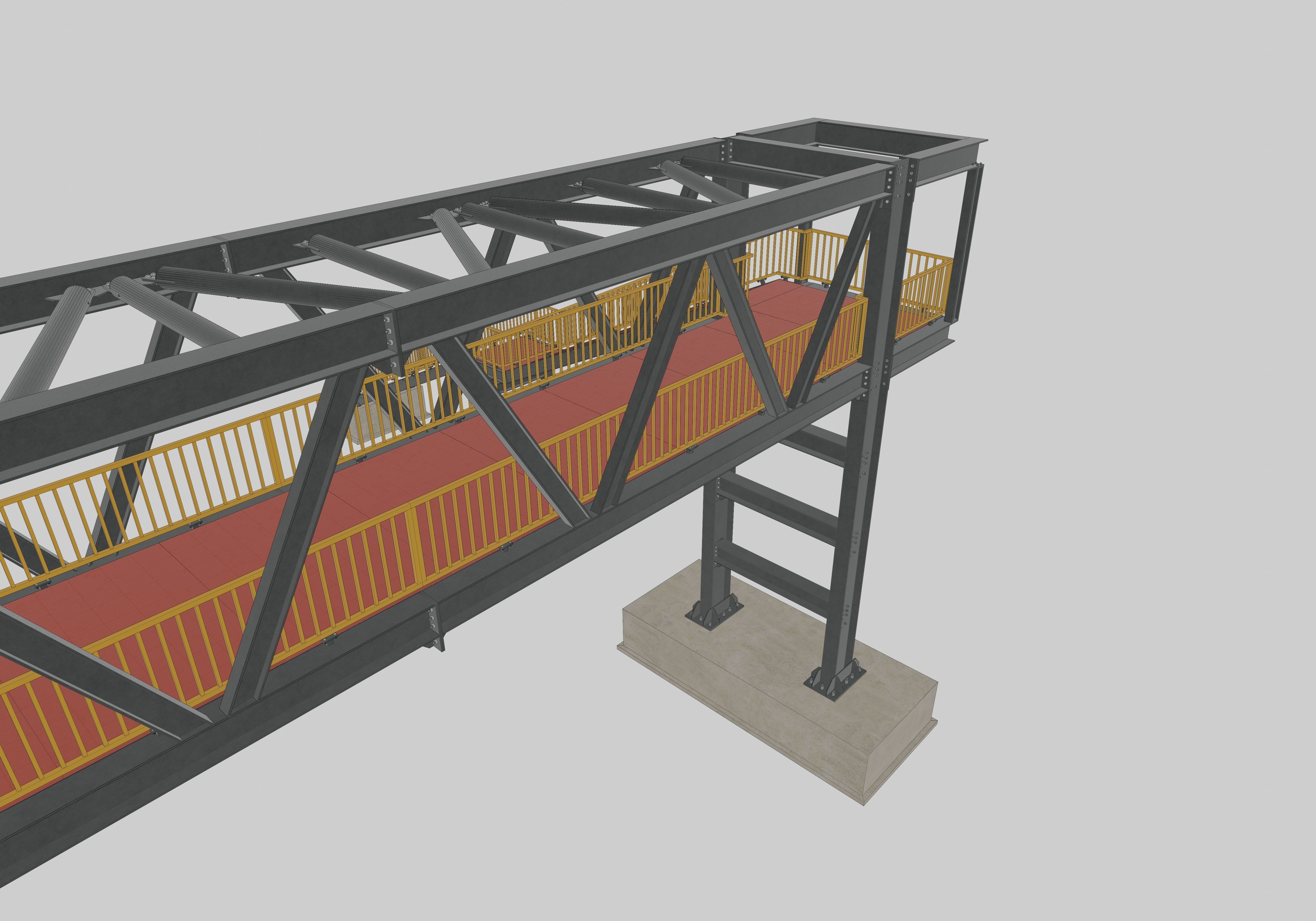

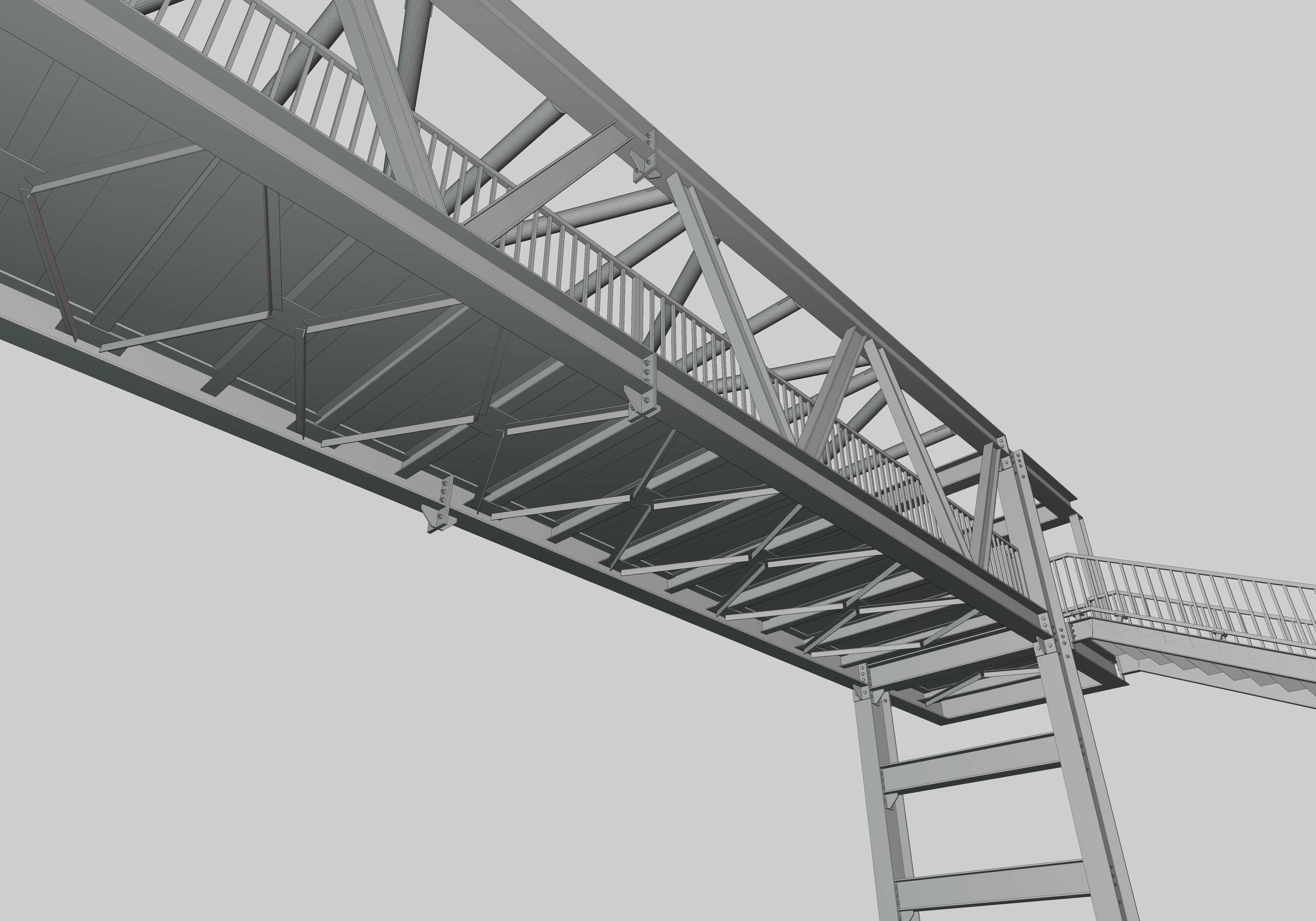

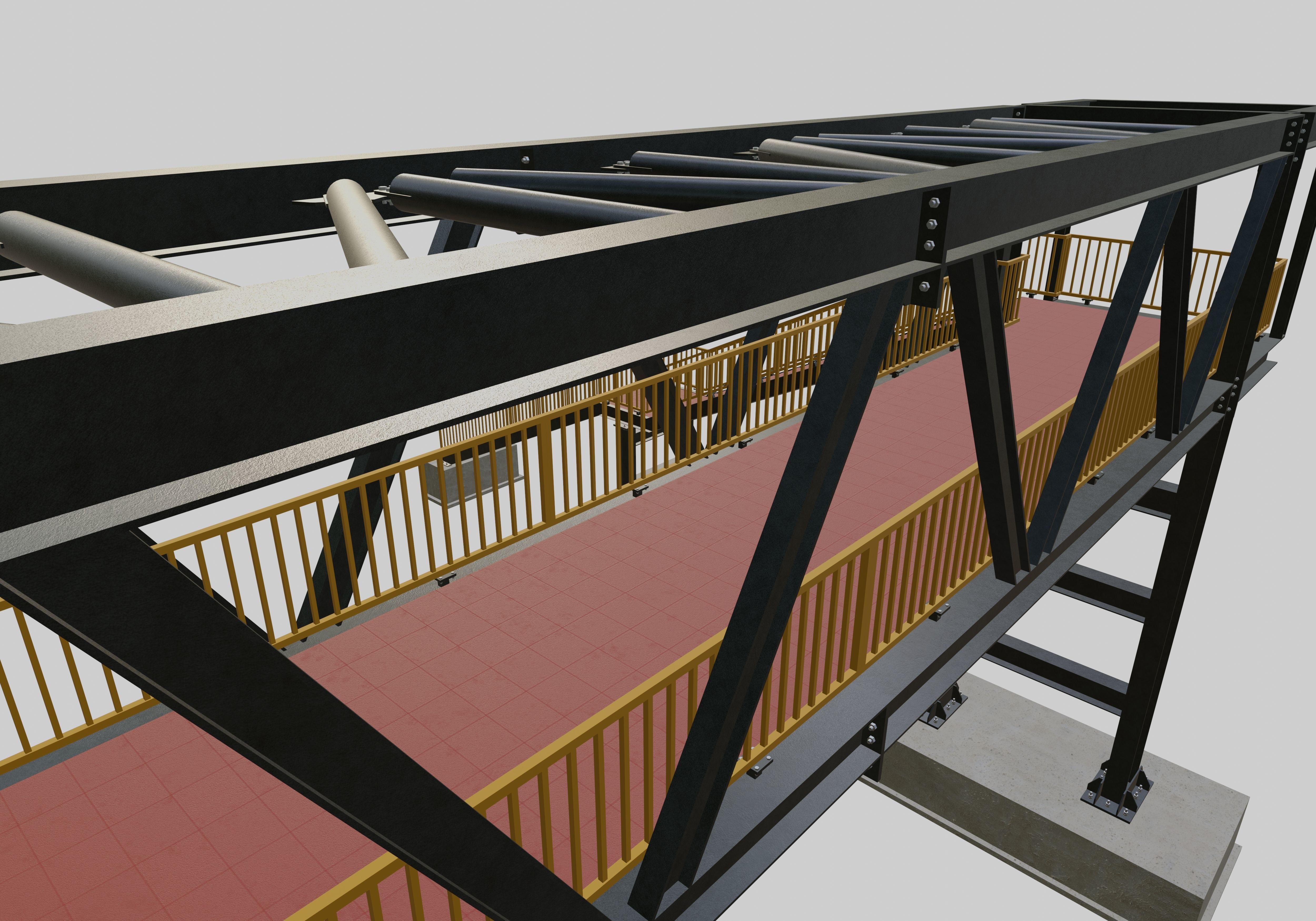

Truss Type Platform Construction
Three Column Consruction
Open Top Construction
Straigth Beam Type
Straight Column Type
Named Objects

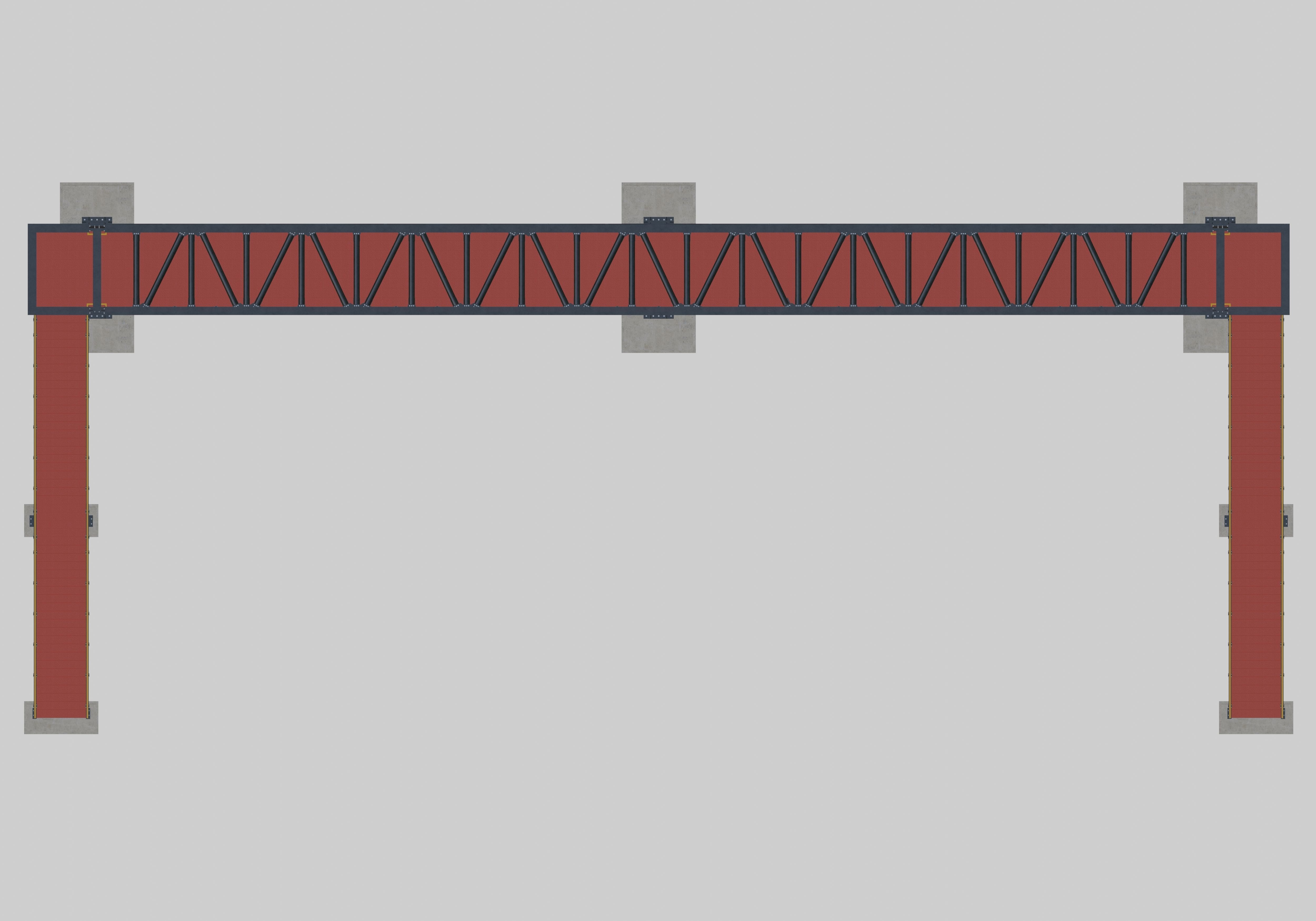

Largest Column Span : 40,8 mt.
Distance Between Two Columns : 20,4 mt.
Platform Asphalt Height : 6 mt.
Platform Width : 3 mt.
Platfrom Truss Heigth : 3 mt.

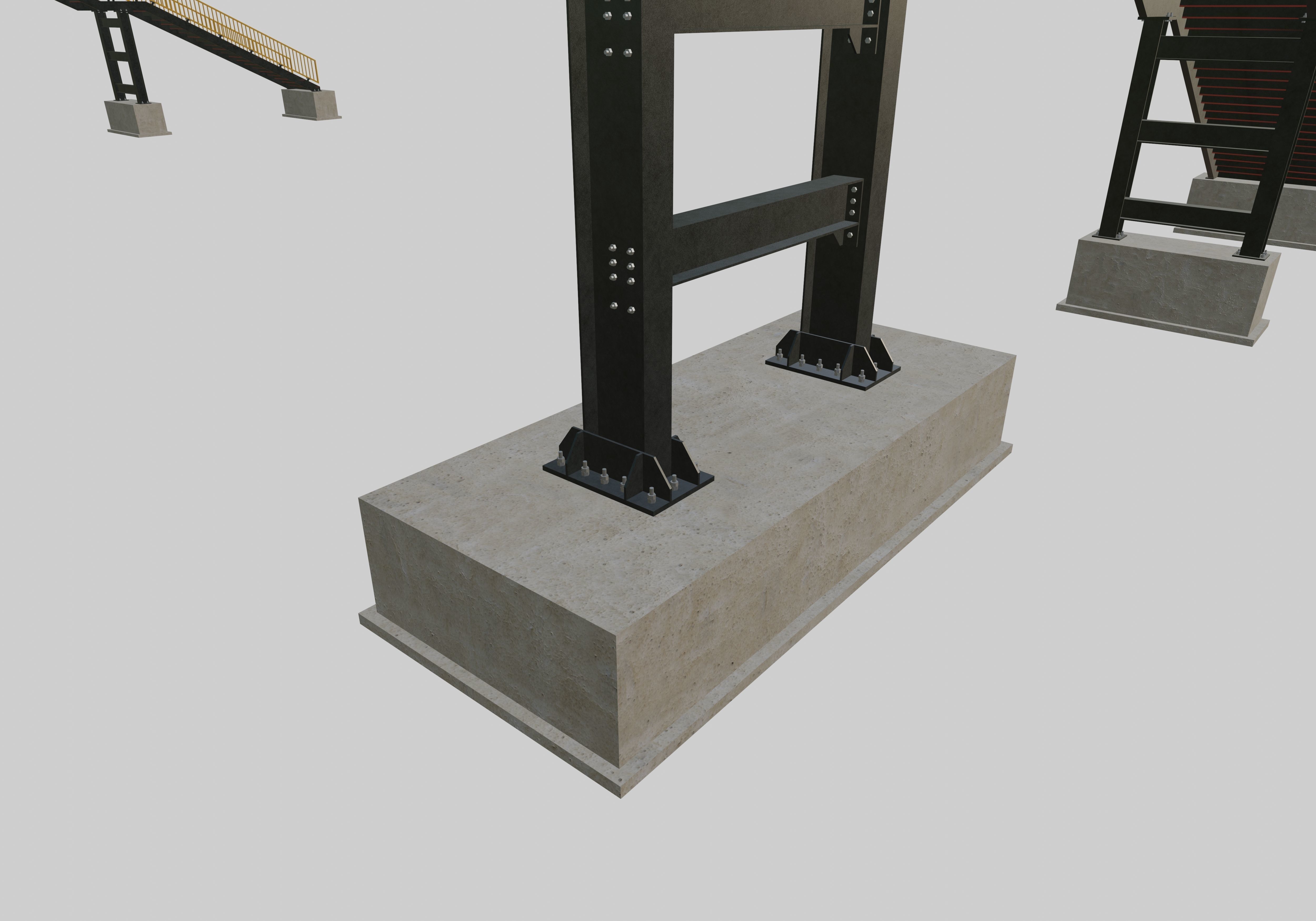

Column Raft Concrete : width 2,5 mt * length 6 mt. * height 1 mt.

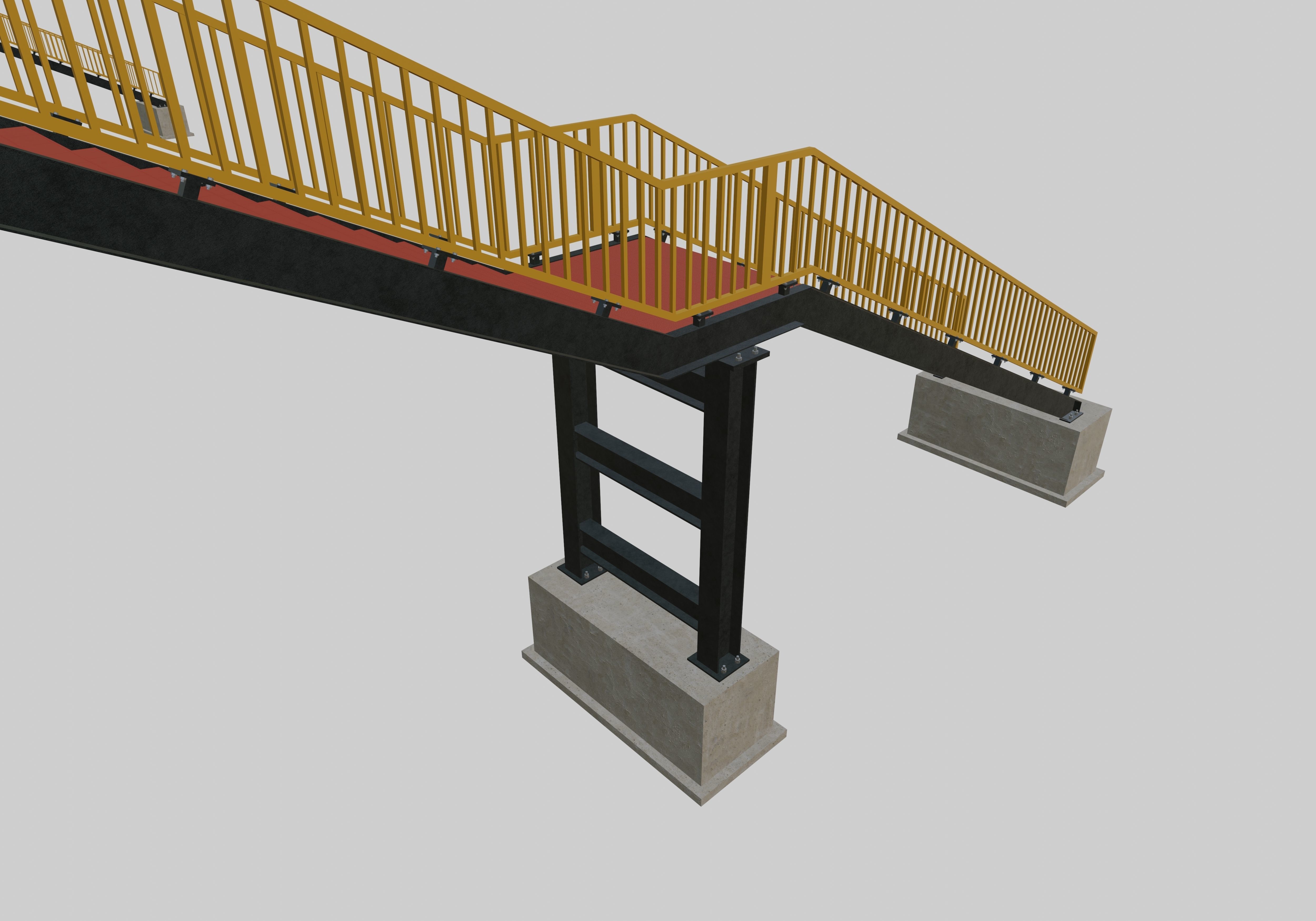

Stairs Raft Concrete : width 1 mt * length 2,5 mt. * height 1 mt.

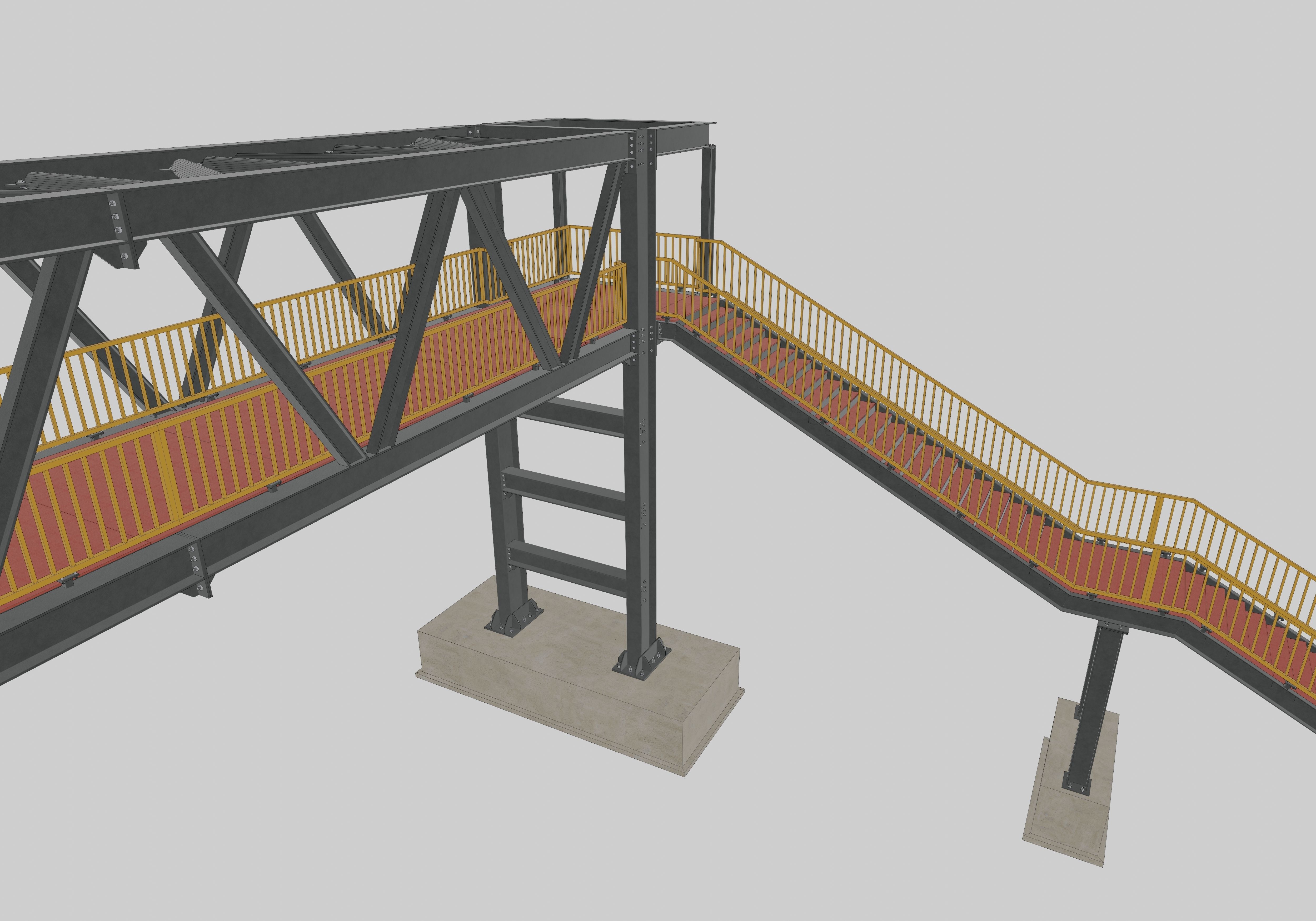

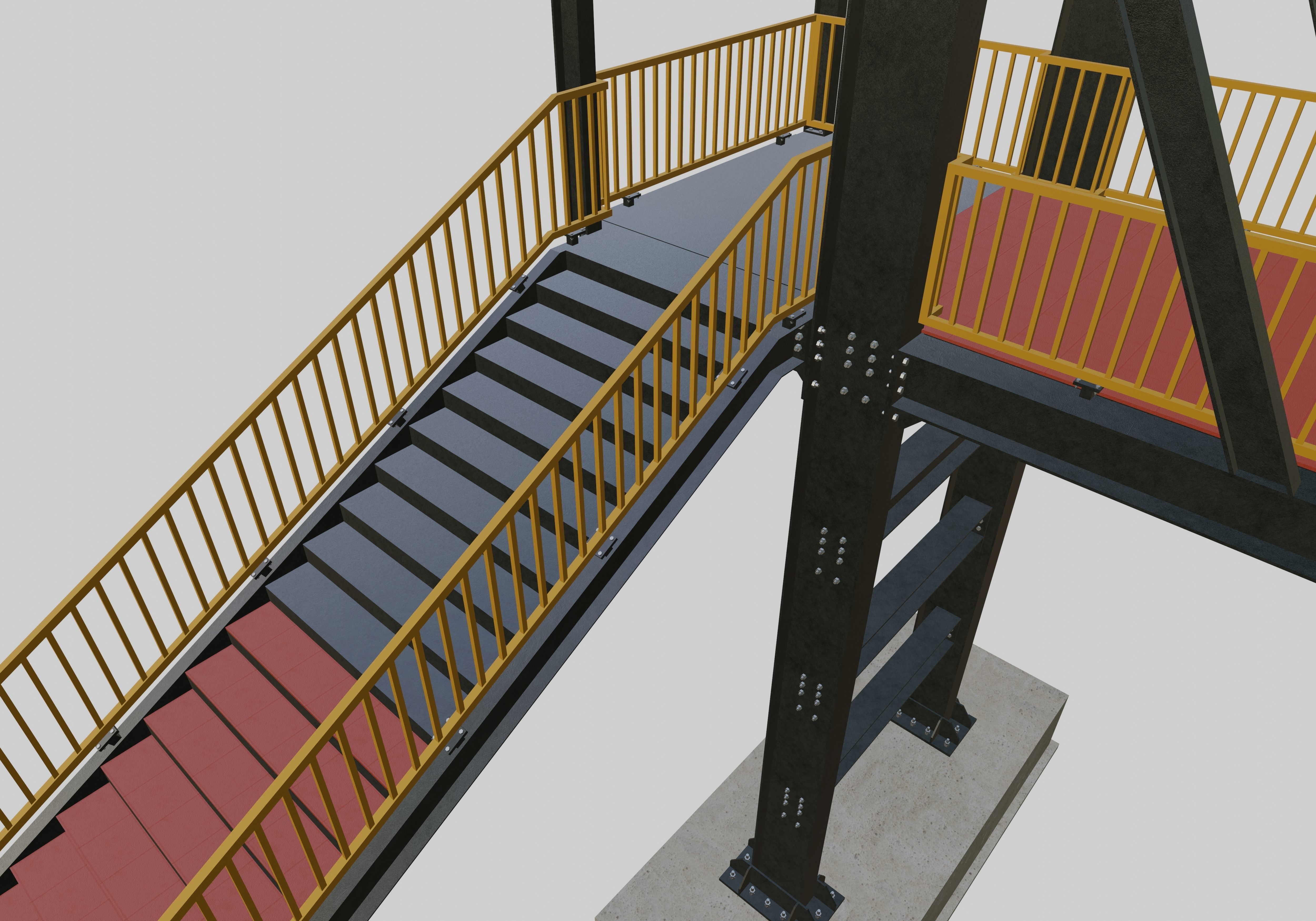

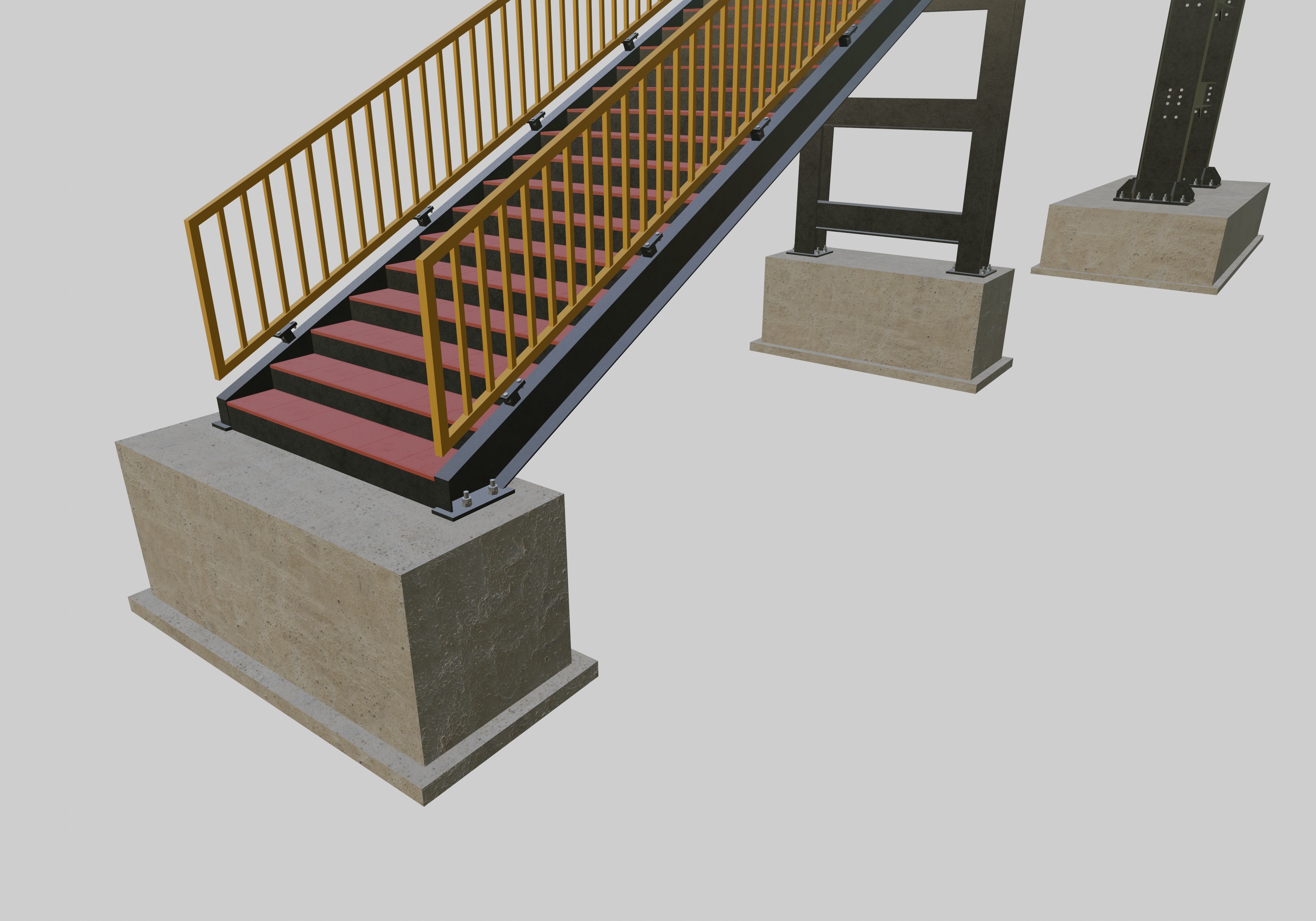

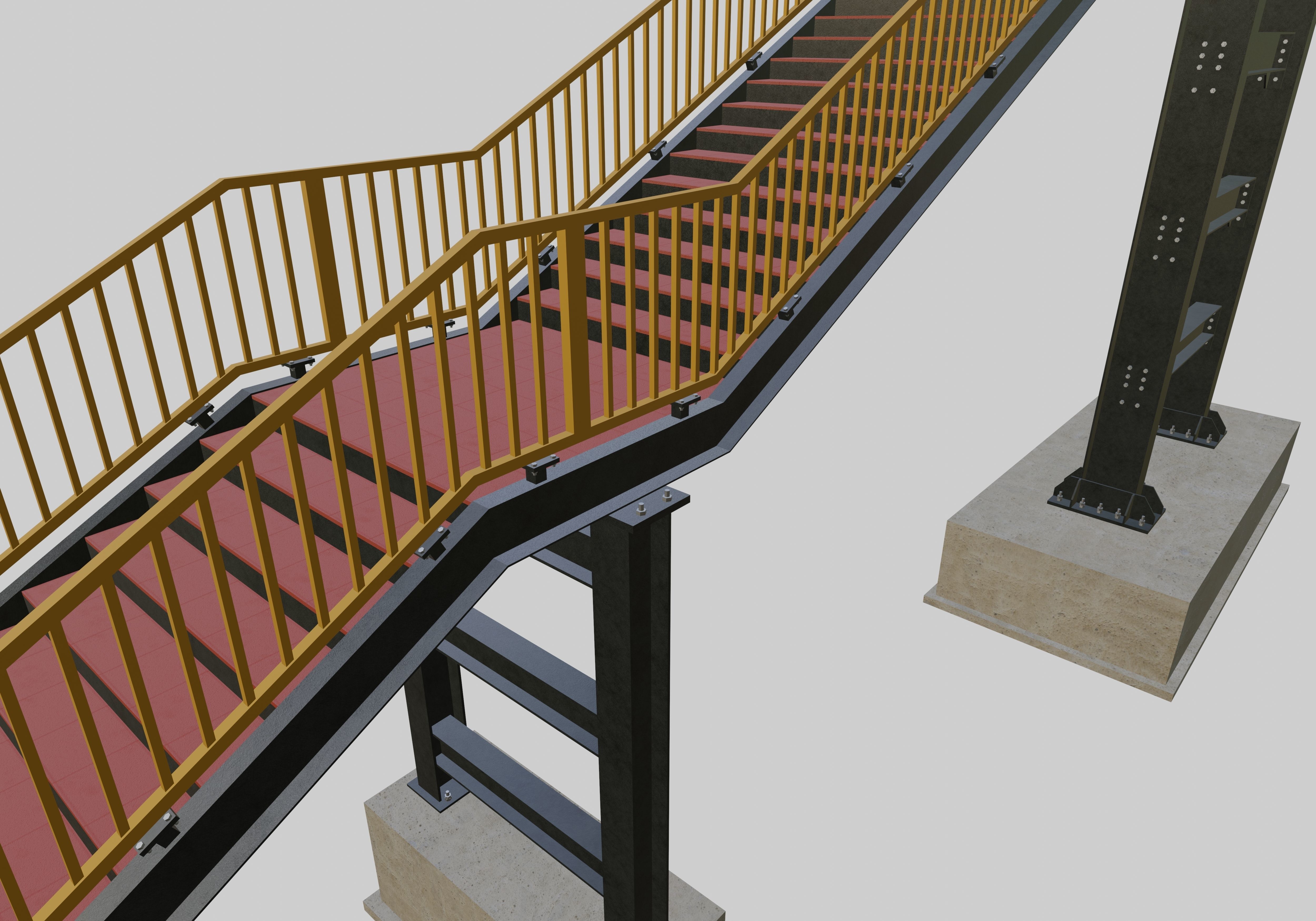

Stairs Straight Type
Stair Step Width : 1,8 mt.
Step Sizes : 300 mm. * 150 mm.

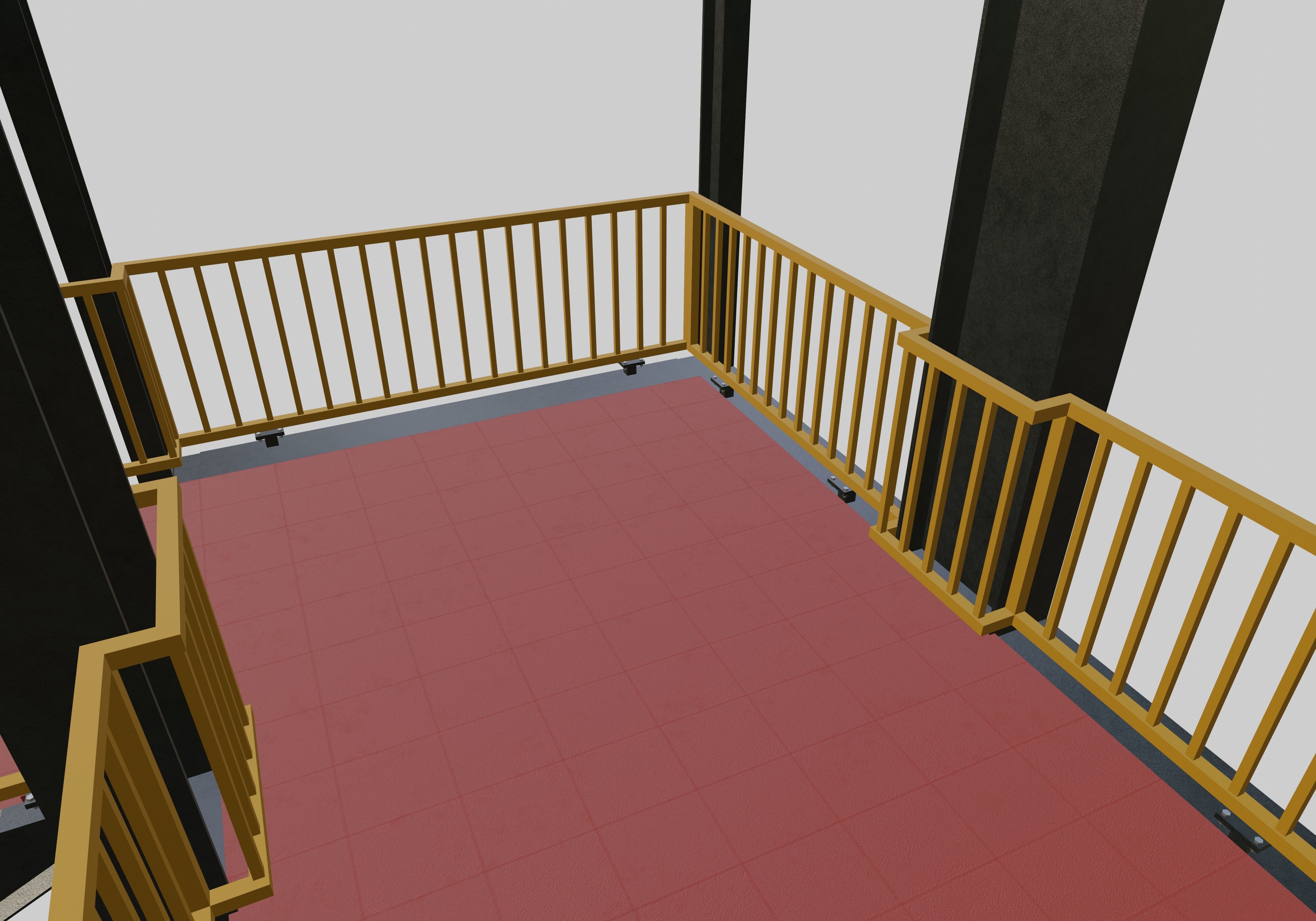

Flat Railing Construction
Railings Box Profile

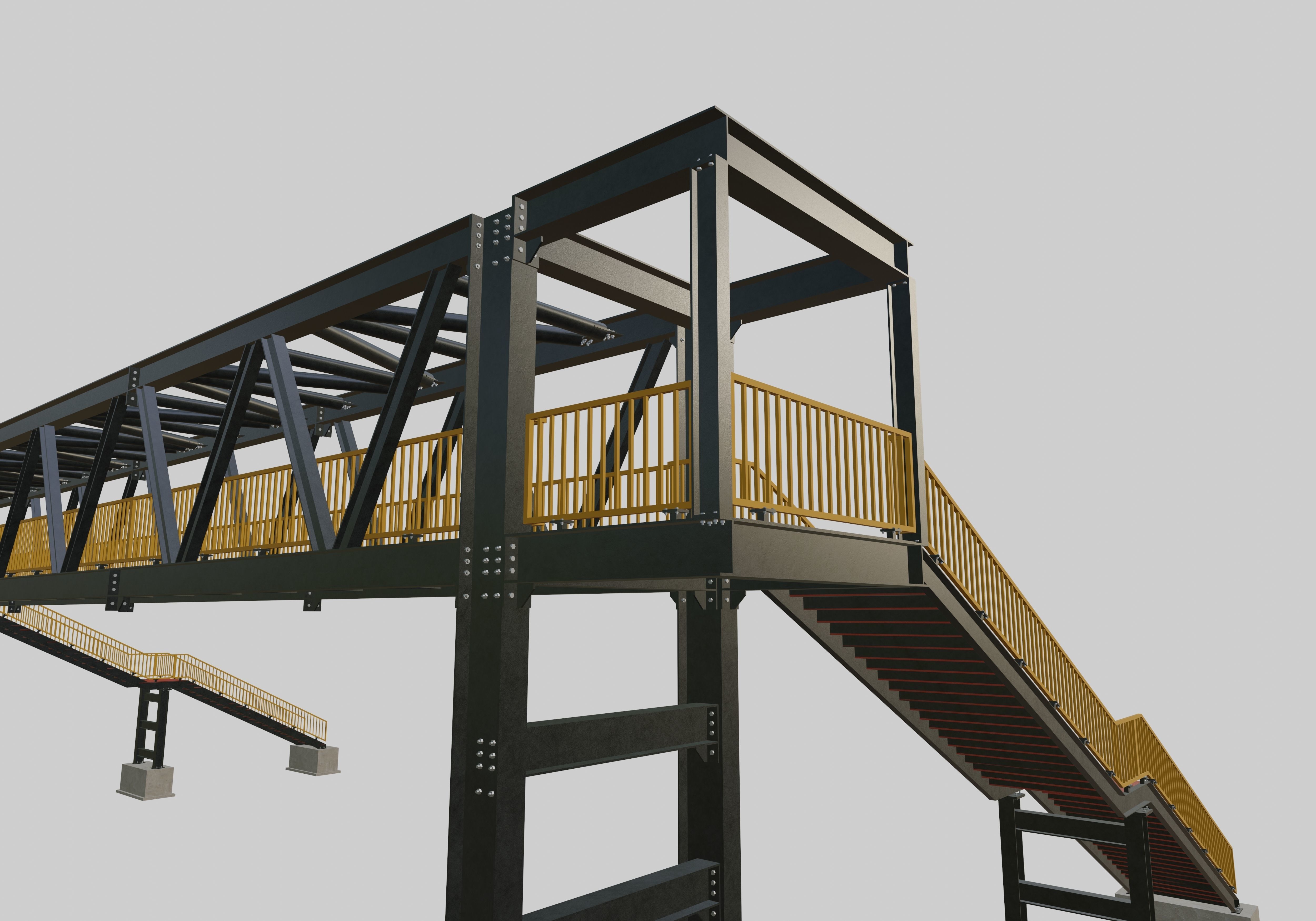

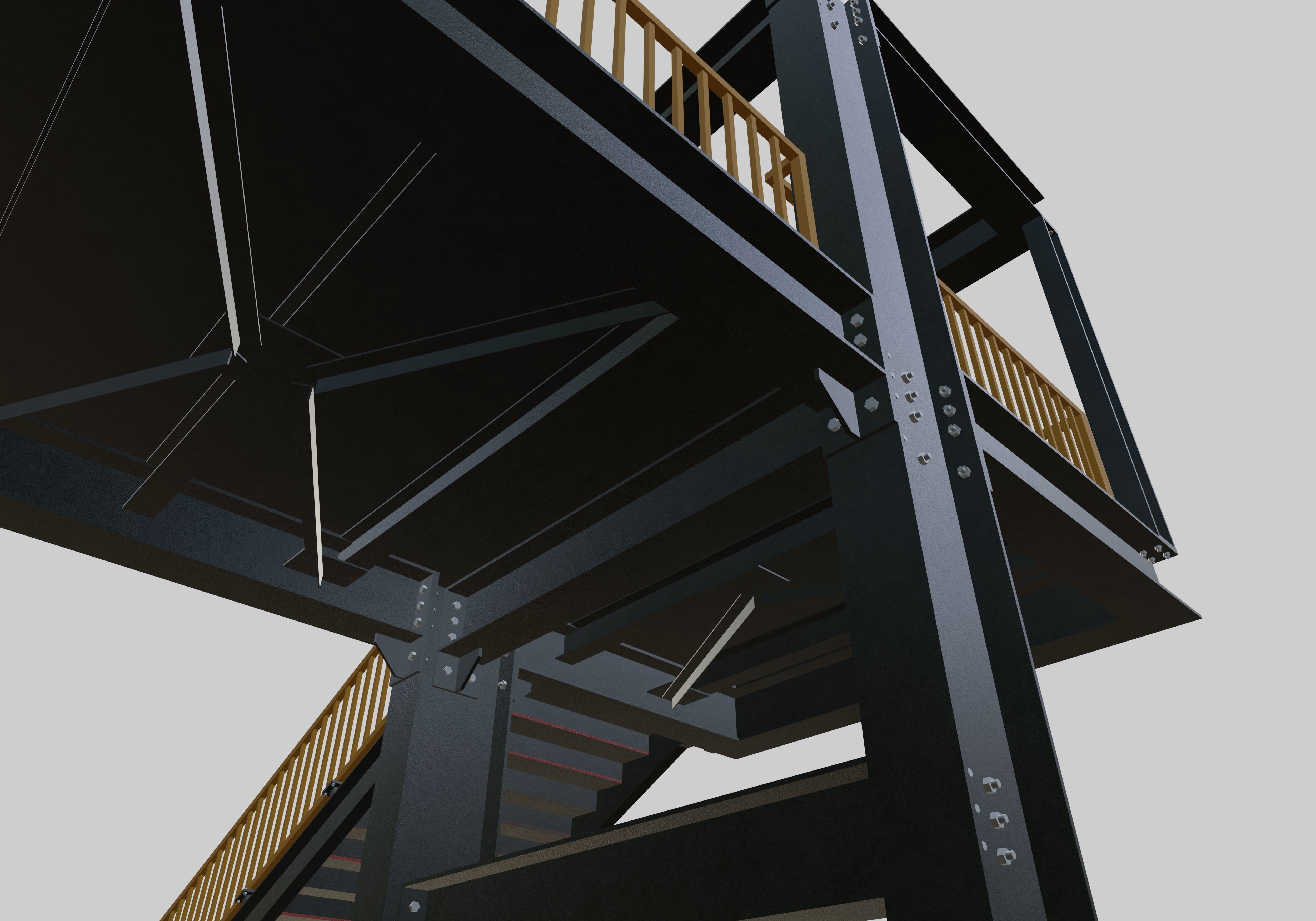

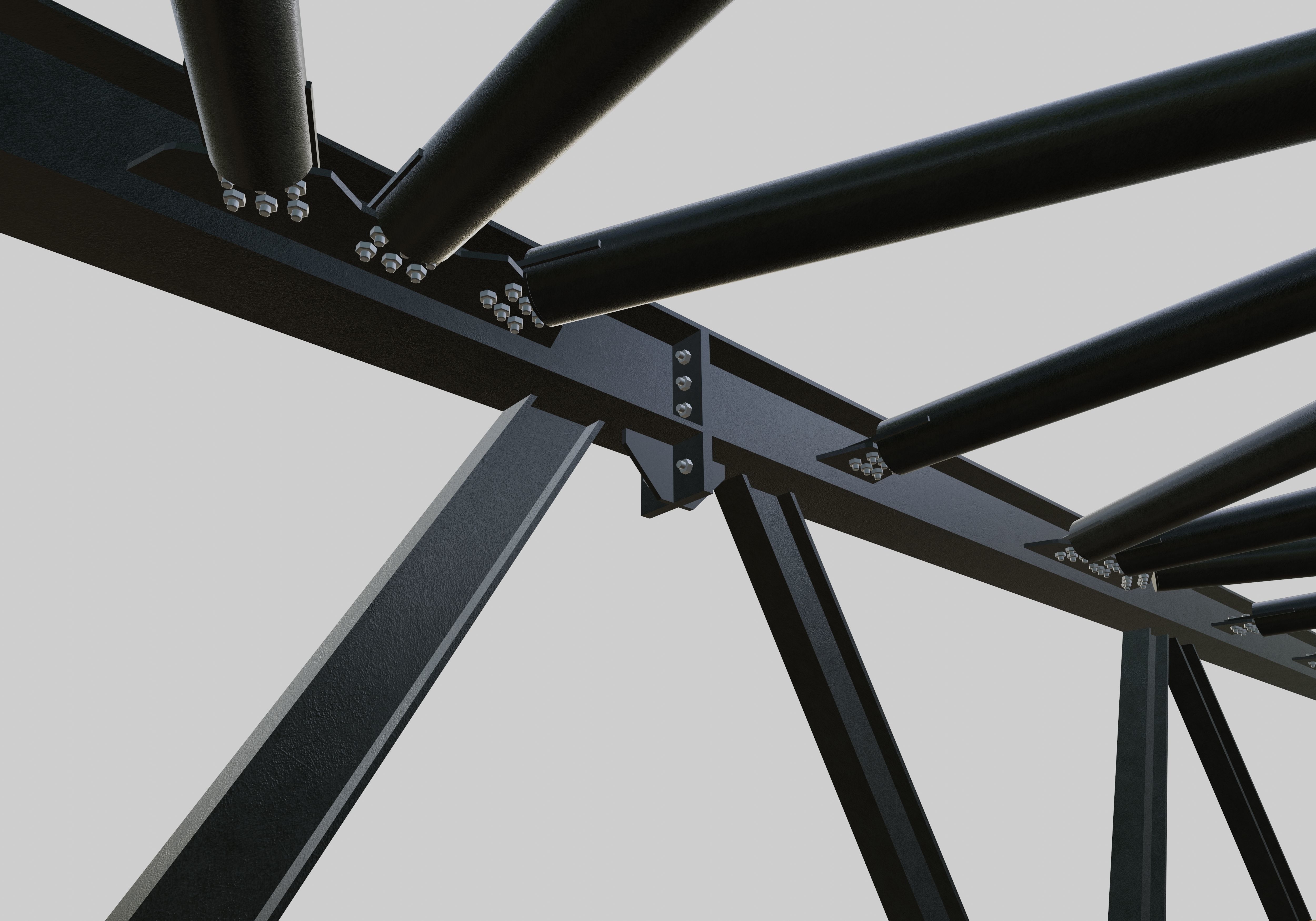

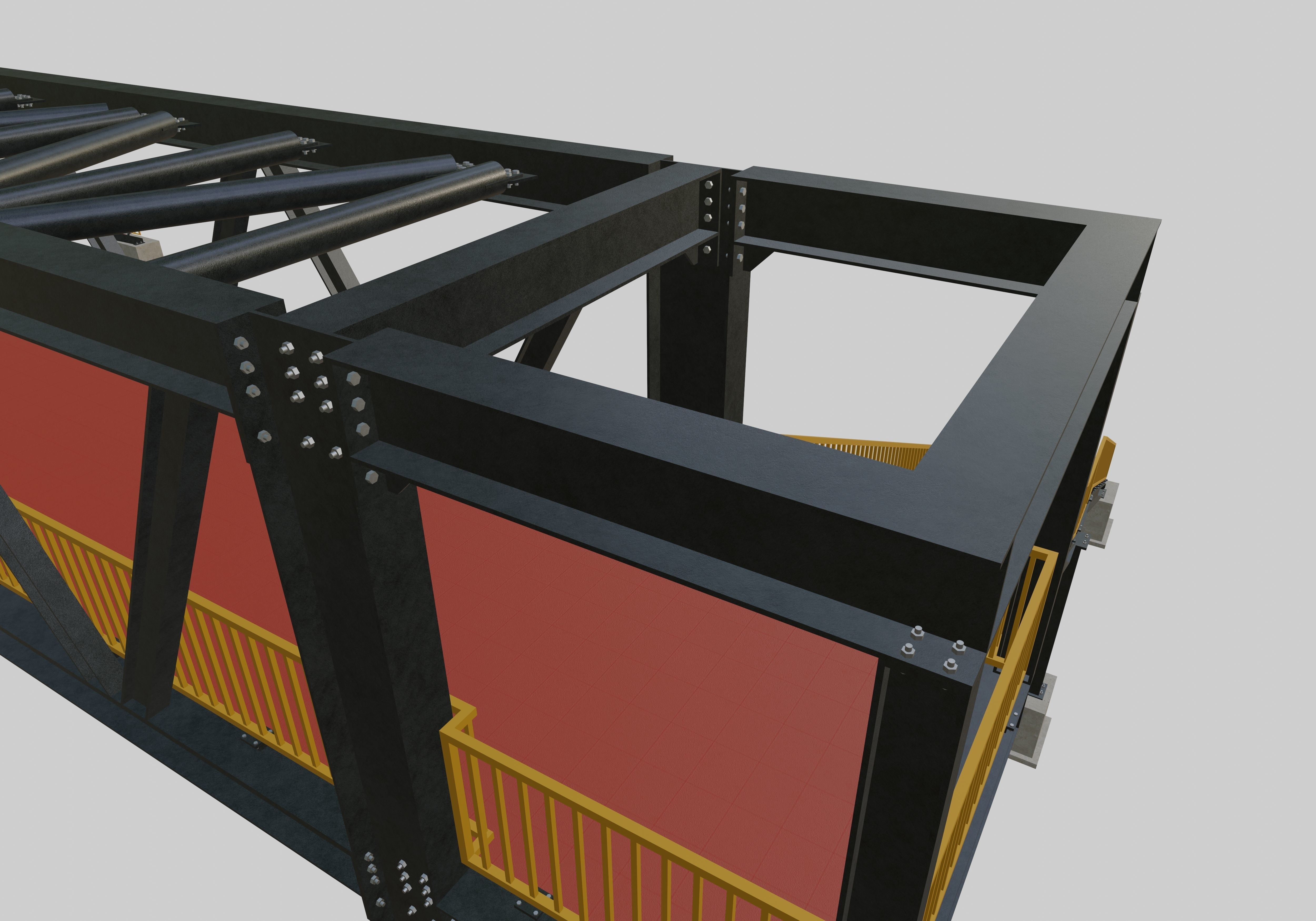

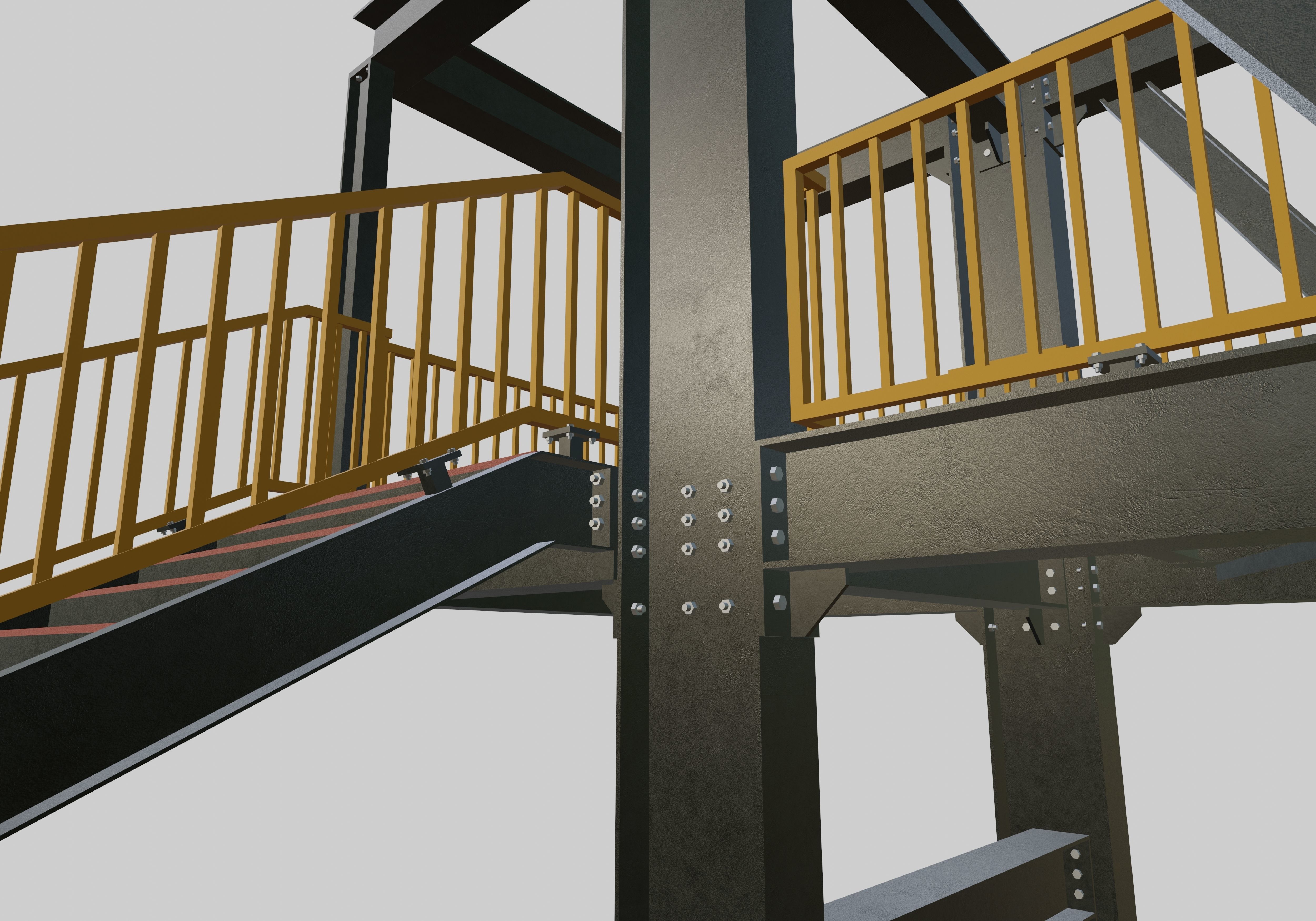

Platform And Columns With Bolted Connection

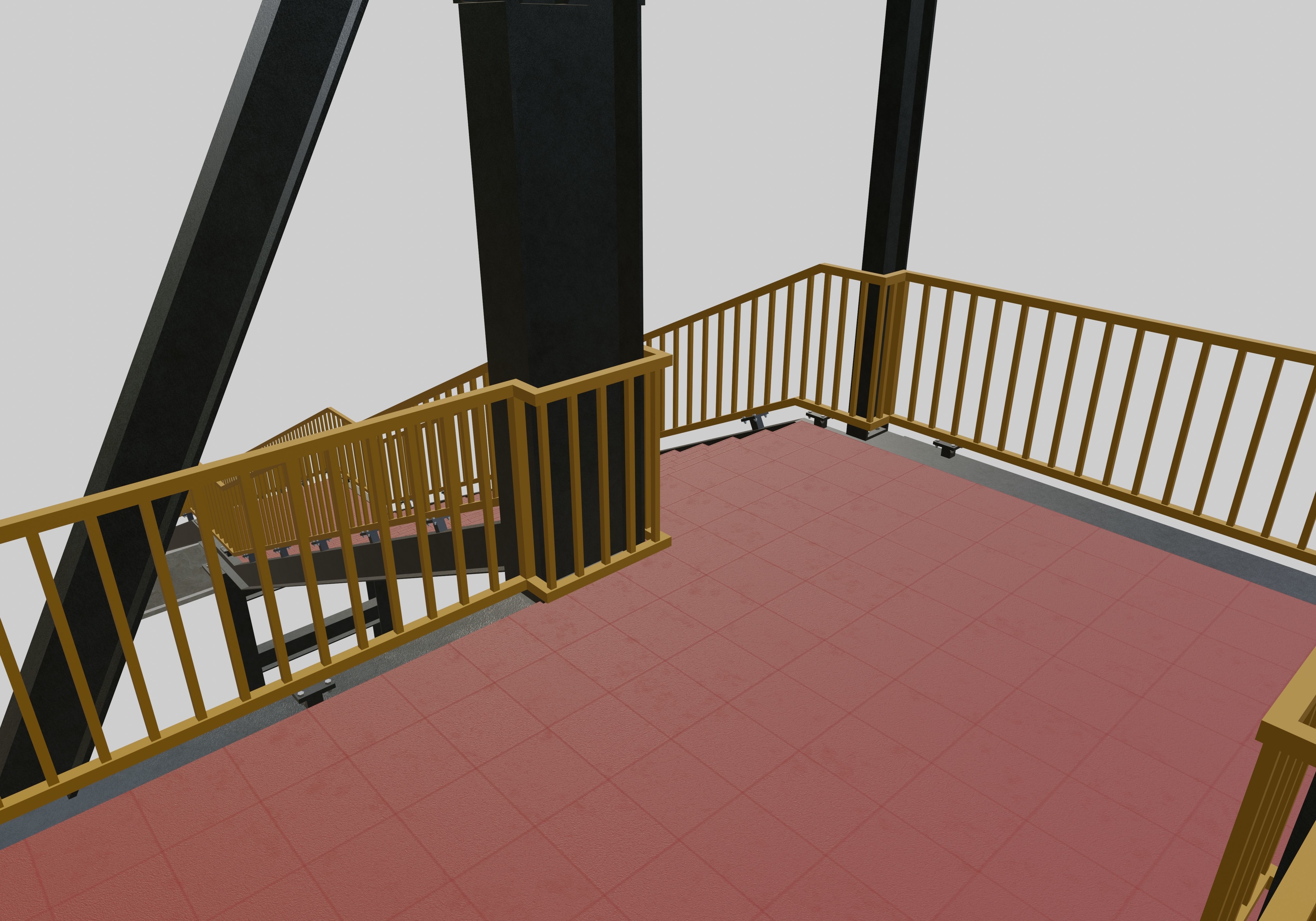

Walking Surface : 2 cm. Rubber Flooring

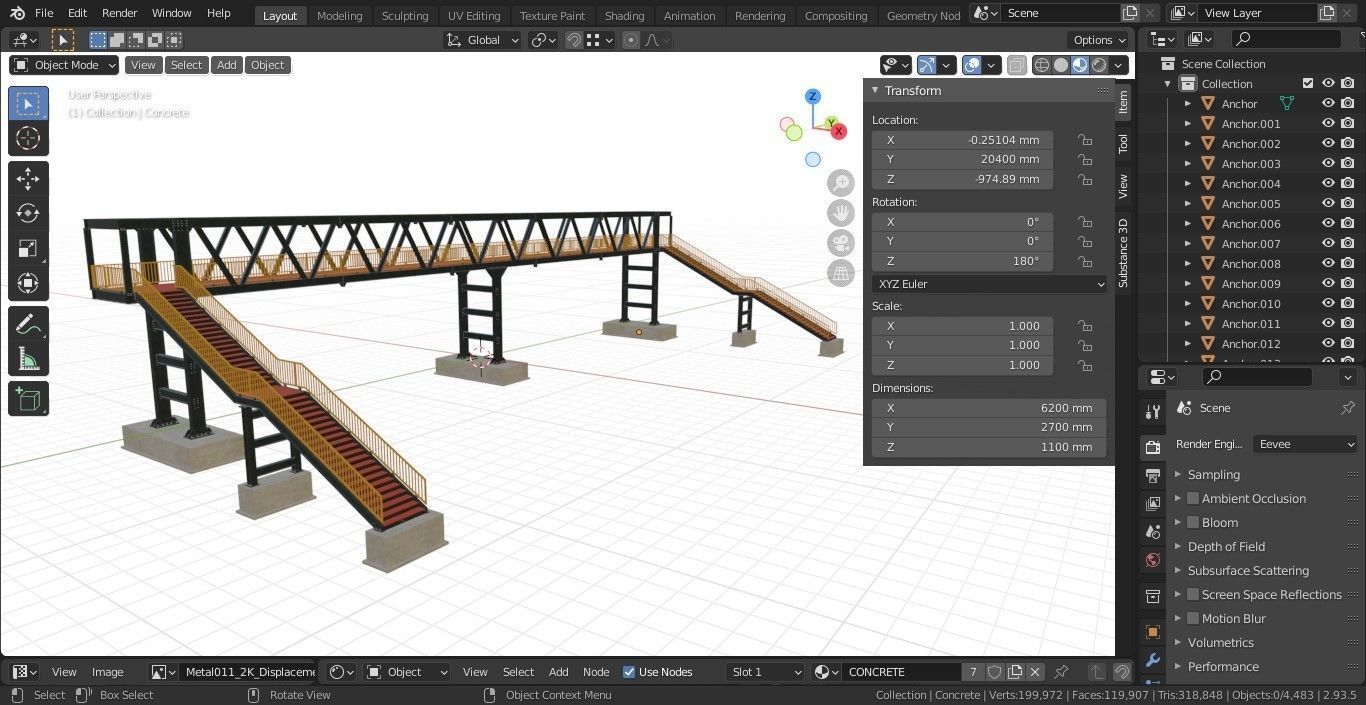

Prepared With BLENDER Version 2.93.5
Polygons : 119907
Vertices : 199972
Objects : 4483
Steel Pedestrian Bridge - Three Columns - Truss Type-10
Royalty Free License
10% for Ukraine
Steel Pedestrian Bridge - Three Columns - Truss Type-10
Royalty Free License
10% for Ukraine
Available in these collections
- Steel Pedestrian Bridge Collection (31 items)$248.0$165.0save 33%
3D Modeling
3D Model formats
Format limitations
3D Model details
- Ready for 3D Printing
- Animated
- Rigged
- VR / AR / Low-poly
- PBR
- Geometry Polygon mesh
- Polygons 119,907
- Vertices 199,972
- Textures
- Materials
- UV Mapping
- Unwrapped UVs Unknown
- Plugins used
- Publish date2022-04-17
- Model ID#3705476
