DESCRIPTION

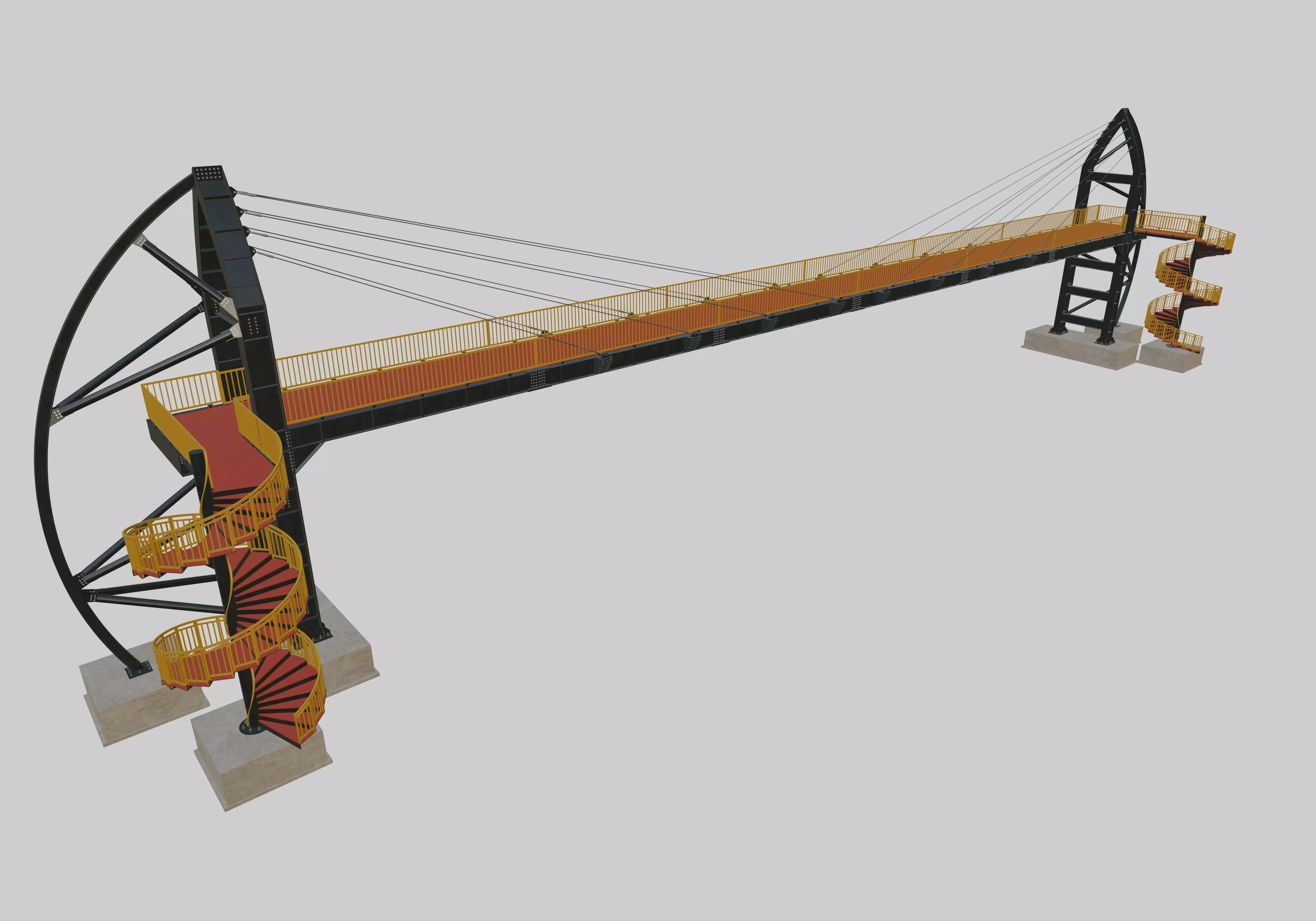

Steel Pedestrian Bridge

Sailing Column Type Construction

Two Column Consruction

Open Top Construction

Straigth Beam Type

Curved Column Type

Platfrom With Steel Rope Tensioning System

Named Objects

Largest Column Span : 48,74 mt.

Distance Between Two Columns : 48,74 mt.

Platform Asphalt Height : 6 mt.

Platform Width : 3 mt.

Steel Rope : 16 piece

Rope Fixed Press : 16 piece

Rope Tensioning Press System : 16 Piece

Column Raft Concrete : width 2,5 mt * length 6 mt. * height 1 mt.

Spiral Stair Raft Concrete : width 2,5 mt * length 2,5 mt. * height 1 mt.

Tension Column Raft Concrete : width 2,5 mt * length 2,5 mt. * height 1 mt.

Spiral Stair Type

Stair Step Width : 1,657 mt.

Step Sizes : 50/565 mm. * 150 mm.

Flat Railing Construction

Railings Box Profile

Platform And Columns With Bolted Connection

Walking Surface : 2 cm. Rubber Flooring

Prepared With BLENDER Version 2.93.5

Polygons : 154101

Vertices : 242808

Objects : 3145
