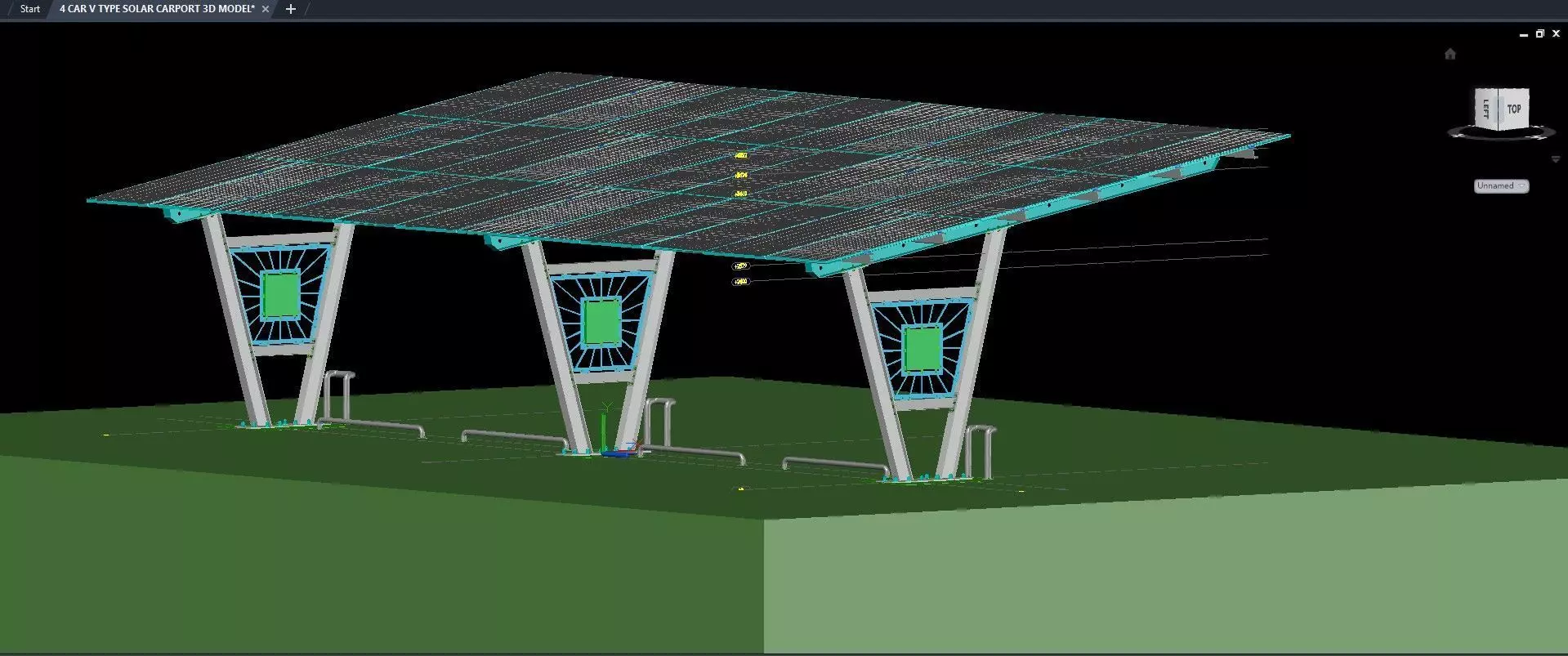

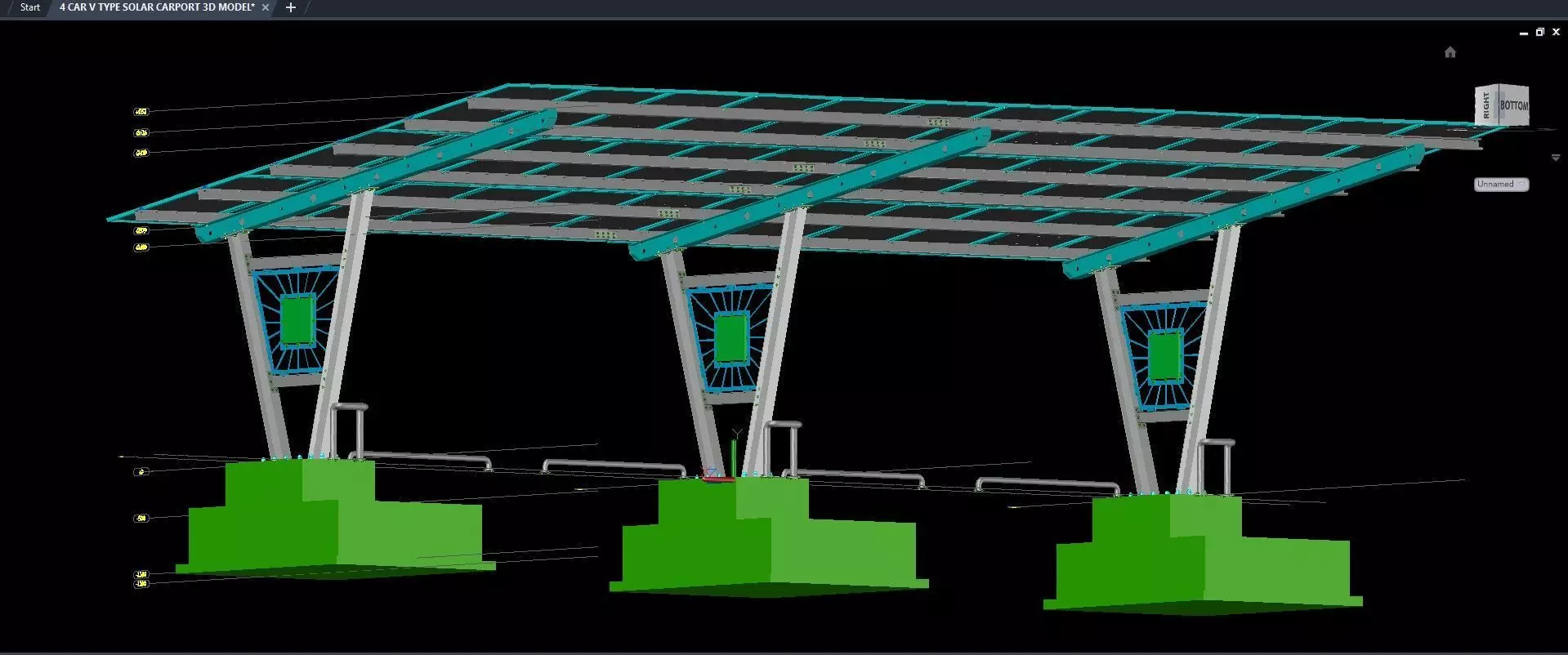

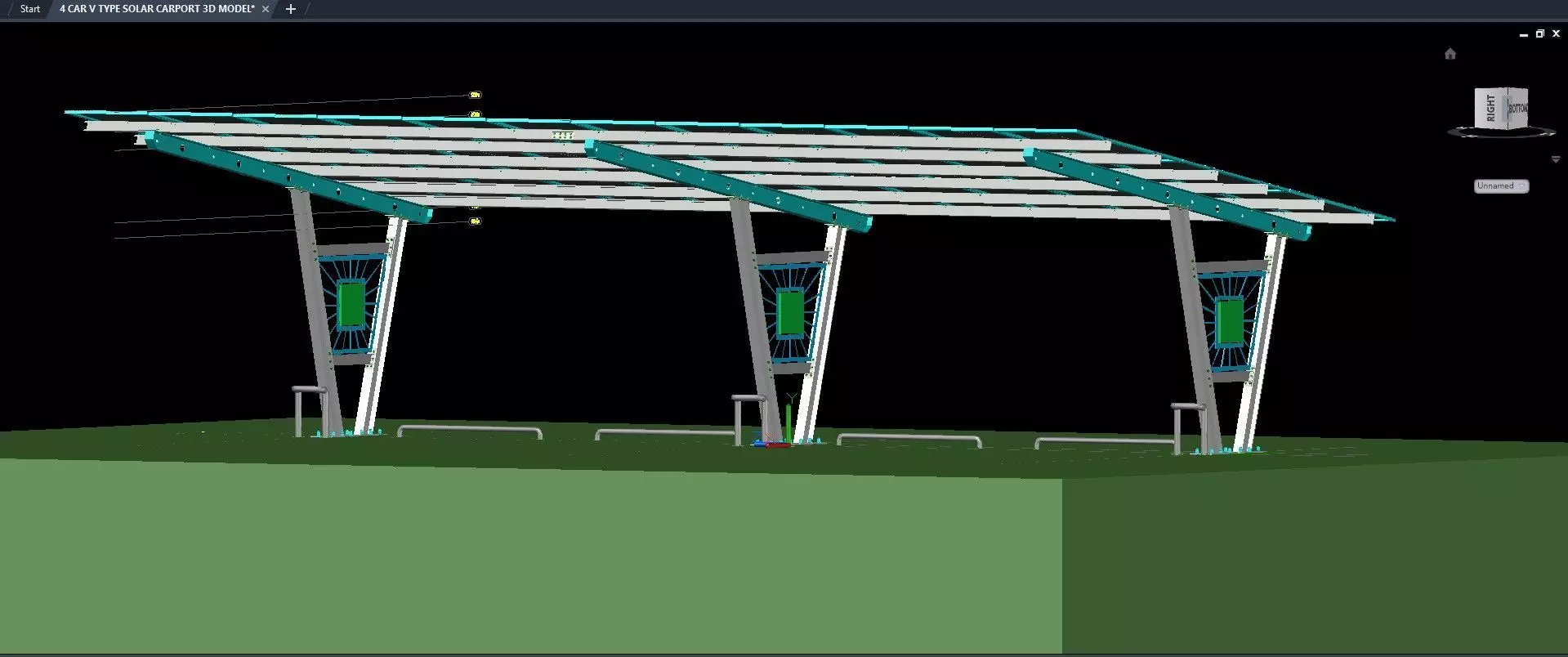

4 CAR V TYPE SOLAR CARPORT 3D MODEL

Autocad 3D Model

Solar Carport, 4 Car Carport, 3x12 Panels-Type-1

1/1 Scale

-Solar parking lot with 4 car parking capacity

-Solar parking lot with 2 car charging capacity

Galvanizing Steel

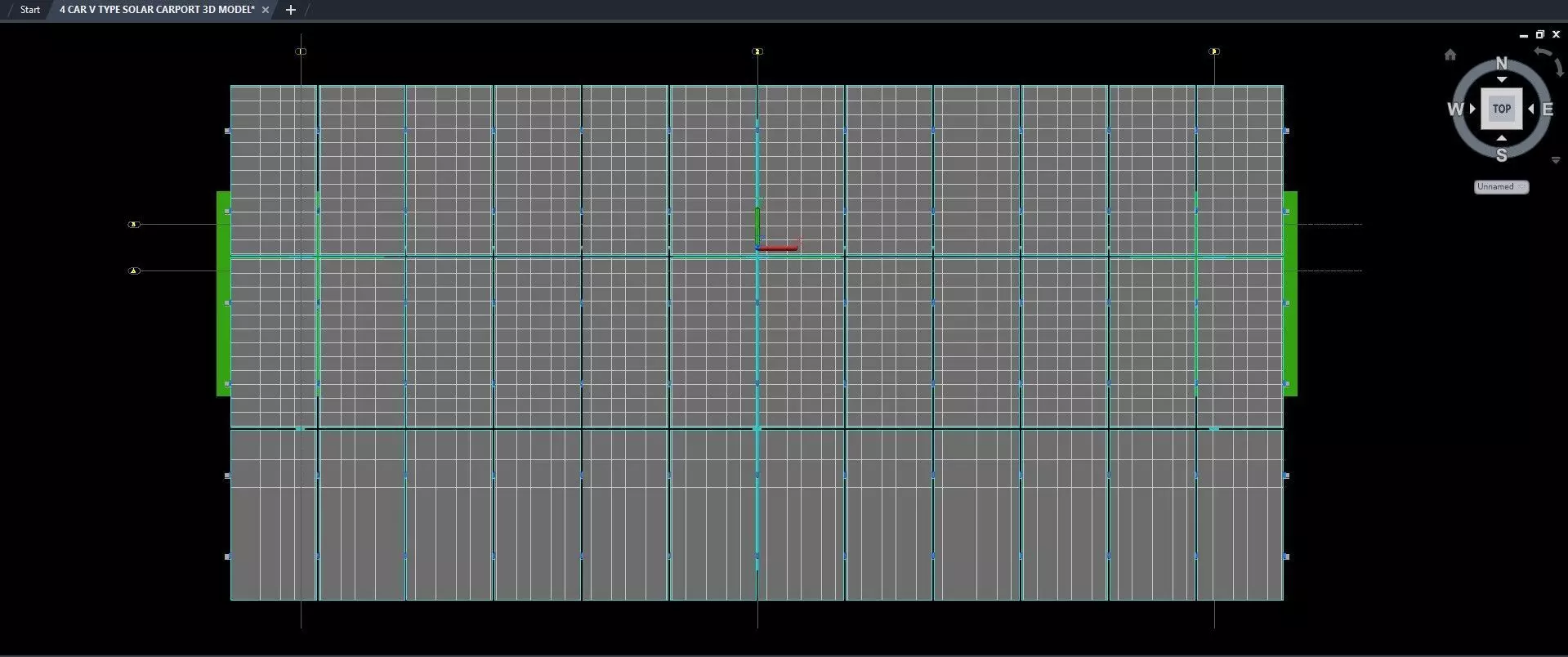

3x12 Panel Layout

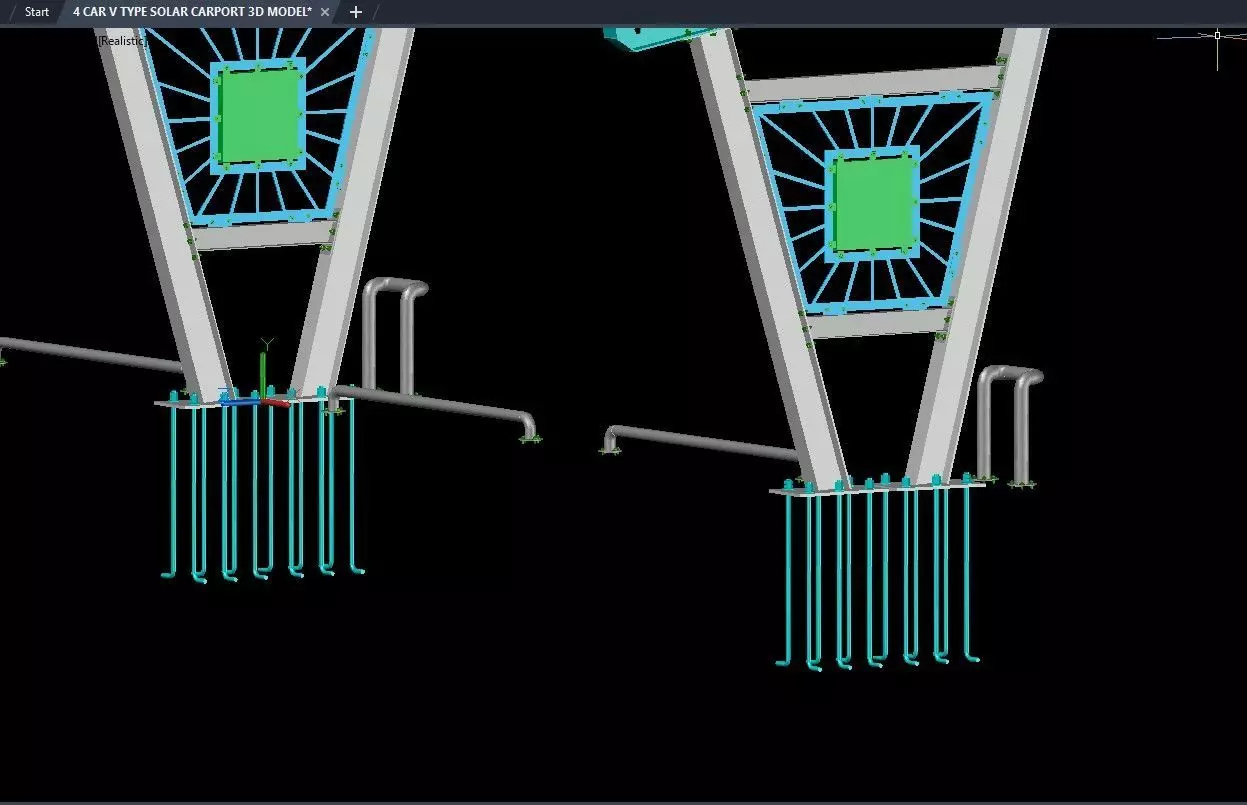

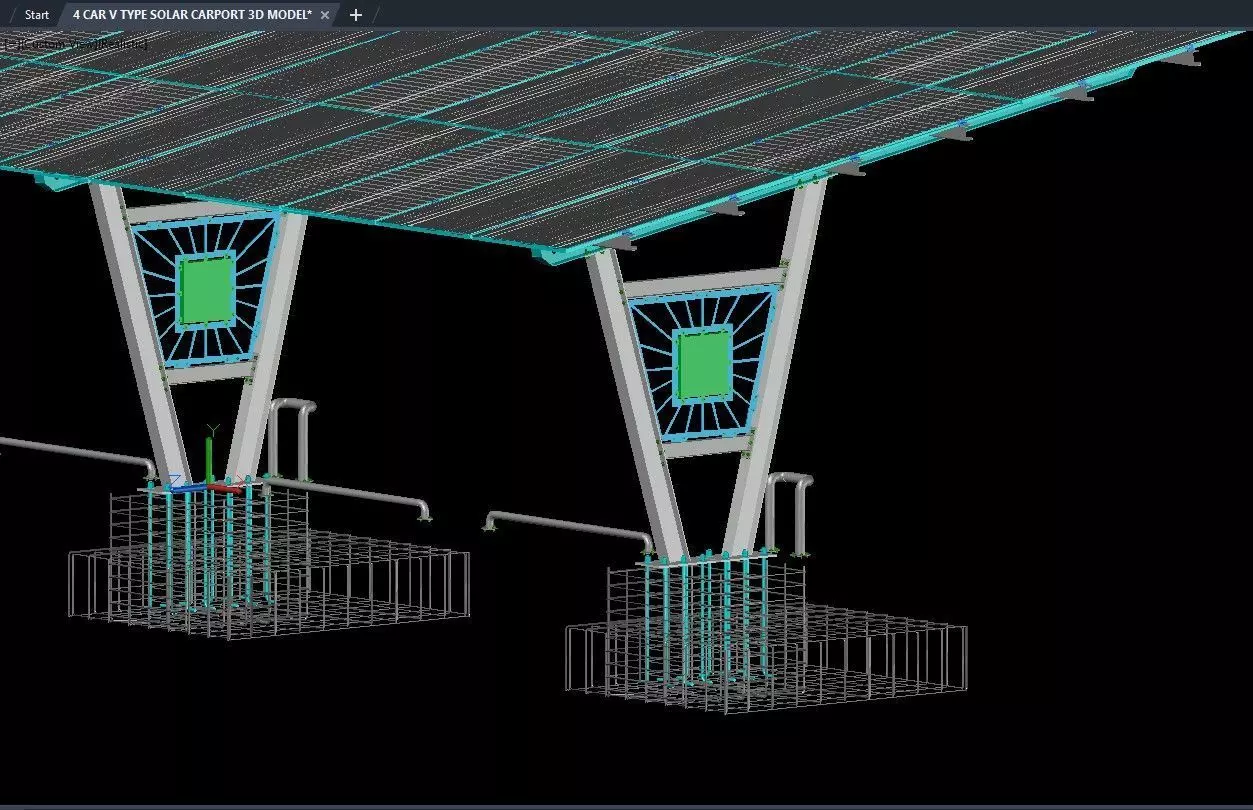

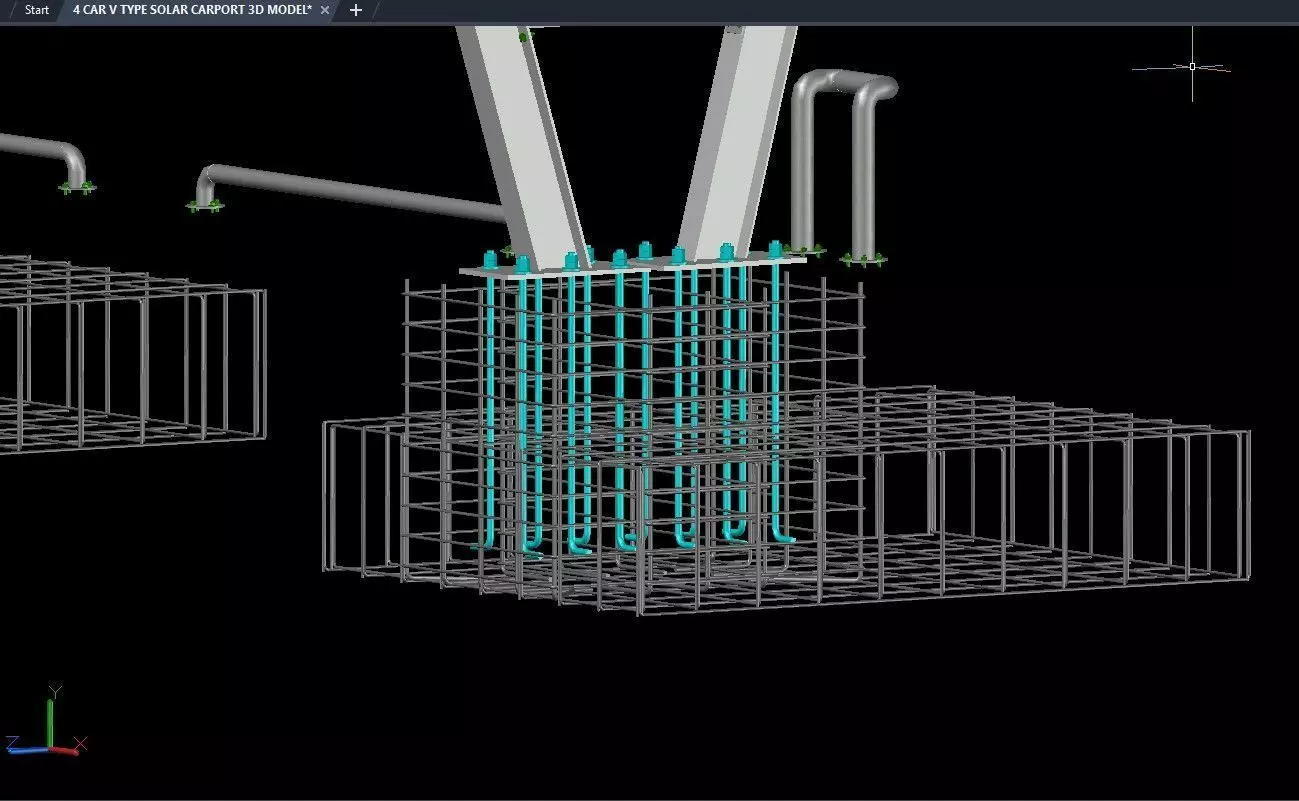

Ground Connection Type; With Anchor Plate

Bifacial Panel Dimensions : 2278 x 1134 x 35 mm

Panel Power : 590Wp

1 solar panel steel construction produces 21,24 kWp (DC) power in 1 hour

Daily energy production capacity: 127,44 kWp (DC) (over six hours of energy production per day)

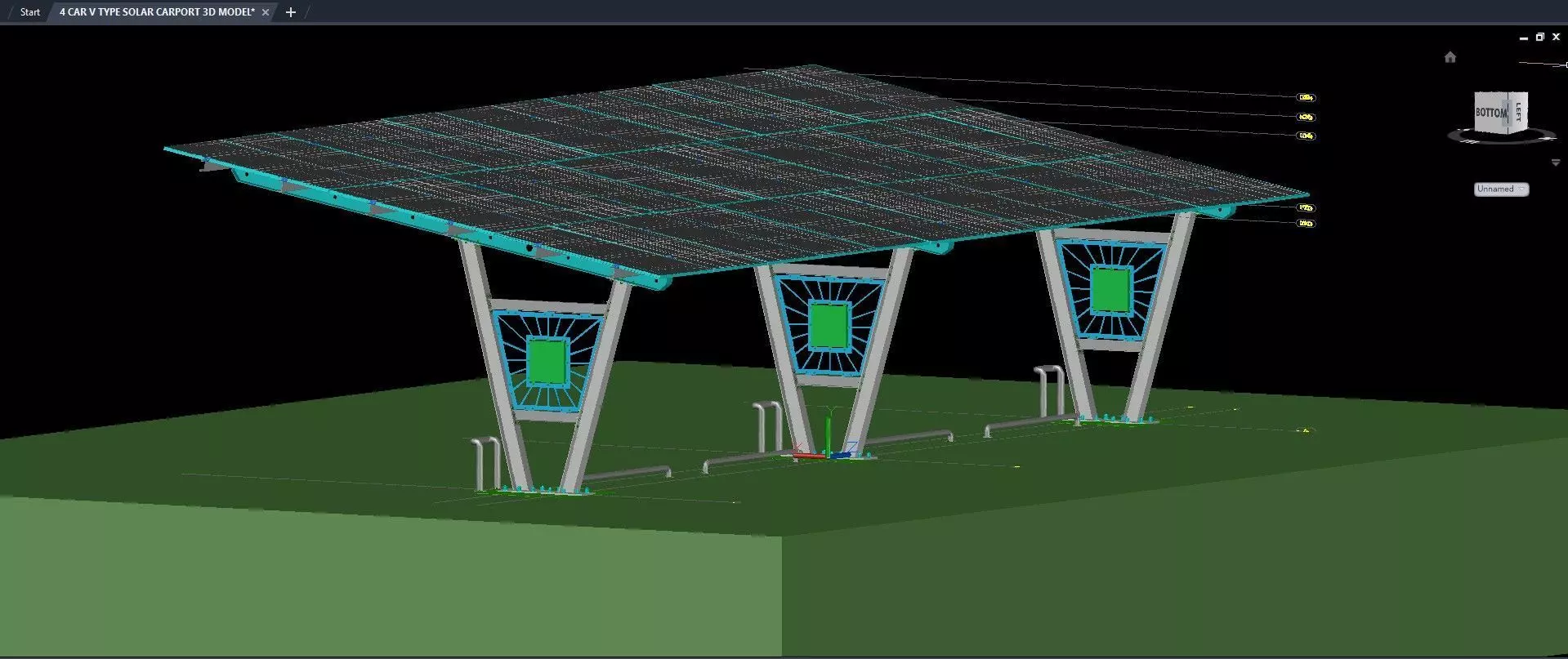

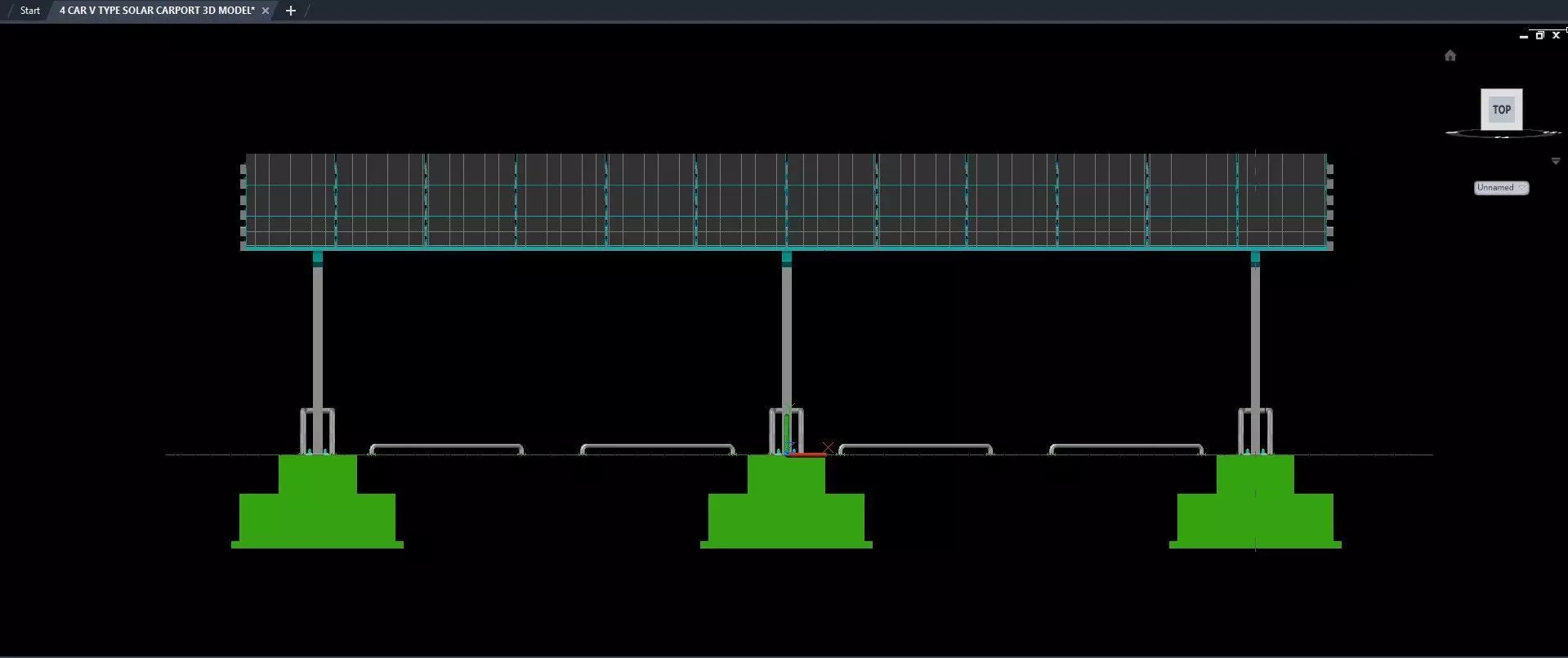

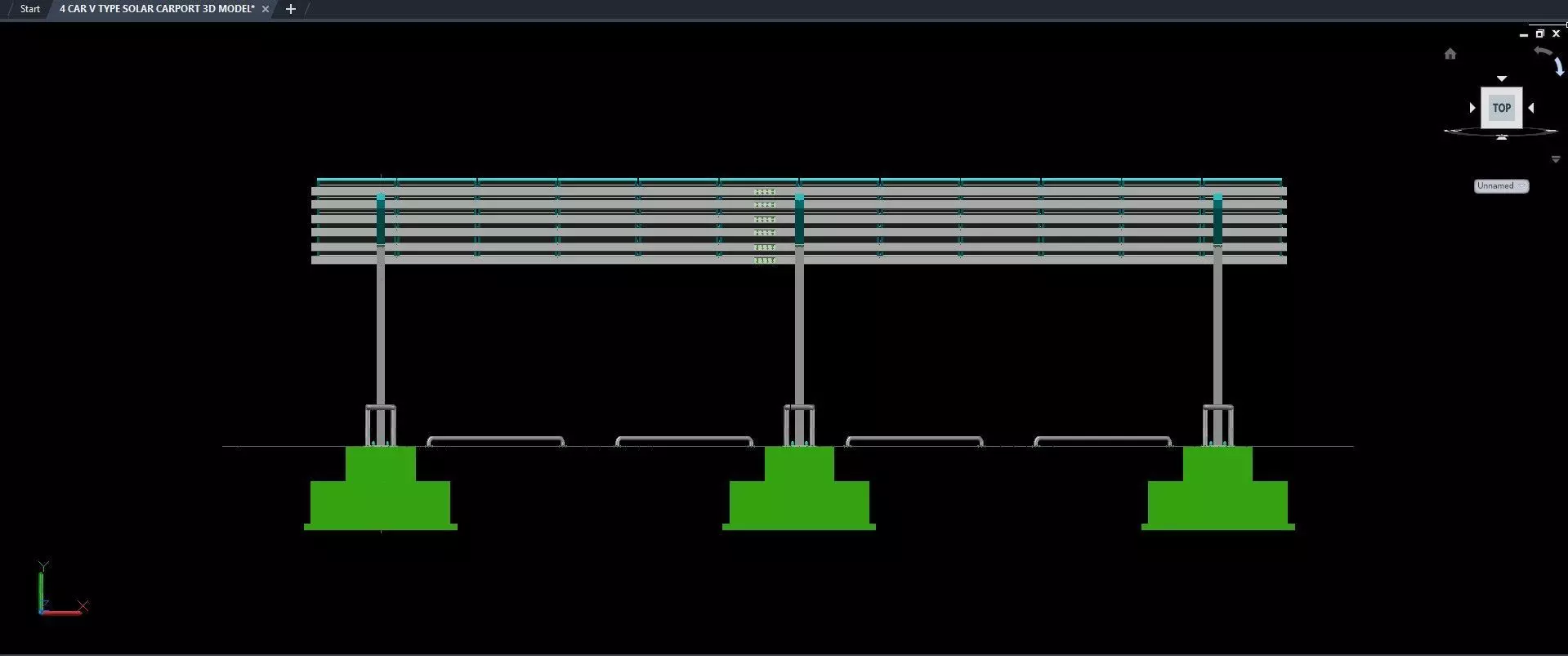

The system consists of 3 axles and the distance between each axle is 6000 mm.

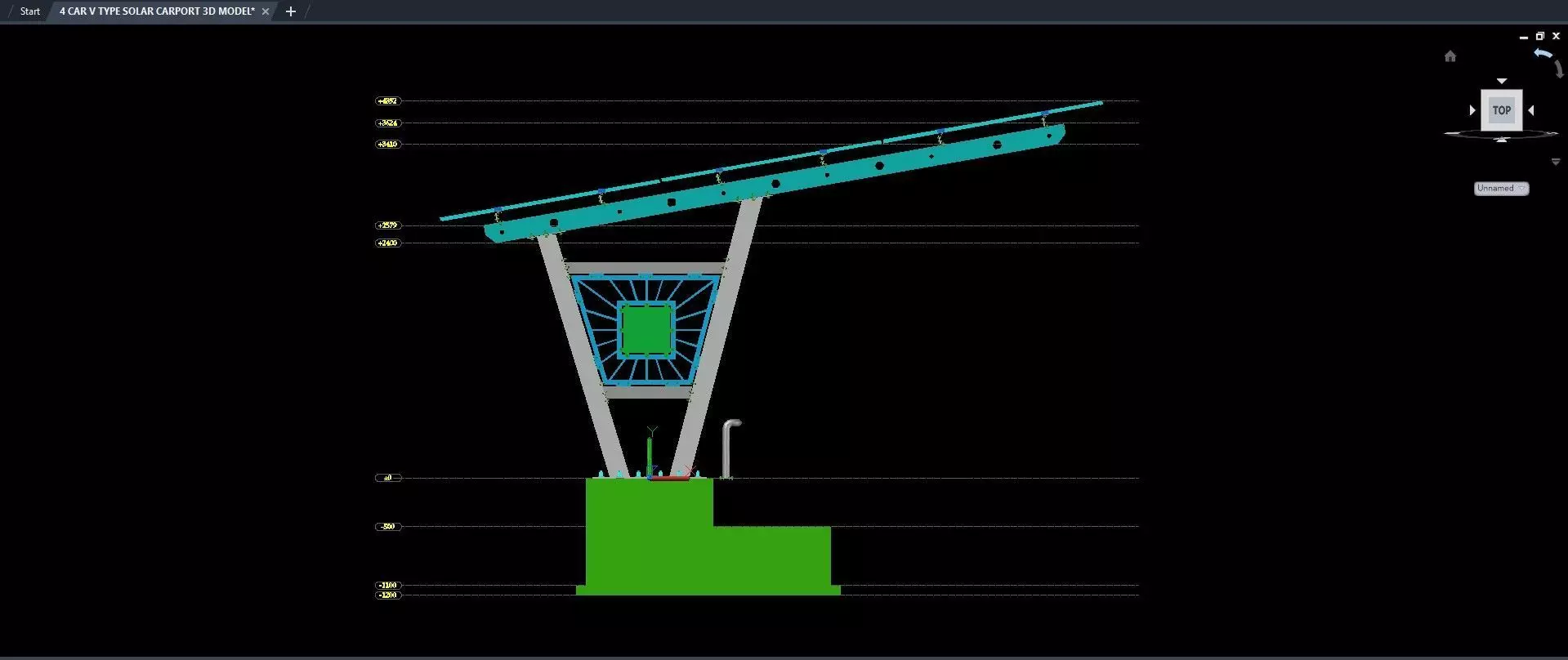

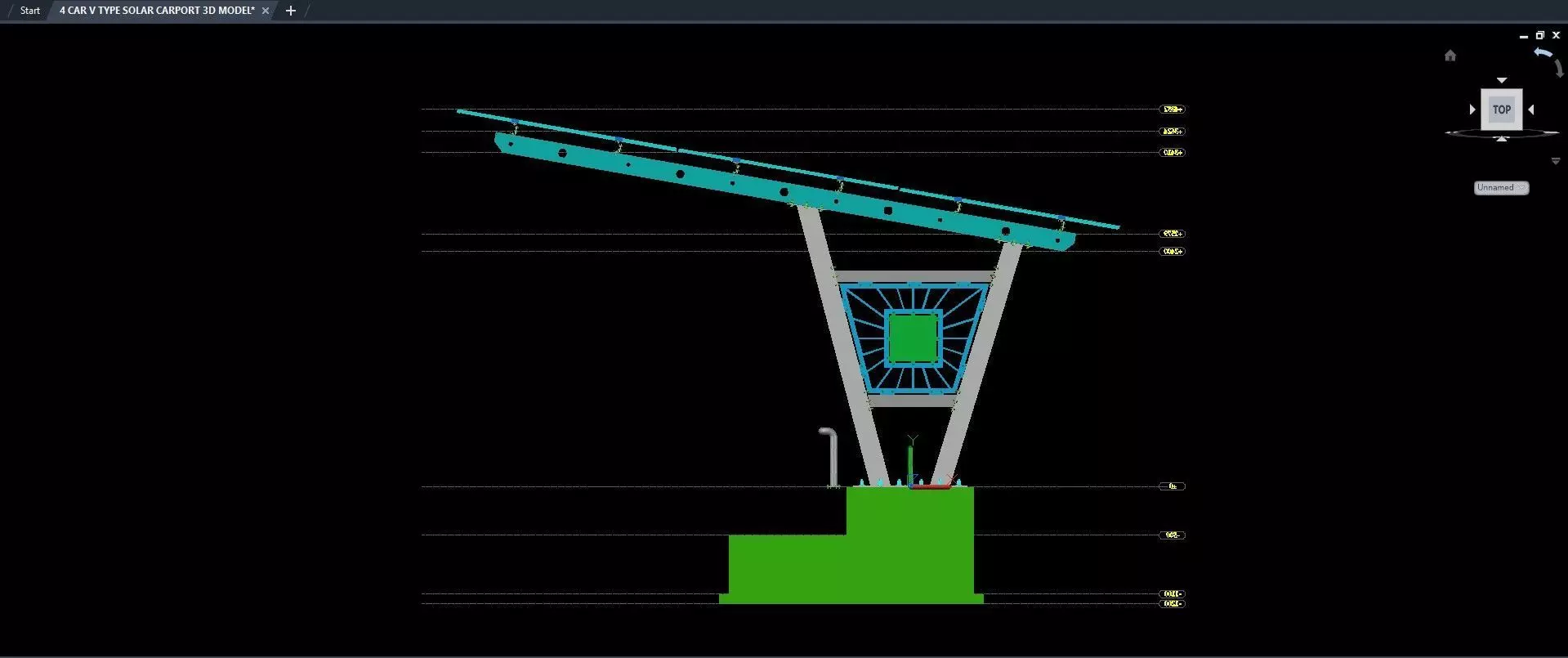

Horizantal angle of panel 10°

*.iges and *.step formats

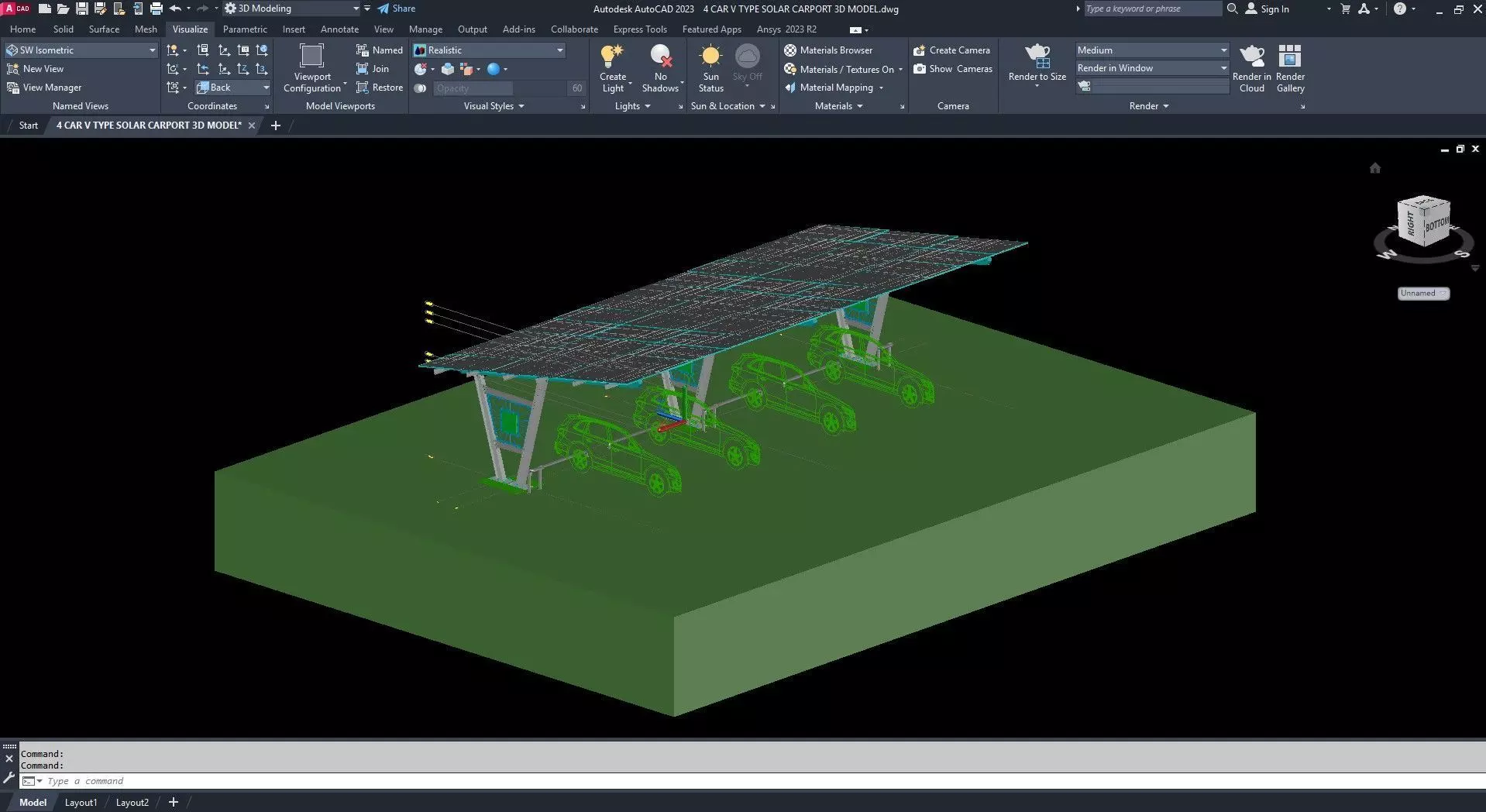

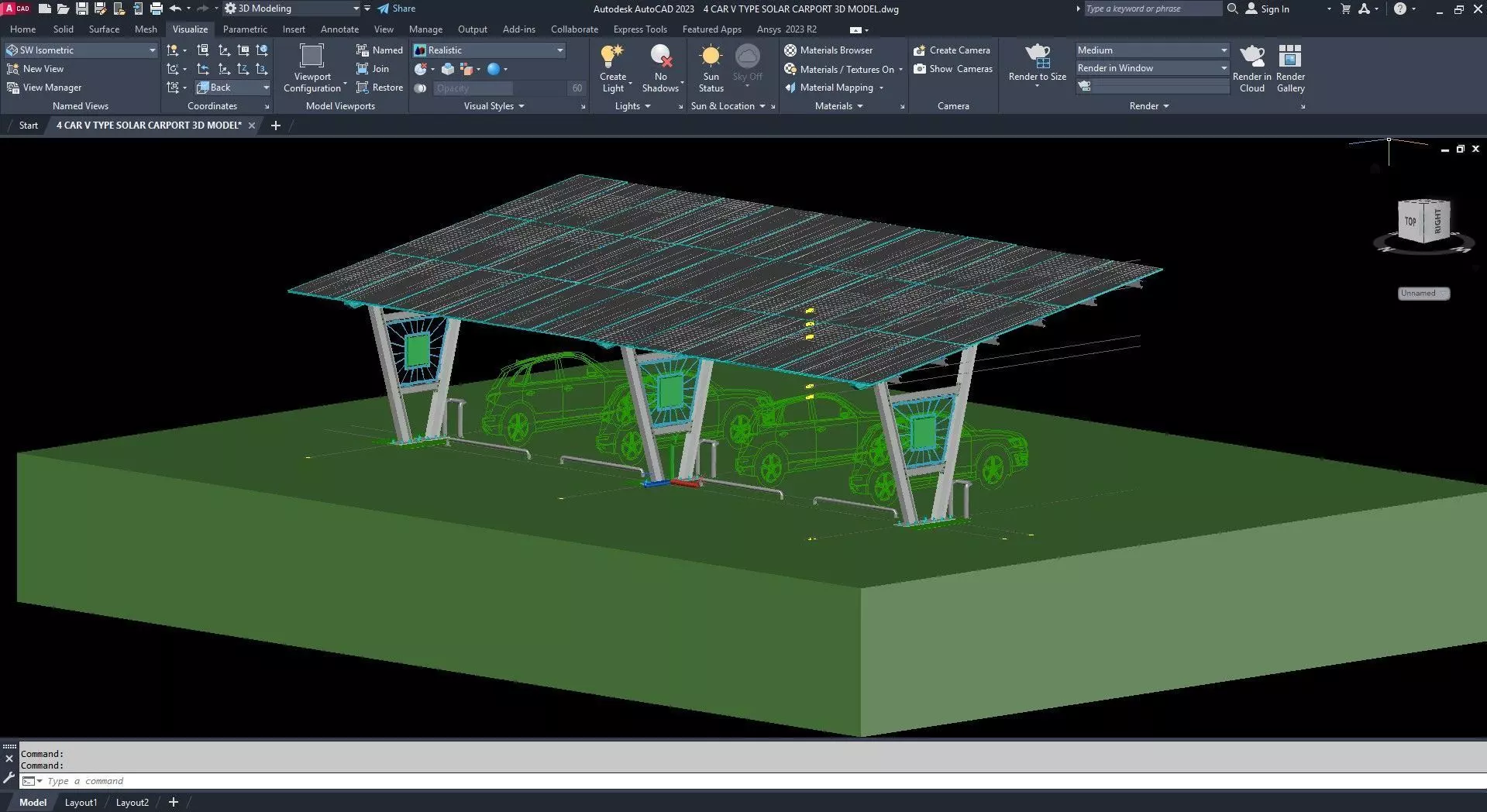

Prepared With Autocad 3D Version 2023
